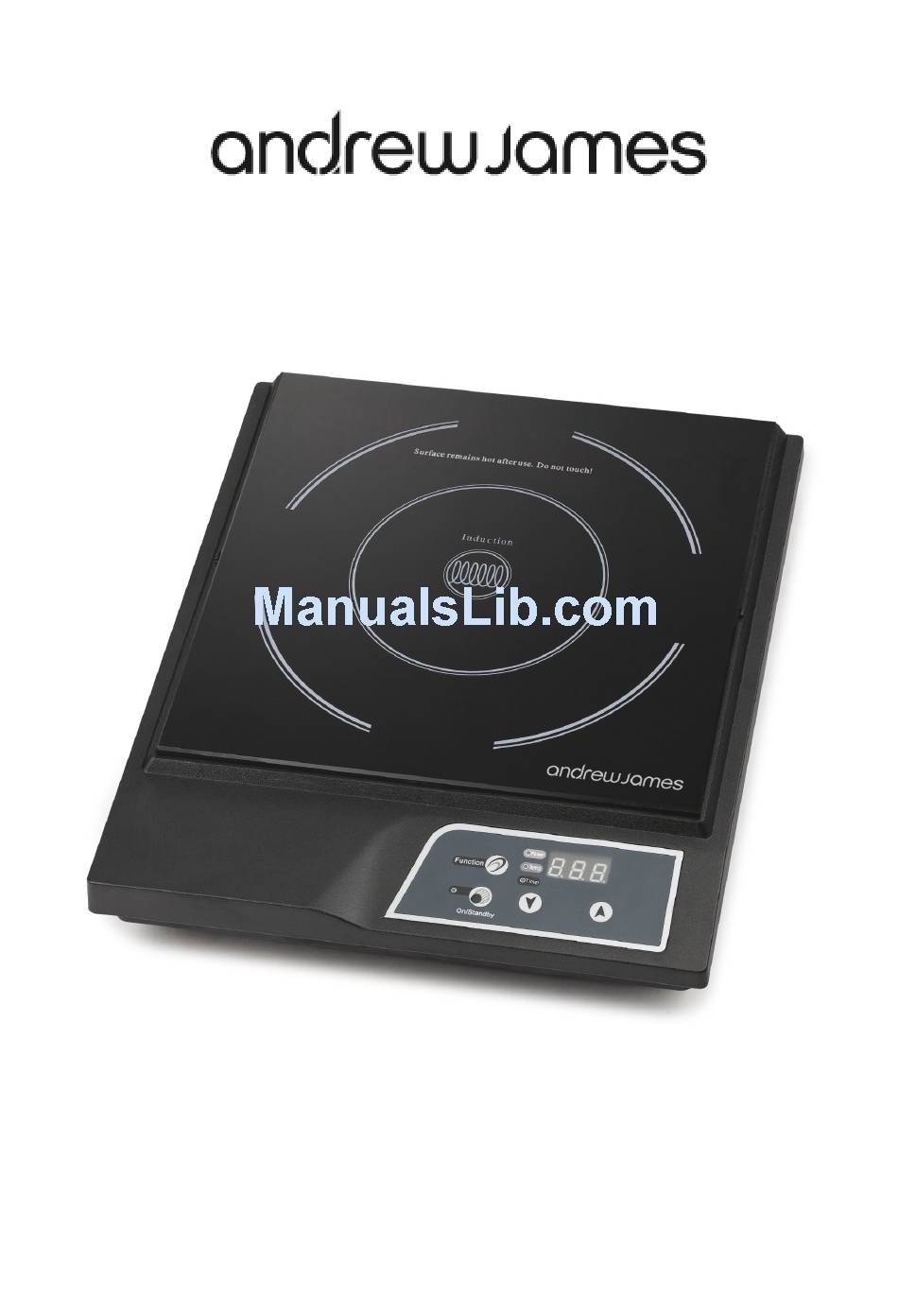

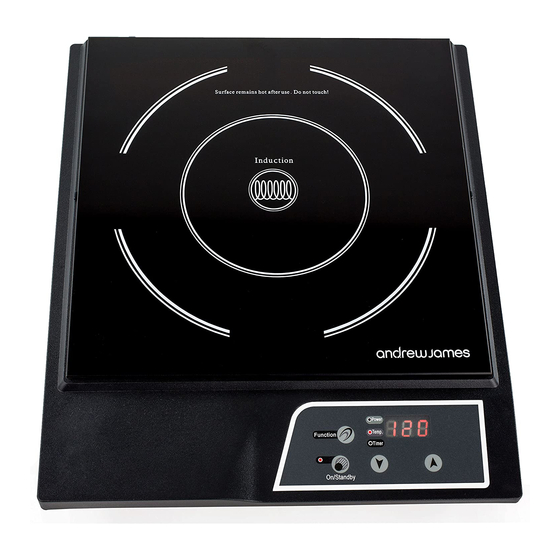

- Page 1 Single Induction Hob Please read the manual fully before using the appliance and keep the manual safe for future reference.
-
Page 2: Table Of Contents
Contents page Safety instructions Page 3 Installing the device Page 4 Commissioning the device Page Operating the device Page 5 Cleaning and Maintenance Page 6 Troubleshooting Page 8 ERP 2015 Information Page 9 Page 10 Electrical Information Page 11 Disposal of the appliance Page 12 UK &... -
Page 3: Safety Instructions
Safety Instructions When using any electrical appliance, basic safety precautions should always be followed including: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Installing The Device
place the unit on a hot surface. Always remove the plug of the appliance safely. Do not pull on the appliances cord to remove the appliance plug from the electrical socket. Never handle or operate the appliance with wet hands. Appliance specific safety instructions ... -
Page 5: Commissioning The Device Page
Commissioning the device Prior to connecting the device, check that the voltage indicated on the rating label corresponds to the voltage supply in your home. Connecting to a different voltage other than the one instructed could damage the product and lead to injury to persons. - Page 6 Press the On/Standby key once, the LED display will show “L” and the power indicator light will flash. The cooking function is now ready to be selected. (Note: if no operation is selected for 30 seconds after pressing the On/ Standby key, the indicator light will automatically turn off).
-
Page 7: Cleaning And Maintenance
If a flashing H comes up on the display of this hob, it means that the appliance is overheating. Cleaning and Maintenance Ensure that the power plug is not connected to a socket prior to cleaning the device. Do not use any caustic cleaning agents and make sure that no water penetrates the device. -
Page 8: Troubleshooting
Troubleshooting Electronic control of low voltage (<160V) Make sure the appliance is connected to the voltage indicated on the rating label. Electronic control of excess voltage Make sure the appliance is connected to (<270V) the voltage indicated on the rating label. IGBT open or short circuit Please send back to customer service. -
Page 9: Erp 2015 Information
Test method: This product is EU EPR compliant, and has passed the following test: Add 2.7 litres of water (room temperature) to a 24cm diameter pot. Set the Induc- tion Hob to the maximum power level (10). When the water is heated to 89 de- grees C, please adjust the induction cooker to the second power level. - Page 10 For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm Energy consumption per EC electric cooking 197.8 wh/kg cooking zone or area calcu- lated per kg EC electric hob 197.8 wh/kg Energy consumption for the...
-
Page 11: Electrical Information
Electrical information Please note: It is extremely important that the wires or cores in the flex are connected to the correct terminals in the plug. If the colour of the mains lead of the appliance does not correspond with the coloured markings identifying the terminals in your plug proceed as follows: ... -
Page 12: Disposal Of The Appliance
For further information please visit http://www.esc.org.uk/industry/product- safety/product-testing-screening/kitchen-appliances/ Disposal of the appliance Please note that this Andrew James product is marked with this Symbol: This means that this product must not be disposed of together with ordinary household waste, as electrical and electronic waste must be disposed of separately. -
Page 13: Uk & Eu Guarantee
UK and EU Guarantee Your new Andrew James product comes with a 24 month guarantee and a 2 year fixed warranty, effective from receipt confirmation. Your receipt or order number is required as proof of purchase date so it is imperative that you keep it safe. This guarantee only applies if the item has been used solely for the use intended, and all instructions have been followed accordingly. -
Page 14: Contact Details
Contact details Andrew James UK LTD Unit 1 P C Henderson Premises Bowburn North Industrial Estate Bowburn Co Durham DH6 5NG Customer Service / Technical Support- Telephone 0844 335 8464 Customer Service/ Technical Support Email: customerservices@andrewjamesworldwide.com Website: www.andrewjamesworldwide.com Copyright Andrew James...
