Dobiy DM6-80m User Manual

Handheld laser distance meter

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Shenzhen Dobiy Electronic Co., Ltd.

Handheld Laser

Distance Meter

Distance Beyond

DM6

Laser Distance Meter

MAX

MIN

MEASURE

TIMER

CLEAR

OFF

www.dobiy.com

Table of Contents

Need help?

Do you have a question about the DM6-80m and is the answer not in the manual?

Questions and answers

Summary of Contents for Dobiy DM6-80m

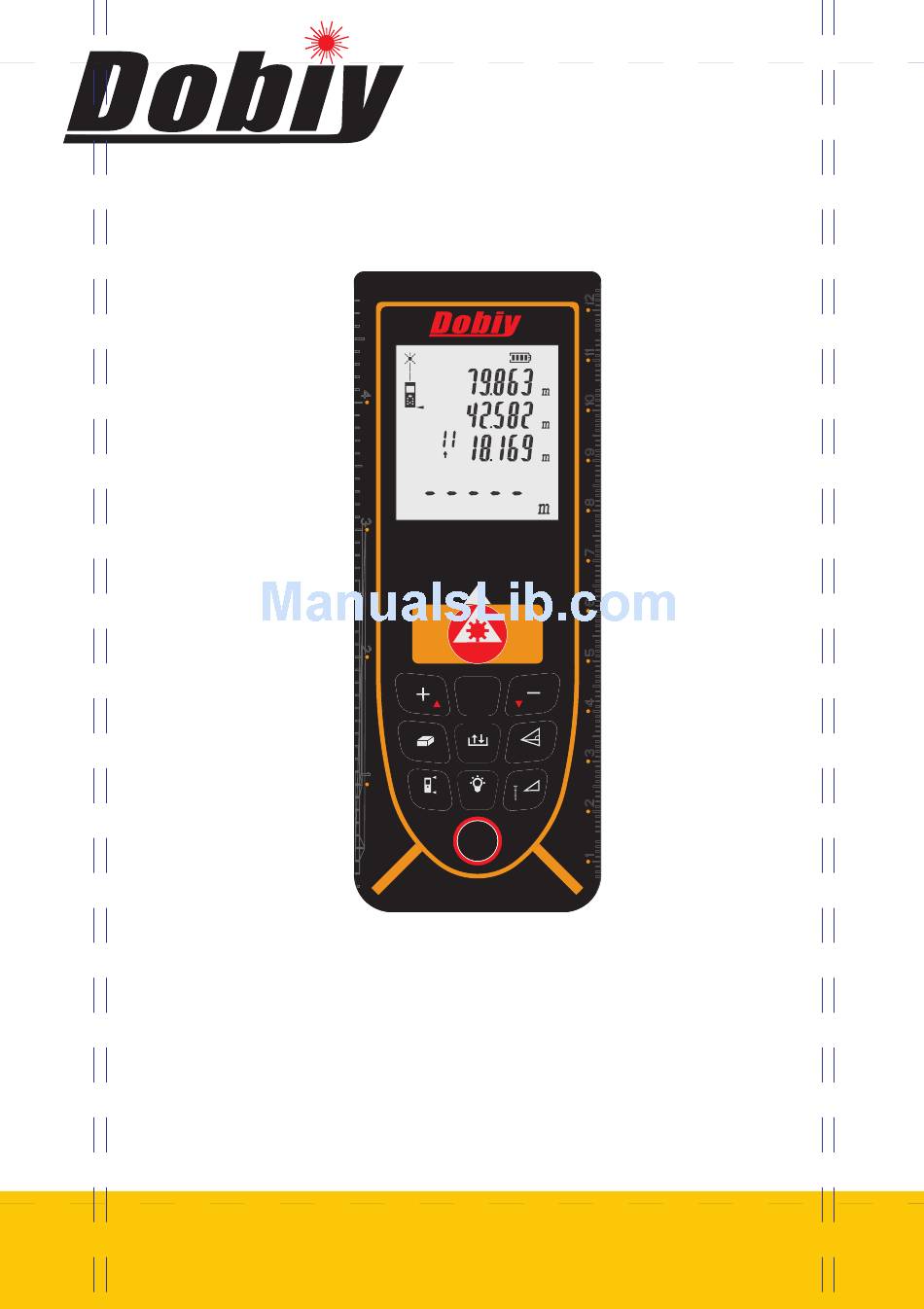

Page 1 Distance Beyond Shenzhen Dobiy Electronic Co., Ltd. Laser Distance Meter MEASURE MENU TIMER CLEAR Handheld Laser Distance Meter www.dobiy.com Shenzhen Dobiy Electronic Co., Ltd.
Page 2: Table Of Contents
Handheld Laser Distance Meter English Congratulations on the purchase of our product. Carefully read the Safety Instructions and the User Manual before using this product. The person responsible for the instrument must ensure that all users understand these directions and adhere to them.
Page 3: Safety Instructions
Safety Instructions Symbols used The symbols used in the Safety Instructions have the following meanings: WARNING: Indicates a potentially hazardous situation or an unintended use which, if not avoided, will result serious injury. CAUTION： Indicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor injury and/or in appreciable material, financial and environmental damage.
Page 4 Safety Manua...
Page 5 Limits of use See section “Technical Date”. � This product is designed for use in areas permanently habitable by humans, do not use the product in explosion hazardous areas or in aggressive environments. Areas of responsibility Responsibilities of the manufacturer of the original equipment: It is responsible for supplying the product, including the User Manual and...
Page 6 Responsibilities of the person in charge of the instrument: WARNING The person responsible for the instrument must ensure that the equipment is used in accordance with the instructions. This person is also accountable for the deployment of personnel and for their training and for the safety of the equipment when in use.
Page 7 Hazards in use measurements if the instrument is defective or if it has been dropped or has been misused or modified. Precautions: Carry out test measurements periodically. Particularly after the instrument has been subject to abnormal use, and before, during or after important measurements.
Page 8 in such a way, that in case of an erroneous measurement, malfunction of the device or power failure due to installed safety measures ( e.g. safety limit switch ), it is assured that no damage will occur. WARNING: Flat batteries must not be disposed of with household waste.Care for the environment and take them to the collecting points provided in accordance...
Page 9 to function smoothly in an environment where electromagnetic radiation and electrostatic discharges are present, and without causing electromagnetic interference to other equipment. WARNING: The product conforms to the most stringent requirements of the relevant standards and regulations. Yet, the possibility of it causing interference in other devices cannot be totally excluded.
Page 10 The distance meter produces a visible laser beam which emerges from the front of the instrument. It is a Class 2 laser product in accordance with: “Radiation safety of IEC60825-1:2007 laser products” Laser Class 2 products: Do not stare into the laser beam or direct it towards other people unnecessarily.
Page 11: Start-Up
Labeling Made in China Dobiy Electronic Co,.Ltd www.doby.com.cn AVOID EXPOSURE Laser radiation is emitted from this aperture Original laser distance meter Power: 3V nominal = / 400mA max Maximum radiant power: < 1 mW Emitted wavelength: 620-690 nm Beam divergence: 0.16x0.6 mrad...
Page 12 flashes permanently in the display. Only use alkaline batteries. Remove the batteries before any long period of non-use to avoid the. danger of corrosion. Multifunctional end-piece The instrument can be adapted for the following measuring situations: For measurements from an edge, fold out the positioning bracket until it first locks in place.Until the display shows...
Page 13 Keypad ON / DIST ( On / measuring ) 测量 MEASURE - button Plus (+) - button Minus (-) - button Area / volume - button 面积 MEASURE 体积 Indirect measurement 勾股 MENU ( Pythagoras proposition ) – button Reference - button 基准...
Page 14 Area / volume measurement Store records Showing data Showing unit Battery status 10 Hardware failure 11 Dynamic continuous measurements 12 Stake out function 13 Error operating indication Battery power Instruction Battery power is 100% Battery power is 75% Battery power is 50% Battery power is 25% Battery power is 0% Supply Standard...
Page 15: Menu Functions
Menu functions Settings The menu allows settings to be altered and permanently stored. After switching off the device or replacing the batteries, the settings are still stored unchanged. Navigation in the menu The menu allows settings to be made at the user level.
Page 16 设置 MENU 1/16 设置 MENU 清除设置 CLEAR MENU 关机 MENU 设置 Setting the unit for distance measurements button ( pressed long ) - You are in 设置 MENU . Press button to MENU change the unit of distance measurements. The following units are available: m ( meter ) , ft ( feet ), in ( inch ), ft +/ in ( feet –...
Page 17 button ( pressed long ) the instrument 设置 MENU will remember of the current state. Laser continuous Press and hold down the key when 测量 MEASURE switching on the device until the character appears permanently in the display with beep sounds.Every further press of the key releases a distance 测量...
Page 18: Operation
Operation Switching on or off Switches on the instrument and 测量 MEASURE laser. The display shows the battery symbol until the next button is pressed. Pressing this button for longer 清除 CLEAR 关机 switches the instrument off. The instrument switches off automatically after 3 minutes of inactivity.
Page 19: Measuring
Level Gauge button ( pressed long ), you are in the 设置 MENU .Then press this button again and MENU again till the menu item "LEVEL" is displayed. You could press 设置 MENU button to choose the level gauge on or off.
Page 20 Horizontal measurement Press button to activate horizontal 角度标线 measurement in the instrument. The following symbol appears in the display If the button is active, the horizontal distance is displayed in the summary line for each distance measurement ( up to max. +/- 45°and up to max.
Page 21 Minimum / maximum measurement This function allows the user to measure the minimum or maximum distance from a fixed measuring point.It can also be used as to determine spacings. It is commonly used to measure room diagonals ( maximum values ) or horizontal distances ( minimum values ) or the difference of maximum and minimum.
Page 22: Functions
Functions Addition / subtraction Distance measuring. The next measurement is added to the previous one. The next measurement is subtracted from the previous one. This process can be repeated as required, the measurement will be displayed in the summary line while the previous one displayed in the secondary line.
Page 23 Area Press once.The symbol appears in 面积体积 the display. Press this button to take the first 测量 MEASURE length measurement ( e.g. length ). Press it again to take the second 测量 MEASURE length measurement ( e.g. width ). The result is displayed in the summary line.
Page 24 shown as " ° " or " %" depending on the setting. Press to measure the inclination and 测量 MEASURE the distance.( Not including Type DM2 ) Stake out function Two different distances ( a and b ) can be entered into the instrument and can then be used to mark off defined measured lengths, e.g.
Page 25 corresponding intermediate line flash.By pressing you can adjust the values ( first a and then b ) to suit the desired stake out distances. Holding the buttons down increases the rate of change of the values.Once the desired value ( a) has been reached it can be confirmed with the button.The value 设置...
Page 26 distance ( either a or b ). As soon as the stake out point is reached the beep changes and the intermediate line starts to flash. The function can be stopped at any time by pressing the button. ( Not including 清除...
Page 27 Make sure that the first measurement and the distance to be measured are at right angle.Use the Minimum / maximum function, as explained in "Measuring -> Minimum / maximum measurement". Indirect measurement - determining a distance using 2 auxiliary measurements e.g.
Page 28 over the ideal target point. Press to stop continuous 测量 MEASURE measurement point ( 2 ). The result is displayed in the summary line, the partial results in the secondary line. ( e.g. Hypotenuse and right angle edge distance ) Function...
Page 29 Indirect measurement - determining a distance using 3 auxiliary measurements Press this button twice; the display 勾股 shows the following symbol. The laser is switched on. If the measurement is the horizontal distance, you can not measure the distance of the picture ( 2 ) .When measure the distance of picture ( 1 )you need press button to switch off the...
Page 30 measurement the value is adopted. After the measurement, if the angle sensor is turned off, keep the instrument as horizontal as possible. Press and hold down this button to 测量 MEASURE trigger continuous measurement. Sweep the laser up and down over the ideal target point ( 2 ).
Page 31 Picture (2) Storage of constants / historical storage Historical storage Press this button for long time, The 存储 icon will show on the display, and the previous 20 results ( measurements or calculated results ) are shown in reverse order. buttons can be used for navigation.
Page 32: Appendix
Appendix 备注 Message codes All message codes are displayed with either icon or"Error".The following errors can be corrected: Icon Cause Remedy Calculation error, Receiving the reflected light Reoperation, change a too weak or too better surface reflecting or strong, using target plate. Measurement time too long The goal of the...
Page 33: Technical Data
Technical Data ITEM Type DM2 Type： DM6 Measuring range 0.05 to 80 M * 0.05 to 60 M * Measuring accuracy Typical ± 2 mm ** Typical ± 2 mm ** Display accuracy 1 mm 1 mm Laser classification Class 2M II Class 2M II Laser type 620-690nm, ﹤1mW...
Page 34 good conditions ( good measurement surface, room temperature ).Under adverse measuring conditions, such as the light is too strong, the measured surface reflective weakly or the temperature difference is too large, or the deviation over distance above 10m will increase on ±0.2 mm/m. Measuring conditions Measuring range The range of DM60 is limited to 80 m.
Page 35 Handle the instrument as a camera or telescope. Warranty The instrument comes with a two year warranty from DOBIY. This effective prerequisite of the warranty is as follows: You should operating instructions, handling, processing, cleaning and maintaining this instrument, according...
Page 36 Shenzhen Dobiy Electronic Co., Ltd. Zone B, 5th Floor, Longsheng Commercial Building, Heping West Road, Big Wave Street, Longhua Town, Bao An District, Shenzhen (518000) CHINA Tel: +86-755-28896960 Fax： +86-755-27523331 www.doby-lasers.com...
