Summary of Contents for Advansus EEC410 Series

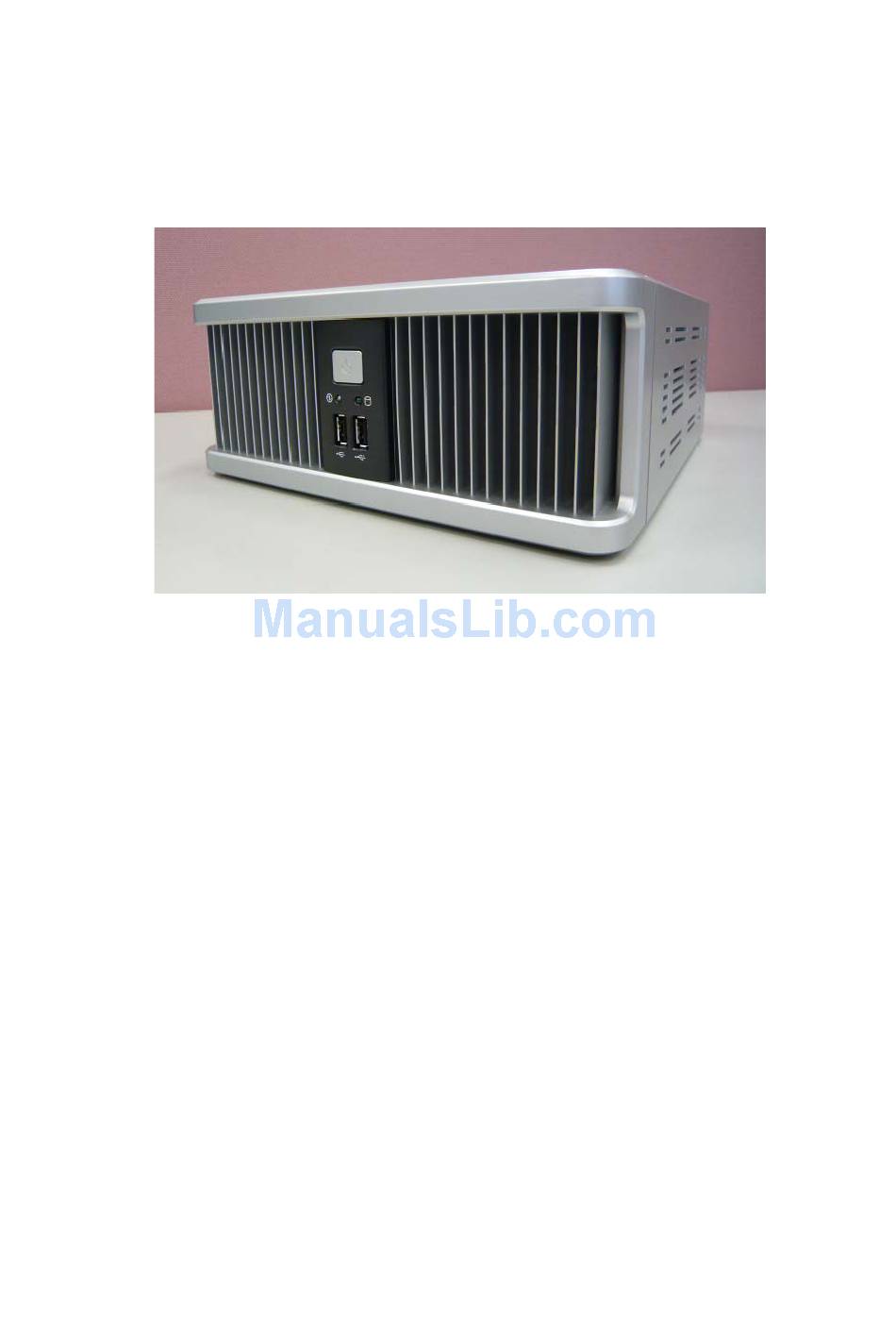

  • Page 1 EEC410 Series...
  • Page 2 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Chapter 1 1.1 Packing List ........................4 1.2 Specification ........................4 1.2.1 System Specification ..................... 4 1.3 System View........................5 1.3.1 Front view ......................5 1.3.2 Rear view....................... 5 1.3.3 Dimension......................5 1.4 Connector Panels ......................7 1.4.1 Front Connector Panel ..................7 1.4.2 Rear Connector Panel ...................

  • Page 4: Packing List

    1.2 Specification 1.2.1 System Specification • Mini-ITX System • Advansus Mini-ITX MB: iQ965-CI, i965GM-DCQI Mini-ITX Main Board. • Scalable with more Mini-ITX MB Options • Support mobile and desktop CPUs up to Intel® Core 2 Quad Series • 5.1+2-CH Dual Audio Streams, with 6W Audio Amplifier •...

  • Page 5: System View

    EEC410 Series 1.3 System View 1.3.1 Front view 1.3.2 Rear view(It may vary in different MBs) 1.3.3 Dimension Dimensions System Dimensions(without mounting kit)
  • Page 6 EEC410 Series Dimensions System Dimensions(with mounting kit) Outside Dimension：L356xW340xH195 Carton Dimensions...

  • Page 7: Connector Panels

    EEC410 Series 1.4 Connector Panels 1.4.1 Front Connector Panel Function Description ATX Power Button ATX power switch function. System Power LED System power LED lights up when the system power is on, and blinks when the system is in sleep mode.
  • Page 8 EEC410 Series Function Description TOP: LAN (RJ-45) connector TOP: This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications. The optional 10/100 Mbps LAN controller allows 10/100 Mbps connection to a Local Area Network (LAN) through a network hub.

  • Page 9: System Assembly

    EEC410 Series Chapter 2 Assembly 2.1 System Assembly 2.1.1 Installing Front IO Board 1. Install Front IO cable to Front IO board.. 2. Whit dot indicates pin 1. 3. Assemble Front IO Board to front bezel. 4. Fix the board by 4 screws.

  • Page 10: Installing Io Shield And Motherboard

    2.1.2 Installing IO shield and motherboard 1. Fix cooler bracket to MB(IQ965-CI) bottom side and install cooler from MB top side. 2. For other Advansus MBs(i965GM-DCQI and/or others), cooler can be fixed by 4 screws from MB bottom side. Lower cover...
  • Page 11 EEC410 Series Front Panel Connector (FPANEL1)/ Header locations may vary in different MBs. This connector supports several chassis-mounted functions. Pin Definition IQ965-CI I965GM-DCQI USB 2.0 Connector (USBB1)/ Header locations may vary in different MBs. These connectors are for USB 2.0 ports. Connect the USB/GAME module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis.

  • Page 12: Installing System Fan

    EEC410 Series 2.1.3 Installing System Fan 6. Fix system fan to fan bracket. 7. System fan location. 8. Fix system fan and connect fan cable to MB. Fan connector locations may vary in different MBs 2.1.4 Installing Power Supply Unit 1.

  • Page 13: Installing Pci/Pci-E Card

    EEC410 Series 2.1.5 Installing PCI/PCI-E Riser Card 1. Fix 2 standoffs to PCI/PCI-E Riser card as picture shown. 2. Plug in the riser card to MB and assemble card module to system as picture shown. 3. Fix card module from out side by 2 screws.

  • Page 14: Installing Hdd

    EEC410 Series 2.1.6 Installing HDD 1. Fix HDD to HDD bracket. 2. Connect HDD cable and install HDD module to system as picture shown. 2.1.7 Installing CF card(Optional) 1. Open lower cover to install CF card(I965GM-DCQI). 2.1.8 Final Assembly 1. Close the upper case and...
