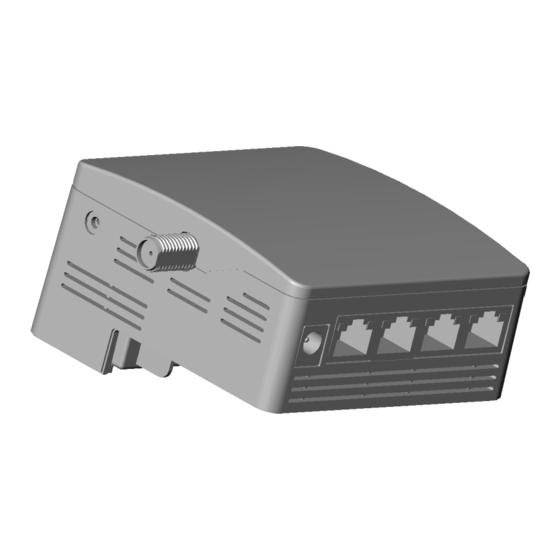

    introduction This is the user guide for the DKTCOMEGA 7973x/794xx JUMA/Forsete-II Series CPE. The series include the following variants: - 79734 – 1x 10/100/1000Mbps RJ-45 - 79741 – 4x 10/100/1000Mbps RJ-45, SNMP - 79742 – 4x 10/100/1000Mbps RJ-45, SNMP, CATV The user guide includes explaination of features supported from firmware revision 05_02.

  • Page 3: The Boot Process Of The Cpe Node

    the boot process of the cpe node Boot start-up procedure: • The first time that the device boots, it issues a DHCP Discover with dhcp option 60 set to DKT_F2_firstboot. The firmware can be downloaded to the unit. • Alternatively if firmware is present in the device, the device issues a dhcp request with dhcp option 60 set to DKT_F2_firmware_vXX_XX (where XX_XX is the version number of the firmware).

  • Page 4: Dhcp Settings

    dhcp settings The CPE requires a dhcp server connected to the fiber WAN port before power on. Please refer to Appendix 3 – DHCP Settings for example of DHCP settings 1) The device requests in its Uboot DHCP discoverer: Option: 1, 3 2) DHCP Server offers in its response: Option: 53, 54, 51, 1, 3...

  • Page 5: Custom Configuration

    3) CPE requests in its LINUX Boot-up process, where configuration file is requested: Option: 1, 3, 6, 12, 43, 54, 66, 67 - Please make sure that DHCP Server responds to these option re- quests, as it will influence on the booting sequence, if these are not correctly answered, and may cause inproper booting of the device.
  • Page 6 An example of a configuration file could be the following: #################################################################### # DKT configuration # Firmware version: XX_XX #################################################################### switch --enable-lan # enable LAN ports # Example, how to create 4 VLANs, egress tagged on WAN and untagged on all LANs conf vlan init conf vlan create vlan-table vid 100 conf vlan create vlan-table vid 200...

  • Page 7: Device Script Command

    device script commands The following commands are supported in the script that will be downloaded to the CPE via TFTP during boot-up process. This command is used to configure the switch in the unit. The command takes one or more of the following parameters, with the syntax switch --nn or conf xx.

  • Page 8: Reboot

    reboot The device can be accessed via TELNET, and is rebooted with the use of “reboot” command. TELNET ac- cess must however be configured in the configuration file. # The following command enables TELNET access from WAN telnetd -l /bin/sh save configuration to flash Per default device configuration is provisioned via DHCP at boot, and it will be stored in device RAM memory, which means that the device would need to have the configuration loaded at every boot.

  • Page 10: Support For Ssh

    support for ssh Please note that support for SSH is available for all DKTCOMEGA CPE platforms except HW revision “FE1 0” or earlier. HW revision can found via SNMP OID -.1.3.6.1.4.1.27304.10.1.0 Alternatively with DKT-GENERIC-MIB::hwVersion.0 HW with values of “ERROR” or “FE1 0” do not support SSH. In order to have SSH support, please insert the following command in the configuration script: # SSH daemon is started with the following command /etc/init.d/sshd start...
  • Page 11 The sshd script automatically restores password- and SSH key files from flash before the SSH daemon is started. Procedure for changing SSH password on all CPE units. If password for Administrator is to be changed for all CPE’s do the following: 1) Log into one CPE via ssh 2) change user to root with command cd /etc...

  • Page 12: Configuration Of Snmp Values

    configuration of snmp values SNMP feature will be supported in a future release. The following SNMP values can be set by the configuration file: SysContact the administrate contact for the network echo “syscontact techsupport@example.com” >> /etc/snmp/snmpd.local.conf SysLocation for the location of the system echo “syslocation somewhere”...
