Summary of Contents for RFM SNAP2411

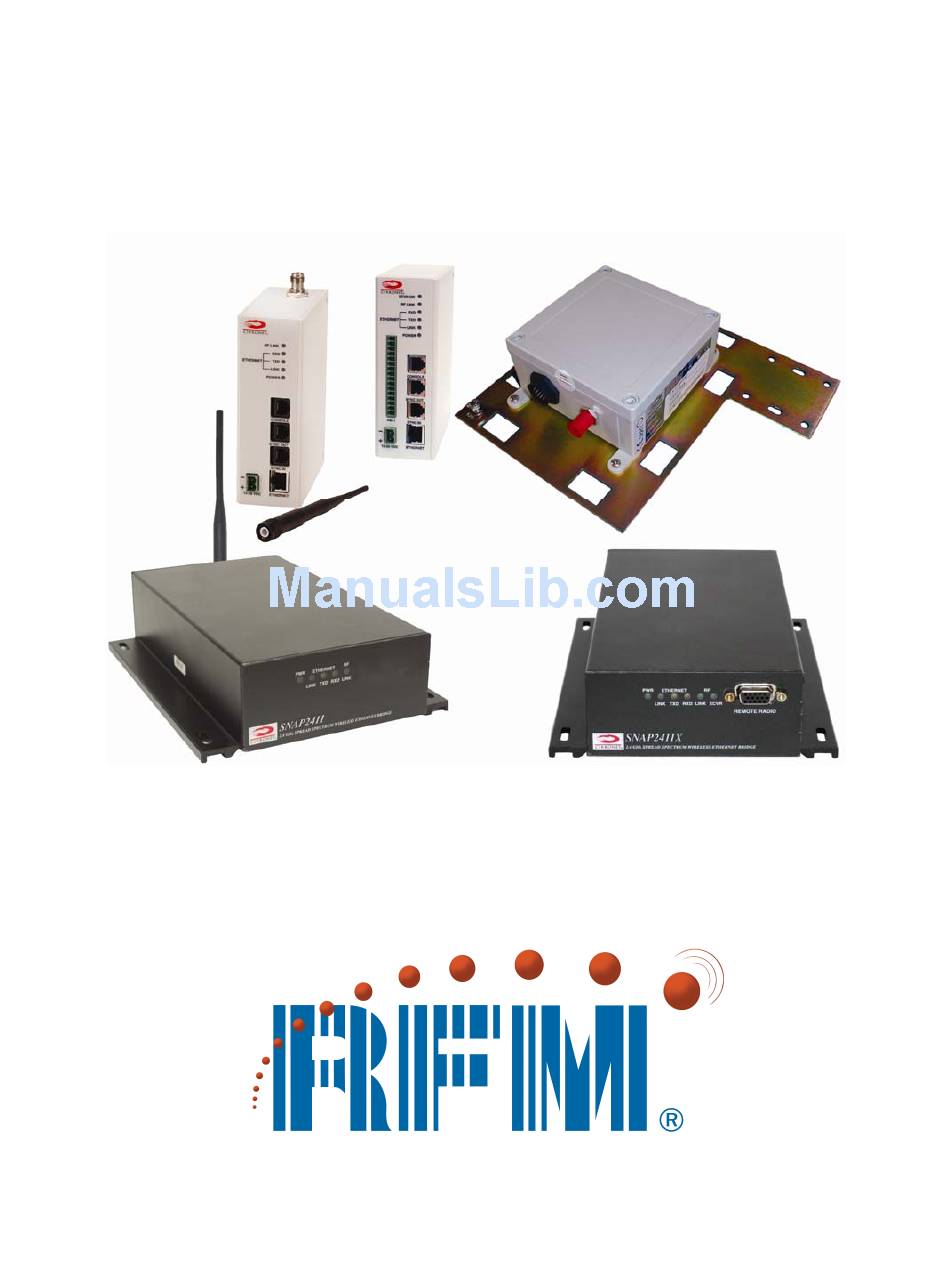

- Page 1 SNAP2411 /X /D /DX Spread Spectrum Network Access Point Installation Guide...
- Page 2 Important Regulatory Information Cirronet Product FCC ID: HSW-2411 IC 4492A-2411 Note: This unit has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Declaration Of Conformity
Declaration of Conformity Warning! The RLAN transceiver within this device uses a band of frequencies that are not completely harmonized within the European Community. Before using, please read the European Operation Section of the Products User’s Guide for limitations. 0889 is the identification number of RADIO FREQUENCY INVESTIGATION LTD - Ewhurst Park, Ramsdell RG26 5RQ Basingstoke, United Kingdom –... - Page 4 For our Customers who wish to use this product in hazardous locations. This SNAP2411 has been tested by Underwriters Laboratories Inc. for use in Class I, Division 2, Groups A, B, C, and D Hazardous Locations as specified in UL1604 and UL/C- UL/Zones(UL2279).
-
Page 5: Table Of Contents
Table of Contents Introduction ........................1 Getting Started ........................ 2 SNAP2411 ........................3 SNAP Status Indicators....................4 SNAP2411X ........................5 Attaching the Data/Power Cable Connector..............7 SNAP2411D........................8 SNAP Status Indicators....................9 SNAP2411DX ....................... 10 Attaching the Data/Power Cable Connector............... 11 Configuring the SNAP .................... - Page 6 SNAP System Commands ..................39 Ethernet Commands ....................39 SNAP Radio Commands.................... 39 Radio Commands....................... 40 TCP Commands......................40 Appendix a........................43 Specifications ........................ 45 Warranty........................46...
-
Page 7: Introduction
WIT2411 transceivers. The SNAP2411 allows non-Ethernet serial devices to appear as Ethernet devices to network-based applications. Each SNAP2411 can support 60 simultaneous remotes. Each remote radio has a unique ID number, so the number of remotes that can communicate with a SNAP is unlimited, subject to a limit of 60 remotes at any one time. -
Page 8: Getting Started
SNAP2411 GETTING STARTED The SNAP2411 is easy to install and operate. In most instances, the only installation steps will be setting IP addresses and connecting the antenna, power and Ethernet cable. Setting up a SNAP2411 requires the following steps: • Enter an IP address into the SNAP •... -
Page 9: Snap2411
SNAP2411 SNAP2411 Figures 1 and 2 identify the various connectors and indicators of the SNAP2411. ETHERNET LINK TXD RXD LINK SNAP2411 Figure 1. SNAP2411 Front Panel Diagram DC IN CONSOLE SYNC IN SYNC OUT ETHERNET RF OUT Figure 2. SNAP2411 Rear Panel Diagram The antenna connector is a reverse polarity TNC type connector. -
Page 10: Snap Status Indicators
SNAP2411 The synchronizing signals are provided for special applications where multiple master SNAPs are employed. The synchronizing signals are RS-485 levels and may be connected using an RJ- 11 connector. SNAPs will automatically determine which SNAP will generate the sync signal. -
Page 11: Snap2411X
SNAP2411 SNAP2411X Figures 3 and 4 show the various connectors and LEDs of the SNAP2411X. Figure 5 illustrates the remote radio assembly. Connection between the SNAP2411X enclosure and the remote radio assembly is made through the 15-pin remote radio connector on the front of the SNAP2411X. - Page 12 SNAP2411 Mounting Strap Holes (8) Antenna Mounting Holes (6) Data/Power RF Connector Connector Figure 5. Remote Radio Assembly Note that the remote radio assembly should be mounted on a tower or building top oriented as in Figure 5. It is important that the RF connector on the remote radio assembly point to the ground to avoid any issues with rain water.
-
Page 13: Attaching The Data/Power Cable Connector
SNAP2411 Attaching the Data/Power Cable Connector The figure below shows the pin numbering of the Data/Power connector. The view provided is looking into the side of the connector into which the pins will be inserted. The cable pins are installed by choosing the appropriate conductor color and connector hole location and inserting the pin into the hole until it “clicks”... -
Page 14: Snap2411D
SNAP2411 SNAP2411D Figure 6 shows the SNAP2411D with a closeup of the Status Indicators. Figure 6. SNAP2411D The antenna connector is a reverse polarity TNC type connector. An antenna may be connected directly to this connector. Alternatively, an antenna may be located away from the SNAP using RF cable to connect the SNAP to the antenna. -
Page 15: Snap Status Indicators
SNAP2411 preventing configuration through a telnet session. See the section Configuring the SNAP for details of using this port. SNAP Status Indicators The PWR indicator on the front panel indicates that power is applied to the SNAP. A flashing LED indicates the SNAP is executing the built-in memory test. -
Page 16: Snap2411Dx
SNAP2411 SNAP2411DX Figure 7 shows the SNAP2411DX and the remote radio assembly. Connection between the SNAP2411X enclosure and the remote radio assembly is made through the 15-pin remote radio connector on the front of the SNAP2411X. Digital signals, rather than RF signals are sent over the connecting cable which may be up to 300 feet in length. -
Page 17: Attaching The Data/Power Cable Connector
SNAP2411 The Console port is an RS-232 serial port that may be used to configure the SNAP. Connection to this port is made with the 9-pin to RJ-11 serial cable included with the SNAP. This is useful when the default IP address of the SNAP cannot be used with the existing network preventing configuration through a telnet session. - Page 18 SNAP2411 If a pin is accidentally installed in the wrong connector location, simply loosen the screw, remove the pin, re-insert it into the proper location hole and tighten the screw. Use the following color code to insert the pins into the connector:...
-
Page 19: Configuring The Snap
SNAP2411 CONFIGURING THE SNAP SNAPs are shipped from the factory with no IP address, no DNS address and no route or gateway address specified. If a BOOTP or DHCP server is not present an IP address must be assigned to the access point before connecting it to a network. To allow IP traffic to leave the... -
Page 20: European Union Settings
The transmit power of the SNAP2411 in the default mode is 18dBm. Thus the supplied antenna meets the EU limit. If gain antennas are to be used, the low power setting of the SNAP2411 must be selected. This setting sets the transmit power at the antenna connector to 10dBm. In this setting a maximum of 10dB of antenna gain may be used. - Page 21 SNAP2411 This parameter will take effect immediately and will be saved into memory for use when power is cycled. © 2000- 2004 Cirronet™ Inc M-2411-0012 Rev -...
-
Page 22: Snapcom Utility
SNAP2411 SNAPCOM UTILITY SNAPCom is a simple TCP/UDP utility program to help familiarize the user with the SNAP and its operation. SNAPCom can be executed off the CD or copied onto a PC. There is no need to install the program. SNAPCom is not a configuration utility and assumes the SNAP has previously been configured using WinSNAP and/or a telnet session. -
Page 23: Tcp Server Operation
SNAP2411 SNAPCom window. A Transmit button will appear only when a socket has been established with a remote device. Data can be sent to the remote by entering the data in the Transmit Information window and clicking on Transmit. When multiple remotes have opened sockets with SNAPCom, specific remotes can be selected for transmission by selecting their IP address from the pop-down IP address menu. -
Page 24: Udp Operation
SNAP2411 UDP Operation UDP is a “connection-less” protocol that requires no handshaking between devices before transmitting data. As such, there is no verification through the UDP protocol that a transmission was successfully received. The benefit of UDP is the simplified protocol stack that is needed to implement it. - Page 25 SNAP2411 Received data will be displayed in the main SNAPCom window. © 2000- 2004 Cirronet™ Inc M-2411-0012 Rev -...
-
Page 26: Snap Operation
SNAP2411 SNAP OPERATION Overview At the most basic level, SNAPs can be thought of as Ethernet-to-serial interface adapters. That is, they take data from a host application over a 10/100BaseT Ethernet connection, remove the Ethernet header information, format the data for WIT2411 radios and transmit the data to the on- board WIT2411 through a high-speed serial interface. -
Page 27: Synchronization
SNAP2411 Synchronization Synchronization is only required when multiple SNAPs are co-located. This allows the co- located SNAPs to transmit at the same time and listen to remotes at the same time. This reduces interference between SNAPs that would occur if one SNAP was transmitting when a co-located SNAP was listening to remotes. -
Page 28: Snap System Commands
SNAP2411 SNAP System Commands The SNAP supports a series of commands that allow for configuring the Ethernet interface as well as the radio parameters of the on-board WIT2411. These commands can be entered during a telnet session or by using the WinSNAP utility when the prompt is displayed. -
Page 29: Ethernet Commands
SNAP2411 Ethernet Commands Command Description Displays arp table arp –a Deletes arp entry -d <ipaddr> Adds arp entry -s <ipaddr> <eaddr> Show current DNS server ip addresses dns [ Sets DNS server ip addresses [0|1] <ipaddr>] Displays current SNAP IP address... -
Page 30: Snap Radio Commands
SNAP2411 route Displays and manipulates gateway IP addresses to route IP traffic off the subnet. Default sets the default gateway IP address. When an IP address is entered instead of default, the gateway IP address specified will be used only for traffic destined for that IP address. -
Page 31: Radio Commands
SNAP2411 Radio Commands The “radio” command provides access to several sub-commands that are useful in configuring the WIT2411 in the SNAP. The command can be used to display the banner radio banner from the radio. This is useful in determining the unique ID of the radio and the version of firmware running in the radio. -
Page 32: Tcp/Ip Mode Operation
SNAP2411 TCP/IP MODE OPERATION The default operating mode of the SNAP is the TCP/IP mode. In this mode, the command line prompt is If the command prompt is , it is an indication the SNAP is in the PPP mode TCP>. -
Page 33: Server Mode
SNAP2411 device, it will be transmitted to the server over this socket. Data to be sent to the remote device is sent to the SNAP over the same socket. The SNAP determines to which remote device the data is intended and translates the IP address or port number to the correct radio ID. -
Page 34: Assigning Remotes Ip Addresses
SNAP2411 Assigning Remotes IP Addresses Remote devices can be identified to applications by either an IP address or Port number. Remote devices can have IP addresses assigned in one of three ways: dynamic assignment by the SNAP, static assignment by the SNAP, or by a DHCP server. -
Page 35: Assigning Remotes Port Numbers
SNAP2411 where remote-id is the radio serial number with hyphens between each two digits as in the above example. To use a DHCP server to assign IP addresses to remote devices, the ipbase must be set to 255.255.255.255. Set the ipbase as above using the... -
Page 36: Tcp/Ip Commands
SNAP2411 TCP/IP Commands The following commands are specific to the TCP mode of operation. Command Description Displays help screen for command help Displays control port setting for server mode control Sets control port for server mode <1-65536> Displays help screen for command... - Page 37 SNAP2411 allows individual remotes to be designated as servers or clients independently of the default setting for the remainder of the remotes. server Sets up and manages server or servers to be communicated with when the SNAP is in client mode. The command turns on a connect message whenever a remote registers with the SNAP.
-
Page 38: Udp Mode Operation
SNAP2411 UDP MODE OPERATION The UDP mode of the SNAP operates similar to the TCP/IP mode when the remotes are acting as clients. The assignment of IP addresses and/or port numbers to remotes is accomplished using the same commands as in TCP/IP mode. The UDP commands are identical in function to the TCP/IP commands but are repeated below. - Page 39 SNAP2411 help Displays the help screen listing of the commands. control Displays and sets the port to be used to send remote connect messages to a client or server application. remote Displays and manages table of remotes registered with the SNAP. Allows static IP address assignment on a per remote basis.
-
Page 40: Ppp Mode Operation
SNAP2411 PPP MODE OPERATION The SNAP can be configured to operate as a PPP (Point-Point Protocol) server. PPP is a dial-in network connection that allows TCP/IP communication. A PPP connection allows a remote connected to a computer to be connected to network that the SNAP is on using the TCP/IP protocol. -
Page 41: Ppp Commands
SNAP2411 PPP Commands These commands are unique to the PPP mode. They are preceded by Command Description Displays help screen for command help Displays accounting method currently in use acct method Sets accounting method to local or Radius [local|radius] Enables CHAP authentication protocol when auth [chap method is set to RADIUS. - Page 42 SNAP2411 Displays help screen for command user help Adds a PPP user add <usr> Deletes a PPP user delete <usr> Disables a PPP user disable <usr> Enables a PPP user enable <usr> List current PPP users, both enabled and disabled...
- Page 43 SNAP2411 user Manipulates users that are entitled to connect to the SNAP. Also sets the password for each entered user. can be any alphanumeric string up to 32 bytes in length. When a new user is added, a password must be assigned and the user must be before access will be granted.
-
Page 44: Troubleshooting
SNAP2411 TROUBLESHOOTING Connect LED is not on. Check the power LED on the SNAP. Check the Ethernet cable, making sure that it is fully connected. Cannot telnet to SNAP. Check the power LED on the SNAP. Check the Ethernet cable, making sure that it is fully connected. -
Page 45: Quick Reference
SNAP2411 QUICK REFERENCE SNAP System Commands Toggles user screen echo mode echo Displays command help screen help Resets the SNAP to activate new parameters reset Stores current configuration in non-volatile memory save help Sets SNAP operating mode mode [TCP|UDP|PPP] Displays SNAP firmware version number... -
Page 46: Radio Commands
SNAP2411 Radio Commands radio help Displays power on banner for radio in SNAP banner Resets radio to factory shipped values defaults Sets maximum number of remotes SNAP allows maxremotes [0..15] Sets the network number for the SNAP network [0..63] Displays modified radio parameters... - Page 47 SNAP2411 PPP Mode Commands help Sets accounting method to be used acct method [local|radius] Enables CHAP protocol when RADIUS selected auth chap Sets authentication method to be used method [local|radius] Displays authentication settings settings Enables UPAP protocol when RADIUS selected...
- Page 48 SNAP2411 WIT2411 Command Summary Network Commands Set Transceiver Mode wb[?|0|1] Set Default Handle wd[?|0..3f] Set Hopping Pattern wn[?|00..3f] Enable Global Network Modes wg[?|0|1] Set Transmit Power wp[?|0|1] Protocol Commands Set Alternative Frequency Band pe[?|0..b] Set Hop Duration (base only) ph[?|00..fe]...
-
Page 49: Appendix A
SNAP 2411 APPENDIX A. inf file listing for PPP mode. AddReg=All, Common, DWC00Reg, 115200, EXTERNAL [All] HKR,,FriendlyDriver,,Unimodem.vxd HKR,,DevLoader,,*VCOMM HKR,,PortSubClass,1,02 HKR,,ConfigDialog,,modemui.dll HKR,,EnumPropPages,,"modemui.dll,EnumPropPages" [EXTERNAL] HKR,, DeviceType, 1, 01 [Common] HKR, Answer, 1,,"" HKR, Hangup, 1,, "Bye" HKR, Hangup, 2,, "NoResponse" HKR, Settings, DialSuffix,, "" ;... - Page 50 SNAP 2411 ; 23 May 98 added HKR, Responses, "<hff>", 1, 02, 00, 00, 00, 00, 00, 00,00,00,00 ; Accept any recvd data as CONNECTED. HKR, Responses, "<cr>", 1, 02, 00, 00, 00, 00, 00, 00,00,00,00 ; Accept any recvd data as CONNECTED. HKR, Responses, "<lf>", 1, 02, 00, 00, 00, 00, 00, 00,00,00,00 ;...
-
Page 51: Specifications
SNAP 2411 SPECIFICATIONS Radio Specifications SNAP2411 SNAP2411X SNAP2411D SNAP2411DX Model Data Throughput 921.6Kbps Total over-the-air bandwidth 1.23Mbps Enclosure Aluminum Aluminum (network (network interface unit) interface unit) UV stabilized UV stabilized polycarbonate polycarbonate (remote radio (remote radio unit) unit) 201x144x53 mm... -
Page 52: Warranty
SNAP 2411 WARRANTY Seller warrants solely to Buyer that the goods delivered hereunder shall be free from defects in materials and workmanship, when given normal, proper and intended usage, for twelve (12) months from the date of delivery to Buyer. Seller agrees to repair or replace at its option and without cost to Buyer all defective goods sold hereunder, provided that Buyer has given Seller written notice of such warranty claim within such warranty period.
