Summary of Contents for Analogue Solutions Telemark-k

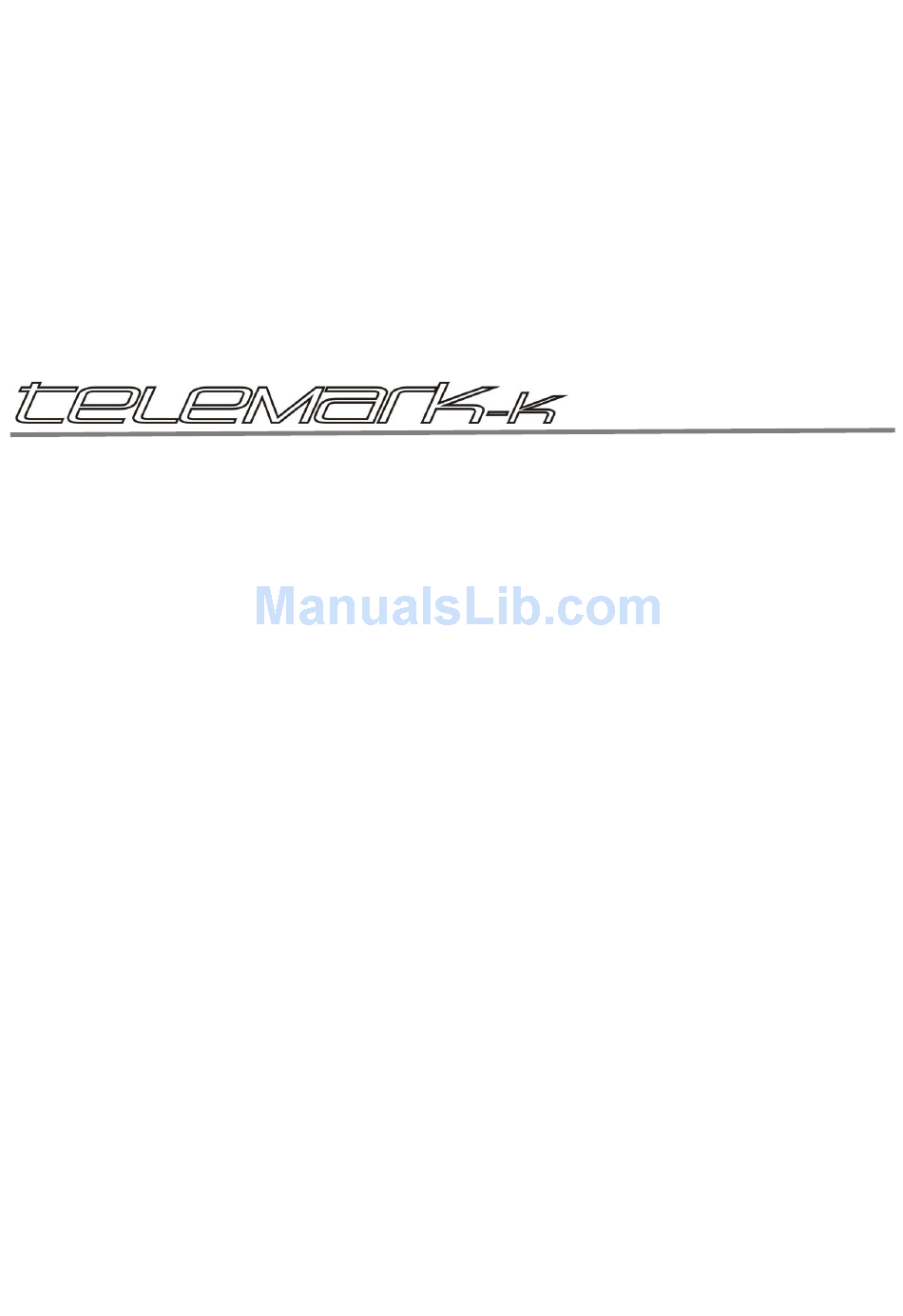

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    Quick method for zero modulation ........................ 16 Expansion ............................... 16 Internal Calibration of internal VCOs ......................17 MIDI Data Editing ............................18 Parameters and Pages in More Detail ......................19 Specification ..............................20 Warranty ................................ 21 Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 3: Introduction

    Introduction Congratulations on buying the Telemark synthesiser. Telemark is part of the Analogue Solutions range of analogue music equipment. Telemark is a precision electronic musical instrument. It combines all the often needed music electronic circuitry to make a music synthesiser in one compact module.
  • Page 4: Safety Instructions

    Telemark soundly on any stable surface so he cannot fall off or over, causing it or your- self injury. POWER Possible sources of US voltage mains adaptors (not tested); www.radioshack.com p/n 273-1631 or 273-1690 Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 5: Initial Tuning

    The best way to learn how to use Telemark is to go straight ahead and play with it. Reading of this manual may only be necessary for finer operational detail. Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 6: Voltage Controlled Oscillators Vco 1

    When using Pulse Width Modulation, it is best to set the Pulse Width control to centre, otherwise the sound may cut-out. Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 7: Voltage Controlled Oscillators Vco 2

    Try this control and listen to how the tone of the waveform changes. When using Pulse Width Modulation, it is best to set the Pulse Width control to centre, otherwise the  sound may cut-out. Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 8: Sync

    Noise to the mixer. In a central position no signal is sent from the Noise generator or EXT4 to the mixer. Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 9: Voltage Controlled Filter Vcf

    Signal at the EXT2 socket is used as a mod and high pass filters that is fed to the Filter Type source. Use for external filter control. selection switch (6) Notch position. Cont… Analogue Solution – Telemark-k – 2012 P a g e...
  • Page 10: Filtering External Sound Sources

    Finally, play around with the filter and modulation settings as neccessary. The VCO signals can also be introduced, and use the various VCA modes and envelopes if you wish to contour the sound level and add additional effects. Analogue Solution – Telemark-k – 2012 10 | P a g e...
  • Page 11: Envelope Generators

    Controls the level the envelope will hold at when a key is pressed and the attack cycle has a key is pressed and the attack cycle has completed. completed. Analogue Solution – Telemark-k – 2012 11 | P a g e...
  • Page 12: Voltage Controlled Amplifier - Vca

    LFO completes a cycle (each time the LFO LED lights up a new modulation level is set) Analogue Solution – Telemark-k – 2012 12 | P a g e...
  • Page 13: Pitch Bend And Mod Wheel

    The actual analogue voltage (not the digital MIDI data) can also be used as a Mod source to control the pitch of VCO1 and VCO2, or the cut-off level of the filter, via the LEVEL controls in the PERFORMANCE section. Analogue Solution – Telemark-k – 2012 13 | P a g e...
  • Page 14: Rear Panel Audio Connections

    CV IN: This is a pitch CV input socket if you EXT1 IN: This is the input socket to feed audio want to control Telemark-K’s pitch from an or control voltage signals into Telemark. The external synth. Scaling is 1v/Oct signal is routed to all the EXT1 modulation points, selected via the top panel switches.
  • Page 15: Cv/Gate Jacks

    E.g., if you connect an external CV sequencer or MIDI to CV converter to the CV1, CV2, Gate In sockets, you will disconnect the Telemark-k internal MIDI-CV converter from the voice circuits. This way you can directly control the voice circuits from an external device. The internal MIDI-CV converter will still work, and its signals still available from the CV1, CV2, Gate Out sockets.
  • Page 16: No Signal

    It would be possible with some good skills to bring these points to front panel sockets. Of course we do not recommend you do this and it will invalidate all warranties. Analogue Solution – Telemark-k – 2012 16 |...
  • Page 17: Internal Calibration Of Internal Vcos

    Internal Calibration of internal VCOs Calibration of Telemark-k is done at the factory and usually should not need to be changed. Only attempt this yourself if you are fully confident you can do it. You may just end up ruining the settings, and be aware calibration is something that we cannot help with other the phone.
  • Page 18: Midi Data Editing

    Press the PAGE button until you get to the store page. Then Press OCT+ to store the setup. Then the LCD will revert back to PAGE0. If you do not wish to store, then just press PAGE again to return to PAGE0 Analogue Solution – Telemark-k – 2012 18 | P a g e...
  • Page 19: Parameters And Pages In More Detail

    This is the page used to store set-up, as described earlier. STORE SETUP PRESS +OCT TO STORE RESTORING FACTORY DEFAULTS Hold down button 8 (OCT+) whilst turning on the machine to restore factory default settings. Analogue Solution – Telemark-k – 2012 19 | P a g e...
  • Page 20: Specification

    Width: 242mm. Depth: 275mm Weight 2.3Kg Power: Uses 15VAC, 500mA mains adaptor, 2.1mm DC type barrel plug (draws approx. 40mA) Accessories: Manual, Mains adaptor (230v) Rugged steel construction Analogue Solution – Telemark-k – 2012 20 | P a g e...
  • Page 21: Warranty

    At the sole discretion of Analogue Solutions, the warranty is deemed to be void should the unit be or considered to have been opened or any other modifications or tampering be carried out by unauthorised parties.
  • Page 22 Telemark-k ‘user manual’ Analogue Solutions web: www.analoguesolutions.com web: www.analoguesolutions.co.uk email: Telemark@analoguesolutions.com tel/fax: +44 (0) 1384 35 36 94 post: 1 Crescent Court, Kingswinford, DY6 9RJ, UK Analogue Solution – Telemark-k – 2012 22 | P a g e...
