Summary of Contents for Camera Corps Q-Ball

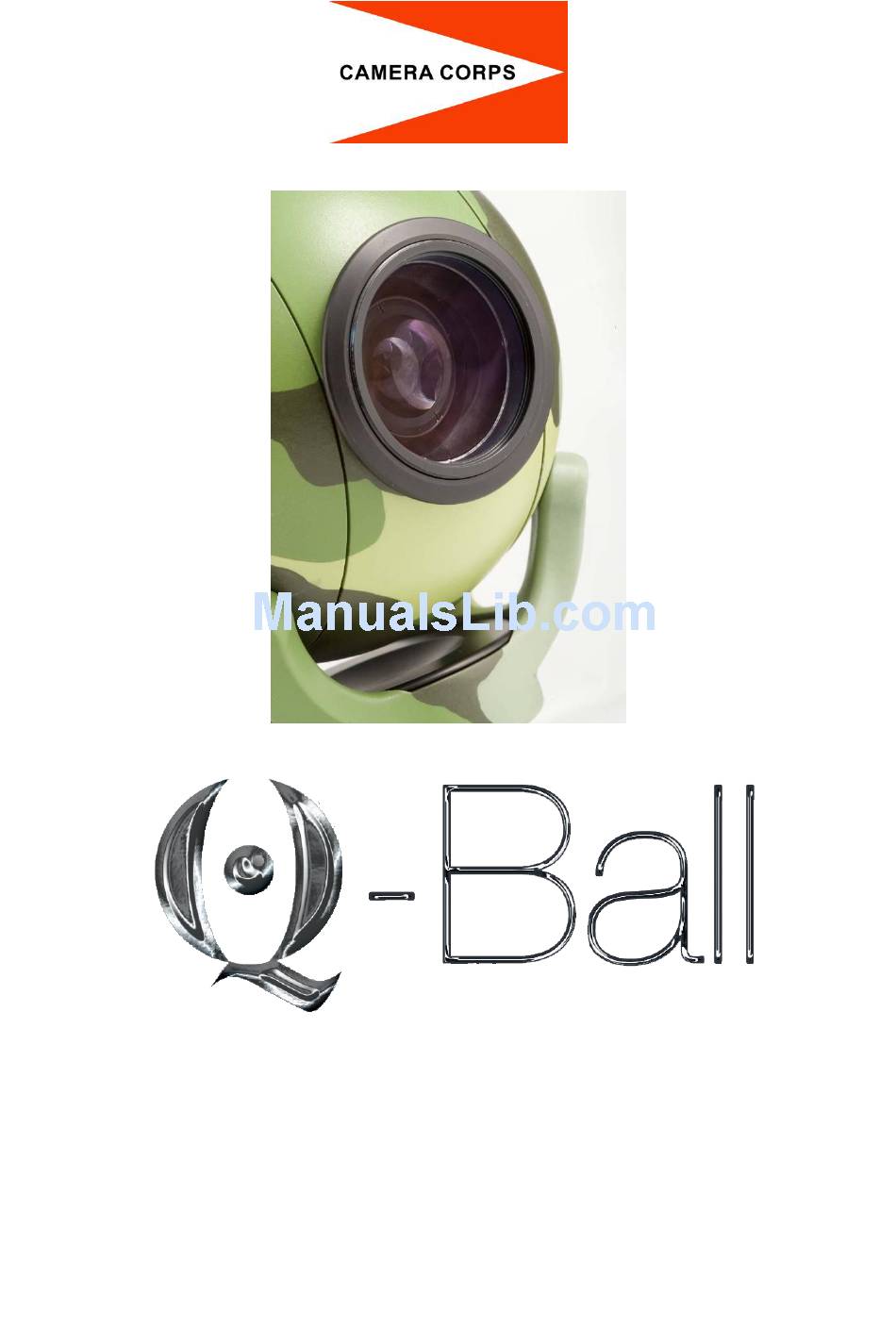

- Page 1 Operation Manual...
-
Page 2: Interface Unit
Cue/Tally is sent from the RCP or PTZF controller. The Cue/Tally can be used to test the data system and ID are set and working correctly even if the Q-Ball head unit is not attached to the interface unit. The four DIP switches have various functions. The left hand two switches are used to set a ‘Group’... - Page 3 Changing the Camera Format The Q-Ball can operate in both SD and HD modes at 50hz or 59.94 hz. Both 720p and 1080i formats are available in HD. In SD modes both 4x3 and 16x9 aspect ratios can be selected.
-
Page 4: Embedded Audio
Q-Ball – Operation Manual Wide Angle Adapter The standard 10:1 lens provides a zoom range from 51deg to 5.1deg angle of view. To provide a wider shot it is possible to remove the standard lens adapter and replace it with the wide angle adapter unit. -
Page 5: Component Video Output
Q-Ball – Operation Manual Component Video Output Version 6 Interfaces have an additional 9 way ‘D’ Male connector on the side of the box. This provides a component video output when HD modes are selected, or an S-Video and output when SD modes are selected. -
Page 6: Appendix 'A' - Ccu Panel And Joystick Panel Settings
For the older style CCU’s select ‘CC HDZ’ as the camera type. The Joystick panel should be set to ‘Q-Ball’ in the setup menu. Although not essential, set the baud rate of the RCP to 2400 and the baud rate of the Joystick to 4800. -
Page 7: System Wiring Details
Q-Ball – Operation Manual System Wiring Details Camera control panel CAMERACORPS CONTROL PANEL Joystick Control Unit 12 VOLT Audio Data to cameras & AC power heads 12 VOLT AC power Interface Box & HD SDI Video to Control Room V6.3... - Page 8 Q-Ball – Operation Manual RCP Panel - Master Set-up Menus This main menu select screen can be reached at any time by Sony Q-Ball IR repeated presses of the top left menu button. Channel 1 ID 1 Note that if a ‘menu’ or ‘function’ button is illuminated it will Menu Selection perform some action.
- Page 9 Q-Ball – Operation Manual Camera Corps HD MiniZoom & Q-Ball Camera RCP Panel (older style) Menus Gain Col Gam Shu Cam Re- Cue tst Rem P&T Iris type set Red Grn Sw2 Mode Zoom Focus Detail Gamma Iris Gain AWCMode Chroma...
