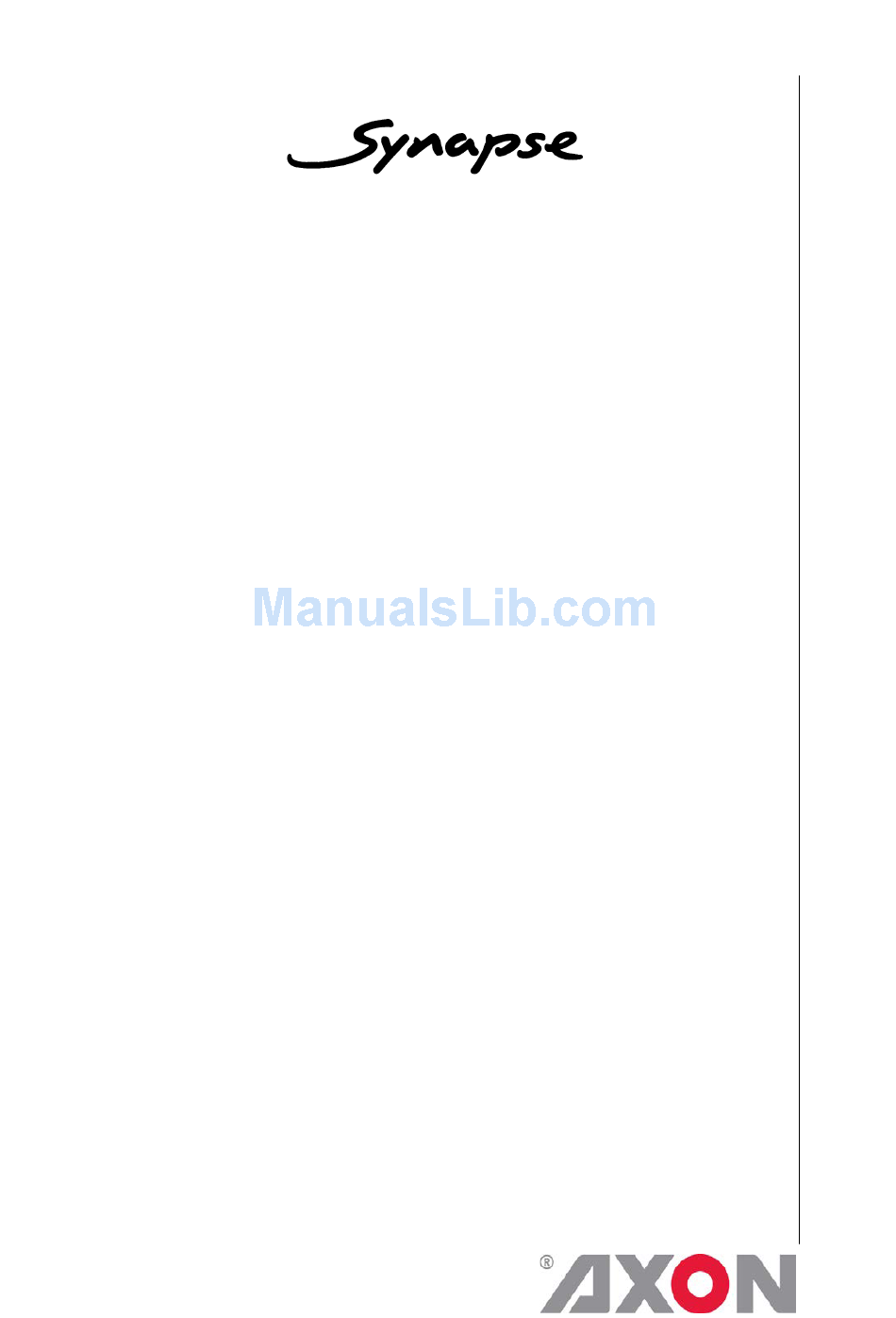

- Page 1 DAD08/09 Digital Audio Distribution Amplifier ___________________________________________...
- Page 2 TECHNICAL MANUAL DAD08 & DAD09 Digital Audio Distribution Amplifier Lange Wagenstraat 55 NL-5126 BB Gilze The Netherlands Phone: +31 161 850 450 Fax: +31 161 850 499 E-mail: Info@axon.tv Web: www.axon.tv...
- Page 3 Date last revised: 09-10-13 Axon, the Axon logo and Synapse are trademarks of Axon Digital Design B.V. This product complies with the requirements of the product family standards for audio, video, audio-visual entertainment lighting control apparatus for professional use as mentioned below.
-
Page 4: Table Of Contents
Table of Contents Chapter 1 Introduction to Synapse An introduction to Synapse Local Control Panel Remote Control Capabilities Chapter 2 Unpacking and Placement Unpacking Placing the card Chapter 3 A Quick Start When powering-up Default settings Changing parameters and settings... -
Page 5: Introduction To Synapse
Local Control Panel The local control panel gives access to all adjustable parameters and provides status information for any of the cards in the Synapse frame, including the Synapse rack controller. The local control panel is also used to back-up and restore card settings. Please refer... -
Page 6: Unpacking And Placement
Placing the card The Synapse card can be placed vertically in an SFR18 frame or horizontally in an SFR04 and SFR08 frame. Locate the two guide slots to be used, slide in the mounted circuit board, and push it firmly to locate the connectors. -
Page 7: A Quick Start
Default settings In the default condition, the DAD08 & DAD09 will act as a frame Digital Audio Distribution Amplifier. Changing settings The front panel controls or the Cortex Software can be used to and parameters change settings. -
Page 8: Front Panel Control
Example of With the display as shown below changing parameters using RRC18 [Select Card] front panel control >S01=SFS10 Pressing the ► selects the SFS10 in frame slot 01. The display changes to indicate that the SFS10 has been selected. In this example the Settings menu item is indicated. SFS10 [Select Menu] >Settings Pressing the ►... -
Page 9: Menu Structure Example
IP address, giving access to each module, its menus and adjustment items. Cortex has access to data contained within the Synapse module and displays it on a GUI. The software has an intuitive structure following that of the module that it is controlling. -
Page 10: The Dad08/09 Cards
Indication are decoded and displayed. I/O Flexibily The DAD08 and DAD09 offer a wide range of input and output options depending on the choice of backplane, giving a high degree of system flexibility. Balanced Input: Both the DAD08 & DAD09 offer a transformer coupled balanced audio input when a backplane is used that supports the use of three-conductor connections e.g. - Page 11 The BPX01 can also be used. The BPX01 is a connector panel similar to the BPL01 with a back up facility to connect J1 with J4 in a card or power failure situation. Also an all D-Sub version can be used. The BPL05D. Fiber backplane with unbalanced In/Outputs: BPL01T_SC, BPL01T_FC/PC, BPL01R_SC, BPL01_FCPC...
-
Page 12: Settings Menu
Introduction The settings menu displays the current state of each setting within the DAD08 and DAD09 and enables the item to be changed or adjusted. Settings can be changed using the front panel of the Synapse frame or Cortex software. Please refer to chapter 3 for information on the Synapse front panel control and Cortex software. -
Page 13: Status Menu
6 Status Menu Introduction The status menu indicates the current status of each item listed below. Error The Error status item indicates the current condition of the audio being processed. The errors have a priority associated with their error code, with validity having the lowest priority and no lock having the highest priority. -
Page 14: Events Menu
255, or 0 when disabled. 4) A slot number of the source of this event. The Message String The message string is defined in the card and is therefore fixed. It may be used in controlling software like Synapse Set-up to show the event. - Page 15 Alarms with priorities equal or higher than the Error Threshold setting of the RRC will cause the error LED on the Synapse rack front panel to light. The Address Together with the message string or the tag, the slot number or address of the card is relevant to be able to assign the event to a certain card.
-
Page 16: Led Indication
8 LED Indication Error LED Although mounted on the DAD08 and DAD09 cards, the Error LED is not used. Input LED This LED indicated the presence of a valid AES/EBU digital audio signal on the input. Connection LED This LED illuminates after the card has initialised. The LED... -
Page 17: Block Schematic
AES/EBU OUT 1 AES/EBU IN AES/EBU AES/EBU AES/EBU OUT 2 DECODER ENCODER AES/EBU OUT 3 STATUS AES/EBU OUT 4 ERROR AES/EBU OUT 5 AES/EBU OUT 6 AES/EBU OUT 7 AES/EBU OUT 8 µP DAD08 only Rack controller INTERNAL SYNAPSE BUS... -
Page 18: Connector Panel
10 Connector Panel The DAD08/09 can be used with the following backplanes: BPL01 BPL05 and BPL05D BPL01 BPL05 BPX01 BPL05D Fiber: BPL01T_FC/PC, BPL01T_SC, BPL01R_FC/PC and BPL01R_SC A E S / E B U I N D A D 0 8... - Page 19 BPL05D...
