Summary of Contents for Audiopole ACTIVE 12

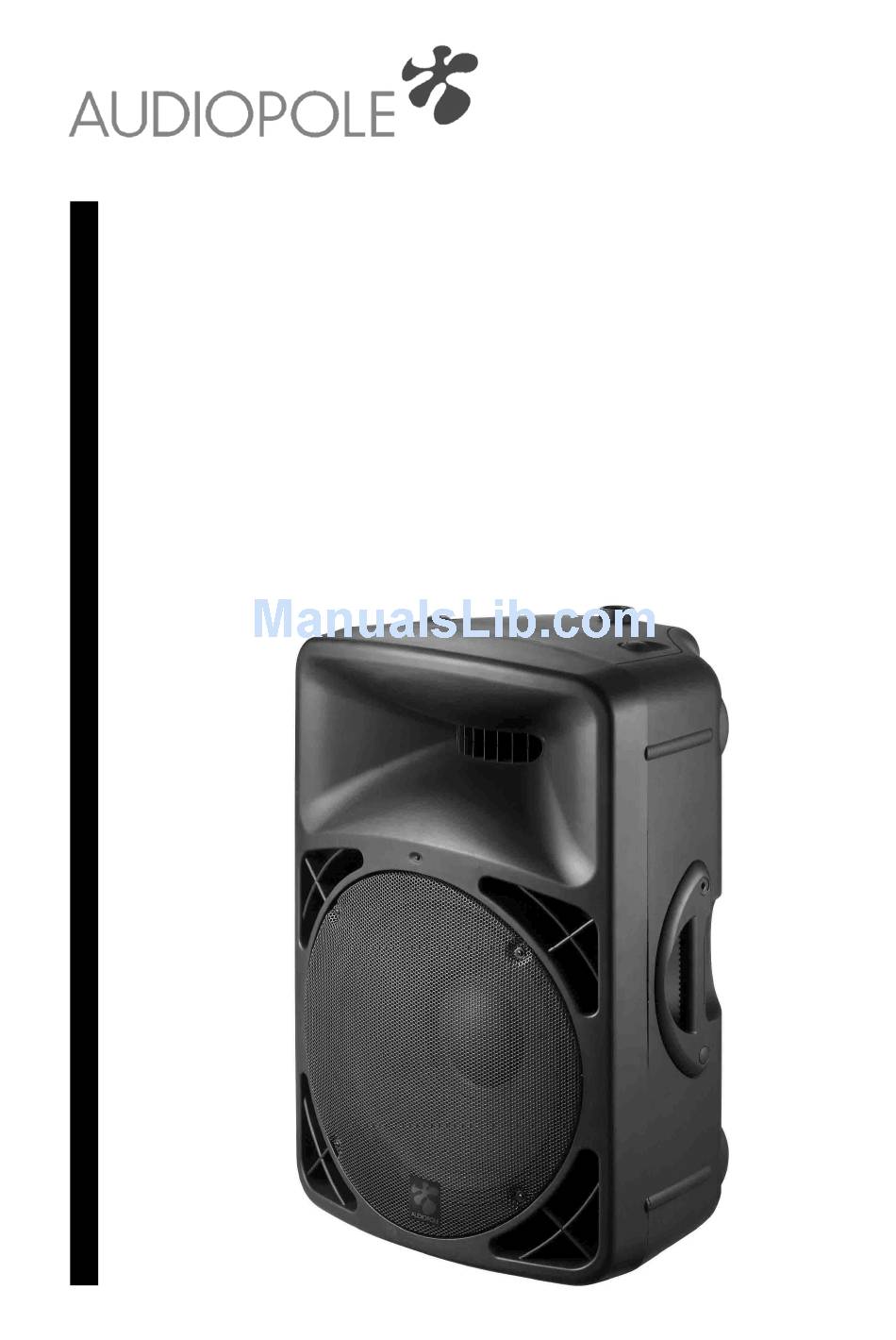

- Page 1 ACTIVE 12 2 WAY ACTIVE SPEAKER USER’S MANUAL...
-
Page 2: Safety Instructions
Unplug immediately in the event of introduction of liquids or objects in the device as well as in the event of damage to the power cable. Also unplug the unit if it emits smoke, an odor, or unusual noise. Then contact a dealer or a Service Center authorized by Audiopole. DISPOSAL This symbol indicates that the disposal of this product is submitted to local regulations. -
Page 3: Table Of Contents
Index 1. Introduction ……………………………………………………………………….. 2. Features…………………………………………………………………………… 3. Controls…………………………………….……………………………………… 4. Installation Tips…………………………………………………..…………..…… 5. Technical Specifications ……………………………………………..……..…… 6. Warranty ……………………………………………………………………………... -
Page 4: Introduction
Thank you for the purchase of the ACTIVE 12 AUDIOPOLE. This powered speaker delivers 150 W RMS and is equipped with two transducers of 31 cm (12 '') and 3.4 cm (1.3”) . The ACTIVE 12 incorporates a mixer with 2 independent inputs as well as a two band EQ facilitating adaptation to different types of uses. - Page 5 Controls Back Panel LEVEL LINE IN LEVEL VOLUME TREBLE LINE OUT ACTIVE 12 +12dB -12dB BASS 2 WAY ACTIVE SPEAKER SYSTEM -12dB +12dB CLIP POWER POWER AC115/230V 60/50Hz 1 – LEVEL MIC IN Adjust the level of the microphone input (9).
-
Page 6: Installation Tips
Installation Tips The ACTIVE 12 must be placed in such a way that there is no obstacle to the projection of sound. It is preferable to use a speaker stand in order to elevate the speaker to enable him to better dispersion. -
Page 7: Technical Specifications
The device was not diverted from its destination, either voluntary or accidental, and suffered no deterioration or modification other than those described here or explicitly authorized by AUDIOPOLE. All modifications or repairs have been carried out by an authorized service station. - Page 8 22, rue Édouard Buffard, Z.A.C. de la Charbonnière, Montévrain - 77771 Marne-la-Vallée Cedex 4 - France Tél : + 33 (0)1 60 54 32 00 - Fax : + 33 (0) 1 60 54 31 90 - www.audiopole-pa.com - www.audiopole.fr...
