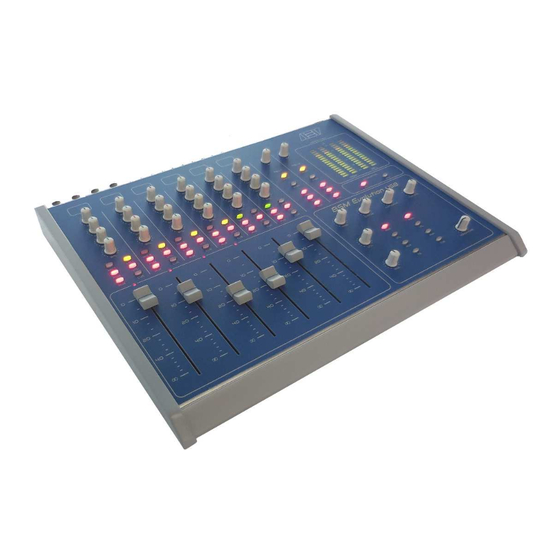

- Page 1 BSM Evolution USB - Compact ON AIR console BSM Evolution AEV On Air compact broadcast console AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu...
-
Page 2: Guarantee
If the problems still cannot be solved, call the AEV SERVICE Department for further information. If the problem is a minor one we can a telephone call will probably sufice. If, on the other hand, the equipment is to be shipped to AEV for service or repairs. -
Page 3: Precautions
The device of dissection of the equipment is the cable of feeding, so it must be unconnected from the equipment every time it is necessary to do any type of maintenance. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu... -
Page 4: Table Of Contents
Auxiliary outputs connections ..........12 Master outputs connections ..........13 Telephone lines connections ..........13 Head/USB/Logic & PWS connections ........13 Logic I/O pinout ............13 Technical specifications ..........14 AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 5: Features
Also you can to select the Bus assignment pushing the following buttons: Master Outputs PGM:Analog balanced stereo with XLR connectors UTL: Analog unbalanced stereo with RCA connectors AUX: Analog unbalanced stereo with RCA connectors AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 6: Master Outputs
VU display assignement section Master outputs level monitoring channels section fader section C.Room & C.Studio section AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 7: Micro - Line Channel
9 – Button enabling the preview CUE 10 – Button for routing the channel to the AUX bus 11 – Fader 12 – Start channel led AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 8: Usb - Line Module
8 – Button for routing the channel to the UTL bus 9 – Button enabling the preview CUE 10 – Button for routing the channel to the AUX bus 11 – Fader AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 9: Telephone Hybrid Section
6B - Button for assigning the tel2 to the UTL bus. 7A - Button for assigning the tel2 to the AUX bus. 7B - Button for assigning the tel2 to the AUX bus. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 10: Display Monitoring Section
8 - Button for selecting the master AUX output for routing it to the Control Studio output. for routing it to the Control Room output. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 11: Master Setup Section
Master Outputs section 8 - level potentiometer the PGM outputs. 9 - level potentiometer the UTL outputs. 10 - level potentiometer the AUX outputs.. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 12: Rear Panel - Connections
Ausiliary Outputs connections 15 – Control Room outputs RCA connectors. 16 – Control Studio Mutable outputs RCA connectors. 17 – Control Studio outputs RCA connectors. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 13: Master Outputs Connections
28 – Headphone jack 6,3 mm connector. 29 – USB 1 connector. 30 – USB 2 connector. 31 – Auxiliary PWS connector Logic I/O pinout AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 14: Technical Specifications
100 mA Connector DSUB 15 pole female USB Port 2 x USB 2.0 interface Dimensions 484 x 310 x 45 mm Weight: 5 Kg AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu...
