GENERAL INFORMATION

The 6150ADT is an addressable remote keypad designed for
use with ADT control panels. Addresses are set via the
keypad keys.
Keypad keys are continuously backlit for convenience.
NOTE: Permanent display backlighting is an option on some
controls (refer to the control panel's instructions for
details).

KEYPAD DISPLAYS AND LEDS

The keypads have the following display features:
• Fixed Word Display
• Two-Digit Zone Identifier
The following table identifies the keypad's LEDs and
associated functions:
LED Function
Red Lights when the system is armed in any mode.
Green Lights when the system is "ready" to be armed.

SPECIAL FUNCTION KEYS

The Keypad also features function keys. These keys may be
programmed for panic alarms or other special functions such
as macros. Refer to the control panel's Installation & Setup
Guide for details.
Function keys must be held down for at least 2
seconds to activate an alarm; key pairs are activated
immediately.
Function Keys Key Pairs
A [1] and [✱]
B [✱] and [#]
C [3] and [#]
D

WIRING AND INSTALLATION

Keypads can be surface mounted directly to a drywall or to a
single- or double-gang electrical box.
1. Remove the case back by pushing up the two "snaps"
along the keypad's bottom edge and pulling the case
apart. See Figure 1.
2. Route wiring from the control panel through the opening
in the case back.
3. Mount the case back to a wall or electrical box.
4. Wire directly from the keypad's terminal block to the
terminal block on the control board. (See Wiring Table.)
INSTALLATION GUIDE

WIRING TABLE

Keypad Control Panel
G Data In
L
– – Aux Pwr (GND)
+ + Aux. Pwr
Y Data Out
M
5. Re-attach the keypad to the case back.
6. Remove clear protective film from LCD display.
A
ARMED
B
READY
C
D
MOUNTING RELEASE SNAPS
(Remove case back by pushing up the 2 "snaps" along
the keypad's bottom edge and pulling the case apart.)

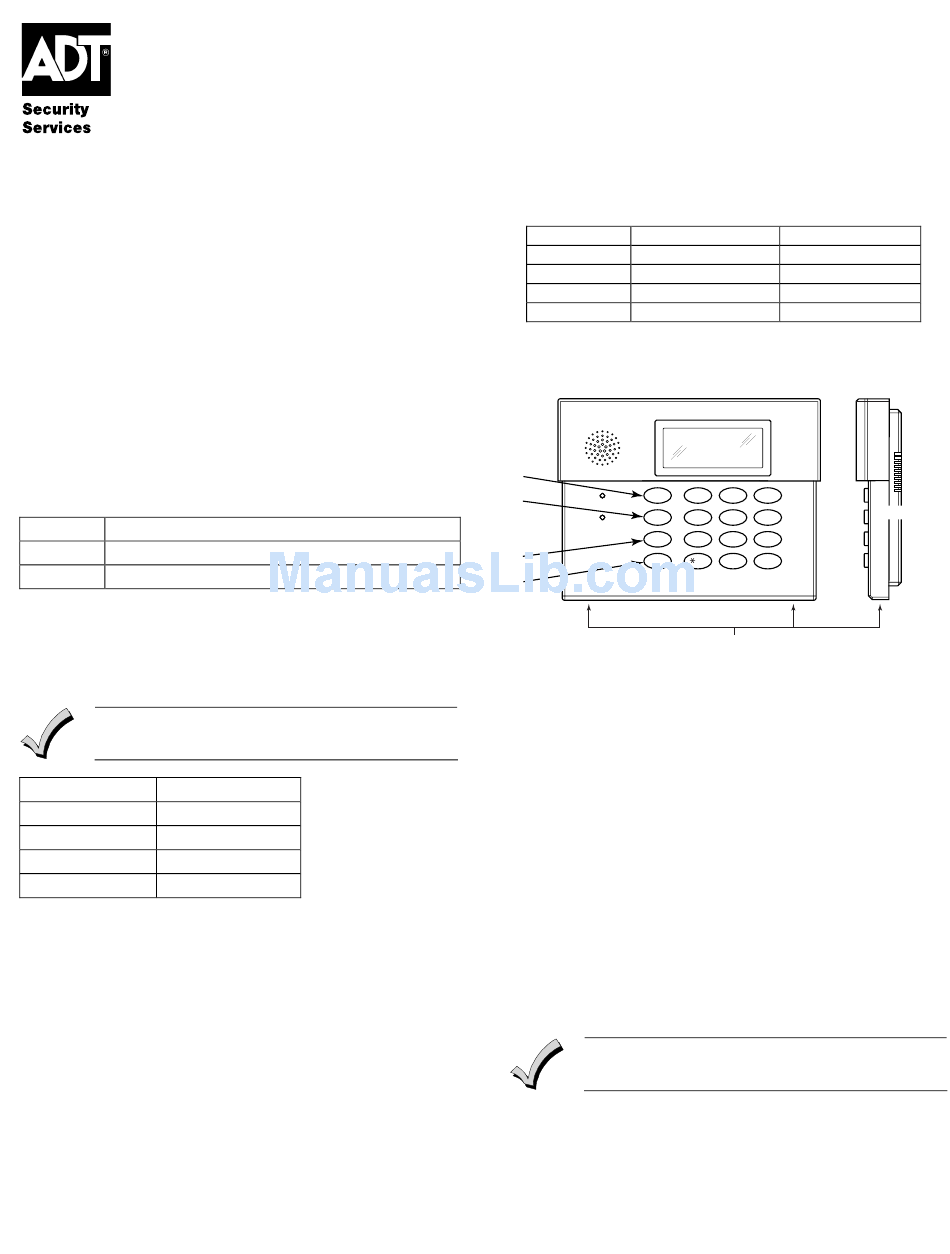

Figure 1 – 6150ADT Keypad

SETTING THE KEYPAD ADDRESS

The keypad can either be set for an address of 00-30 or for
non-addressable mode (31). The default keypad address is
31. Refer to the control panel's Installation & Setup Guide
for valid address settings for your control.
To change the keypad address, proceed as follows:
1. Enter the address mode: Power up the keypad. Within
60 seconds of power-up, press and hold down the [1] and
[3] keys at the same time for 3 seconds. (If unable to
enter the address mode, power down, power up, and try
again.)
The current keypad address is displayed, and the cursor
is under the "tens" digit. If 10 seconds pass with no key
entry, the keypad automatically exits the address mode.
You must power down, power up, and start the address
mode again.
The keypad will not enter the address mode if the
control panel is in the programming mode.
2. Set the current address to "00": Press [0] to clear the
current "tens" digit. The cursor moves to the "ones" digit
position. Press [0] to clear the current "ones" digit. The
cursor moves back to the "tens" digit position.
K3590-ADTV2 3/06
6150ADT 6150ADT 6150ADT 6150ADT
REMOTE KEYPAD REMOTE KEYPAD
REMOTE KEYPAD REMOTE KEYPAD
Wire Color
Green
Black
Red
Yellow
1 2 3
OFF AWAY STAY
5 6
4
TEST BYPASS
7 8 9
INSTANT CODE CHIME
0
#
READY
SIDE VIEW
6150ADT-005-V0
