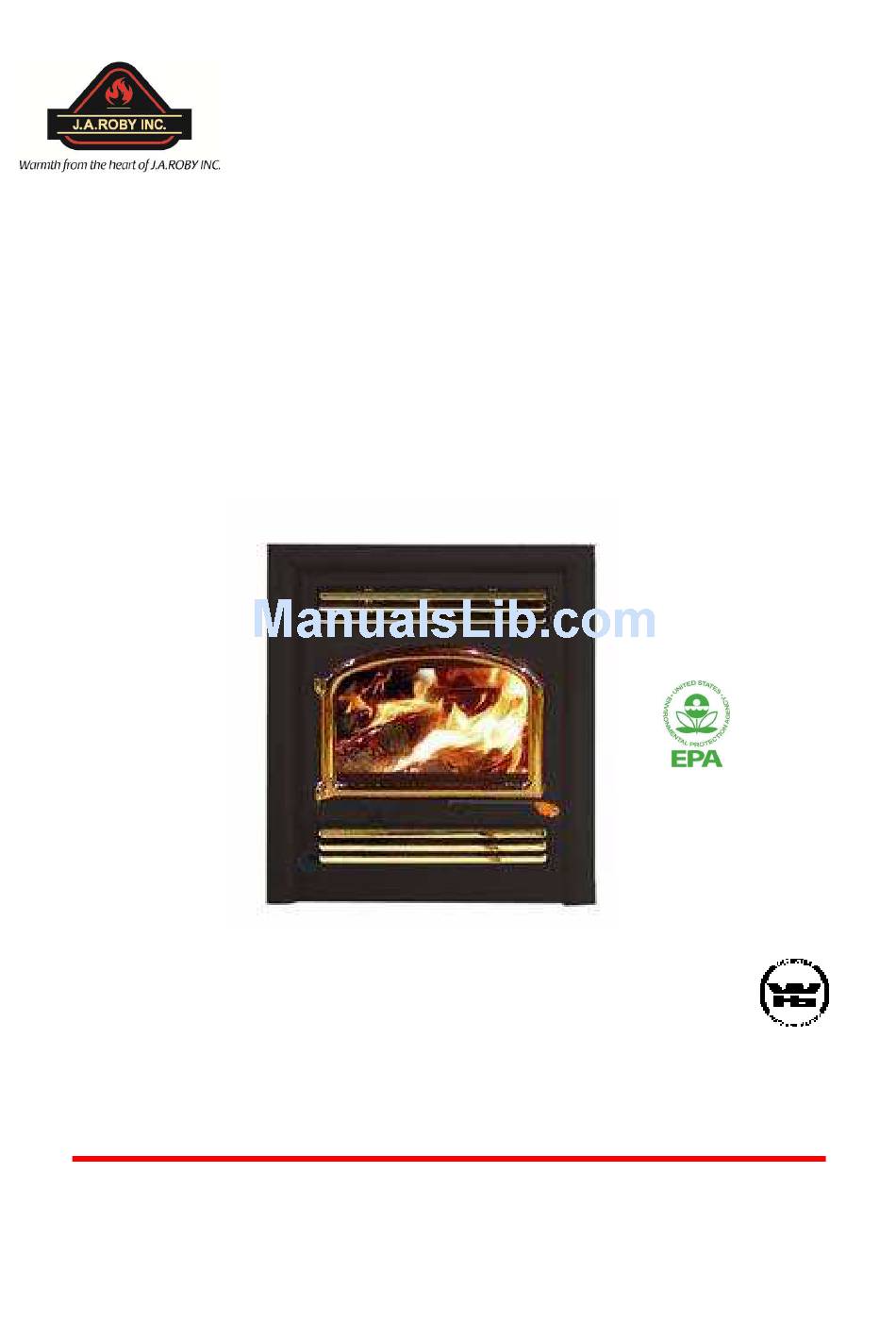

- Page 1 OWNER’S MANUAL EVOLUTION Restricted fireguard utilization CAN/ULC_S610-M87 June 3rd, 2009 Reviewed EVOLUTION & EVOLUTION 2113 490, rue de l'Argon, Quebec, Qc CANADA G2N 2C9 Phone: 418-849-8095 Fax : 418-849-0077 www.jaroby.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS – EVOLUTION .................. 1 WARNING ......................... 2 NOTICE ..........................4 ........................4 REOSOTE LOCATION OF THE FIREPLACE ................... 5 INSTALLATION OF THE CHIMNEY ................6 ....................6 HIMNEY FRAME DETAILS CF ..................7 INTERMEDIATE JOIST ENTRY ................ - Page 3 CAREFULLY READ THIS MANUAL KEEP FURTHER REFERENCES. INSTALLATION OF THIS APPLIANCE MUST BE DONE BY A QUALIFIED AND CERTIFIED TECHNICIAN AND IN CONFORMITY WITH THE OWNER'S MANUAL GIVEN WITH THIS APPLIANCE. THE INSTALLATION MUST BE IN AGREEMENT WITH LOCAL AND NATIONAL REGULATIONS APPLICABLE FOR SOLID FUEL BURNING APPLIANCES AND CONNEX EQUIPMENT (CAN/CSA-B365) AND THE APPLICABLE BUILDING CODE .
-
Page 4: Specifications - Evolution
SPECIFICATIONS – EVOLUTION Combustible Wood 0 to 2000 Ft² (0 to 186m Recommended surface Evacuation pipe diameter 6“ (15,24cm) Chimney minimal height 15 ft (457,2cm) Hot air top exit 6“ (15,24cm) Dimensions: Glass viewing area (W X H): ATC 618 (2 doors) 15”... -
Page 5: Warning
WARNING Before installing, please take a few minutes to read this handbook. Keep it in a sure place and easily reachable for future references. Not following these instructions could be a cause of property damages, injuries or death. If this appliance is not properly installed, it could cause fire damages to the property, injuries and death. - Page 6 Be sure that the ashes evacuation cap is closed before lighting. If the evacuation conduct starts to blush, it's because it is too charged. The wood logs shall never stand higher than the firedog in front of the fireplace. Ashes must be evacuated frequently, put in a steel container provided with a tight cap and be placed outside at once.
-
Page 7: Notice
NOTICE Your fireplace Evolution was tested and approved including supports, firebreak and other chimney components. Any change, modification or unauthorized installation will automatically cancel the certification of the appliance, its guarantee, its homologation and the appliance might become dangerous. If the chimney is to be exterior, it is recommended to compartmentalize it in order to protect it from the cold temperatures. -
Page 8: Location Of The Fireplace
LOCATION OF THE FIREPLACE Take knowledge of municipal and fire department requirements. Choose a place where you will not have to cut joist. The fireplace must be installed against a finished wall around the appliance The top of the fireplace must stay free. The roof height must be at minimum seven (7) feet from the floor. -
Page 9: Installation Of The Chimney
INSTALLATION OF THE CHIMNEY The minimum height approved for the gas evacuation system is 15 feet and the fireplace is conceived to support up to 25 feet of vertical chimney. For higher, additional supports are required. The authorities require that the chimney has at least 1m (3ft) over the highest point where it passes through the roof, and at least 609mm (2ft) over any point of the building from a distance of 10 ft. -
Page 10: Intermediate Joist Entry Cf
INTERMEDIATE JOIST ENTRY (Selkirk CF model) The intermediate joist entry CF is used at any joist level, except on an opened attic. It must be installed from the base to the top with 1 ½ inches screws and should not be cut. TTIC THERMAL SCREEN INSTALLATION (JSC, SPR, SC-1 and ALT models) An isolation protector for the attic thermal screen... -
Page 11: Nstallation Of The Radiant Firebreak
NSTALLATION OF THE RADIANT FIREBREAK (Supervent JSC and SPR models) The radiant firebreak must be installed where the chimney passes through a floor or a ceiling to another room. The radiant firebreak was tested and approved to be installed over or under the joist. If the radiant firebreak is installed over the joist, be sure that there is no isolation or other combustible up to 50mm (2 inches) -
Page 12: Nstallation Of The Exterior Chimney
NSTALLATION OF THE EXTERIOR CHIMNEY (SS Plus, JSC and SPR models) For mural installations as illustrated, an intermediate mural support is required immediately over the second elbow, which will support up to 10m (30ft) of chimney. Install a chimney section on the second elbow and fix it with a security bridle (SS Plus) or a fixation collar (SC et SPR). -
Page 13: Cf Interior Support / Deviation Support
INTERIOR SUPPORT DEVIATION SUPPORT The CF interior support / deviation support can be placed under an intermediate joist entry or an attic isolation protection/firebreak. The interior support stripe of the interior support must be attached under a security bridle and tighten. The straps must then be placed along the exterior of the joists nailed 1 ½... - Page 14 3. Slide the roof flashing over the chimney. Place the superior border of the flashing plate under the shingles. Place the two sides and the inferior border over the shingles. See drawing. 4. Square the flashing plate and nail it on the roof by using 12 nails with neoprene rings or cover the heads with a waterproof mastic.
-
Page 15: Blowhole Systems Authorized
LOWHOLE SYSTEMS AUTHORIZED Chimney Necessary component with the Manufacturer Model depth Evolution fireplace Cheminée Sécuritée Secure temp Attic firebreak 6 RSA ) Int. S-2100+ non isolated Attic firebreak 6 RSA ) Oliver Macleod HT 6000+ non isolated Selkirk Metalbestos CF Sentinel... -
Page 17: Exterior Air Canalization
Fix each extremity with metal screws and apply aluminium tape over the conduct in order to seal this part. The Evolution fireplace can use exterior or interior air. To use exterior air, open the sliding door on the inferior right side of the fireplace. To access this door, open the inferior blinds and slide your hand to the sliding door handle. -
Page 18: Internal Blower (Fans And Thermodisc)
INTERNAL BLOWER (FANS AND THERMODISC) You can add an internal blower to your Evolution fireplace. This kit is a standard at J.A. Roby inc. It includes two fans and a thermocouple lightly noisy and easy to install. The connection must be done by a qualified electrician. The internal and central blower wiring must be installed during the construction of the frame so that the cords can be easily hide. - Page 19 ELECTRICAL PLAN OF THE FANS Wiring must be done by a qualified electrician.
- Page 20 IRING MUST BE DONE BY A QUALIFIED ELECTRICIAN...
-
Page 21: Blowhole By Natural Convection
BLOWHOLE BY NATURAL CONVECTION Blowhole by natural convection can deliver air to a superior level or an adjacent room without needing a blower. This system can be used jointly with optional blowers. Adjust manually the register to your needs. The blowhole system by natural convection can be used in position "open"... - Page 22 The Evolution fireplace has two air exits on the top of the appliance. When you want to plug the central blower, use the left exit (when you face the fireplace). The right one is only for the blowhole by natural convection. The fan system must not end in the attic.
-
Page 23: Installation Of The 460 Cfm Fan
INSTALLATION OF THE 460 CFM FAN... -
Page 25: Extrusion
EXTRUSION Your Evolution fireplace is delivered with an extrusion which allows a good quality of finishing and is easy of installation. When the gypsum wall is finished, you only have to slide the extrusion on each side of the fireplace. Then, insert the superior part and the finishing is completed. -
Page 26: Doors Adjustment
Bolt Locking ring Your Evolution fireplace is a model with two cast iron doors. Each door can be adjusted (height, width and depth). To adjust, unscrew the four nuts, close the left door first then the right one. Adjust the arc over the doors to align it and the centre of the two doors. -
Page 27: Lighting
LIGHTING Before lighting the first fire, be sure to clean every dirt or fingerprints if you don't want to permanently mark your fireplace. To light a fire, place newspapers and small wood. Then, add small wood logs. Light the fire and let the door slightly open. Once the fire is well lit, add bigger wood logs and close the doors. -
Page 28: Preventive Measures And Maintenance
The Evolution fireplace is equipped with an ashtray allowing to clean the firebox easily. Open the doors, remove the ashes cap and, with a poker, wipe out the ashes (be sure that the ashtray is in place). -
Page 29: Interchangeables Parts List
In case of a glass replacement: • Remove the screws and supports retaining the glasses. • Remove the broken glasses. • Envelope the frame of the new glass with a fibre glass joint. • Replace the glass. • Replace the screws and the support. VITROCERAMICS EPLACE THE BROKEN GLASSES BY GLASSES OF... - Page 30 Register (RCN) Starting collar (ATCCD) Back draft (ATCVAR) Control rod (TRCN) Collar / Extending union kit (ATCUP) Inversed thermostat (ATCT) Exit adaptor (ATCAS) Front frame (ATCCF1 ) (ATCCF2 ) (ATCCF3 ) Blinds (ATCPERO) (ATCPERC) (ATCPERN) (ATCPERE) Cast iron door (EVPN) (EVPO) (EVPC) (EVPE) Cast iron door (EV1PN) (EV1PO) (EV1PC) Glass (VIEV-2) (VIEV-1) Single pipe...
-
Page 31: Warranty
STOVES & FIREPLACES WARRANTY J. A. ROBY LIMITED LIFE WARRANTY – WOOD BURNING STOVES & FIREPLACES J. A. ROBY’s warranty only applies to original buyer and is non-transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. The products covered by this warranty must be manufactured after review date indicated at the bottom of page.
