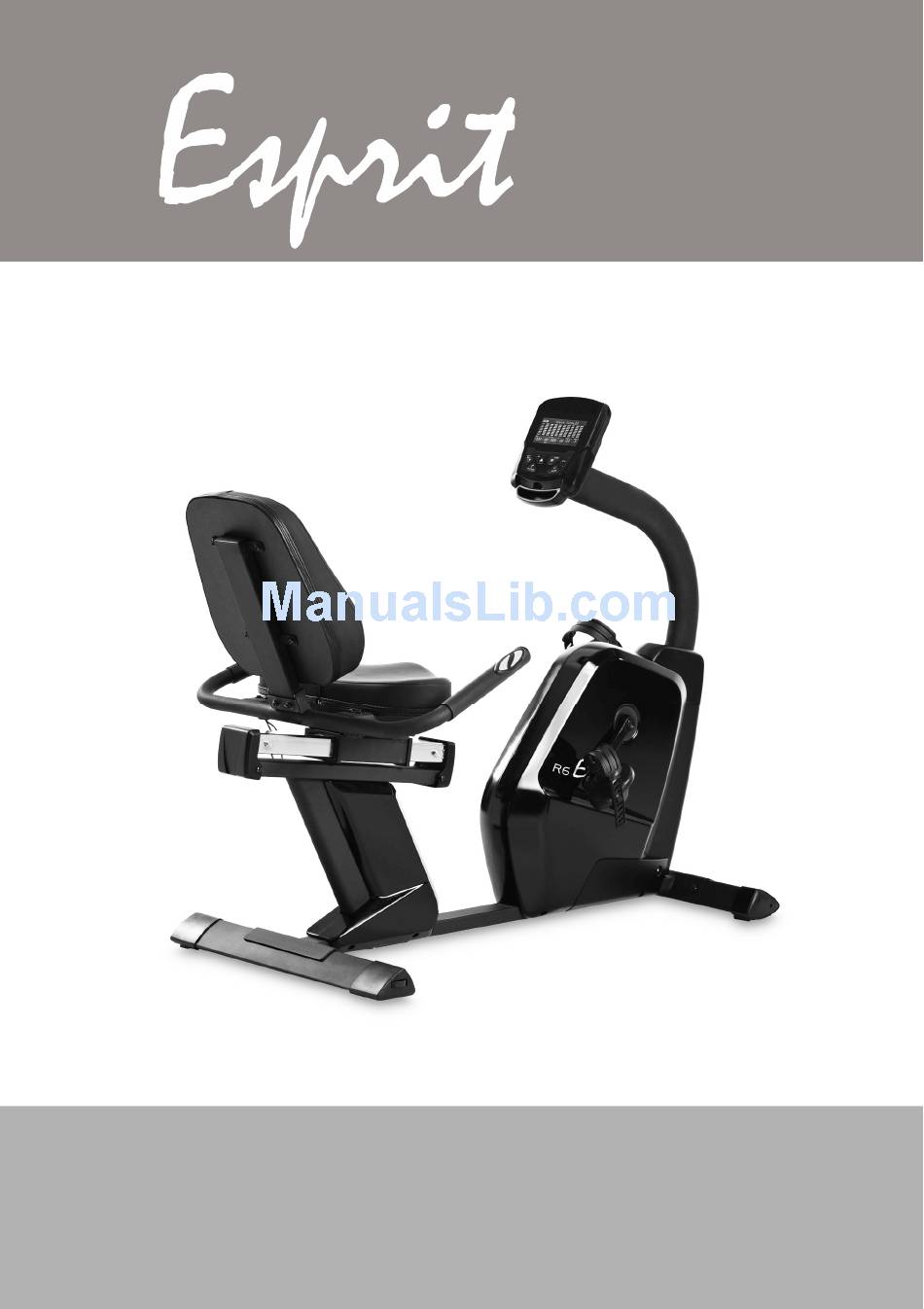

- Page 1 -ESP0037- Esprit R6 Recumbent OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR RECUMBENT!
-
Page 2: Safety Hints
Safety Hints WARNING - Read all instructions before using this appliance. Do not operate recumbent on deeply padded, plush or shag carpet. Damage to ■ both carpet and recumbent may result. Keep children away from the recumbent. There are obvious pinch points and other ■... -
Page 3: Assembly Pack Check List
Assembly Pack Check List STEP 1. #41- M5 × 12 mm #33- 5/16”× 18 × 1.5T #34- 5/16"×19×1.5T Phillips Head Flat Washer (10pcs) Curved Washer (1pc) Screw (4pcs) #35- 5/16"×1.5T Split #32- 5/16" × 3/4" Button Washer (11pcs) Head Socket Bolt (11pcs) STEP 2. - Page 4 Assembly Pack Check List TOOL. #68- Combination M5 Allen Wrench & Phillips Head Screw Driver (1pc) #92- M6 L Allen Wrench (1pc) #69- 14.15m/m Wrench (1pc)
- Page 5 Assembly Instructions STEP 1: 1. Join Rear Main Frame (100) and Front Main Frame (1) together and use Combination M5 Allen Wrench & Phillips Head Screw Driver (68) to tighten six 5/16" × 3/4" Button Head Socket Bolts (32), six 5/16” spilt washes (35) together with six 5/16"...
- Page 6 STEP 2: 1. Use the M5 Allen Wrench (68) to secure the front and rear stabilizers (5, 6) on the mounting brackets with three 5/16" × 3/4" Button Head Bolts (32), 5/16” split washers (35) and 5/16” flat washers (33). 2.
- Page 7 STEP 3: 1. Secure Seat (19) on the sliding seat carriage by using Combination M5 Allen Wrench & Phillips Head Screw Driver (68) to tighten 4pcs of M6 × 35L Phillips head screws (55). 2. Install Seat Handle Bar (7) on the sliding seat carriage by using M6 L Allen Wrench (92) to tight 4pcs of 3/8"...
-
Page 8: Key Functions
Console Key Functions START/STOP: 1. Starts & Pauses workouts. 2. Starts body fat measurement. 3. Holding key for 3 seconds will reset all functions and values to zero. DOWN: Decreases value of selected workout parameter: TIME, DISTANCE, etc. During the workout it will decrease the resistance load. -
Page 9: Workout Parameters
Functions: SPEED: Displays current training speed. Maximum speed is 99.9 KM/H or MILE/H. RPM: Displays current pedal rotations per minute. TIME: Accumulates workout time from 00:00 to 99:59. Or users can preset the target time desired. DIST: Accumulates the workout distance form 0.00 up to 999.9 KM or Mile. Or users can preset the target distance they want to reach. -
Page 10: Program Operation
More About Workout Parameters Setting Default Increment/ Parameter Description Range Value Decrement 1. When display is 0:00, Time will count Time 0:00~ 99:00 00:00 ± 1:00 2. When time is 1:00-99:00, It will count down to 0. 1.When display is 0.0, Distance Distance will count up. - Page 11 Pre-programs (P2~P13) Program profile ROLLING VALLEY FAT BURN RAMP STEPS OBSTACLE INTERVALS PLATEAU CLIMBING OFF ROAD HILL FASTREK...
- Page 12 There are 12 pre-set program profiles ready for use ： ： ： ： R OLLING, VALLEY, FAT BURN, RAMP, STEPS, OBSTACLE, INTERVALS, PLATEAU, CLIMBING, OFF ROAD, HILL, FASTREK. All program profiles have 24 levels of resistance. Setting Parameters for Pre-set programs Select one of pre-set programs using UP OR DOWN KEY then pressing ENTER KEY.
- Page 13 BODY FAT MEASUREMENT Setting Data for Body Fat Select “BODY FAT” using UP OR DOWN KEY then pressing ENTER. “Male” will flash indicating the Gender can be adjusted using UP OR DOWN KEY. Press ENTER to save gender setting & move to next setting. A Height of “175”...
- Page 14 Note: If your Pulse measurement is above or below (± 5) the TARGET H.R setting, the computer will adjust the resistance load automatically; it will check approximately every 10 seconds. If the heart rate signal disappears, the computer will keep the resistance load constant for 60 seconds then it will decrease the resistance load 1 level every 10s.
- Page 15 HEART RATE CONTROL Program Program profile There are 4 selection for target pulse: HRC- 55% TARGET H.R= 55% of (220-AGE) HRC - 65% TARGET H.R= 65% of (220-AGE) HRC - 75% TARGET H.R= 75% of (220-AGE) HRC - 85% TARGET H.R= 85% of (220-AGE) Setting Parameters for HEART RATE CONTROL Select one of the “Heart Rate Control Program”...
- Page 16 User Program Program profile 4 User programs allow the user to create their own personal program. Setting Parameters for User Program Select “User” using UP OR DOWN KEY then press ENTER KEY. The 1 parameter, “Time” will flash indicating the value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value &...
-
Page 17: Parts List
Parts List DESCRIPTION O'TY Front Main Frame Console Mast Seat Back Bracket Seat Carriage Front Stabilizer Rear Stabilizer Seat Handle Bar Crank Axle Idler Bracket Idler Wheel Crank Arm (L) Crank Arm (R) Crank Arm End Cap M10 × 1.25m/m_Nut Pedal Flywheel Drive Pulley... - Page 18 DESCRIPTION O'TY 5/16" × 1.5T_Split Washer 4 × 12L_Sheet Metal Screw 1/4" × 5/8"_Hex Head Bolt 1/4" × 5.5L_Nyloc Nut 1/4" × 13 × 1T_Flat Washer 1/4"_Split Washer M5 × 12L_Phillips Head Screw 5 × 19L_Tapping Screw Handgrip Foam Button Head Plug Magnet 300m/m_Reed Switch Console...
- Page 19 DESCRIPTION O'TY Podwer metallurgy Left Stabilizer End Cap (Front) Right Stabilizer End Cap (Rear) Left Stabilizer End Cap (Front) Right Stabilizer End Cap (Rear) Rear Shroud (L) Rear Shroud (R) Console Mast Cover Front Shroud (L) Front Shroud (R) Seat Carriage Cover (L) Seat Carriage Cover (R) Track Endcap Power Bracket...
- Page 21 WARRANTY, SAFETY AND ASSEMBLY INFORMATION ESP0037 – R6 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their Recumbent to be free from defects in material and workmanship under normal use and service conditions. The various components of the Recumbent are warranted against defects and workmanship for the time periods specified as follows: ESP0037 –...
- Page 22 This Esprit R6 Recumbent is warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article.
- Page 23 A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product.
