Summary of Contents for Prorelax TherMedic

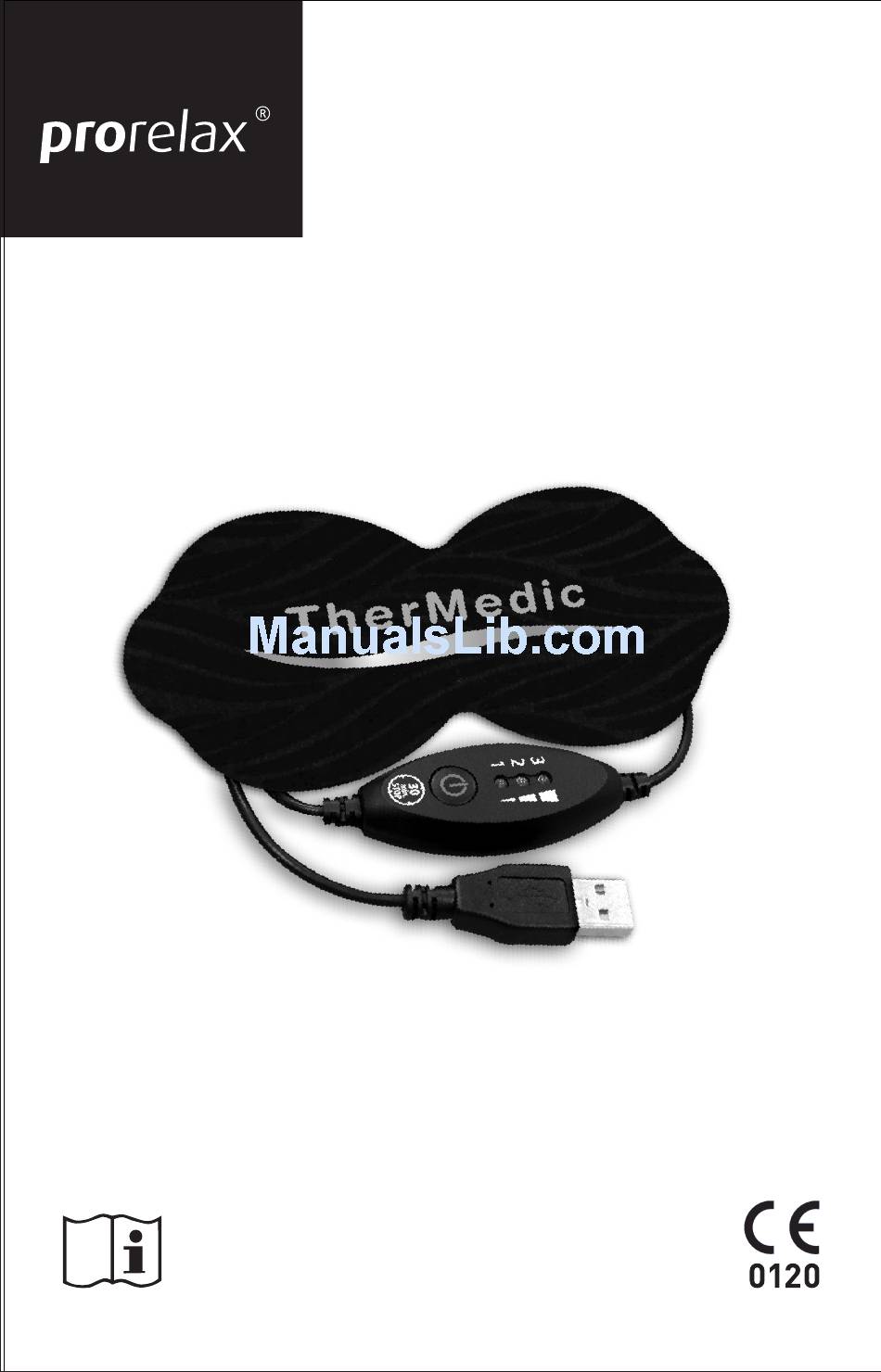

- Page 1 Heating Pad to ease menstrual pain Infrared heat to relieve menstrual cramps OPERATING INSTRUCTION Please read before use.
- Page 2 To ease menstrual pain place the heating pad right on the spot where the pain is most intense.
-
Page 3: Table Of Contents
CONTENTS Contents................3 Warning and safety instructions....... 4 Introduction..............5 Items included in delivery........6 -7 Use................. 8 -10 After Use................11 Care and Cleaning............12 Replacement of the hydrogel........13 Technical data..............14 Warranty................15 Contact................15... -
Page 4: Warning And Safety Instructions
For hygienic reasons we recommend that, in the case of several users, each uses a separate hydrogel pad. Whenever you find use of the PRORELAX “Thermedic” heating pad unpleasant, or if you do not feel well or if you notice irritations on your skin, you should immediately turn the device off. -
Page 5: Introduction
Wärmepad „Thermedic“ heating pad is patented and certified as a medical product, which means that it has been clinically tested and has proven itself in practice. -
Page 6: Items Included In Delivery
ITEMS INCLUDED IN DELIVERY Please check first if the product has been delivered in full. Once you open the package, it should contain the following items: Carbon fibre heating pad with three-stage temperature control unit and a USB adapter for connection with your PC or laptop. - Page 7 The following photos provide visual instructions for use. the front and back of the heating pad are shown, you also see the protective sheet of the hydrogel; you will see how the cable with switch and USB port is connected to the heating pad.
-
Page 8: Use
Please connect the PRORELAX “Thermedic” heating pad, in order to obtain the necessary power supply, to the appropri- ate port on your PC or laptop or plug the heating pad into the USB connector and plug both into a power outlet. - Page 9 temperature level 1 Press the power button. A green light is displayed to indicate that the lowest temperature level has been selected. Please pay attention to the accompanying illustrations. temperature level 2 If you continue to press you will reach the medium and high temperature levels.
- Page 10 By clicking the powerbutton you can suspend or terminate the therapy at any time. If you want to repeatedly use the PRORELAX “Thermedic” heating pad, then you should wait at least 30 30 min. BREAK minutes between applications.
-
Page 11: After Use
AFTER USE Once therapy is finished, remove the plug from the socket or the USB adapter from the PC or laptop power source. Next pull the heating pad carefully from your skin without touching the hydrogel. Let the hydrogel dry for a few minutes in the air with the gel side up and then cover it once again with the protective sheet in order... -
Page 12: Care And Cleaning
CARE AND CLEANING “Thermedic” heating pad does not require any special care. Do not wash it but merely carefully wipe it dry. Cable connections and the switch should never be wet. Please do not use hot water, detergents or solvents to clean the heating pad. -
Page 13: Replacement Of The Hydrogel
Take it in both hands and carefully place exactly place it on the grey inner side of the “Thermedic” heating pad, so that there is 2 mm of space on each side. Press gel pad Press it fi rmly with your thumbs and... -
Page 14: Technical Data
TECHNICAL DATA Dimensions and Weight: Size: 160 x 75 mm Weight: 120 g (unpacked) Materials used: Heating pad: Exterior: polyester Heating unit: 100% carbon fibre fabric, hydrogel Storage bag: Polypropylene Specifications: Control switch: One button operation Three-stage temperature control Automatic shut-off after 30 minutes Power supply: 5V DC... -
Page 15: Warranty
WARRANTY This heating pad „Thermedic“ is covered by a two-year warranty from the date of purchase. The warranty does not cover damage resulting from the failure to follow operating instructions, accidents, abuse, modifications or disassembly by unauthorized persons. The warranty includes the main device and required parts as well as labour. - Page 16 LinkWin Technology Co., Ltd. 1F, No. 36, Keya Rd., Central Taiwan Science Park, Taichung City 428, Taiwan LinkWin Swiss GmbH CH-9442 Berneck, Switzerland Exclusively distributed in Europa by: EUROMEDICS GmbH Wachtberg, Germany www.euromedics.com...
