IP Camera WB-H811 User Manual

Video transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Video Transceiver
1/45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WB-H811 and is the answer not in the manual?

Questions and answers

Summary of Contents for IP Camera WB-H811

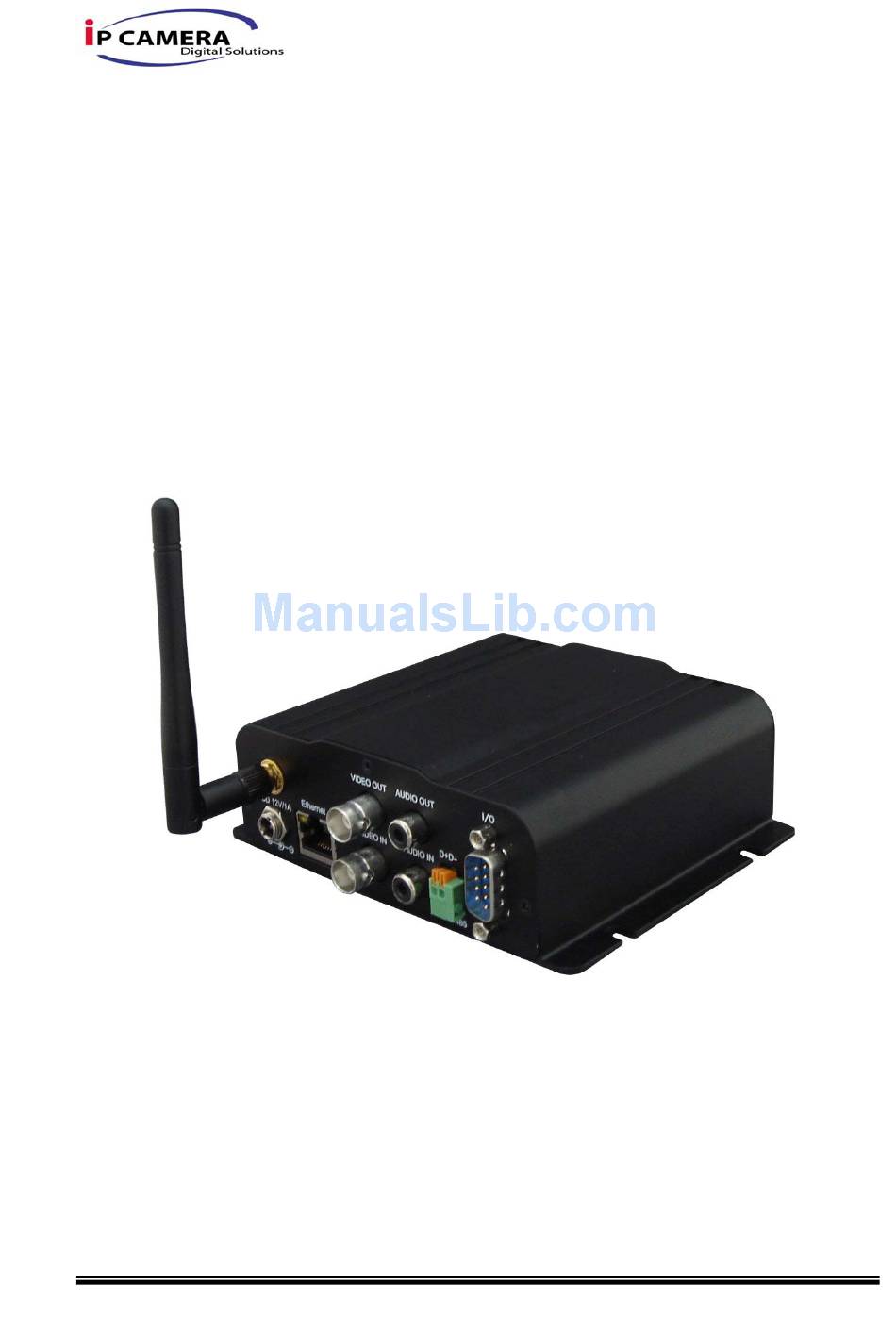

  • Page 1 User Manual Video Transceiver 1/45...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE ................................4 PRODUCT SPECIFICATIONS ......................... 4 PRODUCT INSTALLATION........................6 ............................. 6 ONITOR ETTING ........................7 ARDWARE NSTALLATION IP A ............................9 SSIGNMENT :........................11 NSTALL CTIVE CONTROL III. LIVE VIDEO............................13 VIDEO TRANSCEIVER CONFIGURATION .................. 15 ..........................17 YSTEM NFORMATION ..............................

  • Page 4: Preface

    PREFACE VIDEO TRANSCEIVER provides function which is a combination of Video Server and Video decoder with IE built-in. It encodes analogue signals of traditional cameras to digital signals; user can monitor real-time video via IE browser. H.264/MPEG4 /JPEG compression format support smooth video quality.
  • Page 5 Hardware ARM 9 ,32 bit RISC DDR2 256MB Flash 16MB Video in / Video Server 1-ch BNC type, (CBVS Camera input) Video out / Video Decoder 1-ch BNC type (CBVS Monitor output) Audio in/ out 1 in/ 1 out 2 in/ 2 Relay out (COM. & N.O. & N.C.) Relay Out: DC 24V@1A AC 110V@0.5A RS-485...

  • Page 6: Product Installation

    TV Out Output OSD Remote IPCAM Rotation Yes. 10 Channels Stream Server IP Camera, Video Server System Full screen monitoring Triggered action Mail, FTP, Save to SD card, Relay Pre/ Post alarm Yes, configurable Security Password protection Firmware upgrade HTTP mode, can be upgraded remotely...

  • Page 7: Hardware Installation

    Change color quality to highest (32bit). B. Hardware Installation B-1: Hardware Connection Connect power adaptor 7/45...
  • Page 8 Connect Video Transceiver to PC or network with Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for Video Server”. B-2: Front plane assignment 1. Power Supply (DC 12V) 2.

  • Page 9: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of Video Transceiver. The software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) iii.
  • Page 10 vii. IP Installer will search all IP Devices connected on Lan. The user can click “Search Device” to search again. viii. Click the Video Transceiver listed on the left side. The network configuration of this Video Server will show on the right side. You may change the “name”...

  • Page 11: Install Active Xcontrol

    A quick way to access remote monitoring is to left-click the mouse twice on a selected IP products listed on “Device list” of IP Installer. An IE browser will be opened. Then, please key in the default “user name: admin” and “password: admin”.
  • Page 12 Tools Internet Options… Security Tab Custom Level… Security Settings Download unsigned ActiveX controls Select “Enable” or Prompt. Tools Internet Options… Security Tab Custom Level… Initialize and script ActiveX controls not marked as safe Select “Enable” or Prompt. When popup the following dialogue box, click “Yes”. 12/45...

  • Page 13: Live Video

    III. Live Video Start a IE browser, type the IP address of this IP product in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to this IP product。The following program interface shows.
  • Page 14 ：Get into the administration page ：Video Snapshot Show system time, video resolution, and video refreshing rate Select video streaming source (When streaming 2 setting in『Video Setting』 is closed, this function will not display) Video Transceiver supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connect to the PC to talk to server side, which is Video Server side.

  • Page 15: Video Transceiver Configuration

    Record Start：Record the video in the local PC. It will ask you where to save the video. To stop recording, right-click the mouse again. Select “Record Stop”. The video format is AVI. Use Microsoft Media Player to play the recorded file. Mute：Turn of the audio.
  • Page 16 16/45...

  • Page 17: System Information

    A.System Information i、 System Information： Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 18 18/45...
  • Page 19 ii、 User Management VIDEO TRANSCEIVER supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this Video Transceiver Add user： Type the user name and password, then click “Add/Set”. Note: Allow guest to login as a Guest.
  • Page 20 iii、 System update： To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the Video Transceiver Factory default：delete all settings and restore defaults system. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 21: B.network

    B.Network i、 IP Setting Video Transceiver supports DHCP and static IP. DHCP：Using DHCP, Video Transceiver will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 22 UPnP This Video Transceiver supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.” Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP open the Control Panel from the Start Menu select Add/Remove Programs Select Add/Remove Windows Components and open...
  • Page 23 iii、 DDNS： Video Transceiver supports DDNS (Dynamic DNS) service. DynDNS： Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked.
  • Page 24 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.
  • Page 25 provide：The server, user name, and password may be wrong. 25/45...
  • Page 26 iv、 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. v、 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed.
  • Page 27 Wireless Setting： Mode：There are Infrastructure and Ad-hoc. Infrastructure is for connecting with the router. Ad-hoc is for connecting with PC. There is “Channel” to select only when user uses Ad-hoc mode. e.g. If one PC’s channel is 1, the other’s channel has to be 1, too.
  • Page 28 Encryption：There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting. Key Type：There are HEX and ASCII. When selecting HEX, the user only can input 0~9 characters and use A, B, C, D, E, and F.

  • Page 29: A/V Setting

    C.A/V Setting i、 Image setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. ii、...
  • Page 30 TV Output Use the drop down list to select the TV system of the connected IPCAM. There are NTSC and PAL two modes. The size of the camera image can be selected. (Full Size/ Original Size.) Video Transceiver Setting Channel: There are 10 IPCAMs can be connected. 2.
  • Page 31 Auto Switch Setting User can enable or disable auto switch function. Moreover, user uses the check box to select the channels which are enable “Auto Switch”. Insert “Stop Time” can setup the interval time of auto switch function. Audio Receiver Setting Enable or Disable the audio of the connected IPCAM.
  • Page 32 iii、 Video Setting This Mode enables Video Transceiver to be used as a Video Sever to sent out audio/video thru network This setting is for Video Server video format setting and not for Video Decoder video format setting. Video Decoder video format setting is depending on remote incoming video source.
  • Page 33 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate：The video refreshing rate per second. Video Format：H.264 or JPEG.
  • Page 34 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞ to use. CBR：32Kbps~4Mbps – Increase CBR to increase the picture qulity; vise versa VBR：1(Low)~10(High) – Compression rate, the higher the compression rate, the lower the picture quality is; vise versa. The balance between VBR and network bandwidth will affect picture quality.
  • Page 35 – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate Picture display frame per second...
  • Page 36 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality: There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate The video refreshing rate per second.
  • Page 37 3GPP Streaming Setting: 3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format Enable or Disable 3GPP Streaming 3GPP: 3GPP output name iv、 Audio： a. Audio receive and output Video Server Mode (two-way audio): By Selecting “Chatting” on IE page enables Video Transceiver to receive audio from remote PC, and audio can be output thru “Audio Out”...
  • Page 38 Enable Audio “IP Camera to PC” will capture audio from device connected to Video Transceiver and transmit the audio to remote PC thru network 38/45...

  • Page 39: Event

    D.Event Video Transceiver provides multiple event settings. i、 Event Setting Motion Detection： Video Server allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 40 2 and 3. Record File Setting: IP CAMERA allows 3 different types of recording file to change its record size. When motion/alarm is triggered, there are 3 different types of record mode. AVI File (With Record File Setting ) Multi-JPEG (With Record File Setting), only with JPEG compression format.
  • Page 41 iii、 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. iv、 SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely.
  • Page 42 The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del. When the SD card is full, it will remove the oldest video automatically. 42/45...

  • Page 43: Network Configuration

    V. Network Configuration i、 Configuration 1： Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only Video Server connects to the internet For fixed real IP, set up the IP into Video Server. For dynamic IP, start PPPoE.
  • Page 44 IP address：More than one real IP or one dynamic IP Video Server and PC connect to the internet Device needed：Switch Hub For fixed real IP, set up the IP into Video Server and PC. For dynamic IP, start PPPoE. iii、 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP Video Server and PC connect to the internet...

  • Page 45: Factory Default

    VI. Factory Default To recover the default IP address and password, please follow the following steps. Remove power and press and hold the button in the back of Video Server. Power on the Video Transceiver. Don’t release the button during the system booting.
