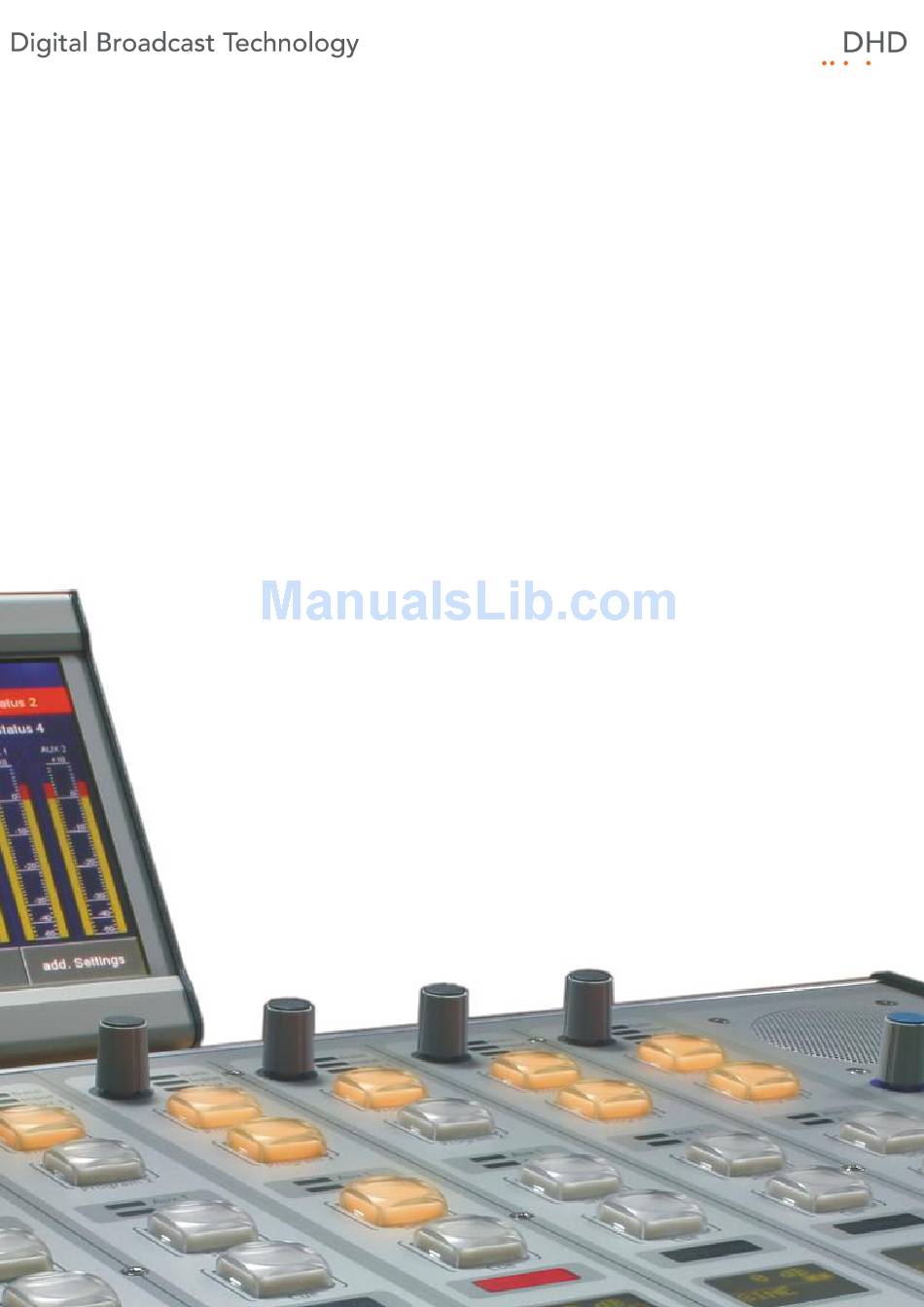

- Page 1 Series 52 52/SX Compact Mixing Console Installation Guide © 2011 DHD Deubner Hoffmann Digital GmbH Version: 1.3.0...
-
Page 2: Table Of Contents
........................... 7 2 Installation Information for Table-Installation Frames ........................... 8 3 Installation Information for Console Frames ........................... 8 4 System Wiring Connecting modules to the XS Core ................................. Pin assignment of 52-1330 ................................. Index © 2011 DHD Deubner Hoffmann Digital GmbH... -
Page 3: Terms Of Use - Legal Disclaimer
52/SX Compact Mixing Console Installation Guide © 2011 DHD Deubner Hoffmann Digital GmbH This manual is copyright of DHD. It might be distributed and copied as long as it is copied completely as a whole and this copyright notice is included. -
Page 4: About This Book
This installation guide will provide you a short introduction how to install an 52/SX Compact Mixing Console. The content of this manual is subject to change without notice. DHD recommends to visit the DHD website once in a while to check if there is a newer version of this document available. - Page 5 Recommendations and further information are marked as notes. Sometimes you will also find off-topic content in this field, which is related to the actual topic. Tips are helpful advices, which should make work with DHD systems easier. Weblink In this fields you can find links to websites, which include for example an other manual or the possibility to download a driver for the respective DHD system.
-
Page 6: What Is New In This Version Of The Manual
What is new in this version of the manual? What is new in this version of the manual? All sections that had been added, deleted or changed are listed below. Click on the entries to reach the respective sections directly. Current version (1.3.0): Chapter / Section State... -
Page 7: Environmental Specifications
Series 52 - 52/SX Compact Mixing Console Installation Guide Environmental Specifications In the following you can find some general advices concerning the environment of an 52/SX. If these values and standards are not adhered, DHD can not assure the proper functionality of the device. -
Page 8: Assembling And Wiring The Hardware
Assembling and Wiring the Hardware Assembling and Wiring the Hardware In the following you can find information on the mechanical assembling and wiring of an 52/SX Mixing Console. Warning Avoid damaging components by electrostatic discharge (ESD). Before you touch or mount electronical components, make sure you do not carry any electrostatic charges. -
Page 9: Installation Information For Table-Installation Frames
For detailed dimensions of each type of table installation frames, see 52/SX list of modules - 52/SX Table-Installation Frames. For detailed dimensions of the Table Top Stand, see 52/SX list of modules - 52- 3017A - Table Top Stand for 52-4017. -
Page 10: Installation Information For Console Frames
52-3018 on 52/SX frames. System Wiring The 52/SX mixing system consists of 3 main parts, which are connected via an industry standard CAT5 or CAT6 shielded network cable. These parts are: · XS Core: This unit includes the DSP Audio Engine and the Control Engine. -
Page 11: Connecting Modules To The Xs Core
Series 52 - 52/SX Compact Mixing Console Installation Guide 5.4.1 Connecting modules to the XS Core The control modules and I/O boxes have to be connected to the APC ports of the 52/XS Cores 52-180x. It is important to connect the peripheral modules to the correct APC port. -
Page 12: Pin Assignment Of 52-1330
I/O boxes or a 16 fader mixing console with two I/O boxes are the maximum configurations for a 52/SX. Weblink Please find a PDF file with cabling examples in the 52/SX Download area on www.dhd-audio.com. 5.4.2... -
Page 13: Index
I/O boxes Breakout cables installation 7, 8 cable magnetically fixed 7, 8 cable length cables cabling examples console frame Console mounting kit operating temperature DeviceLink Pin assignment D-sub type © 2011 DHD Deubner Hoffmann Digital GmbH... - Page 14 Index rack mount System Wiring table installation frame Table Top Stand temperature Terms of Use TFT/Touch displays ventilation XS Core XS Multi-I/O Box © 2011 DHD Deubner Hoffmann Digital GmbH...
