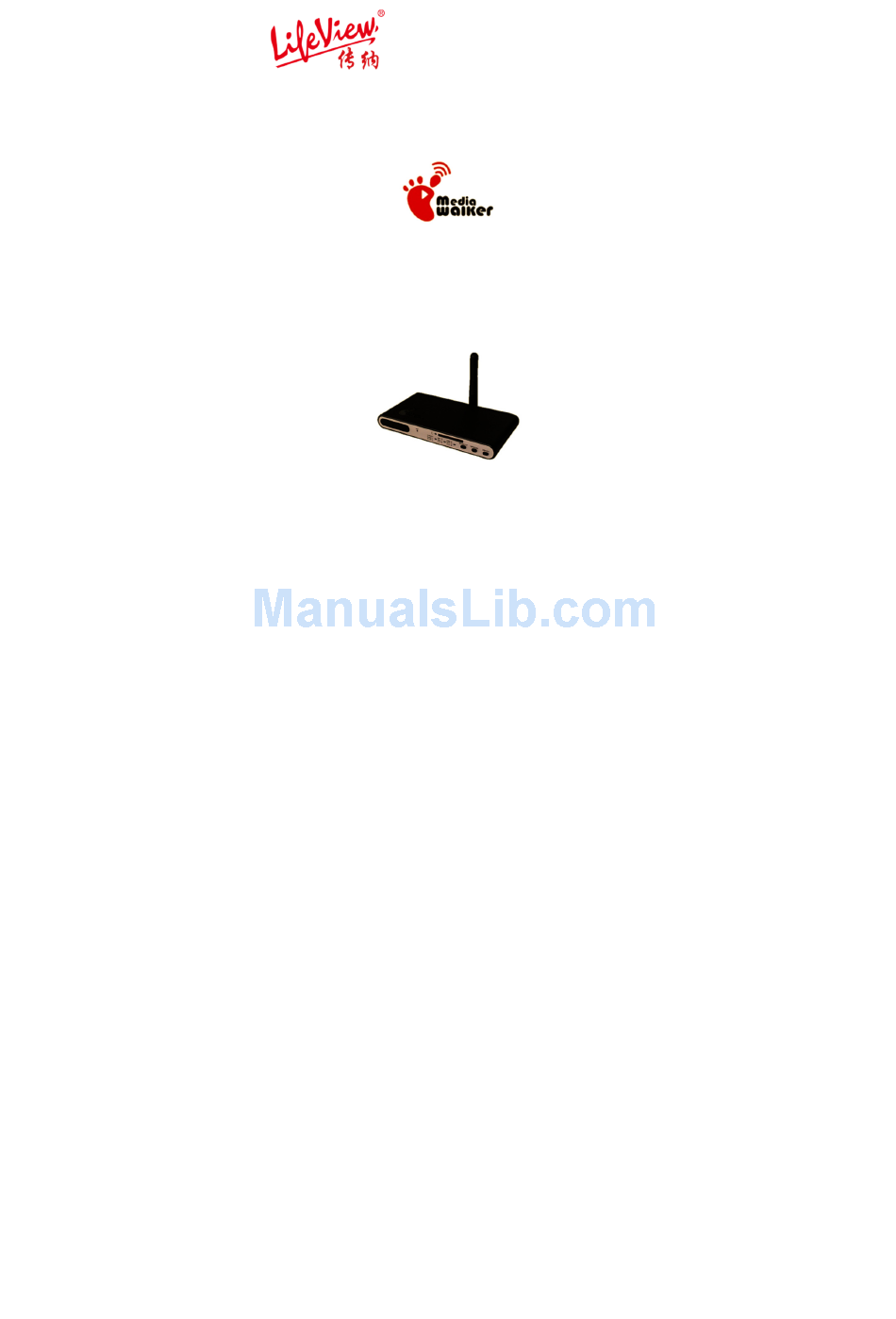

- Page 1 P/N:4P0108094801 MediaWalker Extra 948 MediaWalker Pro 948 MediaWalker Advance 948 MediaWalker Deluxe 948 User Guide Sept, 15 2014 Ver. 1.0.0...
-
Page 2: Copyright And Trademark Notice
Copyright and Trademark Notice ©2014 by i-Trinetech Co., Ltd. All rights reserved. Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical without prior written permission of i-Trinetech Co., Ltd. - Page 3 Product Warranty and License This is a legal agreement between you the end user, and the manufacturer. By opening this sealed package you are agreeing to be bound by the terms of this agreement. COPYRIGHT: Copyright laws and international treaty provisions protect this product –...
- Page 4 DISCLAIMER: In all circumstances the manufacturer's maximum liability is limited to the purchase price of the products sold. The manufacturer shall not, under any circumstances, be liable upon a claim or action in contract, tort, indemnity or contribution, or other claims relating to the products it sells which exceeds this liability limit.
-
Page 5: Fcc Regulation
FCC Regulation 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 6 MediaWalker 3.5mm male 3.5mm male 948 Box * 1 to RCA male to RCA Female Audio Cable * 1 Audio Cable * 1 USB to micro USB Remote User Guide * 1 Power Cable * 1 Controller * 1 (Advance &...
- Page 8 MediaWalker 948 Deluxe On/off System on / System off WiFi access or USB access WiFi/USB (as card reader) Rec/Stop Voice Recoding and Stop Power is ready Green System is ready Blue Internet radio WIFI Connected Green Recode Voice/Video Blue Ethernet Connected...
- Page 9 MediaWalker 948 Advance On/off System on / System off WiFi access or USB access WiFi/USB (as card reader) Rec/Stop Voice Recoding and Stop Power is ready Green System is ready Blue Internet radio WiFi Connected Green Recode Voice/Video Blue Ethernet Connected...
- Page 10 MediaWalker 948 PRO Power is ready Green System is ready Blue Internet radio WiFi Connected Remote control access Green (MediaWalker app) Blue Ethernet Connected...
- Page 11 (MediaWalker app) Blue Ethernet Connected When (PWR) Red + (RDY) Green = Orange, means the MediaWalker Music Box is Ready to work. When (TUN) Blue turned on means MediaWalker 948 is working on connecting Internet Radio. When (WiFi) Red + (ETH) Blue = purple and...
- Page 13 Plug in the Power: Use micro USB power cable to connect the +5V/1A adapter to MediaWalker 948 and turn the power switch to power on. Connect to Speaker and/or Amplify: Use either 3.5mm stereo audio cable or SPDIF fiber optical cable to connect the MediaWalker 948 with Speakers and/or Amplify.
- Page 14 WiFi to up-link (WAN). Storage: Insert the SD card and/or the USB disk will perform the storage of MediaWalker. It will be able to play music from the storage and share the content through the FTP Server service. ** Play mode notice LAN mode mobile phone connect to MediaWalker 948 by WiFi directly as a clinet in the LAN.
- Page 15 The MediaWalker 948 supports AirPlay, UPnP, and DLNA (DMS +DMR). It is as easy as just connect your playing device with the WiFi of the MediaWalker 948 and start to play. Following is the picture of the play back from AirPlay, UPnP,...
- Page 16 (different mobile phone) at same time. The multiple resource can come from anyone of your mobile phone, MediaWalker 948 DMS, and any other media server. The multiple device can be any one of your mobile phone, MediaWalker 948 DMR, and any other media render.
- Page 17 Power on and get Mediawalker 948 ready to work. Connect the Power with MediaWaler 948 and switch to power up. Wait till both “PWR R” and “RDY G” LEDs turn on and light out orange color to indicate the system is ready to work.
- Page 18 Google Play APK market. There is a lot of APKs on the market supporting UPnP/DLNA such as Media House, iMedia Share, UPnP Monkey, BubbleUPnP, AllCast, and MirageDLNA…etc. Almost all APKs who named it supports UPnP/DLNA can be used to play music to the MediaWalker 948.
- Page 19 Use Remote Controller to play (Deluxe and Advance only) You can use the IR remote controller to control the MediaWalker 948. No need to use extra playback device, you can use the R/C to activate the function described as following:...
- Page 20 Use MediaWalker APP to play: Download the MediaWalker APK from http://www.itrinetech.com /download/app/MediaWal ker.apk and install on your Android mechine. You can download the APK by using the QR code and install the APK too. Start up the MediaWalker APP after installation.
- Page 21 (2) DLNA Player Click the slide command tag at the most upper left corner and choose the DLNA Player to list down the DMS and DMR device in your network.. Click the DMS which you want to play from and the DMR which you want to play to.
- Page 22 FTP Client to start the FTP service. Your mobile phone need to connect with the WiFi of MediaWalker 948 to be able to access the FTP server on You will find the FTP site with the same name as the WiFi SSID name.
- Page 23 (5) Remote Control Panel Use Remote Control Panel in MediaWalker APP to control MediaWalker 948. By click on the slice command list you can see the item of Remote Control Panel can be chosen. Use the remote Control Panel in the MediaWalker...
- Page 24 (7) Setup Click the slide command tag at the most upper left corner and choose the Setup to be able to start the configuration setup of the MediaWalker 948. Choose WiFi to login to the configuration setup of MediaWalker 948.
- Page 25 If your controller connect the MediaWalker 948 through a router/AP, which means both the mobile phone (Controller) and MediaWalker 498 connect on the same router/AP, you need to choose the “WAN” mode. WiFi Configuration Section The Default IP of MediaWalker 948 is 192.168.192.1...
- Page 26 Restore factory setting It will set all of the changes back to factory default which same as described on page Force to restart the system It will force the MediaWalker 948 to reboot.
- Page 27 Choose About to view the Firmware version of the MediaWalker 948 with the listed SSID and the APP version on the mobile. By double touch on the screen for more than 5 second, you can manually start the firmware update process.
