Owner's Manual
AB-PROVFM-100-F3**
ProVFM Viewfinder Mount Kit
For Sony PMW-F3 Camera
www.abelcine.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ProVFM and is the answer not in the manual?

Questions and answers

Summary of Contents for AbelCine ProVFM

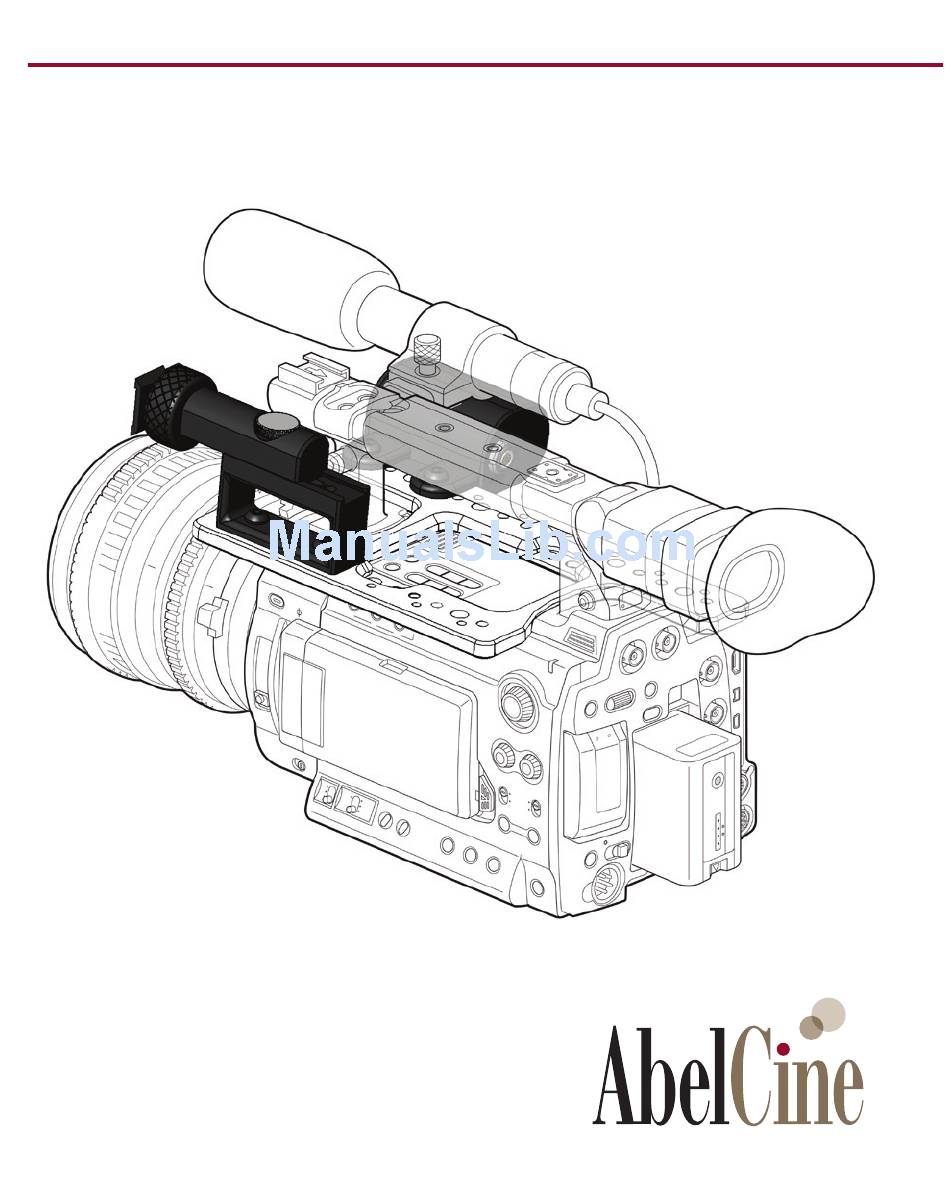

  • Page 1 Owner’s Manual AB-PROVFM-100-F3** ProVFM Viewfinder Mount Kit For Sony PMW-F3 Camera www.abelcine.com...

  • Page 2: Required Accessories

    Introduction Required Accessories The ProVFM Viewfinder Mount Kit for the Sony PMW-F3 camera is designed for use with • P-Tap female connected to 12v Panasonic or Sony 1920x1080 HD viewfinders. power source • Berkey Top Mount Accessory The mount retains the viewfinder’s side-to-side Plate adjustability and adds front-back adjustability for maximum comfort.

  • Page 3: Black-And-White

    Compatible Viewfinders ProVFM Kits for Sony F3 Sony Based on Viewfinder model • HDVF200 • HDVF20A Black-and-White • HDVFC30W (color) Sony Panasonic • HDVFC30WR (color) AB-PROVFM-100-F3SO AB-PROVFM-100-F3PN • HDVFC35W (color) Viewfinder mount with dovetail Signal box w/ Lemo-8 and viewfinder sockets Panasonic AB-PROVFM-F3191 cable • AJ-HVF21G w/Lemo-8 plug to P-Tap male and BNC • AJ-HVF21KG (4) 1/4-20 x 1/2” 18-8 Button Head Screws • AJ-HVF20B (1) 5/32” Hex Wrench • AJ-CVF100G (color) Color Note: To ensure compatible output signals with the above Sony Panasonic viewfinders, the camera should AB-PROVFM-100-F3SO-C AB-PROVFM-100-F3PN-C be set to record a 1080 format Viewfinder mount with dovetail at 23.98, 29.97 or 59.94 Hz.
  • Page 4 Mounting Attach the base of the viewfi nder mount to the left (operator) side of the Berkey plate using the right angle hex wrench supplied. Th e viewfi nder mount may be attached to the Berkey plate in several diff erent positions. Note: ﬔ...
  • Page 5 Slide the top half of the mount into the dovetail of the base, and use the thumb screw to hold the mount in the desired front-back position. Slide your Sony or Panasonic viewfi nder onto the front plate and tighten the thumb nut to secure it in place.
  • Page 6 When using a black-and-white viewfi nder, connect the Lemo-8 side of the supplied “Y” cable (AB-PROVFM-F3191) to the input on the back of the signal box. Connect the BNC end to the camera’s Video Output and the P-Tap end to the battery mount’s P-Tap socket.
  • Page 7 When using a color viewfi nder, connect the Lemo-8 regulated 12v DC power. side of the supplied cable (AB-PROVFM-F3190) to the input on the back of the signal box. Connect the BNCs labeled Y, Pb and Pr to Y, B-Y, and R-Y on the Blackmagic Design SDI to Analog converter (or equivalent converter).

  • Page 8: Warranty

    Warranty AbelCine warrants the ProVFM Viewfinder Mount Kit to be free of defects in materials and workmanship for a period of one year from the date of purchase. AbelCine will pay shipping via UPS Ground within the United States to return the unit after repairs.
