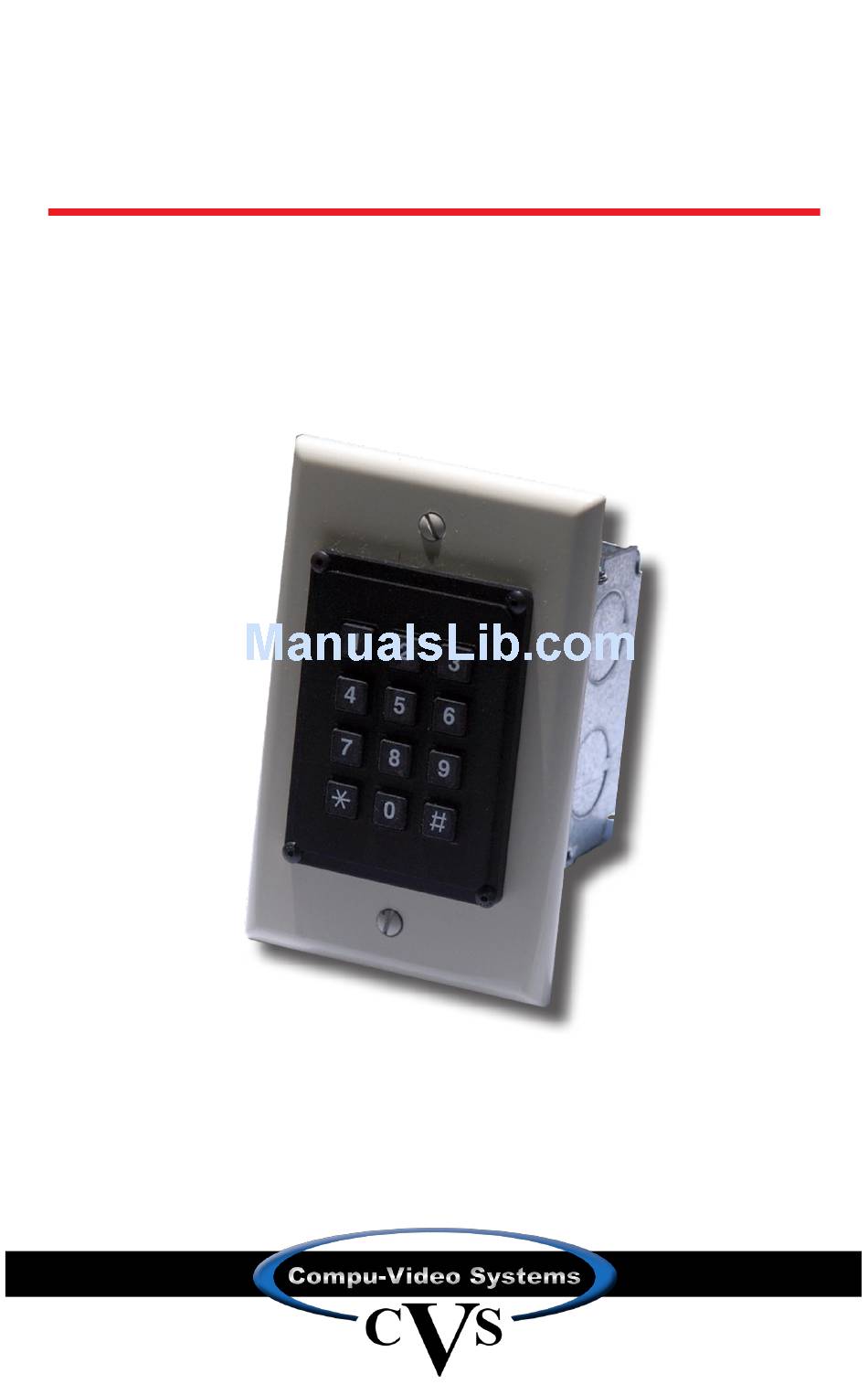

RSKP-1
RS-232 KEYPAD
Instruction Manual
Thank you for purchasing one of our products. Please read this manual before using this
product. When using this product, always follow the instructions contained in this manual,
and pay attention to the safety information.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RSKP-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for CVS RSKP-1

  • Page 1 RSKP-1 RS-232 KEYPAD Instruction Manual Thank you for purchasing one of our products. Please read this manual before using this product. When using this product, always follow the instructions contained in this manual, and pay attention to the safety information.
  • Page 2 Do not expose this product to water, rain or moisture. Doing this can result in electric shock or fire. Never take this product apart or try to modify it. Doing so is very dangerous and could result in electric shock. Do not store this product near open flame.
  • Page 3 Step 7: Test the keypad to make sure that it works before continuing on to the next step. Step 8: Use screws on the Keypad plate to attach it to the pc board. Note: The RSKP-1 fits snugly into a standard single bay electrical box found at any local hardware store.
  • Page 4 Fig. 3 Wiring FOUR CONDUCTOR COLOR CODE FOR WIRE: Blue/white RS-232 out White /Blue Ground for RS-232 Orange/White Positive 5Vdc in White/Orange Power Ground Use external power supply for older ARS units that do not provide power for keypads. The Current 6V power pack can power up to 14 keypads. Stock keypads will not be provided with power packs as the newer ARS switchers will provide power for the keypads.
  • Page 5 Fig. 4 Keypad Wiring On ARS-8400 Ground RS-232 +5V Leave Open Fig. 5 ARS-8400 Pin Configuration To Power Keyboard Normal Position Keypad Power For Toggle Switch CONTROL IN P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
  • Page 6 Fig. 6 Adjustments Factory Preset Do Not Adjust Scan Rate Adjustment P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...

  • Page 7: Operation

    Fig. 7 Front View OPERATION: To scan: Push the * key. To stop scan: Push the # key. To go to a specific camera: Push camera number and then the # key. (i.e. 1,# to go to camera 1. 7,# for Camera 7) There is an adjustment for scan rate on the rear of the PCB.
  • Page 8 P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
  • Page 9 THE RSKP-1 IS COMPATIBLE WITH THE FOLLOWING PRODUCTS DISTRIBUTION AMPLIFIERS CH-16 / DA-2160 CH-32 / DA-3212 CH-34 / DSPA-1612 RS-232 COMPUTER CONTROLLED SWITCHERS CS-14 CS-18 CS-1600 SEQUENTIAL, RS-232 COMPUTER CONTROLLED SWITCHERS CS-24 CS-28 CS-216 MATRIX SWITCHERS ARS-414 ARS-4000 ARS-8400 P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
  • Page 10 NOTES: P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...

  • Page 11: Limited Warranty

    Overland return transportation from Compu-Video Systems Inc. to the user is free of charge. HOW TO GET SERVICE Please contact CVS by phone for a return authorization number and then return the defective unit, transportation prepaid and a dated proof of purchase to: Compu-Video Systems Inc.
