Summary of Contents for Pyle Sports PHTCM3

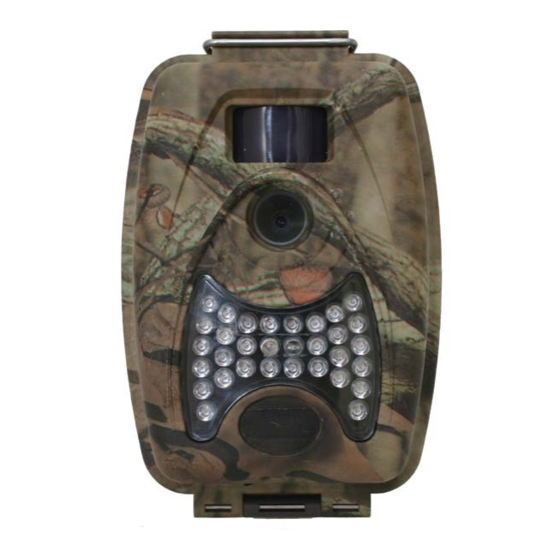

- Page 1 Water Resistant Infrared Night Vision Game Camera with Time Laps Function PHTCM38 www.pyleaudio.com Instruction Manual...
- Page 2 Ⅰ. Your camera features 8MP images, 30 FPS videos, selectable interval, 30 IR LED’s (Note#1) with 50 foot maximum illumination, up to 32GB SD card capacity, adjustable PIR (Note#2) sensitivity for ambient temperature, photos are stamped with date, time, moon phase, and temperature. 1.
- Page 3 3. Switch and Button Control Panel 4. TV & USB Interface TV Port USB Port...
-
Page 4: Battery Installation
Ⅱ. Battery Installation 1. Ensure power switch is in the off position. 2. Install 4AA batteries according to polarity indicated in the battery tray. ★ Recommended Alkaline battery ★nickel-hydrogen battery rechargeable never to be used (low voltage of nickel- hydrogen battery would render the camera non-working ) ★Incorrect voltage or polarity (+/-) will get the battery hot and or damage unit. - Page 5 Ⅳ. Setup your Camera 1. After installing the batteries and SD card correctly, turn the power switch to the on position. Operation Screen Display FREE MEM Turn on the switch XXX MB IMG00000 Press “DOWN” skip or wait for 5s MOV00000 Press “DOWN”...
- Page 6 FORMAT FORMAT Format CARD CARD ★during menu-setting, after 1 min if you do nothing, the camera would come into shoot resting condition automatically Ⅴ. Specification and Parameter Model PHTCM38 Image Sensor ◆CMOS ◆5.0 MP / 8.0 MP（interpolation） Image Format ◆1 to 3pcs one time ◆color daytime /black-white nighttime ◆VGA(640×480)AVI Video Format...
- Page 7 2. TV Interface ◆On menu setting, insert the TV cable and connect to TV, “TV OUT PREVIEW” showed on LCD, then the pictures from camera will appear on TV. ◆press “OK” to change to Playback mode, LCD showed “TV OUT PLAYBACK”, you can press “UP/LEFT”...
