Summary of Contents for Strymon MultiSwitch

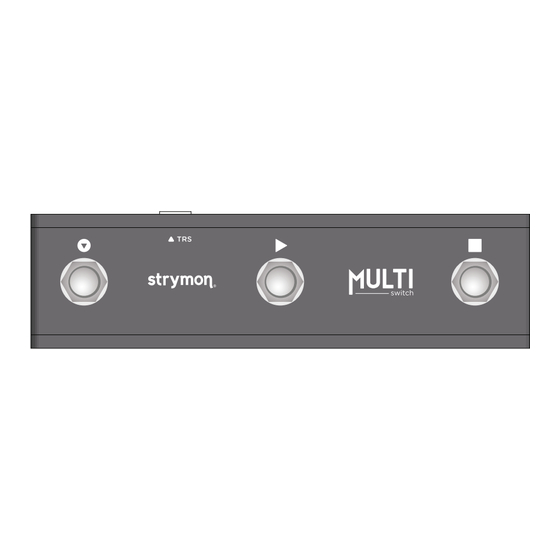

- Page 1 USER MANUAL switch ®...
- Page 2 Please visit the link above for instructions on how to check the firmware version, and how to update your pedal to the latest version. Connect MultiSwitch Connect your MultiSwitch to the EXP input of your TimeLine, BigSky, or Mobius with the included 1/4” TRS cable. ®...
- Page 3 ® Expression Mode Setup for Timeline, BigSky, and Mobius Your TimeLine, BigSky, and Mobius (with the latest firmware version) can work with MultiSwitch in several ways. Select the Expression Mode via the Globals menu on your TimeLine, BigSky, or Mobius.
- Page 4 Bank Mode MultiSwitch gives you a new means of exploring preset banks. Use the left switch to move down a bank, right switch to move up a bank, and middle switch to cycle through your presets within the current bank.
- Page 5 TAP switch to enter Looper Mode. Access looping features while retaining footswitch control over your delay sounds. REC / DUB PLAY STOP Hold TimeLine’s TAP switch to enter looper mode, and MultiSwitch now gives you instant access to Reverse, Half Speed, and Undo/Redo. REVERSE HALF SPEED UNDO / REDO...
-
Page 6: Specifications
MultiSwitch - User Manual ® Specifications Cable: 1/4” Right Angle TRS (tip / ring / sleeve) Dimensions: 1.875” deep x 6.625” wide x 2” tall Compatible with: TimeLine, BigSky, or Mobius via expression pedal jack Expression Modes: Loop Control Mode (TimeLine only) Bank Mode Preset Mode Tap Mode No additional power supply required Rugged gunmetal gray anodized aluminum chassis Designed and built in the USA pg 6... -
Page 7: Limits Of Liability
MultiSwitch - User Manual ® Strymon Non-Transferrable Limited Warranty Warranty Strymon warrants the product to be free from defects in material and workmanship for a period of one (1) year from the original date of purchase. If the product fails within the warranty period, Strymon will repair or, at our discretion, replace the product at no cost to the original purchaser. Exclusions This warranty covers defects in manufacturing discovered while using this product as recommended by Strymon. This warranty does not cover loss or theft, nor does the coverage extend to damage caused by misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters. Limits of Liability In the case of malfunction, the purchaser’s sole recourse shall be repair or replacement, as described in the preceding paragraphs. Strymon will not be held liable to any party for damages that result from the failure of this product. Damages excluded include, but are not limited to, the following: lost profits, lost savings, damage to other equipment, and incidental or consequential damages arising from the use, or inability to use this product. In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein. How to Obtain Service Under this Warranty For North American customers: Contact Strymon through our website at http://www.strymon.net/support for Return Authorization and information. Proof of original ownership may be required in the form of a purchase receipt. For International Customers: Contact the Strymon dealer from which the product was purchased from in order to arrange warranty repair service. Strymon is a division of Damage Control , LLC.
