Summary of Contents for Tvone CS-320 Connect

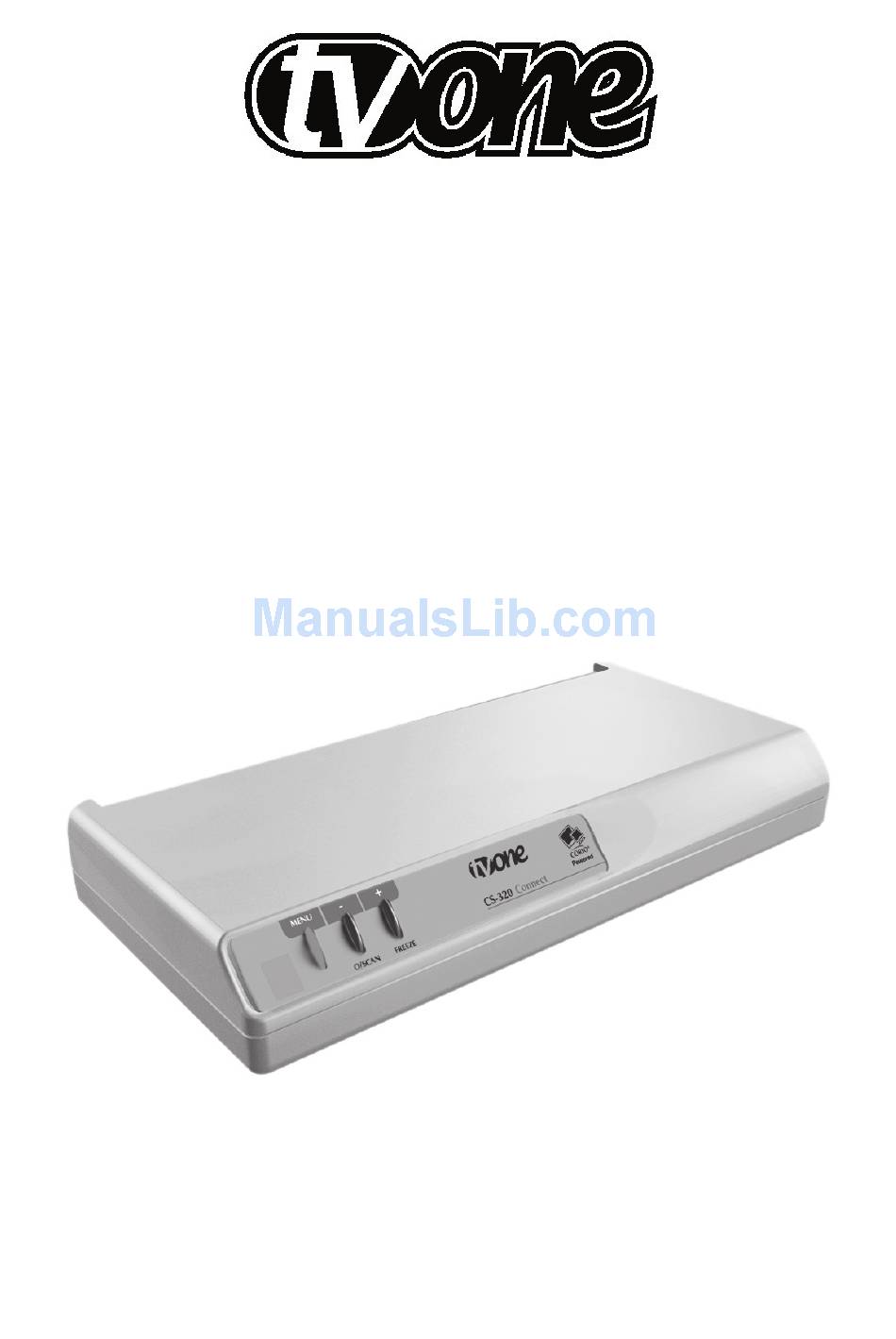

- Page 1 CS-320 Connect User Manual Version 2.0...
- Page 2 CS-320 USER MANUAL...
-
Page 3: Table Of Contents
CS-320 USER MANUAL Table of Contents DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement ....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTION............3 GETTING STARTED .................. 13 FRONT PANEL BUTTON FUNCTIONS ............. 14 Power-on LED and Menu button ............... - Page 4 CS-320 USER MANUAL 7.2.2 Auto Set ......................22 7.2.3 Screen Size....................... 22 7.2.4 Out H-Center - altering the display's horizontal screen position......23 7.2.5 Out H-Width - altering the display's width ............23 7.2.6 Out V-Center - altering the display's vertical screen position ......23 7.2.7 Out V-Height - altering the display's height............
- Page 5 CS-320 USER MANUAL 10.6 Control Methods....................30 10.7 Power requirements ..................30 10.8 Environmental ....................31 11 TROUBLE SHOOTING ................32 11.1.1 The picture on the video display is black and white........... 32 11.1.2 There is no picture on my TV monitor..............32 11.1.3 There is no picture on the computer monitor.
-
Page 6: Disclaimer
CS-320 USER MANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in flight or as an adjunct to any surface, airborne or marine navigation system or any offshore marine activity, including control of any watercraft, or any use similar to those specifically herein mentioned is prohibited. -
Page 7: Manual Version Information
CS-320 USER MANUAL Caution: This equipment is intended for use in the manner prescribed in the Instruction Manual. Any user changes or modifications not expressly approved by TV One Multimedia Solutions could void the user’s authority to operate the equipment. Connecting this equipment to external devices requires no specially shielded cabling for FCC compliance. -
Page 8: Important Safety Instruction
CS-320 USER MANUAL IMPORTANT SAFETY INSTRUCTION To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside. - Page 9 CS-320 USER MANUAL 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area. 2.6 Intellectual property Some IC chips in this product include confidential and/or trade secret property.
- Page 10 CS-320 USER MANUAL 2 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection. Aucune pièce réparable par l’utilisateur à...
- Page 11 CS-320 USER MANUAL L’installation de cette unité doit se faire dans un endroit frais et sec, éloigné de sources excessives de chaleur, de vibrations, de poussière, d’humidité et de froid. 2.5 Aération Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que l’unité...
- Page 12 CS-320 USER MANUAL 2 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato. No hay piezas utilizables dentro.
- Page 13 CS-320 USER MANUAL 2.4 Ubicación Este aparato se debe instalar en un lugar seco y fresco, lejos de fuentes de calor excesivas, la vibración, el polvo, la humedad y el frío. 2.5 Ventilación El aparato viene provisto de ranuras y agujeros en los lados para la ventilación. Para asegurar una operación eficaz, se debe evitar la obstrucción de estos agujeros y también asegurar que el aparato se instale en una zona con adecuada ventilación.
- Page 14 CS-320 USER MANUAL 2 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen.
- Page 15 CS-320 USER MANUAL 2.3 Aufstellung Das Gerät sollte an einem kühlen, trockenen Ort aufgestellt werden, fern von übermäßiger Wärme, Vibrationen, Staub, Feuchtigkeit und Kälte. 2.5 Belüftung Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht verdeckt werden.
- Page 16 CS-320 USER MANUAL 2 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
- Page 17 CS-320 USER MANUAL 2.4 Plaatsing Deze eenheid moet geïnstalleerd worden op een koele droge plaats, uit de buurt van bronnen van extreme hitte, vibraties, stof, vocht en kou. 2.5 Ventilatie De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze betrouwbaar werkt.
-
Page 18: Getting Started
CS-320 USER MANUAL GETTING STARTED Package Contents: 1 x CS-320 unit 1 x 12v DC Power Adapter 1 x User manual & quick setup guide... -
Page 19: Front Panel Button Functions
CS-320 USER MANUAL FRONT PANEL BUTTON FUNCTIONS Power-on LED and Menu button When the unit is powered the button labeled POWER will illuminate green. It will flash if either of the Button or Remote Control Lock functions are enabled, as described later in the manual. -
Page 20: Set To Ntsc Mode
CS-320 USER MANUAL 4.4.2 Set to NTSC mode. This is done by holding the O/Scan button down when turning on the unit. This changes the non-volatile PAL/NTSC setting to NTSC, and will be remembered even when power is removed. 4.4.3 Set to PAL mode. -
Page 21: Connecting & Powering Up Your Unit
CS-320 USER MANUAL CONNECTING & POWERING UP YOUR UNIT BEFORE CONNECTING OR REMOVING ANY CABLES IT IS RECOMMENDED THAT ALL EQUIPMENT INVOLVED IS TURNED OFF. First using a computer cable, connect one end to the VGA output connector on your computer and the other end to the "PC in" connector. Now connect your computer monitor's input cable to the "PC out"... -
Page 22: Control And Set-Up Using The Infra-Red Remote Control
CS-320 USER MANUAL CONTROL AND SET-UP USING THE INFRA-RED REMOTE CONTROL Introduction By now you should have the unit powered up and working with your computer and TV. If you don't get an image on your TV, please refer to the Troubleshooting section at the back of this manual. -
Page 23: Freeze
CS-320 USER MANUAL Overscan has no border and the displayed image (when set correctly) is larger than your TV monitor screen. This function is also available via the front-panel button labeled 'O/SCAN'. The position and size of the image in both modes are user-adjustable, and the method of doing so will be described later under the SIZE and POS functions. -
Page 24: Filter
CS-320 USER MANUAL If you encounter problems when running Autoset you can adjust the level at which the Autoset works - see the LEVEL button described later. Once complete, the Autoset routine will remember this particular resolution and refresh rate so that you should not need to re-do this function. The only exceptions are if you change the setup of the computers screen resolution, do a Factory Reset or use this unit with a different computer. -
Page 25: Zoom
CS-320 USER MANUAL Once adjusted, STORE the setting for future use. Note that you are setting the screen size for one particular TV (the one you are watching the results on), and the size may appear different on another TV. This is not a fault with the unit, but merely demonstrates that no two TVs are exactly alike. -
Page 26: Level
CS-320 USER MANUAL 6.2.10 LEVEL This button allows internal settings to be adjusted, by subsequently pressing a number button (within 1.5 seconds), and then the up/down arrow-keys to adjust the level itself. LEVEL 2 - will adjust the AutoSet sense level, from 1 through to 3. A lower setting (using the down arrow-key) will allow darker image edges to be detected. -
Page 27: On-Screen Display
CS-320 USER MANUAL ON-SCREEN DISPLAY Introduction As well as being controlled via the Infra-Red hand controller, your unit can be controlled further using the front panel button array, in conjunction with the On Screen Display menu (OSD). This feature also allows access to information relevant to the current settings of the unit. -
Page 28: Out H-Center - Altering The Display's Horizontal Screen Position
CS-320 USER MANUAL 7.2.4 Out H-Center - altering the display's horizontal screen position Pressing the (+ button) will moves the image to the right, pressing the (- button) will moves it to the left. Adjust until the image is centered horizontally on the screen. 7.2.5 Out H-Width - altering the display's width Press the (+ button) to increase the width of the picture and (- button) to decrease... -
Page 29: Vert. Freq - For Information Only
CS-320 USER MANUAL 7.2.11 Vert. Freq - for information only This number indicates the number of pictures displayed by the Computer every second. This value typically ranges from 60 to 85Hz, but can go higher. 7.2.12 Exit Press + when Exit appears to exit back to the main menu function. 7.2.13 Manual Set... -
Page 30: Vga Bot (Bottom)
CS-320 USER MANUAL 7.2.17 VGA Bot (bottom) Press the - button until the bottom edge of image is lost, then press + once. If you wish to go back and change any of the above adjustments press the MENU button until the desired adjustment is being displayed then + or - to alter it's setting. -
Page 31: On-Screen Display Advanced Adjustments
CS-320 USER MANUAL ON-SCREEN DISPLAY ADVANCED ADJUSTMENTS They are accessed in the same way as the previous OSD features. Press the MENU button repeatedly until the OSD menu displays the message 'Advanced...'. Then press the '+' button to select the Advanced sub menu. Subsequent pressing of the MENU button will select the next Advanced menu feature to alter. -
Page 32: Infra Red On/Off
CS-320 USER MANUAL Press - to turn sound off, and + to turn it back on again. 8.1.5 Infra Red On/Off This function allows you to disable the Infra Red remote control for use with the unit. Then you can turn the Infra Red off by pressing the - button or on using the + button. -
Page 33: Getting The Most From Your Unit
CS-320 USER MANUAL GETTING THE MOST FROM YOUR UNIT Hints & Tips Use S-Video in preference to Composite Video, if your equipment has such an input. S-Video keeps the color and brightness in a video signal separate, whereas composite video requires extra filters to separate them electronically - these filters degrade the image. - Page 34 CS-320 USER MANUAL distance. As mentioned earlier choosing the right screen resolution will also add to the clarity and quality of your display. It is worth spending some time experimenting with different screen resolution and settings which will optimize your unit to its full potential.
-
Page 35: Technical Data
CS-320 USER MANUAL TECHNICAL DATA 10.1 Resolutions Maximum 1024x768 with no line dropping in NTSC, 1280x1024 in PAL Absolute maximum resolution 1600x1200 24 bit compatible Approx. 24kHz to 100kHz horizontal scan rate Virtually any vertical scan rate accepted - horizontal scan rate is more important 10.2 Synchronization Separate TTL-level HSync &... -
Page 36: Environmental
CS-320 USER MANUAL Requires 'center-pin positive' 2.1mm DC power plug input. Reverse polarity protected, internal fuse. 10.8 Environmental Operating Temperature: 0° to +45° C (+32° to +113° F) Operating Humidity: 10% to 85%, Non-condensing Storage Temperature: -10° to +70° C (+14° to +158° F) Storage Humidity: 10% to 85%, Non-condensing... -
Page 37: Trouble Shooting
- and if the problem only affects one particular resolution. Technical support website: http://www.tvone.com/support 11.1.1 The picture on the video display is black and white. If you are using the S-Video or Composite outputs, then make sure that all these cables are connected correctly. -
Page 38: The Display On The Tv Has A Huge Border Around It
CS-320 USER MANUAL 11.1.4 The display on the TV has a huge border around it You're almost certainly running the unit with a laptop computer, at a resolution lower than the laptop's own screen. When this happens, the laptop fits the smaller resolution into the larger with a border around the edge. -
Page 39: How Can I Reduce Smearing
CS-320 USER MANUAL 11.1.9 How can I reduce smearing? Smearing usually occurs on Composite Video connections, and is generally unavoidable - unless you can switch to using S-Video or RGB connections (see connection details on page 4). It occurs because the brightness and color information is transmitted as one signal, and the two parts have to be 'bandwidth- limited' to avoid them interfering with each other. -
Page 40: Warranty Policy
CS-320 USER MANUAL WARRANTY POLICY LIMITED WARRANTY – With the exceptions noted in the next paragraph, TV One warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. -
Page 41: Connector Pinouts
CS-320 USER MANUAL CONNECTOR PINOUTS 13.1 HD15 connector 1. Red / Pr / R-Y 2. Green / Y 3. Blue / Pb / B-Y 4. ID2 (input & output linked) 5. GND 6. GND 7. GND 8. GND 9. No connection 10. -
Page 42: Contact Information
Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 859-282-7303 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.co.uk TV One Asia TV One China 11F, No. 28, Sec. 2 Rm. 9C, Neiwailian Building San-Min Road, Panchiao City No.
