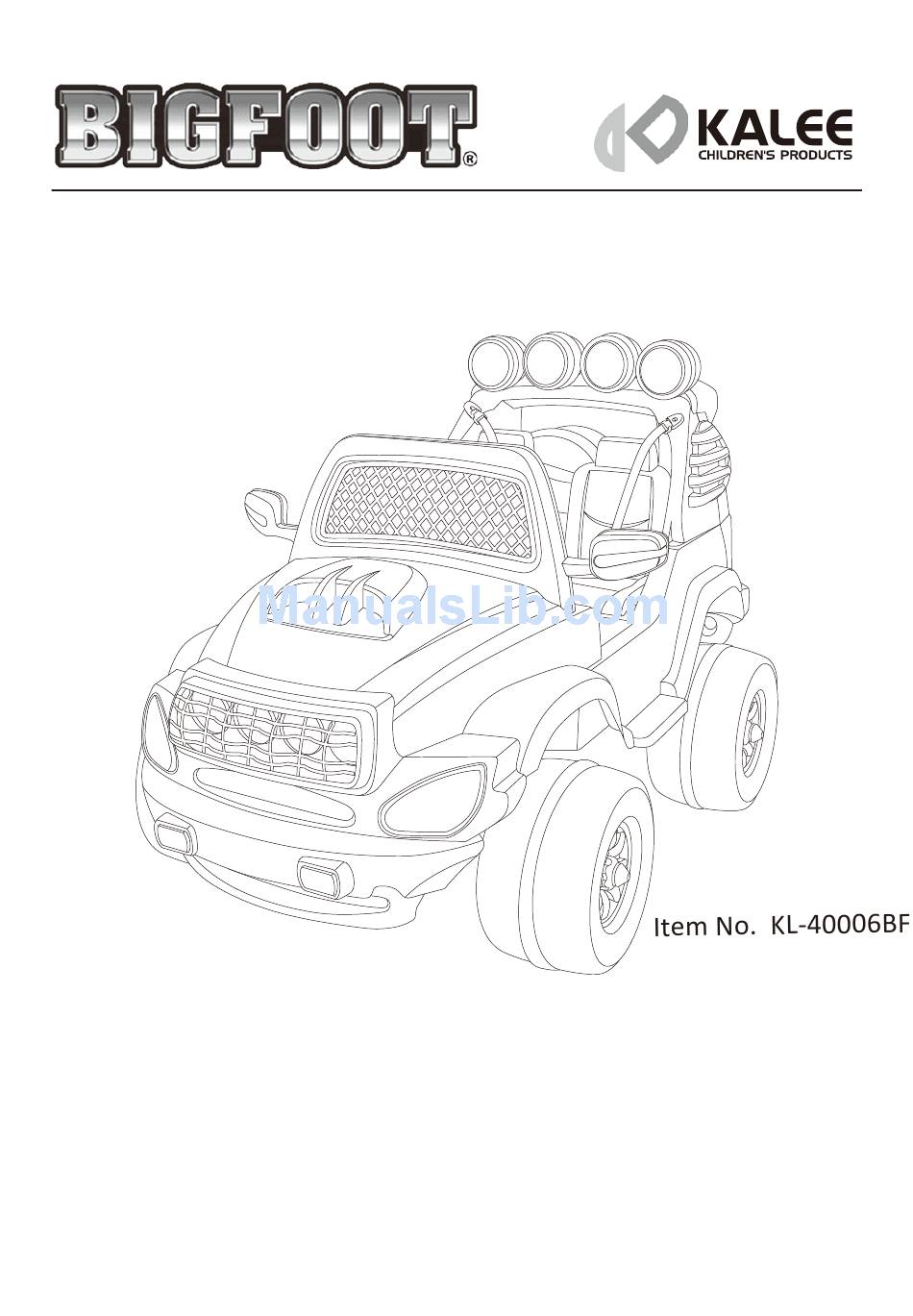

Bigfoot® Monster Truck Battery Operated Ride On
Instruction / Assembling Manual
Ages 3 and up
Adult Assembly Required.
Please read this manual carefully before giving this toy to your child.
This manual contains important information which will help you to assemble
the unit includes safety instructions.
Please keep this manual for future purpose
Manufactured by : Kalee Children's Products Co, Ltd.
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL-40006BF and is the answer not in the manual?

Questions and answers

Summary of Contents for Bigfoot KL-40006BF

  • Page 1 Bigfoot® Monster Truck Battery Operated Ride On Instruction / Assembling Manual Ages 3 and up Adult Assembly Required. Please read this manual carefully before giving this toy to your child. This manual contains important information which will help you to assemble the unit includes safety instructions.
  • Page 2 Vehicle / Battery Specifications: Age: Ages 3 and up Maximum Capacity: 60 kgs / 132 lbs Speed: 5.0-5.5km/h / 3.1-3.4mph Battery Type: Sealed lead-acid rechargeable, 12Volt 10Ah Charging time: Always charge the battery for 8-10 hours before first use and when recharging is needed. Never charge for more than 20 hours.

  • Page 3: Battery Safety Warning

    CHARGING CAUTIONS: - The charger is not a toy. Do not allow children to play with the charger or to recharge the battery. - Turn the power switch to “OFF” when charging. - Before the first use, you should charge the battery for 8-10 hours. Do not charge the battery for more than hours to avoid overheating the charger.

  • Page 4: Part List

    Part List: Description Body Grille Rear Bumper Front Cover Accessory Windshield Assembly Steering Wheel Seat 2pcs Rear Backrest A Rear Backrest B Backrest Accessory 1pail PWA5x16x10 Screw 2pcs TM5x36x9 Screw M5 Nut 3pcs PA5x16x7 Screw 10pcs PA3x14x5 Screw 14pcs TA5x20x9 Screw 2pcs TA3.5x16x7 Screw 2pcs...
  • Page 5 How to assemble the vehicle: Step 1: ● Attach the Grille (#2) to the car. Step 2: ● Attach the Rear Bumper (#3) onto the car. ● Insert 4xPA5x16x7 Screws (#14), then tighten with screwdriver. PA5x16x7 Screw PA5x16x7 Screw Step 3: ●...
  • Page 6 Step 5: ● Place the Steering Wheel (#6) onto the steering Steering Wheel wheel column. M5 Nut ● Insert the TM5x36x9 Screw (#12) across the steering wheel column. ● Insert the M5 Nut (#13), tighten the screw with screwdriver (not included). TM5x36x9 Screw ●...
  • Page 7 Step 8: ● Connect the wire for the rear light. Step 9: TA5x20x9 Screw ● Insert 2xTA5x20x9 Screws (#16) and 2xM5 Nuts (#13) ● Attach the rear backrest assembly to the vehicle, tighten the screws and nuts with screwdriver. M5 Nut Step 10: Backrest Accessory ●...

  • Page 8: Charging The Battery

    Operation of the Vehicle: 1.Make sure the battery is fully charged and the motor plug is connected to the battery plug. 2.Before using the vehicle, please connect the plugs which located in the middle of the seat. 3.Press the direction switch to “F” and press the accelerator pedal, vehicle will move forward.

  • Page 9: Maintaining Your Vehicle

    Maintaining your vehicle: ● It is a parents responsibility to check main parts of the vehicle before use. Regularly examine the vehicle for potential hazards, such as the battery, charge cable, cord and plug. Ensure screws are tightened. If there are any damages, the vehicle must not be used until these damages have been properly repaired or replaced.

  • Page 10: Safety Precautions

    Safety Precautions: 1. While riding, adult supervision is required at all times. 2. Always wear a helmet when riding. 3. Do not ride near roads or on the footpath. 4. It is not recommended to drive the vehicle on wet surfaces or on slopes greater than 15 degrees.

  • Page 11: Troubleshooting
