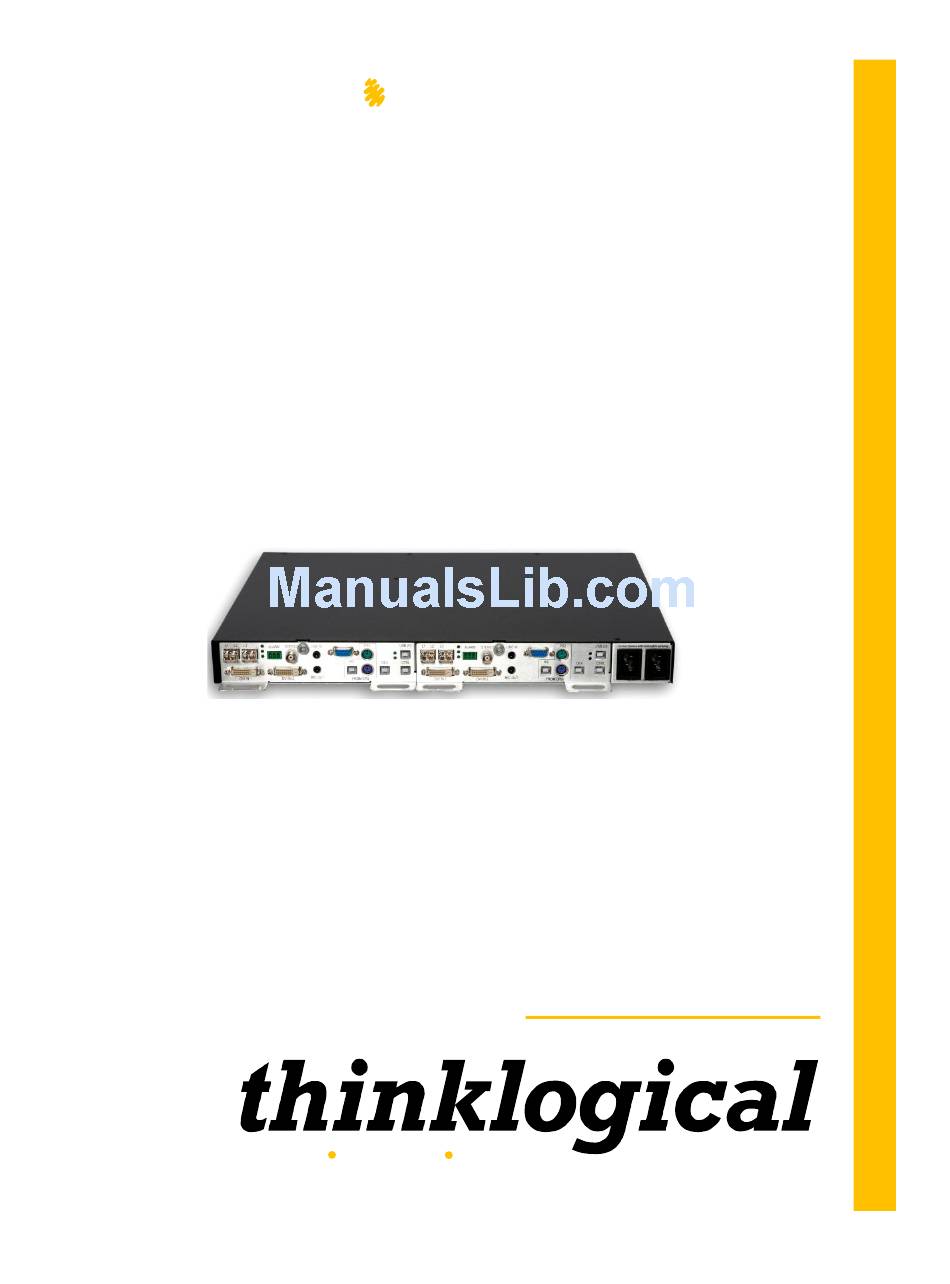

Velocity T-4200 Product Manual

T-series; high reliability, rack-space saving, video and audio extension solutions

Advertisement

Quick Links

Velocitykvm
T-Series
High Reliability, Rack-Space Saving,
Video and Audio Extension Solutions
T-4200
DVI Modules
KVM Extension Solution
PRODUCT MANUAL
Thinklogical LLC
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone: 1-203-647-8700
Fax: 1-203-783-9949
www.thinklogical.com
®
Extend
Distribute
Innovate

Advertisement

Table of Contents
loading

Summary of Contents for Velocity T-4200

  • Page 1 Velocitykvm T-Series High Reliability, Rack-Space Saving, Video and Audio Extension Solutions T-4200 DVI Modules KVM Extension Solution PRODUCT MANUAL Thinklogical LLC 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 Fax: 1-203-783-9949 www.thinklogical.com ® Extend Distribute Innovate...
  • Page 2 ® ® Extend Distribute Innovate Copyright Notice Copyright © 2011. All rights reserved. Printed in the U.S.A. Thinklogical LLC 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: VelocityKVM T-Series DVI Modules Product Manual Revision: A, September 2011 T-Series DVI Modules, Rev.
  • Page 3: Table Of Contents

    2.7.2 VelocityKVM Transmitters to VTM Receivers (through a VX160 Router) .......... 10 2.7.3 Dual-Link DVI: VTM-8 Transmitters to VTM-8 Receivers (through 2 VX160 Routers) ...... 11 2.7.4 T-4200 Transceiver Configuration (through a VX160 Router) ............11 2.8 Technical Specifications ..........................12 3.
  • Page 4: Preface

    A warning is meant to call the reader’s attention to critical information at a point in the text that is relevant to the subject being discussed. BEFORE STARTING ANY PROCEDURE, IT IS RECOMMENDED THAT YOU READ THE INSTRUCTIONS THOROUGHLY! The VelocityKVM T-4200 Series VTM-24 Transmitter Module T-Series DVI Modules, Rev. A September 2011...
  • Page 5: System Features

    The VelocityKVM line of extenders continues to evolve and add value with exciting new capabilities. The VelocityKVM T-4200 Series is housed in a high reliability, rack-space-saving chassis that includes all of the same capabilities in a 1U device that used to require 2U. Featuring a dual interface and current sharing power supplies, each 1U chassis supports two separate interface modules, allowing users to combine module options within one chassis.
  • Page 6: Contents

    When you receive your Thinklogical VelocityKVM T-Series Extender System, you should find the ® following items:  VelocityKVM T-4200 Modular Chassis w/ dual Power Supply Modules  VelocityKVM T-Series Extender Module(s): Transmitter/Receiver/Transceiver  AC power cords, PWR-000006-R (International connections may differ) – Qty 2 ...
  • Page 7: Connecting The Velocitykvm T-Series Extender

    ® 2. CONNECTING THE VelocityKVM T-4200 EXTENDER All physical connections to the product use industry-standard connectors. Non-supplied cables are commercially available. All connections are found on the rear of the unit. 2.1 Transmitter Modules The Transmitter Module connects to the CPU (or other sources) using the supplied cables listed above.
  • Page 8: Module Leds

    ® 2.3 Module LEDs Both the Transmitter and Receiver Modules feature five LEDs. Their functions are as follows: Transmitter LEDs USB 2.0 L2 Fiber Connected USB 2.0 Link Established Host Communication established Non-functioning Alarm Condition (flashing) Receiver LEDs USB 2.0 Link Established L1 Fiber Connected Device Communication established L3 Fiber Connected...
  • Page 9: Rear Panel Views

    T-4200 as 2 Transmitters (Dual-Link DVI & Single-Link RGB Displays) VTM-8 Tx VTM-5 Tx A selection of Velocity T-4200 Rear Panels in Transceiver, Receiver & Transmitter Configurations 2.6 Set-Up 2.6.1 Dry Contact Alarm Dry contact alarms are located on the transmitter and receiver units. When there is an alarm condition the relay is energized.
  • Page 10: T-4200 Application Diagrams

    ® 2.7 T-4200 Application Diagrams 2.7.1 Two Source Computers connected to one VelocityKVM T-4200 Chassis equipped with one VTM-4 TX and one VTM-24 TX, which extends video and peripheral signals to two separate VelocityKVM (stand alone) Receivers (VelocityKVM-4 and VelocityKVM-24) at two separate workstations. Signals are routed through two Thinklogical VX160 Routers 2.7.2 Two Source Computers, each connected to a VelocityKVM-24 (stand alone) Transmitter extending video...
  • Page 11: Dual-Link Dvi: Vtm-8 Transmitters To Vtm-8 Receivers (Through 2 Vx160 Routers)

    VelocityKVM-8 Dual-Link DVI Receiver workstations. Signals are routed through two Thinklogical VX160 Routers. 2.7.4 Two Source Computers, located at separate workstations, connected to one VelocityKVM T-4200 Transceiver Chassis equipped with dual VTM-24 Modules (one TX and one RX), which extends video and peripheral signals to two separate VelocityKVM-24 (stand alone) destinations (one TX and one RX) at separate workstations.
  • Page 12: Technical Specifications

    ® 2.8 Technical Specifications Each Thinklogical VelocityKVM T-Series Module is designed to the following specifications: Transmitter: Video (2) DVI-D Audio MIC/Line 3.5mm Jack Serial Port DB9 Female USB 2.0 USB B PS2 Keyboard MiniDIN 6 Female PS2 Mouse MiniDIN 6 Female Firmware Updates USB B (3) Fiber Connectors...
  • Page 13: Regulatory & Safety Compliance

    Markings and labels on the product follow industry-standard conventions. Regulatory markings found on the products comply with domestic and many international requirements. All T-4200 DVI Modules are designed and identified as Class 1 LASER products CLASS 1 LASERS do not require any special precautions under conditions of normal use.
  • Page 14: Standards With Which Our Products Comply

    ® 3.1.3 Standards with Which Our Products Comply Safety CENELEC EN 60950-1, 1 Edition (2001) LASER Safety IEC60825:2001 Parts 1 and 2 Class 1 LASER Product Electromagnetic Emissions EN55022: 1994 (IEC/CSPIR22: 1993) EN61000-3-2/A14: 2000 EN61000-3-3: 1994 Electromagnetic Immunity EN55024: 1998 Information Technology Equipment-Immunity Characteristics EN61000-4-2: 1995 Electro-Static Discharge Test EN61000-4-3: 1996 Radiated Immunity Field Test EN61000-4-4: 1995 Electrical Fast Transient Test...
  • Page 15: Product Serial Number

    ® Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 16: Website

    ® Thinklogical is an engineering company and you will receive the information you require directly from our most knowledgeable engineers. We believe that the first lines of support are the design engineers that developed each product. Therefore, your questions will be handled promptly by our in-house engineers who are most familiar with your products.
  • Page 17: Warranty

    ® 4.2 Product Support Thinklogical’s support personnel are available Monday through Friday from 8:30am to 5:00pm, Eastern Time Zone. If your application requires assistance at some time outside of our normal business hours, please contact us beforehand and we will do our best to make arrangements to help you with your Thinklogical products.
  • Page 18: Appendix A: Quick Start Guides

    ® Appendix A- Quick Start Guides A.1 VTM-24 Transmitters to VTM-24 Receivers (direct) T-Series DVI Modules, Rev. A September 2011...
  • Page 19: Vtm-4/Vtm-24 Tx To Vtm-4/Vtm-24 Rx (Through Vx80 Router)

    ® A.2 VTM-4/VTM-24 Tx to VTM-4/VTM-24 Rx (through VX80 Router) T-Series DVI Modules, Rev. A September 2011...
  • Page 20: Vtm-4/Vtm-8 Tx To Vel-4/Vel-8 Rx (Through Vx40 Router)

    ® A.3 VTM-4/VTM-8 Tx to VTM-4/VTM-8 Rx (through VX40 Router) T-Series DVI Modules, Rev. A September 2011...
  • Page 21: Appendix B: Thinklogical Kvm Extenders- Theory Of Operation

    ® Appendix B- Thinklogical KVM Extenders The Logical Solution VelocityKVM Extension Systems are designed for high performance visual applications that require video as well as peripheral support. (VelocityKVM Extension System-5 supports DVI or RGB.) The system allows users, via optical fiber, to station and operate a digital monitor(s) and peripherals from just a few meters away to up to 40 kilometers away from the controlling computer securely and without loss of resolution.
  • Page 22: Appendix C: Velocitykvm T-Series Ordering Information

    VelocityKVM T-Series Transmitter, Dual Head, Single Link DVI, KMAS, LC Single Mode Optics Option VOP-S04 Velocity 4/5 T-Series Optics Option for Transmitter or Receiver, Single Mode, 3 Fibers, 40KM, LC VOP-S06 Velocity 8/24 T-Series Optics Option for Transmitter or Receiver, Single Mode, 3 Fibers, 40KM, LC...
