Summary of Contents for Elan Z-150

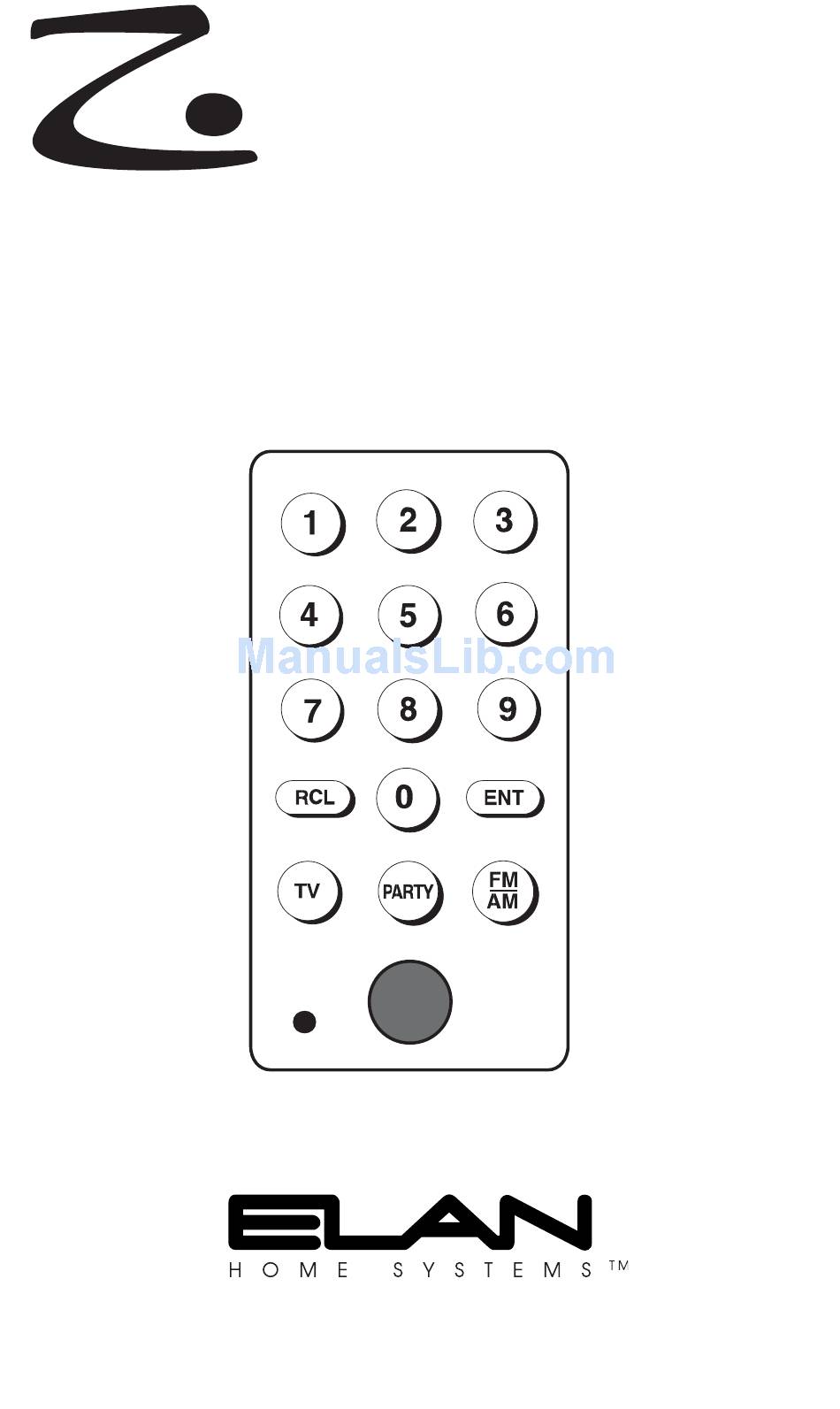

- Page 1 DIRECT-ACCESS KEYPAD INSTALLATION MANUAL 2428 Palumbo Dr. Lexington, KY 40509 Voice (859) 269-7760 Sales (877) BUY-ELAN (289-3526) Tech Support (800) 622-ELAN (3526) www.elanhomesystems.com...
-
Page 2: Installation
Wiring Run Cat-5 wire from the head-end location to each Z•100/Z•150 location. Additional Cat-5 is NOT NEEDED if using a Z•150 companion keypad. ELAN recommends the use of C45P RJ-45 interface cables when installing keypads. The RJ-45 pinout for each ELAN multi-room controller is included in the manual for that particular product. - Page 3 Connecting a Z•150 & IR Tube to a Z•100 Z•100 1. Make sure that the Z•100 is not connected to the ELAN multi-room controller, Z•080, or stand-alone power supply. 2. Using the ribbon cable provided with the Z•150, push the multi-pin headers onto the 12-pin jacks on both the Z•100 and the Z•150.
-
Page 4: System Commands
Programming Allthough all Z•PADS come pre-programmed with ELAN default codes, it is necessary to program them in order to achieve full functionality. IR commands must be down- loaded to each keypad from VIA! TOOLS setup software for each source that will be ®... -
Page 5: Status Leds
Status LED behavior for each system type. Please see Dipswitch Settings on p. 7. The system types include: • • Stand-Alone (w/ Signal Sense) • ELAN Z • Stand-Alone (w/out Signal Sense) • ELAN S6 • ELAN HD • ELAN System12 Note: Please see VIA!TOOLS Help file for detailed information about programming Z•PADS. -
Page 6: Dip Switch Settings
ELAN in writing, ELAN shall repair or replace the items at the company’s option. This warranty shall not apply (a) to equipment not manufactured by ELAN, (b) to equipment which shall have been installed by other than an authorized ELAN installer, (c) to installed equipment which is not installed to ELAN’s speci-...
