ElectraStream BEL 130 User Manual

Single and twin coil models
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
heating products
A complete cost effective solution for Hot and Cold water supply and Electric Central
Heating with water filled radiators, suitable for Self-contained Flats, Small Dwellings,
Offices, Home Offices and Granny Annexes.
9 kW (30,000 Btu) - for Heating and Hot Water
27/02/13
For owners, installers and service engineers
T T T T T win Coil Cylinder option available for SOLAR ener
win Coil Cylinder option available for SOLAR energy gy gy gy gy. . . . .
win Coil Cylinder option available for SOLAR ener
win Coil Cylinder option available for SOLAR ener
win Coil Cylinder option available for SOLAR ener
User and Installation Manual
User and Installation Manual
User and Installation Manual
User and Installation Manual
User and Installation Manual
Single and Twin Coil Models
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEL 130 and is the answer not in the manual?

Questions and answers

Summary of Contents for ElectraStream BEL 130

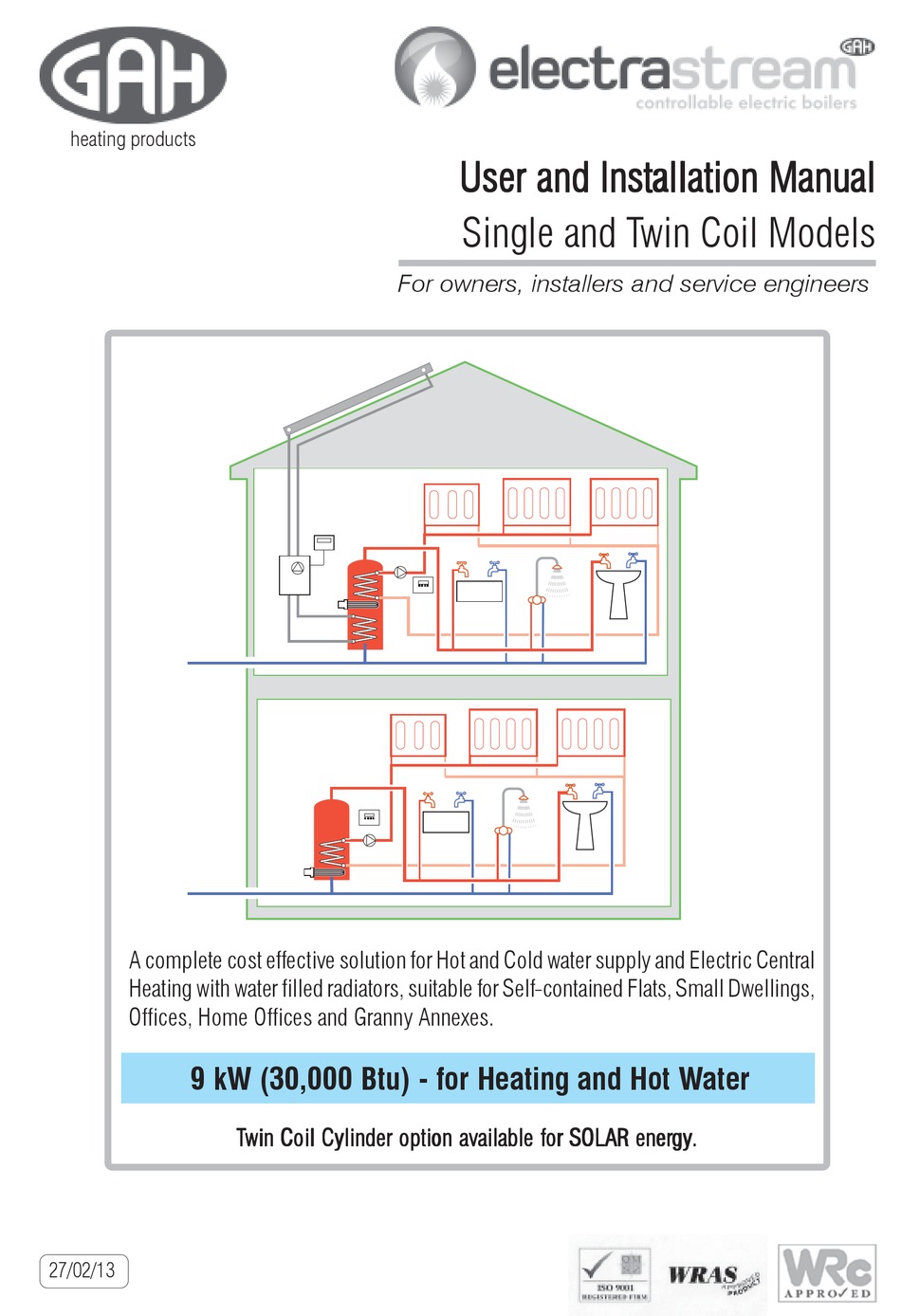

  • Page 1 heating products User and Installation Manual User and Installation Manual User and Installation Manual User and Installation Manual User and Installation Manual Single and Twin Coil Models For owners, installers and service engineers A complete cost effective solution for Hot and Cold water supply and Electric Central Heating with water filled radiators, suitable for Self-contained Flats, Small Dwellings, Offices, Home Offices and Granny Annexes.
  • Page 2 Ceramic Fibre. In pursuance of a policy of constant development, GAH (HEATING PRODUCTS) LIMITED reserve the right to change Electrastream parts or design without notice, therefore GAH (Heating Pr GAH (Heating Products) Ltd. GAH (Heating Pr oducts) Ltd.

  • Page 3: Table Of Contents

    Health & Safety Health & Safety Health & Safety ------------------------------ ------------------------------ ------------------------------ ------------------------------ ------------------------------ Inside Front Cover IMPORTANT BEFORE STARTING THE INSTALLATION OF THE ELECTRASTREAM CHECK ALL COMPONENTS HAVE BEEN DELIVERED AND ARE IN SATISFACTORY CONDITION - Refer to 1-3 .

  • Page 4: Important Information

    1-3. Delivery Standard Electrastream systems will be delivered wrapped on single pallet with cylinder together with box containing control box and loose components. Pre-Plumbed Electrastream systems will be delivered wrapped on single pallet with cylinder, control box and all components fully assembled.

  • Page 5: Introduction

    After installation the Installer of the system should give full operating instructions to the householder for the Electrastr After installation the Installer of the system should give full operating instructions to the householder for the Electrastream System. This User and Installation Manual must be left for the end user System.
  • Page 6 INTRODUCTION INTRODUCTION 1 1 1 1 1 ELECTRASTREAM TWIN COIL Operationally the same as the Electrastream but supplied with a twin coil cylinder which enables the Electrastream to be used in conjunction with alternative energy systems e.g. Solar. Electrastream Control...
  • Page 7 INTRODUCTION INTRODUCTION INTRODUCTION 1 1 1 1 1 1-1.4 Electrastream System Features ELECTRASTREAM AND ELECTRASTREAM TWIN COIL Only water and electric services required. No gas or oil - no Boiler. Note Central heating with conventional water filled radiators. For components supplied with system refer Heat on demand 24 hours a day.

  • Page 8: System Layout

    INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION System Layout 1 1 1 1 1 1-2.1 Electrastream...
  • Page 9 INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION 1 1 1 1 1 1-2.2 Electrastream Plus...
  • Page 10 INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION 1 1 1 1 1 1-2.3 Twin Coil...

  • Page 11: Parts Supplied

    Parts Supplied 1 1 1 1 1 Standard Electrastream systems will be delivered wrapped on single pallet with cylinder together with box containing control box, expansion vessels and loose components. Pre-Plumbed Electrastream systems will be delivered wrapped on single pallet with cylinder, control box, expansion vessels and all components fully assembled.

  • Page 12: The Electrastream System

    (over 3.5 Bar) a 3.5 Bar pressure reducing valve is recommended. 1-4.2 Twin Coil - Alternative Heat Source Note Twin Coil Cylinders have two coils, the upper coil is connected to the Electrastream The alternative heat source must be heating system. The Electrastream high powered titanium electric tri-core heater is...

  • Page 13: Tri Core Heater Operation

    To comply with Building Regulations, all necessary pipework must be suitably lagged. 1-4.9 Handling and Storage The Electrastream system will be delivered fully wrapped and palleted. Lift the package carefully using a safe and suitable lifting method. Keep the packaging intact and store in a secure dry and weatherproof area prior to installation.

  • Page 14: System Control

    ISOLATE THE TRI-CORE HEATER BEFORE REMOVING ITS COVER. 2-1.3 Over Temperature Cut-Out Thermostat In the Electrastream temperature sensor box on the cylinder is the over temperature cut- out thermostat. This prevents the water within the cylinder from overheating. The over temperature cut-out thermostat is a manual reset type, this means it has a small...
  • Page 15 2-1.4 Heating Motorised Valve When the room thermostat is calling for heat and the Electrastream control unit is set for heat ON, the heating motorised valve will open allowing water to the radiators. Display icon ‘Valve ’...

  • Page 16: Electrastream Control Unit

    Heating on PUMP Indicates Heating Pump is ON THERM Indicates Room Stat is calling for heat TEST 1..5 Indicates heater test is being performed after midnight, this may take up to 30 minutes Fig. 2-2a Electrastream Control Unit - Normal Screen...
  • Page 17 (For service 0000.0 0000.0 engineers information only.) Notes:- All times are given in 24 hour clock. Maximum cylinder temperature setting (Target °C) is 70°C. For error displays see 2-2.3 Fig. 2-2b Electrastream Control Unit - Display Settings...
  • Page 18 Regional electricity suppliers have their own ‘Off-Peak’ tariffs that will provide an economical supply of power for the Electrastream system. It is vital that the time settings of the Electrastream control unit are set to make the most use of the available ‘Off-Peak’ tariffs.
  • Page 19 TOR CONTROLS TOR CONTROLS TOR CONTROLS 2-2.7 Setting Heat and Hot Water Requirements Figure below shows a 24 hour clock with typical use of the Electrastream during ‘Off- Peak’ economy 10 settings. SELF TEST 2 2 2 2 2 Midnight...

  • Page 20: Shut Off Valves

    TOR CONTROLS Shut Off Valves The Electrastream installation will have a number of shut off valves, the location of these will be dependent on the installation - fig. 2-3a shows typical layout. H O T W A T E R S H U T O F F V A LV E...
  • Page 21 PRV - 3 Bar A C C U M U L A T O R I S O L A T I O N V A LV E Fig. 2-3b Typical Shut Off Valve Locations - Electrastream Plus 2-3.1 Stop Cock Note Normally located at the point where the mains supply enters the dwelling.

  • Page 22: Temperature & Pressure Relief Discharge

    TOR CONTROLS TOR CONTROLS Temperature & Pressure Relief Discharge The Electrastream hot water cylinder has a Temperature/Pressure Relief Valve (TPRV); in Note The Tundish or discharge pipe should the event of the pressure within the cylinder becoming too high, the TPR Valve will vent.

  • Page 23: Specifications

    TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMATION TION TION TION TION Specifications 3-1.1 Cylinder & Hot Water System Cylinder WRC Certificate No. 0605118 a r t r t s i l y y t i 1 0 3 e r t e r t 1 2 5...
  • Page 24 3-1.6 Electrics The Electrastream system must not be installed in any enclosed space where the air temperature could exceed the maximum electrical design ambient of 30°C. Adequate ventilation should be provided for airing cupboards and enclosed 3 3 3 3 3 compartments.

  • Page 25: Dimensions

    22.5° 32.5° 32.5° 90° HOT WATER TO TAPS -22mm 22mm COLD MAINS SUPPLY IN -22mm TPRV ELECTRASTREAM COLD TO TAPS -22mm ELECTRASTREAM PLUS TO ACCUMULATOR -22mm TUNDISH EXPANSION DISCHARGE HEATING FLOW -22mm HEATING RETURN -22mm l i o l i o...
  • Page 26 TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMATION TION TION TION TION 3-2.2 Pre-plumbed System Dimensions CLEAR AREA REQUIRED CLEAR AREA REQUIRED FOR TPRV REMOVAL FOR TRI-CORE HEATER 250 x 100 REMOVAL 510 x 200 3 3 3 3 3 POWER IN 100mm MINIMUM ACCESS REQUIRED...
  • Page 27 TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMATION TION TION TION TION 3-2.3 Pre-plumbed Twin Coil BETP210 System Dimensions CLEAR AREA REQUIRED CLEAR AREA REQUIRED FOR TPRV REMOVAL FOR TRI-CORE HEATER 250 x 100 REMOVAL 510 x 200 3 3 3 3 3 Weight Empty 172kg Weight Full...
  • Page 28 * Water content is up to 65% of the Accumulator gross volume dependent on mains pressure. Total weight = weight empty + water content @ 1kg/litre. Fig. 3-2d Accumulator Dimensions 3-2.5 Electrastream Control Unit Dimensions 24°c Boost Auto/On/Off...

  • Page 29: Wiring

    TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMA TECHNICAL INFORMATION TION TION TION TION Wiring 3-3.1 Wiring Diagram 3 3 3 3 3...
  • Page 30 Economy Tariff when available NEUTRAL Normal Tariff at all other times LIVE 2 EARTH LIVE 2 Normal Tariff LIVE 1 for all household circuits except Electrastream ECONOMY CHANGE-OVER METER 3 POLE RELAY 3 3 3 3 3 ISOLATOR LIVE Economy Tariff...

  • Page 31: Section 4 Installation

    Tundish. The Electrastream must have a dedicated 40 amp MCB. The Electrastream must be wired through a 40A class A, double pole isolating switch with at least 3mm pole separation, this switch should also have both electric and mechanical indicators. The switch should be located near to the Electrastream control unit.
  • Page 32 4-2.6 Tri-core Heater The H1, H2 and H3 connections on the Electrastream control unit can be connected to any of the three heater elements, however each element MUST be wired independently with a separate 3 core 2.5mm² heat resistant cable.

  • Page 33: Hot Water System

    The unit consists of a temperature sensor and over temperature cut-out device, both are TWIN COIL CYLINDER wired back to the Electrastream control unit - see wiring diagrams figs. 3-3a and 3-3b. The box must be fitted to the cylinder with its phial and sensor inserted into the socket provided (located above the tri-core heater).
  • Page 34 The accumulator should be installed vertically. The floor must give adequate support to the filled accumulator. Note As Electrastream Plus is a sealed system, Accumulators must have frost protection when they are installed where low temperatures the pressure at the taps is not affected by could be a potential problem - see 1-4.7.
  • Page 35 Electrastream components. 4-3.8 Electrastream Components All Electrastream components and pipework are checked at the factory prior to dispatch, however always check the connections for leaks on commissioning as transportation and installation can cause joints to move.
  • Page 36 INST INST INSTALLA INST INST ALLA ALLA ALLA ALLATION TION TION TION TION 4-3.11 Cylinder Drain See fig. 4-3.e. The unvented cylinder cold feed is also used as the cylinder drain. Inside the cylinder a syphon pipe is fitted; when a hose is used to drain the cylinder a syphon action will drain maximum water from the cylinder.

  • Page 37: Heating System

    Fig. 4-4a Schematic of Typical Heating System 4-4.1 Notes on Heating System The total output from the Electrastream for hot water and heating is 9 kW @ 240V (30,000 Btu). The radiators should be sized to suit. The schematic system shows a kick space fan assisted heater, these are efficient space saving units, ideal for small dwellings.
  • Page 38 PRV fitted and working correctly. Note One Tundish is supplied with the Electrastream, this should be fitted to the 4-4.5 Heating PRV Discharge Pipe hot water TPRV and heating PRV The outlet from the heating PRV must be piped using 15mm copper pipe to the tundish discharge, see fig.
  • Page 39 INST INST INSTALLA INST INST ALLA ALLA ALLA ALLATION TION TION TION TION The filling loop should be fitted between the incoming mains and the heating system return as shown in figs. 1-2a, 1-2b and 4-4a. Locating the filling loop within site of the pressure gauge is recommended, however if this is not practical an extra gauge can be fitted adjacent to the filling loop.

  • Page 40: Expansion Discharge

    TION Expansion Discharge 4-5.1 Tundish (supplied) Normally the Electrastream cylinder is supplied with a TPR valve and PR valve (part of the combination valve) fitted and plumbed to the Tundish. AIR BREAK Fig. 4-5b shows typical GAH expansion discharge arrangement for unvented cylinders.
  • Page 41 INST INST INSTALLA INST INST ALLA ALLA ALLA ALLATION TION TION TION TION Note: Note: pipe 9m long, i.e. for discharge pipes between 9m and 18m the Note: Note: Note: An alternative approach for sizing discharge pipes would equivalent resistance length should be at least two sizes larger be to follow Annex D, section D.2 of BS 6700:2006 than the nominal outlet size of the safety device;...
  • Page 42 INST INST INSTALLA INST INST ALLA ALLA ALLA ALLATION TION TION TION TION 3.58 3.58 Worked Example 3.58 3.58 3.58 Where a single common discharge pipe serves more than one system, it should be at least one pipe size larger than the The example below is for a G½...

  • Page 43: System Pressure

    The unvented cylinder has a Temperature and Pressure Relief Valve (TPRV) set at 7 Bar. The heating system has a TPRV set at 3 Bar. ELECTRASTREAM PLUS ONLY The Accumulator Pressure is factory set at 2 Bar. The recommended Accumulator Pressure is 1.5 Bar below the mains pressure with an absolute minimum of 0.8 Bar - see 5-1, Stage 9.

  • Page 44: Electrastream Connections

    ALLA ALLATION TION TION TION TION Electrastream Connections 4-7.1 Connections to Electrastream - BEL130 and BEL150 Single Coil Cylinders ✓ UNVENTED CYLINDER ✓ MI COUPLER x 22 x ¾” DOMESTIC COLD WATER 22mm DOMESTIC HOT WATER 22mm ✓ 22mm LEVER VALVE ✓...
  • Page 45 Discharge to be arranged and sized to comply with Building Regulations. Boiler Flow 22mm 22 x ¾” M.I. Coupler - supplied Boiler Return 22mm 22 x ¾” M.I. Coupler - supplied ✓ PARTS SUPPLIED Fig. 4-7b Typical Cylinder Connections - Electrastream Plus...
  • Page 46 INSTALLA INST INST ALLA ALLA ALLA ALLATION TION TION TION TION 4-7.3 Connections to Electrastream Pre-Piped CONSUMER UNIT ELECTRASTREAM C/W DP ISOLATOR, RCD & MCB CONTROL UNIT HEATING EXPANSION VESSEL 10L HOT WATER EXPANSION VESSEL 8L FRAME UNVENTED CYLINDER 4 4 4 4 4 TEMPERATURE PROBE CABLE &...

  • Page 47: Section 5 Commissioning

    STAGE 3 - FILLING DHW SYSTEM 3.1 Open all shut off valves. 3.2 Open the incoming water isolating valve (mains stopcock) to the Electrastream and allow the unit to fill. 3.3 Open all domestic taps in turn to purge air.
  • Page 48 7.10 Set pressure gauge red arrow to the black arrow (cold fill pressure - 1 Bar). STAGE 8 - SETTING AND TESTING CONTROLS 8.1 Switch on Electrastream mains isolator. On Electrastream Control Unit - see 2-2 8.2 Set date and time. 8.3 Set times to suit economy tariff.
  • Page 49 10.4 The end user should be aware of the following:- 1. The most cost effective use of the Electrastream system using economy and standard tariffs. 2. How to set the temperature of the tap hot water (Mixing Valve).

  • Page 50: Section 6 Servicing

    Visually inspect all Electrastream pipework for damage, metal failure and signs of leaks. Set control unit to midnight to run self test and check Electrastream control unit for error messages (see fig. 2-2a). Record mains pressure, system pressure and heating operating pressure.
  • Page 51 SERVICING SERVICING 6-1.2 Replacing Tri-Core Heater When replacing the Tri-Core heater the relays on the Electrastream Control Unit must be checked for operation:- Heat cylinder. Observe the Control Unit and wait for the actual temperature °C to reach the set target °C (65°).

  • Page 52: Section 7 Fault Finding

    ● ❍ Check cylinder thermostat probe is installed correctly. ❍ Check 16amp resettable thermal trips and 5 amp fuse in Electrastream Control Unit. ❍ Check strainers and operation of mixing valve. ❍ Check cold water combination valve is fitted correctly.
  • Page 53 ❍ With the heating elements and heating pump turned OFF, check the target Scalding water and steam can be temperature of the Electrastream Control Unit (see step 8, fig. 2-2b). blown out of the tundish and ❍ With the heating elements and heating pump turned OFF, check for error messages discharge pipe on the Electrastream Control Unit.
  • Page 54 Notes...
  • Page 56 heating products GAH (Heating Products) Ltd. Building 846, Bentwaters Parks, Rendlesham, Woodbridge, Suffolk IP12 2TW www. gah.co.uk Tel: 01394 421160 Fax: 01394 421170 email: mail@gah.co.uk...
