Summary of Contents for Fright Ideas PicoBoo AC

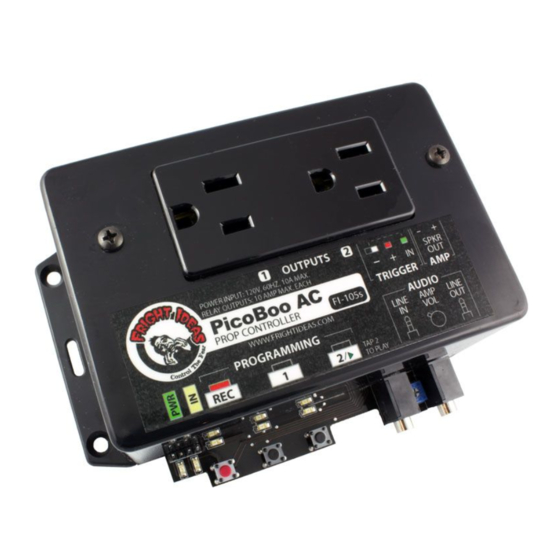

- Page 1 PicoBoo AC OPERATING MANUAL V1.1 (Sep 8, 2011) 6 Oakside Court Barrie, Ontario L4N 5V5 Tel: 1-877-815-5744 or 905-803-9274 www.frightideas.com...
- Page 2 Getting Familiar with your PicoBoo PicoBoo AC Operating Manual - page 2...
- Page 3 PicoBoo until you’re happy with the quality and volume level. Volume Levels for Common Sources Source Volume Level Computer 20% to 70% iPod or Portable CD Player PicoBoo AC Operating Manual - page 3...
- Page 4 If you hear the audio cutting out as it plays, the internal power supply is likely overwhelmed. Gradually turn down the volume until the cutting out stops. Below are three popular configurations for connecting speakers to the PicoBoo. PicoBoo AC Operating Manual - page 4...
-
Page 5: Connecting The Outputs
You can press each button as many times as you want. 4. Press “REC” again to stop recording. The scene is automatically saved. Press “2” or trigger the input to preview the scene. PicoBoo AC Operating Manual - page 5... - Page 6 PicoBoo. If the yellow light turns ON when the motion sensor activates, it’s normally-open. If it turns off, it’s normally-closed. If it does nothing there is a wiring problem. PicoBoo AC Operating Manual - page 6...
-
Page 7: Troubleshooting Table
- Put diodes or capacitors on your solenoids (see Relay turns on or off Outputs section for more details). Sound cuts out when using the - The internal power supply may be overwhelmed. Try internal amplifier reducing the volume. PicoBoo AC Operating Manual - page 7... -
Page 8: Specifications Table
Electrical Operating Voltage 120 VAC Power Consumption 10 amps max. (1200 watts) Power Cable 6 feet long AC Outputs 10 amps max. each. 10 amps total Internal Fuse 10 amp Fast Blow 5x20mm PicoBoo AC Operating Manual - page 8...
