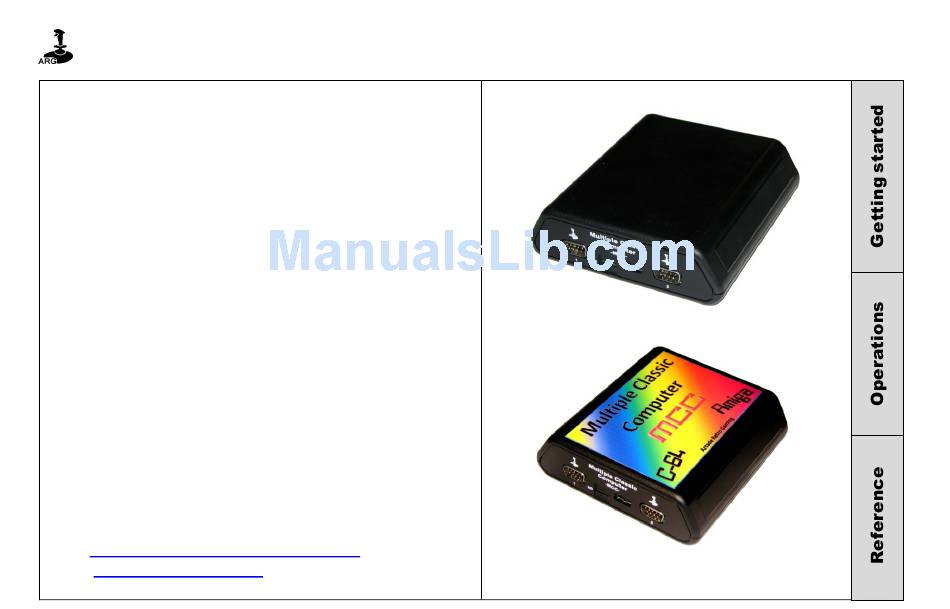

Arcade Retro Gaming MCC-216 Operating Manual

Multiple classic computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Arcade Retro Gaming
Operating Manual
Multiple Classic Computer (MCC)
MCC-216
Model No.
Dear customer:
Thank you for purchasing Multiple Classic Computer
(MCC).
For optimum performance and saftey, please read the
instructions herin carefully.
Setup and connecting information are found inside.
Please keep this manual for future reference.
If you have additional question, you may contact us via
email at:
Mail:
contact@ArcadeRetroGaming.com
Web:
www.MCC-home.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCC-216 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arcade Retro Gaming MCC-216

  • Page 1 Arcade Retro Gaming Operating Manual Multiple Classic Computer (MCC) MCC-216 Model No. Dear customer: Thank you for purchasing Multiple Classic Computer (MCC). For optimum performance and saftey, please read the instructions herin carefully. Setup and connecting information are found inside.

  • Page 2: Epilepsy Warning

    EPILEPSY WARNING PLEASE READ BEFORE USING ANY VIDEO GAMES OR ALLOWING CHILDREN TO USE IT. Some people are liable to have an epileptic seizure or loss of consciousness when exposed to flashing lights or certain normal conditions of everyday life. Such persons could risk a seizure while watching televised images or while playing certain video games.

  • Page 3: General Precautions

    Make sure that the room in which you are playing is well lit. Rest for at least 10-15 minutes per hour while playing video games. Arcade Retro Gaming is not liable for any personal insuries or medical issues. Page 3...
  • Page 4 Getting Started – Items The following items are included: USB Charger (PAL Version) USB Charger (NTSC Version) Multiple Classic Computer (MCC-216) S-Video Cable (only S-video Version) Micro SD-Card for MCC DB-9 Joystick Page 4...
  • Page 5 Getting Started – Interfaces MCC (S-video) System Front System Rear Joystick Port 1 Joystick Port 2 Mouse Power Micro SD-Card Slot USB-Interface Keyboard On/Off switch S-Video Out stereo Audio out STEP 1: Insert the Micro SD-Card !! CAUTION !!: When you insert the Micro SD-Card into the small slot, do so at the middle of the slot and push the card in all •...
  • Page 6 Getting Started – MCC -216 Video Connection (S-Video) STEP 2: Connect the MCC Video signal to a TV using S-Video Cable Please use the S-Video connection for better picture quality. Page 6...
  • Page 7 STEP 2 (continued) –For the MCC-216 VGA please use an VGA cable to connect to your TV For the best picture quality use an VGA cable to connect the MCC-216 VGA version to your TV (cable not included). Page 7...
  • Page 8 Getting Started – Audio Connection STEP 3: Connect the MCC Stereo Audio Output to TV, Receiver or a Standard Headphone Option 1: 3.5mm audio chinch cable for TV and Receiver (not included) Option 2: Connect a standard 3.5mm stereo headphone (not included) Page 8...
  • Page 9 Getting Started – Keyboard and Mouse Connection STEP 4 – Optional : Connect the Mouse and Keyboard (not part of initial shipment) Page 9...
  • Page 10 Getting Started – Joystick STEP 5 : Connect the Joysticks Mandatory Joystick 1 Optional for 2 player Joystick 2 (not part of initial shipment) Page 10...
  • Page 11 Getting Started – Power Supply Connection STEP 6 : Power Supply connection Either mini USB charger or mini USB cable / battery pack Page 11...
  • Page 12 Operations If the Multiple Classic Computer is switched {ON} the green LED will light up. The MCC has two main different menus – Boot and Game / Application The Boot MENU The Boot menu allows the user to (1) test the interfaces and the MCC; (2) update the configuration and (3) startup the selected classic computer.
  • Page 13 SD card and confirm write with {ENTER} on the Keyboard or press the fire button. o If you go down to the MCC-216 section you can erase selected cores or wipe all cores. » Please check for updated .ARG files our Web-Page: http:// www.MCC-home.com...
  • Page 14 Operations The Game / Demo / Application selection menu o You will see the start up screen which will look similar to this picture. o Now you can use the Joystick or Keyboard to browse the menu and select an item. Option 1 : Joystick Menu item up Start loading...

  • Page 15: Please Wait

    Operations Option 2 : Keyboard Start Loading Enter Menu item up Category down Category Up Menu item down » NOTE: o Depending on the application or game, you might to need press additional Joystick buttons, or keys, or the left and right mouse button.
  • Page 16 Operations RE-START into Game / Application menu: 1) To restart the system, slightly press the On/Off button. This brings you are back in the main startup menu. 2) If you have a keyboard connected, press <CTRL> - <ALT> - <DEL> to restart. RE-START into Boot Loader menu: 1) To restart the system into the Boot Loader menu, hold down the Joystick 1 button and slightly press the On/Off button.
  • Page 17 Cloanto® - Amiga and C64 Games We like to express special thanks to our partner Cloanto® to provide the software content for the AMIGA and C64. Cloanto® is well known for his C64 Forever® and AMIGA Forever™ PC software distribution. This software can be used to add additional content (games and applications) to the MCC-TV with your PC.
  • Page 18 How to add additional games or applications ? The user can add content (ROMs) to the initial game SD-card Folder structure selection of games to the MCC-216. The SD-card contains for each classic computer a specific ROM folder which will be displayed in the game/application menu.

  • Page 19: Technical Data

    Technical Data Multiple Classic Computer C64 Core Reconfigurable core, incl. main CPU, graphic engine, • Emulation of C64 hardware (PAL and NTSC) • sound engine and interfaces • More than 100 C64 games preloaded Integrated SDR Memory 16 MBytes • •...

  • Page 20: Limited Warranty Coverage

    ArcadeRetroGaming dealer from whom you purchased the product. ALL ACCESSORIES ARE REQUIRED WITH ANY CLAIMS TO ENABLE A FULL TEST OF THE SYSTEM. Proof of purchase is required. Detaild description of issue is helpful. FIGURE 1 Product or Part Name Parts Labor MCC-216 One year 60 Days Accessories ½ year Not applicable THIS LIMITED WARRANTY IS NON-TRANSFERABLE AND ONLY APPLIES TO THE ORIGINAL PURCHASER.
  • Page 21 Limited Warranty LIMITED WARRANTY LIMITS AND EXCLUSIONS: This Limited Warranty ONLY COVERS failures due to defect in material or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT APPLY if failures occurred due to application of products not supplied by the warranto;...
