Summary of Contents for Abode AJCR6001
- Page 1 Whole Fruit Juicer User guide Model No: AJCR6001 For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Or visit us at www.productcareuk.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Connection to the mains supply ……………………………………… Thank you for purchasing your Abode Whole Fruit Juicer To get the best from your new juicer, take a few moments to read these instructions, and keep them in a safe place for future reference. -
Page 3: Safety Instructions
Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING: • When using electrical appliances, basic safety precautions should always be observed, including the following: • Read all instructions. • Avoid contact with moving parts. • To protect against electrical shock do not immerse cord, plug, or appliance in water or other liquid. - Page 4 Safety instructions WARNING: • Never remove parts from the appliance such as screws. • Never operate the juicer when it is empty and do not remove the lid before the blades come to a complete stop. • Do not touch the cutting blades or insert any object, such as knives, forks, spoons, etc.
-
Page 5: Juicer Feature Diagram

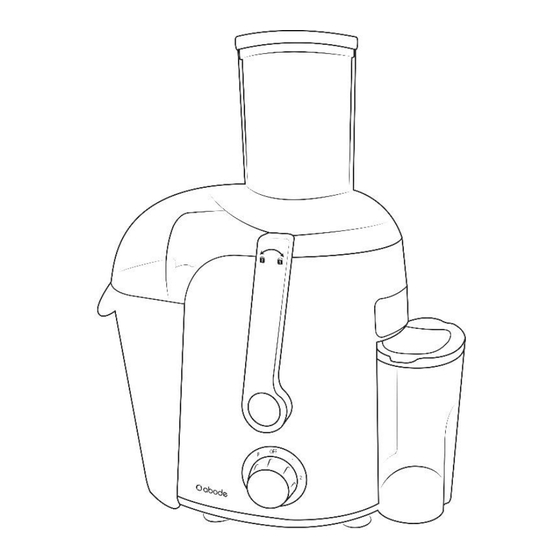

Juicer feature diagram Feeding chute Base feet Food pusher Pulp container Juicing blade Base unit Locking arm Speed control dial Plastic jug Cleaning brush... -
Page 6: Preparing Your Juicer
Preparing your juicer Before using your juicer Check the juicer after unpacking for any visual damage or missing parts such • Misaligned or damaged casing. • Damage to the plug or cable. • If any parts are missing or there is any damage, please refer to page 17 for Customer Services. -
Page 7: Using Your Juicer
Using your juicer Food preparation Always wash your fruit and vegetables thoroughly before juicing. It is necessary to remove large seeds, pips or peels before using the appliance. It is also necessary to remove large pits (such as plums and apricot stones) to avoid damaging the appliance. - Page 8 Using your juicer Pulp container When the lid is unlocked/removed, you can remove the pulp container from the side of the base. Grip the handle on the side of the container and pull away from the unit to remove. To replace the container onto the unit, use an Remove upwards scooping action to secure it under the Insert...
- Page 9 Using your juicer Now that you understand how to put together your juicer and your fruit/vegetables are prepared, you are ready for use. Remove the food pusher from the feeding chute if it is placed in there. Plug the juicer into a suitable outlet and make sure it switched on.
- Page 10 Using your juicer Place the pre-cut food into the feeding chute and gently guide it to the juicing blade using the food pusher. Never insert your fingers or other objects into the feeding chute. The juicer will filter the pulp into the container and pump out the extracted juice from the juicer outlet into the plastic jug.
-
Page 11: Tips
Tips • Try and use fresh fruit/vegetables as they contain the most juice. • Here are some ideal ingredients to juice: pineapple, apples, grapes, cucumbers, celery, carrots, spinach, melons, tomatoes and other varieties of citrus fruit. • Different varieties of apples produce different tastes and flavours when juicing them. -
Page 12: Recipes
Recipes Yields 885ml or 3 cups Green Juice Ingredients: • Apples - 2 medium or 360g • Celery - 4 stalk, large or 255g • Cucumber - 1 full cucumber or 300g • Ginger Root - 1 thumb or 25g •... - Page 13 Recipes Red Juice Ingredients: • Beetroot - 1 beet or 175g • Carrots - 2 medium or 120g • Oranges - 2 medium fruit or 260g Directions: Process all ingredients in the juicer, pour out, shake or stir, and serve immediately.
-
Page 14: Cleaning And Care
Cleaning and care Before cleaning make sure to switch the power off at the plug socket and remove the plug. Ensure you have waited for the filter to stop rotating. Disassemble as per instructions provided on pages 7 and 8. The appliance is easier to clean the quicker you do it after use. -
Page 15: Problem Solving
Problem solving Problem Potential Solution 1. The appliance is not working. 1. a. The locking arms must both be securely in the lock position. 1. b. Ensure all parts are assembled (refer to pages 7 and 8) in the correct manner. 2. -
Page 16: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. The following conditions apply: •... -
Page 17: Customer Services
Customer services Attach your receipt to this page for proof of purchase. We’re here should you need us For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Or visit us at www.productcareuk.com Produced for: WM Morrisons,... -
Page 18: Spare Parts
Spare parts The following spare parts are available to purchase online or by calling Product Care. Visit us at www.productcareuk.com Or call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Pulp container Plastic jug Cleaning brush Juicing blade... -
Page 19: Connection To The Mains Supply
Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of 220-240V ~ 50/60Hz. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 5A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following: Important: The wires in the mains lead are coloured in accordance with the following code:... - Page 20 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which...
- Page 21 Notes...
- Page 22 Notes...
- Page 23 Notes...
- Page 24 Model number: AJCR6001 Technical Specifications: Wattage: 500W Rated Voltage: 220-240V ~ 50/60Hz Capacity: 600ml plastic jug, 1,300ml pulp container...
