Motorcycle/ Vehicle Tracker
GlobalSat WorldCom Corporation
st
16F., No. 186, Jian 1
Rd, Zhonghe Dist.,
New Taipei City 23553, Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
www.globalsat.com.tw

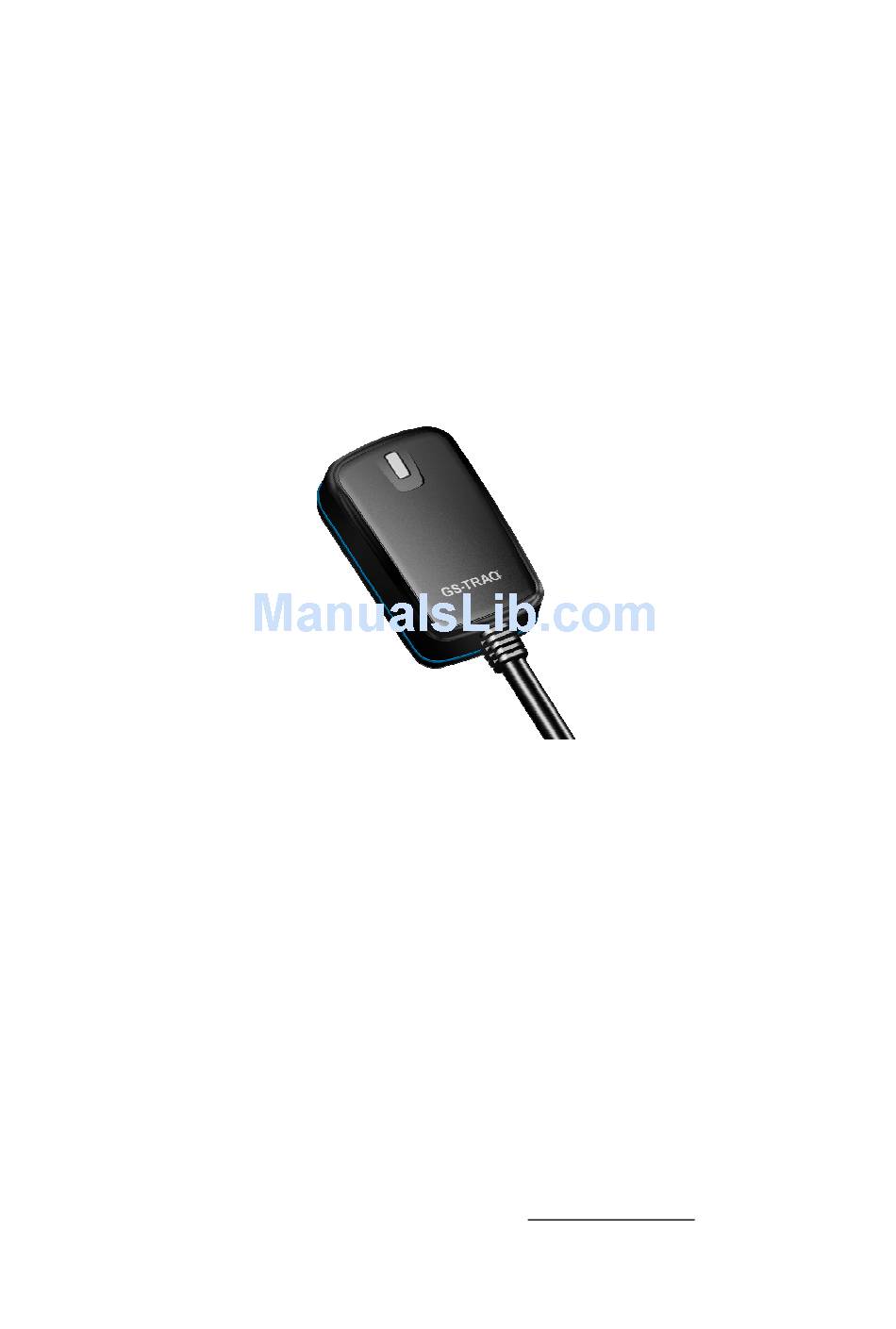

GTR-128/GTR-129
Quick Start Guide
USGlobalSat Incorporated
14740 Yorba Court
Chino, CA 91710
888.323.8720
Tel:
/ Fax:
sales@usglobalsat.com
www.usglobalsat.com
909.597.8532
Advertisement
Table of Contents
Related Manuals for GS-Traq GTR-128
Summary of Contents for GS-Traq GTR-128
-
Page 1: Quick Start Guide
GTR-128/GTR-129 Motorcycle/ Vehicle Tracker Quick Start Guide GlobalSat WorldCom Corporation 16F., No. 186, Jian 1 Rd, Zhonghe Dist., USGlobalSat Incorporated 14740 Yorba Court Chino, CA 91710 New Taipei City 23553, Taiwan 909.597.8532 888.323.8720 Tel: / Fax: Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 sales@usglobalsat.com... -
Page 2: Table Of Contents
CONTENT 1. Introduction ........................3 1.1 Introduction ....................... 3 1.2 Features ........................3 1.3 Hardware specification .................... 4 1.4 Appearance ........................ 5 1.5 LED indicator ......................5 1.6 Cable description ...................... 6 1.7 Accessories ........................ 7 1.7.1 Standard Items ......................7 1.7.2 Optional Items ...................... -
Page 3: Introduction
Benefits such as enhanced fleet management, improved vehicle safety, emergency response, are all accomplished through the implementation of the GTR-128/GTR-129 system. The built-in GSM and GPS antennas are for easy installation without hassle. 1.2 Features New generation SiRF Start IV GPS module. -
Page 4: Hardware Specification
1.3 Hardware specification Item Description Model GTR-128 GTR-129 Dimension 61 mm X 38 mm X 19 mm High performance line ARM-base 32-bit MCU GPS receiver SiRF Star IV high performance GPS chipset Temperature Operation -30℃ ~ + 80℃ -10℃ ~ + 60℃... -
Page 5: Appearance
1.4 Appearance For fixing device with Velcro tape Hook for screw/ unscrew back cover 1.5 LED indicator Normal mode: LED status Description Device is being boot and SIM card not Red blinking ready Red solid SIM card ready, but GSM not registered Yellow solid GSM registered, but GPRS not connected GSM registered, and GPRS connected... -
Page 6: Cable Description
1.6 Cable description Wire Color Description Green SOS (Negative Trigger) Blue Fuel sensor input (Analog Input, 0~28 V, 12 bits resolution) Yellow Digital Input (Negative Trigger) Main Power, 9~36 V Black Ground White Digital Output (Negative Trigger), 300 mA Orange Ignition Detection Input (Positive Trigger) Black Ground... -
Page 7: Accessories
1.7 Accessories 1.7.1 Standard Items Main Unit Hardwire cable Velcro Tape... -
Page 8: Optional Items
1.7.2 Optional Items Car Lighter Adaptor External Emergency Button OBDII Power Cable 12V/24V Relay... -
Page 9: Operation
2 Operation For first time users, please follow the steps below to complete the pre-installation. 2.1 Install the SIM card Unscrew the cover of device. Insert SIM card with the cooper contacts face-down and the notch on the SIM card at the right side of the SIM slot. Note: Make sure to disable the SIM PIN entry function on the SIM card before inserting your SIM card... -
Page 10: Connect The Main Power
2.2 Connect the Main Power Connect the red wire from the cable to a power source of 9~36 V. Connect the black wire to ground. 2.3 Switch on/off Tracker After connecting the power, please open the back cover and adjust the power switch to On position. -
Page 11: Fix The Device
2.4 Fix the device You could fix the GTR-128/GTR-129 by Velcro tape as the picture above. You could tear down the cover of double side tape and stick GTR-129 to the installation position. - Page 12 You could install the GTR-128 at the metal surface. The magnet on the device would attract the metal surface.
-
Page 13: Installation
3 Installation 3.1 Installing the Emergency button There is a line of cable for connecting push button for emergency help. One end of the button must be connected to the SOS line and the other end must be connected to the ground line. SOS line (red wire) Ground line... -
Page 14: Connecting Ignition Detection Line On Car
3.2 Connecting ignition detection line on car Ignition On Lock Connect the orange wire from the cable to ACC position of vehicle. Connect the black wire to ground. -
Page 15: Connecting Relay
3.3 Connecting Relay Connect the white wire from GTR-128/GTR-129’s cable to the yellow wire of relay. For the other connections, please refer to the diagram above. -
Page 16: Suggested Installation Position
3.4 Suggested installation position GTR-128/GTR-129 could be placed or installed on the marked position as the pictures below. If you’d like to install GTR-128/GTR-129 at the OBDII connector of vehicles, please connect... - Page 17 GTR-128/GTR-129 with the OBDII power cable firstly, then you could connect the OBDII power cable to the OBDII connector of vehicle as the picture below. For motorcycle rider, GTR-128/GTR-129 could be installed at the marked position as the picture as below.
