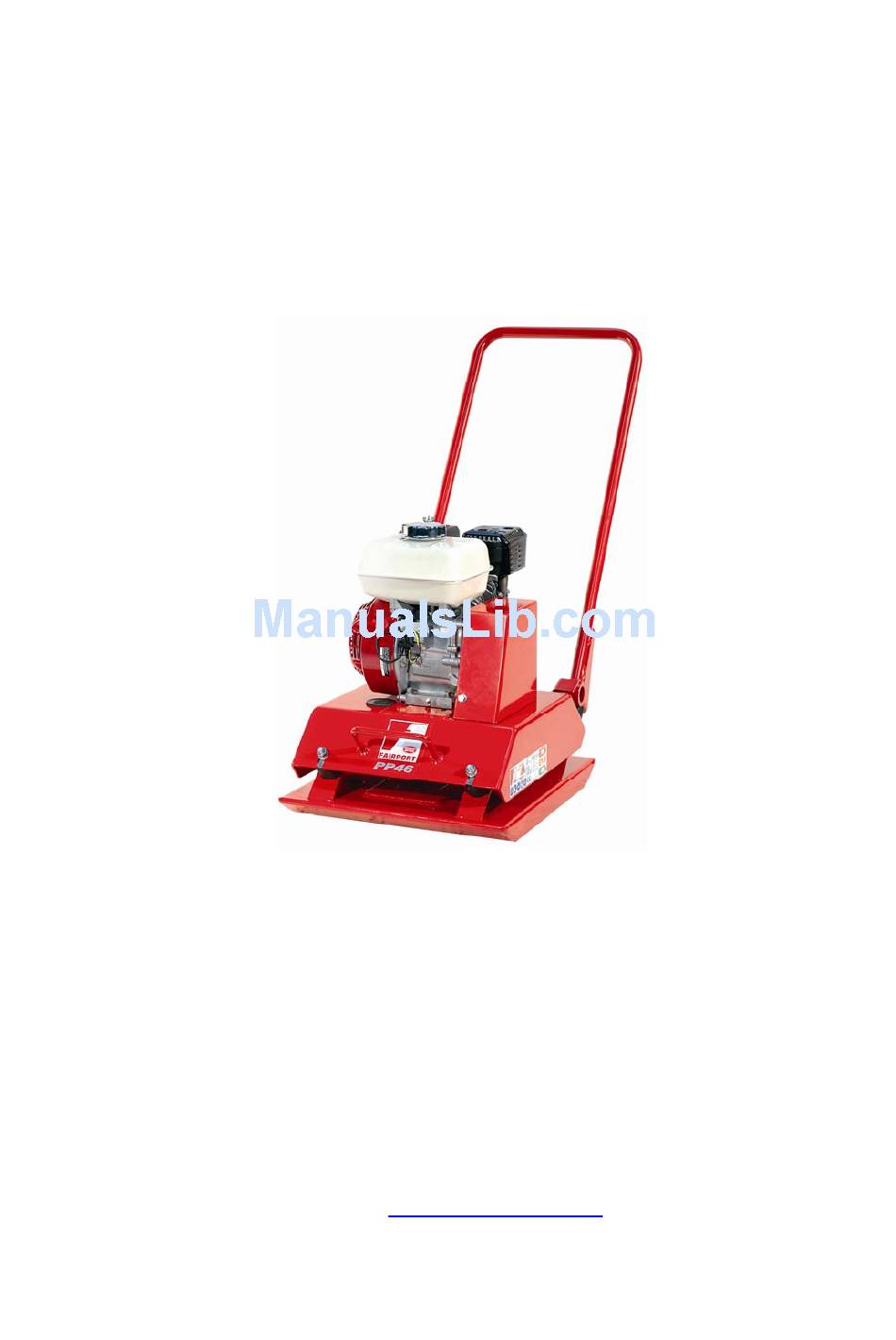

OPERATION, SPARE PARTS
AND SERVICE MANUAL
PLATE COMPACTOR
MODEL PP46
FAIRPORT
CONSTRUCTION EQUIPMENT LIMITED
Blagden Street
Sheffield
S2 5QS
ENGLAND
Tel: +44 (0) 114 276 7921
Fax: +44 (0) 114 272 0965
Email:
sales@fairport.uk.com
Web: www.fairport.uk.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP46 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fairport PP46

Summary of Contents for Fairport PP46

  • Page 1 OPERATION, SPARE PARTS AND SERVICE MANUAL PLATE COMPACTOR MODEL PP46 FAIRPORT CONSTRUCTION EQUIPMENT LIMITED Blagden Street Sheffield S2 5QS ENGLAND Tel: +44 (0) 114 276 7921 Fax: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...

  • Page 2: Table Of Contents

    CONTENTS PAGE SAFETY ………………………………………………………………………… 2 SAFETY PICTOGRAMS USED ON FAIRPORT EQUIPMENT ………….. 3 SAFETY DECAL POSITIONS………………………………………………… 4 TECHNICAL DATA ……………………………………………………………. 5 USING THE MACHINE FOR THE FIRST TIME……………………………. 5 ROUTINE MAINTENANCE …………………………………………………… 6 STARTING THE ENGINE ……………………………………………………. 6 OPERATOR INSTRUCTIONS ……………………………………………….. 6 LUBRICATION…………………………………………………………………...

  • Page 3: Safety Pictograms Used On Fairport Equipment

    Turn off fuel when not using machine. Wear protective footwear, ear defenders and gloves. Comply with site safety regulations. Check condition and tightness of anti-vibration mounts between engine plate and base plate before lifting. 1.1 SAFETY PICTOGRAMS USED ON FAIRPORT EQUIPMENT...

  • Page 4: Safety Decal Positions

    1.2 SAFETY DECAL POSITIONS...

  • Page 5: Technical Data

    2. TECHNICAL DATA MODEL ENGINE ENGINE POWER MANUFACTURER MODEL (HP/kW) PP46 Honda GX160 5.5/4.0 MODEL HEIGHT- LENGTH – L WIDTH – W CONTACT WEIGHT (mm) (mm) (mm) AREA (sq. m) (kg) PP46 0.161 PERFORMANCE MODEL CENTRIFUGAL COMPACTION FORCE (kN) RATIO (kg/m²)

  • Page 6: Using The Machine For The First Time

    3. USING THE MACHINE FOR THE FIRST TIME When the machine is delivered from Fairport it will have no oil in the engine. Please refer to the Engine Manufacturers Manual issued with the machine for instructions on filling the engine with the correct type and quantity of oil.

  • Page 7: Lubrication

    5mm and 10mm is expected. 9. WARRANTY CONDITIONS AND CLAIMS PROCEDURE All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a period of 12 months from the date of original despatch from FCE or 3 months for all spare parts used in repairs carried out by FCE or an authorised dealer or repairer.

  • Page 8: Claims Procedure

    engine speeds, fair wear and tear or non-compliance with instructions issued by the manufacturer. To the extent permitted by law, the liability of FCE under this section is confined only to providing a remedy for defective goods and does not extend to any consequential loss, loss of profit, injury or damage suffered.

  • Page 9: Environment

    11. ENVIRONMENT This machine contains materials that can be recycled. We recommend that when the machine is disposed off it is done safely and in a way that protects the environment. Part Description Materials Engine Aluminium and steel Baseplate Steel Engine Frame Steel Engine Bedplate...

  • Page 10: Bedplate And Drive System

    12. PARTS LIST – BEDPLATE AND DRIVE SYSTEM Parts List Part Code Description Qty Required W81731 Honda GX160 W14681 Engine Spacer W14815 Belt Guard Back Plate W406/5/12 5/16 UNF x ¾” Hex Setscrew W14562 Clutch Spacer W87287 Vee Belt W87060 Clutch P80120 Retaining Washer...

  • Page 11: Handle

    12. PARTS LIST - HANDLE Parts List Part Code Part Description Qty Required W14814 Handle W14683 Handle Pivot Bolt W88912 Handle Bush W480/12 M12 Nyloc Nut...

  • Page 12: Baseplate And Vibrator

    12. PARTS LIST – BASEPLATE AND VIBRATOR ASSEMBLY Parts List Part Code Description Qty Required WPC080-001 Base WPC080-B12 Vibrator Housing P85034 Sealing Washer W68574 Filler Plug W81019 Bearing WPC080-B09 Gasket W81249 Oil Seal W14819 End Plate (Pulley Side) W14818 End Plate W437/8/25 M8 x 25 Hex Setscrew W14820...

  • Page 13: Block Compacting Mat Kit

    12. PARTS LIST AND FITTING INSTRUCTIONS – BLOCK COMPACTING MAT Parts List Part Code Description Qty Required W14557 Rear clamp strip W14558 Centre clamp strip W14559 Front clamp strip W14560 Block compacting mat W469/8/25 M8 csk screw x 25 W437/8/40 M8 hex screw x 40 W439/8 M8 Shakeproof...

  • Page 14: Water Sprinkler Kit

    12. PARTS LIST – WATER SPRINKLER KIT Part No Description W14595 Strap (Honda) W14608 Strap (Briggs & Stratton) W14594 Tank bracket (Honda) W14607 Tank bracket (Briggs & St) 1 W80528 Clip W80568 Tank W80588 W51675 Hose tail W80589 3/8” BSP nipple nut W523/8 ½”...

  • Page 15: Declaration Of Conformity

    13. EC DECLARATION OF CONFORMITY WE, FAIRPORT CONSTRUCTION EQUIPMENT LTD, BLAGDEN ST, SHEFFIELD, SOUTH YORKSHIRE, S2 5QS DECLARES THAT THE PRODUCT: PP46; FITTED WITH A HONDA GX160 ENGINE ENGINE POWER; 5.5HP/4.0kW at 3600RPM SERIAL No. ……………………………… CONFORMS TO THE FOLLOWING DIRECTIVE: 89/336/EEC, 89/392/EEC, 91/368/EEC, 2000/14/EC NOTIFIED BODY;...
