Sminn DUO 434 Instruction Manual

DÚO

OPERATION

When a button of the transmitter is pushed, it sends a ciphered 72
TWO CHANNEL TRANSMITTER
bits data frame only decipherable by a SMINN receiver with high
security Evolutive Cryptocode technology.
INSTRUCTION MANUAL
Each transmitter has a unique serial number that distinguishes it
from the rest and a PIN code that ensures usage with receivers
with the same PIN code. The PIN code can only be modified via
SMINN programming tools. PIN codes increase the security and
simplify the delivery of transmitters to the final user, avoiding the
need to actually go to the installation site. The receiver must be
configured to accept transmitters this way.

TRANSMITTER REGISTRATION

Depending on the level of security configured in the receiver's memory
it is possible to register transmitter codes manually or via radio.

REGISTRATION BY INVITATION

innovative in electronics
SMINN transmitters can invite new transmitters to receivers where
they are already registered.
To invite a new transmitter follow these instructions. See Fig. 1:

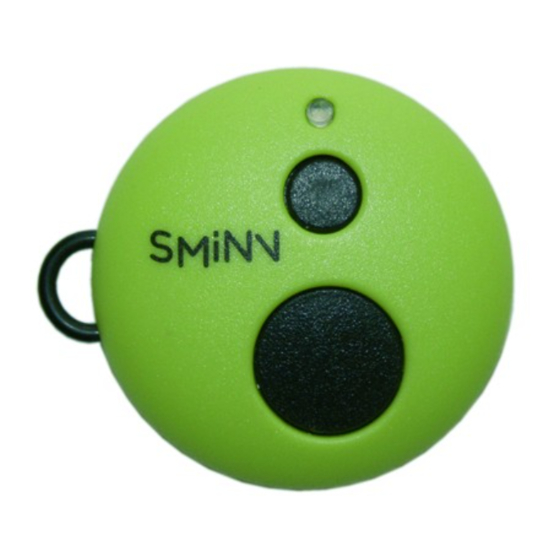

DESCRIPTION

SMINN transmitters are develo-
ped with state-of-the-art electro-
nics and technology and make
use of a robust anticopy system.
They provide a high degree of
operating reliability and security.
They are designed to send the
activation/deactivation order to
SMINN receivers that are part of
motor controllers, alarm systems,
The new transmitter has received the invitation and has 10 attempts
access control systems, home au-
to register in the receivers where the transmitter in USE is already
tomation systems, etc
registered; after those, the invitation disappears.

REPLACEMENT AND BLOCKING DUE TO LOSS

Devices that are built using
high quality materials and
Knowing the SERIAL number of the lost transmitter and with the
components and the latest corresponding credentials, the installer will be able to:
technology. They are made
taking into account the cu-
rrent regulations for usage in
residential, commercial and
light industry environments.

BATTERY REPLACEMENT

The lithium battery that powers the transmitter is a CR2032 and has
an average life of 2 years with 10 transmissions per day. Transmission
duration, operating temperature and other factors can affect battery
Security level 1 (Basic): Transmitter can be programmed in invitation
mode knowing the PIN (the certified number of the installation)
using a SMINN programming console. Invited transmitters are au-
tomatically registered by level 1 receivers.
Security level 2 (Intermediate): Transmitters already in use can
INVITE new transmitters that share the same PIN (the certified
number of the installation).
Security level 3 (Advanced): Emitters will be registered in the
receiver manually. Radio-based registration is disabled.
1. Press and hold the transmitters 1st and 2nd buttons at the same
time (5 sec) until the operation led is on.
2. Release both buttons (the led is still on).
3. Approach the transmitter in USE to the left side of the NEW
transmitter.
4. Press and hold the 1st button (channel 1) of the transmitter
in USE.
5. Wait until the NEW transmitter's led flashes for 5 times (ope-
ration OK).
6. Release the push of the transmitter in USE.
1. Program a NEW transmitter ready to work that will replace
the lost one in the memory of the receiver. Only possible if the
receiver has been previously configured to accept transmitters
with this method (security levels 1 and 2).
2. Block temporarily the transmitter in the memory. Only in re-
ceivers with external memory.
life. When the battery is starting to die, the range of the transmitter
will decrease and the led will flicker with less light. When that moment
comes, replace the battery with another one of the same type and
quality (Maxell CR2032 3v recommended), considering polarity. The
transmitter will continue working properly. See Fig. 4-7.
UNDER NO CIRCUMSTANCE IT SHOULD BE DISPOSED WITH
THE COMMON WASTE
Note: dead batteries contain pollutant substances and they should
be handed in collection points for this kind of products according
to the current regulations.

USE LIMITATIONS

Functionality is not guaranteed if used in different applications than
the specified ones.
The manufacturer reserves the right to change the specifications of
these systems as well as this manual without prior warning.
The equipment must be manipulated only by specialized and/or
skilled personnel.
THE USAGE INSTRUCTIONS OF THIS DEVICE SHALL BE
HANDED TO THE USER, WHO WILL HAVE THEM IN THEIR
POSSESSION. IF THEY ARE MISLAID, THE USER CAN ASK FOR
A COPY OR DOWNLOAD IT DIRECTLY FROM THE WEBSITE
WWW.SMINN.COM
Any modification or adjustment to the system is forbidden, except
for those indicated in this manual.

WARRANTY

This product has undergone a complete TEST during its manufacturing
process that guarantees its reliability and proper operation.
The manufacturer provides 24 months of warranty to the product
from the date printed in the product and against any anomaly that
it may present in its
appearance or operation.
Any damage caused by third parties, natural causes (flooding, fire,
lightning, etc), arising from improper handling or installation, van-
dalism or any other cause non attributable to the manufacturer will
void the warranty.
The warranty only covers repairs or replacement of the damaged
device. Any expenses derived from assembling, travelling, transport,
natural wear of parts, etc., and, in general, any expenses that are not
part of the repairs or replacement of the damaged element of the
system are excluded.
The installer/provider will ask the manufacturer for an RMA number
or authorization for transport of the system in warranty. Without
this previous requisite, the manufacturer will not be able neither to
process nor provide warranty service.
WARNING
This product must be used in istallations which has been conceived for,
considering any other as improper use. The packaging and wrapping
MUST NOT be dumped in the environment. Keep products, packaging,
wrapping, documentation, etc., out of the reach of children.
Follow the current local, national or European regulations.
The information contained in this document may have some mistakes
that will be corrected in future editions. The manufacturer keeps
the right to modify the content of this document or the product
without prior warning.
