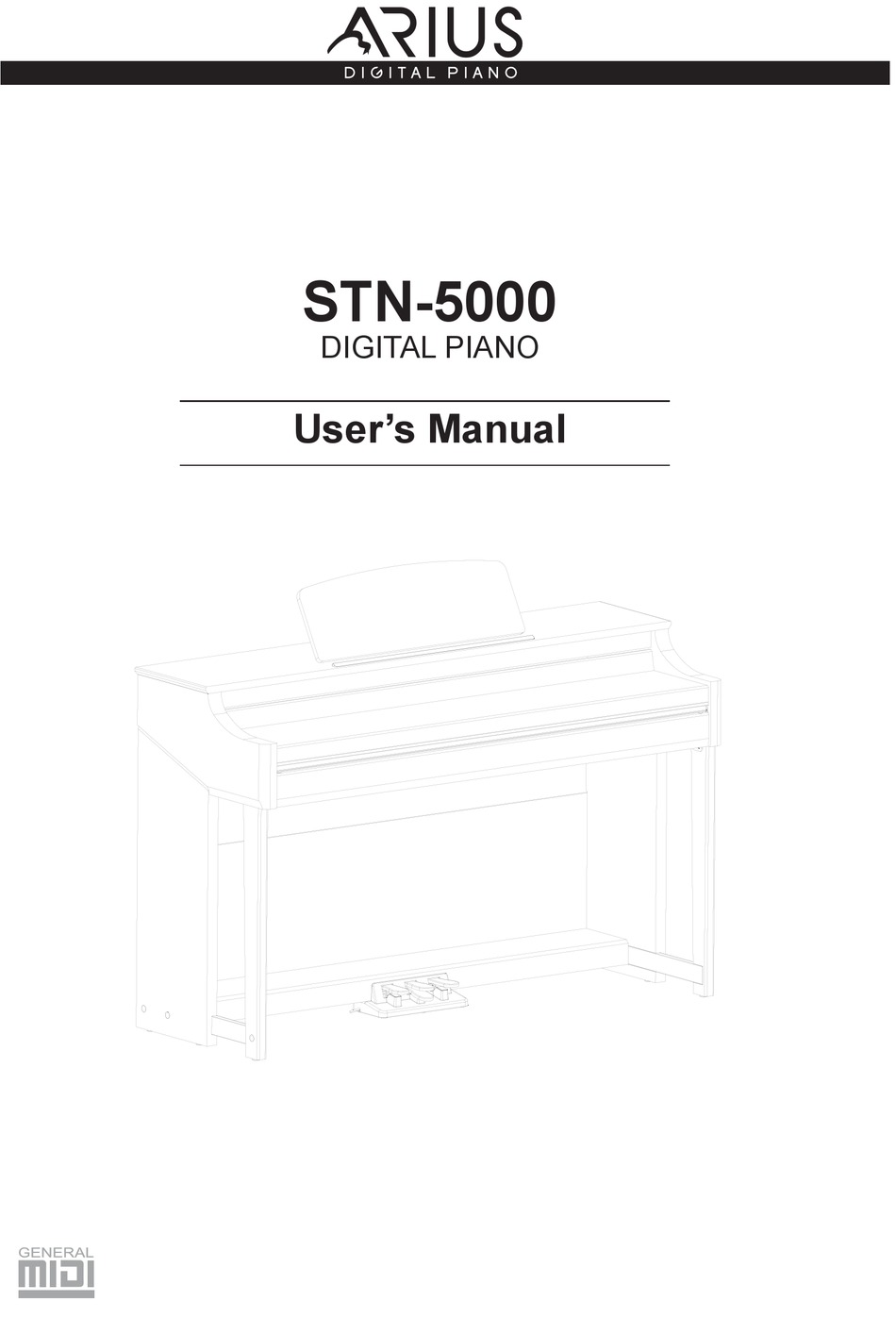

- Page 1 DIGITAL PIANO DIGITAL STN-5000 digital piano PIANO User’s Manual...
- Page 2 INFORMATION FOR YOUR SAFETY! PRECAUTIONS THE FCC REGULATION WARNING (for USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.
-
Page 3: Table Of Contents
Contents Panel Description Scale ............... Front Panel..............Rear Panel..............4 Twinova ..............15 Setup Touch Sensitivity ..........16 Setup Guide..............6 Power Supply..............8 Digital Effects .............16 Reverb and Chorus Effect.........16 Connections EQ Effect..............16 Connecting a pair of Headphones......9 Connecting an Audio Equipment........9 Metronome ............17 Connecting a MP3/CD Player........9 Connecting a Computer..........9... -
Page 4: Panel Description
Panel Description Front Panel PRESET USER VOLUME BRILLIANCE SAVE TO SONG PLAY / STOP FUNCTION MELLOW BRIGHT 1. VOLUME Knob 7. PLAY/STOP Button Adjust the master volume. Start or stop playing a song. 2. BRILLIANCE Knob 8. RECORD Button Adjust the voice brilliance. Enter into the record mode. - Page 5 Panel Description TWINOVA OCTAVE DUAL SPLIT SCALE GRAND MUSIC DRAWBAR ACCORD- NYLON STEREO CHOIR SWEET SOPRANO ACOUS. PIANO ORGAN GUITAR STR. AAHS TRUMPET BASS TOUCH TRANSPOSE TUNE VOICE BEEP DEMO 14. [+]/[-] Button 22. CHORUS Keys Adjust the parameters. Press and hold the [FUNCTION] button then strike the key [OFF] in this range to close chorus 15.
-
Page 6: Setup
Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Setup Guide Open the package, and check whether the following parts are available. Piano body Left leg component Right leg component Foot pedal... - Page 7 Setup A. Put the foot pedal unit(4) in between the left and right legs components (2&3), use 4 pieces of screws (8)(2 on each side) to stable the legs onto the foot pedal unit. (Make sure the direction of the placement is correct before screwing) B.
-
Page 8: Power Supply
Setup D. After the initial set-up, connect pedal cable(11) in the foot pedal unit to the bottom-panel PEDAL jack. Power Supply Make sure that the piano is turned off. Before you switch your piano on or off, turn down the volume of piano and any connected audio equipments first. -
Page 9: Connections
Connections Connecting a pair of Headphones A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. Jack1: when a pair of headphones is plugged into the jack 1, the sound can be heard from both headphones and speakers of the Jack 1 instrument. -
Page 10: Adjusting The Master Volume
Adjusting the Master Volume Rotate the [VOLUME] knob clockwise, the volume increases and vice versa. Adjusting the Voice Brilliance Rotate the [BRILLIANCE] knob clockwise, it sounds brighter; rotate the [BRILLIANCE] knob anti-clockwise, it sounds gloomier. You can change the piano brilliance as you wish. AW_DP70_Manual_G08_130920... -
Page 11: Listening To The Song
Listening to the Song Playing a Song This piano has 61 songs in all, including 1 user song. For more information, please refer to the song list in Appendices chapter. Song playing in big circle Press the [SONG] button to enter into the song playing mode and it will play all preset songs circularly. -
Page 12: Playing Voice
Playing Voice There are 40 panel voices, 128 GM voices and 9 additional drum sets built-in the instrument. For the 40 panel voices, they could be selected via the voice buttons on the front panel. To use the other voices, you should send the corresponding MIDI bank/program events to the instrument from MIDI IN or USB interface. -
Page 13: Playing A Lower Voice
Playing voices Playing a Lower Voice The lower voice can make the right hand and left hand play different voices. Open or close lower voice Press the [SPLIT] button can open or close lower voice. The corresponding indicator of [SPLIT] button will be lightened or off accordingly. -
Page 14: Song Recording
Song Recording You can record a user song in the piano. the recorded data will not be lost when you turn off the power. Prepare Recording Press the [REC] button, the corresponding indicator is blinking, that indicates the piano has entered into the recording preparation status, in this state, you can adjust some parameters. -
Page 15: Scale
Scale This function allows you to experience different scales when you play certain genres of music that is not composed based on twelve equal SCALE interval. Press [SCALE] button to enter into scale mode and the button indicator is lightened; the default stretched tuning is 001 Pythagoras. -
Page 16: Touch Sensitivity
Touch Sensitivity This function helps to enrich the expressiveness of music, it can reflect the force you exert to each note when you play. That means the greater the force you exerted, the greater the sound from the speakers when the master volume is unchanged. After you turn off this feature to play with any intensity to the keyboard, the sound was the same. -
Page 17: Metronome
Metronome If you are concerned about can not take on the beat accurately in practicing or recording mode, use the metronome function, so you can get the beat-specific tips. Turn on the metronome While holding down the [FUNCTION] button, strike the key [ON/OFF] in this range to turn the metronome on or off. -
Page 18: Transpose
Transpose This function helps you adjust the pitch of the keyboard, and allows you to play different music without changing the way you performed before. While holding down the [FUNCTION] button, strike the keys [+]/[-] in this range to adjust the transpose value from -12 to 12 semitones. Note: Strike the keys [+]/[-] in this range simultaneously to reset the transpose as default(0 semitone). -
Page 19: Beep Tone
Beep Tone This function is used to turn on or turn off the prompt tone. The default setting is on. While holding down the [FUNCTION] button, strike the key [BEEP] to turn the beep tone on or off. While the [FUNCTION] button is held down, and you turn on the beep tone, you can hear a beep sound when you strike an available functional key Parameters... -
Page 20: Specifications
Specifications Keyboard 88 Hammer-Action Keys Polyphony Voice GM Voice 128 Voices and 9 Drum Sets Voice Demo Song Tempo 30-280 Control Button Function, Song, Play/Stop, Rec, Voice Direct Select, Save to USB, +/-, Dual, Lower, Power On/Off switch, Volume, Brilliance, SCALE. -
Page 21: Voice List
Voice List Panel Voice List GM Voice List Pro. Bank English Name Pro. Bank English Name Grand Piano Piano Grand Piano 2 Acoustic Grand Piano Ele. Piano Bright Acoustic Piano Ele. Piano 2 Electric Grand Piano Harpsichord Honky-tonk Piano Harpsichord (with key off) Electric Piano 1 Clavichord Electric Piano 2... - Page 22 Voice List Timpani Synth SFX Ensemble FX 1 (rain) String Ensembles 1 FX 2 (soundtrack) String Ensembles 2 FX 3 (crystal) Synth Strings 1 FX 4 (atmosphere) Synth Strings 2 FX 5 (brightness) Choir Aahs FX 6 (goblins) Voice Oohs FX 7 (echoes) Synth Voice FX 8 (sci-fi)
-
Page 23: Song List
Song List English Name Mazurka Waltz in A Flat Op.39, No.15 Minuet 1 The Happy Farmer Minuet 2 Etude Minuet 3 Dance Of The Four Swans From “Swan Lake” Minuet In G Carmen Suite No.2 Habanera Neapolitan Song A Little Polish Dance Prelude Jesus Saviour Pilot Me Salut D' Amour... -
Page 24: Midi Implementation List
MIDI Implementation List DP70_G08 AW_DP70_Manual_G08_130920 2013� � 9� � 22� � �20�2��55...
