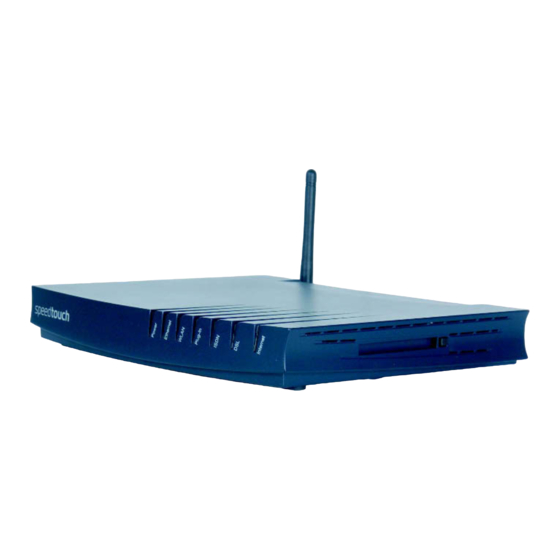

THOMSON SpeedTouch Configuration Manual

(wireless) business dsl routers
Hide thumbs Also See for SpeedTouch:
Table of Contents

Advertisement

Quick Links

Download this manual
SpeedTouch™
(Wireless) Business DSL Routers
Internet Connection
Configuration Guide
Release R5.4 and higher

Advertisement

Table of Contents
loading

Related Manuals for THOMSON SpeedTouch

Summary of Contents for THOMSON SpeedTouch

  • Page 1 SpeedTouch™ (Wireless) Business DSL Routers Internet Connection Configuration Guide Release R5.4 and higher...
  • Page 3 SpeedTouch™ Internet Connection Configuration Guide R5.4 and higher...

  • Page 4: Document Information

    Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

  • Page 5: Table Of Contents

    1.1.4 Packet Services ........................ 5 The SpeedTouch™ Interfaces............6 2 Bridged Ethernet ............11 SpeedTouch™ Bridged Ethernet Configuration ......13 3 Routed Ethernet ............17 SpeedTouch™ Routed Ethernet Configuration ......19 4 Bridged PPPoE............. 25 SpeedTouch™ Bridged PPPoE Configuration....... 27 Connect to the Internet via a Host PPPoE Dial-In Client .....
  • Page 6 8 PPTP-to-PPPoA relaying ..........69 Configuration Procedure for Relayed PPPoA ......71 8.1.1 Using the Windows XP Embedded PPP Client............72 9 Routed IPoA..............75 SpeedTouch™ Routed IP over ATM Configuration ...... 77 9.1.1 Routed IPoA with NAPT ....................78 E-DOC-CTC-20051017-0167 v1.0...
  • Page 7 Contents 10 Routed PPPoI ............... 81 10.1 How to Configure the ISDN Modem..........83 10.2 ISDN Backup ................84 10.2.1 How to Configure the ISDN Dial-In Connection ............85 10.2.2 How to Configure the PPP Connection ................ 88 10.3 ISDN Callback ................91 10.3.1 How to Configure the ISDN Dial-In Connection ............
  • Page 8 Contents E-DOC-CTC-20051017-0167 v1.0...

  • Page 9: About This Speedtouch™ Internet Connection Configuration Guide

    4.2.0.1 <system> Output Comments Documentation and THOMSON continuously develops new solutions, but is also committed to improve software updates its existing products. For suggestions regarding this document, please contact documentation.speedtouch@thomson.net. For more information on THOMSON's latest technological innovations, documents and software releases, visit us at: www.speedtouch.com...
  • Page 10 E-DOC-CTC-20051017-0167 v1.0...

  • Page 11: Introduction

    This configuration guide is applicable to SpeedTouch™ Release R5.4 and higher. History Since the first introduction of the SpeedTouch™ DSL modems (the A1000 ADSL NT), the way data is passed back and forth between a computer or local LAN and the Internet Service Provider (ISP) broadband access machines has changed considerably.

  • Page 12: Definitions And Terminologies

    Local ends Irrespective whether a conversation happens between people or machines, there Remote end are at least two parties involved. In this document the SpeedTouch™ is referred to as the Local end, and the Broadband Remote Access Server (BRAS) of the ISP the Remote end.

  • Page 13: Connection Services

    The main function of a packet service is to forward frames or packets between the DSL line and the SpeedTouch™ LAN ports and vice versa. Therefore the connection service offered on the DSL line must be “attached” to the appropriate packet service in the SpeedTouch™.

  • Page 14: The Speedtouch™ Interfaces

    Chapter 1 Introduction 1.2 The SpeedTouch™ Interfaces Types of interfaces In the SpeedTouch™ release R5.4 and higher, there are five different types of interfaces: Physical interfaces: Interfaces that can be connected to other peripherals from outside the box: Physical Ethernet interface USB interface (USB 1.1 slave)
  • Page 15 Chapter 1 Introduction Schematic overview The figure below shows the SpeedTouch™ interface architecture. LoopBack IP Forwarding IP Interface(s) iARP Multilink IPoE / PPPoE PPPoE RELAY IPoA IPoEoA Ethernet Interface(s) PPPoA VLAN Bridge EthoA ATM Interface(s) ATM Bundle Physical Ports ATM VP/VC ISDN (Eth, USB, WLAN, BT...)
  • Page 16 Proceed as follows to start without the default configuration: =>:ppp relay flush =>:eth flush =>:atm flush =>:ppp flush =>:atm phonebook flush =>:saveall => With the SpeedTouch™ in this state you should be able to configure every packet service as described. E-DOC-CTC-20051017-0167 v1.0...
  • Page 17 In the next chapters the configuration of the following packets services will be explained: Bridged Ethernet Routed Ethernet Bridged PPPoE Routed PPPoE PPPoE Relay Routed PPPoA Routed PPPoI Routed IPoA. Templates For your convenience, it also possible to configure these packet services using the SpeedTouch™ templates. E-DOC-CTC-20051017-0167 v1.0...
  • Page 18 Chapter 1 Introduction E-DOC-CTC-20051017-0167 v1.0...

  • Page 19: Bridged Ethernet

    Connection Service to achieve end-to-end connectivity. For the SpeedTouch™, this amounts to using the ETHoA (Ethernet over ATM) Connection Service type. This connection service type implies the encapsulation of Ethernet frames (often referred to as IEEE802.3, MAC frames or Bridging frames) in AAL5/ATM.
  • Page 20 In both cases, alternatively, an additional private IP address can be manually configured (per local node) to allow Local Networking communication. If the first scenario is used, the SpeedTouch™ DHCP server must be disabled to avoid two DHCP servers (i.e. the SpeedTouch™ DHCP server and the remote DHCP server) being active towards the local node(s) at the same time.

  • Page 21: Speedtouch™ Bridged Ethernet Configuration

    Bridged Ethernet 2.1 SpeedTouch™ Bridged Ethernet Configuration Preparatory steps for To be able to configure the SpeedTouch™ successfully for the Bridged Ethernet using Bridged Ethernet Packet Service, the following information must be available: The VPI/VCI value of the Virtual Channel on which the ETHoA connection service is enabled.
  • Page 22 Chapter 2 Bridged Ethernet The configuration procedure consists of the following steps: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the Bridge interface. Check your configuration. The ATM interface Proceed as follows to create an ATM phonebook and the ATM interface. Add a new phone book entry with name BrETHoA_ph, VPI/VCI =8.35.
  • Page 23 The Bridged Ethernet interface is not yet connected. Connect the bridge interface. =>eth bridge ifattach intf=BrEthoa_br => Execute saveall at the prompt to save this configuration. =>saveall => For a complete description of all CLI commands, see the SpeedTouch™ CLI Reference Guide. E-DOC-CTC-20051017-0167 v1.0...
  • Page 24 Chapter 2 Bridged Ethernet Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you have created. This interface list shows that the ATM interface with name BrETHoA_atm is connected to the bridge.

  • Page 25: Routed Ethernet

    Multiple users can simultaneously share a single IP address if NAPT is enabled on the Ethoa interface or can hide the IP address if NAT is enabled. Allows the network to be shielded from the Internet via the SpeedTouch™ programmable firewall.
  • Page 26 Local Network. Using Routed Ethernet Using Routed Ethernet is rather straightforward: Make sure that the SpeedTouch™ is turned on first. Turn on the computer(s). Make sure that the Ethernet interface of the host computer is properly configured.

  • Page 27: Speedtouch™ Routed Ethernet Configuration

    Routed Ethernet 3.1 SpeedTouch™ Routed Ethernet Configuration Preparatory steps for To be able to configure the SpeedTouch™ successfully for the Routed Ethernet using Routed Ethernet Packet Service, the following information must be available: The VPI/VCI value of the Virtual Channel on which the Ethoa connection service is enabled.
  • Page 28 Chapter 3 Routed Ethernet Configuration procedure In this procedure we will guide you via the CLI through the configuration process. The configuration procedure consists of the following steps: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the ETH interface. Create, configure and attach/connect the IP interface.
  • Page 29 Chapter 3 Routed Ethernet The Ethernet interface Proceed as follows to create, configure and attach/connect the Ethernet interface: Create a new Ethernet interface with name RtEthoa_eth. =>eth ifadd intf=RtEthoa_eth => Configure the new Ethernet interface with as destination the ATM interface created above.
  • Page 30 => Optionally, make this interface your default gateway. =>ip rtadd addr=0.0.0.0/0 intf=RtEthoa_ip => Execute saveall at the prompt to save this configuration. =>saveall => For a complete description of all CLI commands, see the SpeedTouch™ CLI Reference Guide. E-DOC-CTC-20051017-0167 v1.0...
  • Page 31 Chapter 3 Routed Ethernet Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you created. =>interface list Name Type State UL Interfaces ethif1 physical connected...
  • Page 32 Chapter 3 Routed Ethernet E-DOC-CTC-20051017-0167 v1.0...

  • Page 33: Bridged Pppoe

    Bridged PPPoE 4 Bridged PPPoE Introduction The SpeedTouch™ Bridged Ethernet Packet Service can be used in combination with a PPP over Ethernet (PPPoE) client installed on your computer. The resulting Bridged PPPoE packet service provides similar Dial–In experience as found on point–to–point connections.
  • Page 34 Chapter 4 Bridged PPPoE Using Bridged PPPoE To use Bridged PPPoE, a third party PPPoE client must be used on the computer. The PPPoE client software will in most cases be provided by the Service Provider or might be embedded in your operating system. Via the PPPoE client, you will be able to create PPPoE session entities, representing all the connection parameters, just like creating Dial-Up icons with the Dial-Up Networking application of Microsoft.

  • Page 35: Speedtouch™ Bridged Pppoe Configuration

    Service in order to meet the requirements of your Service Provider regarding the AAL5/RFC2684/Bridged Connection Service to use for end-to-end connectivity. Preparatory Steps for To be able to configure the SpeedTouch™ successfully for the Bridged PPPoE using Bridged Ethernet for Packet Service, the following information must be available:...
  • Page 36 Chapter 4 Bridged PPPoE Interface road map The figure below shows the interfaces which have to be configured for Bridged PPPoE. LoopBack IP Forwarding IP Interface(s) iARP Multilink IPoE / PPPoE PPPoE RELAY IPoA IPoEoA Ethernet Interface(s) PPPoA VLAN Bridge EthoA ATM Interface(s) ATM Bundle...
  • Page 37 Chapter 4 Bridged PPPoE Configuration procedure Proceed as follows to configure Bridged PPPoE: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the Bridge interface. Check your configuration. The ATM interface Proceed as follows to create an ATM phonebook and the ATM interface. Add a new phonebook entry with name BrPPPoE_ph, VPI/VCI =8.35.
  • Page 38 =>eth bridge ifconfig intf=BrPPPoE_br dest=BrPPPoE_atm => Connect the bridge interface. =>eth bridge ifattach intf=BrPPPoE_br => Execute saveall at the prompt to save this configuration. =>saveall => For a complete description of all CLI commands, see the SpeedTouch™ CLI Reference Guide. E-DOC-CTC-20051017-0167 v1.0...
  • Page 39 Chapter 4 Bridged PPPoE Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you created. This interface list shows that the ATM interface with name BrPPPoE_atm is connected to the bridge.

  • Page 40: Connect To The Internet Via A Host Pppoe Dial-In Client

    Chapter 4 Bridged PPPoE 4.2 Connect to the Internet via a Host PPP Dial-In Client Introduction After the configuration of the bridged ethernet packet service. Some pc configuration is required for Internet connectivity. This section describes how you can connect - in case you configured the bridged packet service - to the Internet using a Dial-In application on a computer running: Microsoft Windows XP Mac OS X...

  • Page 41: Using The Windows Xp Embedded Pppoe Client

    Chapter 4 Bridged PPPoE 4.2.1 Using the Windows XP Embedded PPPoE Client Configuring a Dial-In Proceed as follows to create a new Dial-In connection on a Windows XP platform: connection On the Start menu, click Control Panel. In the Control Panel window, double-click Network Connections. In the Network Tasks menu, click Create a new connection.
  • Page 42 Chapter 4 Bridged PPPoE Select Connect using a broadband connection that requires a user name and password. Click Next. Subsequent screens will guide you through the wizard. Follow the instructions and enter the required information where needed. This information should be provided by your Service Provider. At the end of the configuration the following window appears: Do one of the following: Click Back to make changes to the configuration.
  • Page 43 Chapter 4 Bridged PPPoE Starting a Dial-In Internet Proceed as follows to connect to the Internet on a Windows XP platform: session On the Start menu, point Connect To and click MyISP. The Connect MyISP window appears: Type your User name and Password if necessary. Click Connect.

  • Page 44: Using The Mac Os X Dial-In Client

    Chapter 4 Bridged PPPoE 4.2.2 Using the Mac OS X Dial-In Client Configuring a Dial-In Proceed as follows to create a Dial-In connection: connection on a Mac OS X On the Apple menu, click System Preferences. platform In the System Preferences window, click the Network icon. The Network window appears: In the Show list, select Ethernet Adaptor (enx) and click the PPPoE tab.

  • Page 45: Routed Pppoe

    Packet Service. Similar to Routed PPPoA, Routed PPPoE combines the strength of the PPP technology and the advanced IP routing and address translation features of the SpeedTouch™ to provide an easy to use, yet powerful method to access the Internet.
  • Page 46 The Service Provider assigns an IP address to the Routed PPPoE connection. When the Routed PPPoE session is started, the SpeedTouch™ will put this IP address in an existing local DHCP pool. The next time a local node renews its IP address, the SpeedTouch™...

  • Page 47: Speedtouch™ Routed Pppoe Configuration

    Routed PPPoE 5.1 SpeedTouch™ Routed PPPoE Configuration. Preparatory steps for To be able to configure the SpeedTouch™ successfully for the Routed PPPoE Packet using Routed PPPoE Service, the following information must be available: The VPI/VCI value of the Virtual Channel on which the PPPoE connection service is enabled.
  • Page 48 Chapter 5 Routed PPPoE Interface road map The figure below shows the interfaces which have to be configured for Routed PPPoE. LoopBack IP Forwarding IP Interface(s) iARP Multilink IPoE / PPPoE PPPoE RELAY IPoA IPoEoA Ethernet Interface(s) PPPoA VLAN Bridge EthoA ATM Interface(s) ATM Bundle...

  • Page 49: Routed Pppoe With Napt

    Chapter 5 Routed PPPoE 5.1.1 Routed PPPoE with NAPT Configuration procedure Proceed as follows to configure a Routed PPPoE entry: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the Ethernet interface. Create, configure and attach/connect the PPP interface. Check your configuration.
  • Page 50 =>ppp ifadd intf=RtPPPoE => The SpeedTouch™ creates an IP interface with the name RtPPPoE and will add the PPP tag behind the PPP interface. In this case it will save the PPP interface as RtPPPoE_ppp. Look at the interface list for verification.
  • Page 51 Chapter 5 Routed PPPoE Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you created. =>interface list Name Type State UL Interfaces ethif1 physical connected...

  • Page 52: Routed Pppoe With Dhcp Spoofing

    Chapter 5 Routed PPPoE 5.1.2 Routed PPPoE with DHCP Spoofing Configuration procedure Proceed as follows to configure a Routed PPPoE entry: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the Ethernet interface. Create, configure and attach/connect the DHCP server. Create, configure and attach/connect the PPP interface.
  • Page 53 Chapter 5 Routed PPPoE The Ethernet interface Proceed as follows to create, configure and attach/connect the Ethernet interface: Add a new Ethernet interface. =>eth ifadd intf=RtPPPoE_eth => Configure the new Ethernet interface with as destination the ATM interface created above. =>eth ifconfig intf=RtPPPoE_eth dest=RtPPPoE_atm =>...
  • Page 54 =>ppp ifadd intf=RtPPPoE => The SpeedTouch™ creates an IP interface with the name RtPPPoE and will add the PPP tag behind the PPP interface. In this case it will save the PPP interface as RtPPPoE_ppp. Look at the interface list for verification.
  • Page 55 Chapter 5 Routed PPPoE Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you created. =>interface list Name Type State UL Interfaces ethif1 physical connected...
  • Page 56 Chapter 5 Routed PPPoE E-DOC-CTC-20051017-0167 v1.0...

  • Page 57: Pppoe Relay

    Simultaneous PPPoE sessions from the LAN in parallel to PPPoE sessions from the SpeedTouch™, on the same Virtual Channel (VC). One or multiple PPPoE sessions from the SpeedTouch™ over the LAN to the network (for example: SpeedTouch™ connected via Ethernet over a cable modem to the network).
  • Page 58 Chapter 6 PPPoE Relay Concept The figure below shows the concept of the SpeedTouch™ PPPoE Relay: 1 or more embedded PPPoE client(s) 1 or more host 1 or more PPPoE Relay PPPoE client(s) PPPoE Server(s) To the PPPoE Relay, you are able to connect 1 or multiple:...

  • Page 59: Speedtouch™ Pppoe Relay Configuration

    PPP client on the SpeedTouch™ (red) a host PPP client on a PC on the LAN (blue) Configuration scenarios Two scenarios exist for configuring the SpeedTouch™ Relay. This section gives an example of the configuration procedure for both scenarios: General configuration scenario Configuration making use of ILMI (autopvc) E-DOC-CTC-20051017-0167 v1.0...

  • Page 60: General Configuration

    PPPoE Relay 6.1.1 General Configuration Preparatory steps To be able to configure the SpeedTouch™ successfully for the PPPoE Relay Service, the following information must be available: The VPI/VCI value of the Virtual Channel on which the connection is enabled. The encapsulation method (normally LLC/SNAP).
  • Page 61 (Eth, USB, WLAN, BT...) (Over DSL / ATM-F) Interfaces connected with red arrows correspond with the interfaces needed to configure an embedded PPP client on the SpeedTouch™ (red). Interfaces connected with blue arrows correspond with the interfaces needed to configure a host PPP client on a PC on the LAN (blue).
  • Page 62 Chapter 6 PPPoE Relay The ATM interface Proceed as follows to create an ATM phonebook and the ATM interface. Add a new ATM Phonebook entry with the correct VPI/VCI values. =>atm phonebook add name=Relay_ph addr=8.35 => If another phonebook entry with the same VPI/VCI already exists, you will have to delete this entry first.
  • Page 63 Add a new PPP interface. =>ppp ifadd intf=Relay => The SpeedTouch™ creates an IP interface with the name RtPPPoE and will add the ppp tag behind the ppp interface. In this case it will save the PPP interface as RtPPPoE_ppp.
  • Page 64 Chapter 6 PPPoE Relay Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you have created. =>interface list Name Type State UL Interfaces ethif1 physical connected...

  • Page 65: Configuration Making Use Of Ilmi (Autopvc)

    =>ppp relay ifadd intf=autoPPP => Activate the autoPVC. =>autopvc config mode=active type=pppoerelay => Execute save all at the prompt to save this configuration. =>saveall => For a complete description of all CLI commands, refer to the SpeedTouch™ CLI Reference Guide. E-DOC-CTC-20051017-0167 v1.0...
  • Page 66 Chapter 6 PPPoE Relay E-DOC-CTC-20051017-0167 v1.0...

  • Page 67: Routed Pppoa

    Allows multiple users to simultaneously share a single IP address if NAPT is enabled on the PPPoA interface or can hide the IP address if NAT is enabled. Allows the network to be shielded from the Internet via the SpeedTouch™ programmable firewall.
  • Page 68 The Service Provider assigns an IP address to the Routed PPPoA connection. When the Routed PPPoA session is started, the SpeedTouch™ will put this IP address in a existing local DHCP pool. The next time a local node renews its IP address, the SpeedTouch™...

  • Page 69: Speedtouch™ Routed Pppoa Configuration

    The Routed PPPoA interface’s IP configuration, either via single IP address, or via IPCP subnet masking. The latter configuration requires all local nodes to be configured for DHCP and the SpeedTouch™ DHCP server being active. The user name and password for the ISP account.
  • Page 70 Chapter 7 Routed PPPoA Configuration scenarios Two popular TCP/IP scenarios exist for Routed PPPoA implementations (see“ Routed PPPoA vs TCP/IP configuration” on page 60). This section gives an example of the configuration procedure for the two scenarios: Configuration Procedure for Routed PPPoA with NAPT Configuration Procedure for Routed PPPoA with DHCP spoofing E-DOC-CTC-20051017-0167 v1.0...

  • Page 71: Configuration Procedure For Routed Pppoa With Napt

    Chapter 7 Routed PPPoA 7.1.1 Configuration Procedure for Routed PPPoA with NAPT Configuration procedure Proceed as follows to configure Routed PPPoA: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the PPP interface. Control your configuration. The ATM interface Proceed as follows to create an ATM phonebook and the ATM interface.
  • Page 72 =>ppp ifadd intf=RtPPPoA => The SpeedTouch™ creates an IP interface with the name RtPPPoA and will add the PPP tag behind the PPP interface. In this case it will save the PPP interface as RtPPPoA_ppp. Look at the interface list for verification.
  • Page 73 Chapter 7 Routed PPPoA Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you created. =>interface list Name Type State UL Interfaces ethif1 physical connected...

  • Page 74: Configuration Procedure For Routed Pppoa With Dhcp Spoofing

    Chapter 7 Routed PPPoA 7.1.2 Configuration Procedure for Routed PPPoA with DHCP spoofing Configuration procedure Proceed as follows to configure Routed PPPoA: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the DHCP server. Create, configure and attach/connect the PPP interface. Control your configuration.
  • Page 75 =>ppp ifadd intf=RtPPPoA => The SpeedTouch™ creates an IP interface with the name RtPPPoA and will add the PPP tag behind the PPP interface. In this case it will save the PPP interface as RtPPPoA_ppp. Look at the interface list for verification.
  • Page 76 Chapter 7 Routed PPPoA Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you created. =>interface list Name Type State UL Interfaces ethif1 physical connected...

  • Page 77: Pptp-To-Pppoa Relaying

    SpeedTouch Features PPTP-to-PPPoA relaying has the following features: A Dial-In access method through a PPTP tunnel. Platform and Operating System independent towards the SpeedTouch™ Protocol stack The figure below shows the PPPoA-to-PPTP protocol stack. Public IP PPTP/L2P...
  • Page 78 Chapter 8 PPTP-to-PPPoA relaying Using relayed PPPoA To use relayed PPPoA, a third party PPTP client must be used on the computer. The PPTP client software will in most cases be provided by the Service Provider or might be embedded in your operating system. Via the PPTP client, you will be able to create PPTP session entities, representing all the connection parameters, just like creating Dial-Up icons with the Dial-Up Networking application of Microsoft.

  • Page 79: Configuration Procedure For Relayed Pppoa

    The relayed PPPoA Packet Service implies nothing more than creating a pvc and enabling the PPTP service. Preparatory Steps for To be able to configure the SpeedTouch™ successfully for the relayed PPPoA relayed PPPoA Packet Service, the VPI/VCI value of the Virtual Channel on which the PPPoA connection service is enabled, must be available.

  • Page 80: Using The Windows Xp Embedded Ppp Client

    Chapter 8 PPTP-to-PPPoA relaying 8.1.1 Using the Windows XP Embedded PPP Client Configuring a Dial-In Proceed as follows to create a new Dial-In connection on a Windows XP platform: connection On the Start menu, click Control Panel. In the Control Panel window, double-click Network Connections. In the Network Tasks menu, click Create a new connection.
  • Page 81 Chapter 8 PPTP-to-PPPoA relaying Specify a name for the connection. Click Next. Provide the IP address of the SpeedTouch™. By default this will be 192.168.1.254. Click Next. Subsequent screens will guide you through the wizard. Follow the instructions and enter the required information where needed.
  • Page 82 Chapter 8 PPTP-to-PPPoA relaying Starting a Dial-In Internet Proceed as follows to connect to the Internet on a Windows XP platform: session On the Start menu, point Connect To and click MyISP. The Connect MyISP window appears: Type your User name and Password if necessary. Click Connect.

  • Page 83: Routed Ipoa

    The Routed IPoA Packet Service relies on the AAL5/RFC2684/Routed IP Connection service Service to achieve end-to-end connectivity. For the SpeedTouch™ this boils down in using the IPoA (IP over ATM) Connection Service type, which implies the encapsulation of IP packets in AAL5/ATM. The SpeedTouch™ products are compliant with RFC2684 “Multiprotocol Encapsulation over ATM Adaptation Layer 5”...
  • Page 84 Service DSLAM Gateway Using Routed IPoA Using Routed IPoA is rather straightforward: Make sure that the SpeedTouch™ is switched on. Turn on the computer(s). Start a Web browser. You are on the Internet or have Corporate Intranet access. E-DOC-CTC-20051017-0167 v1.0...

  • Page 85: Speedtouch™ Routed Ip Over Atm Configuration

    9.1 SpeedTouch™ Routed IP over ATM Configuration Preparatory steps for To be able to configure the SpeedTouch™ successfully for the Routed IPoA Packet using Routed IPoA Service, the following information must be available: The VPI/VCI value of the Virtual Channel on which the IPoA connection service...

  • Page 86: Routed Ipoa With Napt

    Chapter 9 Routed IPoA 9.1.1 Routed IPoA with NAPT Configuration procedure Proceed as follows to configure a Routed IPoA entry: Create, configure and attach/connect the ATM interface. Create, configure and attach/connect the IP interface. Assign an IP address to the IP interface. Check your configuration.
  • Page 87 => Optionally, make this interface your default gateway. =>:ip rtadd dest=0.0.0.0/0 intf=RtIPoa_ip => Execute saveall at the prompt to save this configuration. =>saveall => For a complete description of all CLI commands, see the SpeedTouch™ CLI Reference Guide. E-DOC-CTC-20051017-0167 v1.0...
  • Page 88 Chapter 9 Routed IPoA Expected results To check whether you have configured your connection correctly, take a look at the interface list. Normally you should be able to follow the path you have created. =>interface list Name Type State UL Interfaces ethif1 physical connected...

  • Page 89: Routed Pppoi

    On a higher layer level, it is possible to configure the Stateful inspection firewall to allow a range or one single IP address to dial in to SpeedTouch™. Maintain a smart user policy by configuring users, using the multi-level SpeedTouch™...
  • Page 90 SpeedTouch™ doesn’t have a fixed IP address. Take into account the following configuration factors: Log in with an account that is able to change the SpeedTouch™ configuration using a WAN interface. Add the ISDN modem to the required service you want to use.

  • Page 91: How To Configure The Isdn Modem

    Chapter 10 Routed PPPoI 10.1 How to Configure the ISDN Modem General configuration Proceed as follows to configure the ISDN modem: procedure Add a new ISDN interface with name ISP1: =>:isdn ifadd intf=ISP1 Configure the new ISDN interface with the dial-in number of the ISP: =>:isdn ifconfig intf=ISP1 number=090934100 mlppp=disabled mode=dialout (mlppp)

  • Page 92: Isdn Backup

    Chapter 10 Routed PPPoI 10.2 ISDN Backup ISDN Backup The SpeedTouch™ has an ISDN interface that can be used to create an ISDN backup for the ADSL line. The process is shown in the diagram below: ADSL INTERNET ISDN ISDN When the ADSL line fails, the SpeedTouch™...

  • Page 93: How To Configure The Isdn Dial-In Connection

    Chapter 10 Routed PPPoI 10.2.1 How to Configure the ISDN Dial-In Connection Via the Web Interface Proceed as follows to configure the ISDN dial-in connection via the Web interface: Go to Expert mode Click Connections Click Routed PPoI Result: on the page that appears, you see a predefined connection called ISDN backup.
  • Page 94 The other values are automatically retrieved when the PPP connection is established You cannot enable Callback via the Web interface. For this, you must use CLI. If you do not enable it, the SpeedTouch™ will establish the ISDN connection over which the PPP connection is made. Via CLI...
  • Page 95 ISDN B link in the ppp connection is dropped. mode dialout SpeedTouch™is set for dialout. This value is mandatory. callback enabled or disabled Enable or disable callback. Note that the dial-in end must also be set for callback if you enable it.

  • Page 96: How To Configure The Ppp Connection

    Chapter 10 Routed PPPoI 10.2.2 How to Configure the PPP Connection How to Configure the PPP If you used the Web interface to configure the Dial-In connection, you do not need Connection Via the Web any additional configuration. Interface How to Configure the PPP Use the following command sequence to configure the PPP connection via CLI: Connection Via CLI [ppp]=>ifconfig...
  • Page 97 Chapter 10 Routed PPPoI CLI Parameters: The table below provides a description of the relevant parameters. Do not alter the default value of the parameters not shown in this table: Parameter Value Description intf text string name of the PPP interface dest text string name of the ISDN interface on which...
  • Page 98 Chapter 10 Routed PPPoI Parameter Value Description demanddial enabled or disabled Enable or disable dial-on-demand (DOD). This means that the system will engage the ISDN backup if the DSL line fails doddelay numeric (in s) Delay during which DOD is Default: 120 disengaged;...

  • Page 99: Isdn Callback

    Chapter 10 Routed PPPoI 10.3 ISDN Callback ISDN Backup The SpeedTouch™ has an ISDN interface that can be used to create an ISDN backup for the ADSL line. The process is shown in the diagram below: ADSL INTERNET ISDN ISDN When the ADSL line fails, the SpeedTouch™...

  • Page 100: How To Configure The Isdn Dial-In Connection

    Chapter 10 Routed PPPoI 10.3.1 How to Configure the ISDN Dial-In Connection Via the Web Interface Proceed as follows to configure the ISDN dial-in connection via the Web interface: Go to Expert mode Click Connections Click Routed PPoI Result: on the page that appears, you see a predefined connection called ISDN backup.
  • Page 101 The other values are automatically retrieved when the PPP connection is established. You cannot enable Callback via the Web interface. For this, you must use CLI. If you do not enable it, the SpeedTouch™ will establish the ISDN connection over which the PPP connection is made. Via CLI...
  • Page 102 ISDN B link in the ppp connection is dropped. mode dialout SpeedTouch™is set for dialout. This value is mandatory. callback enabled or disabled Enable or disable callback. Note that the called party must also be set to support callback.

  • Page 103: How To Configure The Ppp Connection

    Chapter 10 Routed PPPoI 10.3.2 How to Configure the PPP Connection How to Configure the PPP If you used the Web interface to configure the Dial-In connection, you do not need Connection Via the Web any additional configuration. Interface How to Configure the PPP Use the following command sequence to configure the PPP connection via CLI: Connection Via CLI [ppp]=>ifconfig...
  • Page 104 Chapter 10 Routed PPPoI CLI Parameters: The table below provides a description of the relevant parameters. Do not alter the default value of the parameters not shown in this table: Parameter Value Description intf text string name of the PPP interface dest text string name of the ISDN interface on which...
  • Page 105 Chapter 10 Routed PPPoI Parameter Value Description demanddial enabled or disabled Enable or disable dial-on-demand (DoD). This means that the system will engage the ISDN backup if the DSL line fails doddelay numeric (in s) Delay during which DoD is Default: 120 disengaged;...

  • Page 106: Isdn Remote Capi

    10.4 ISDN Remote CAPI About Remote CAPI Using RemoteCAPI, the ISDN interface of the SpeedTouch™ can be used by PC applications that typically need an ISDN board integrated into the PC. The Remote CAPI function only works with PC applications using the Rcapi.dll driver e.g.
  • Page 107 Proceed as follows to configure this client: Use the Control Panel to start the Remote CAP20 Client application: In the IP box, enter the IP address of the SpeedTouch™ (192.168.1.254). In the UDP Port box, enter the UDP port if necessary (default is 6789).
  • Page 108 Chapter 10 Routed PPPoI E-DOC-CTC-20051017-0167 v1.0...
