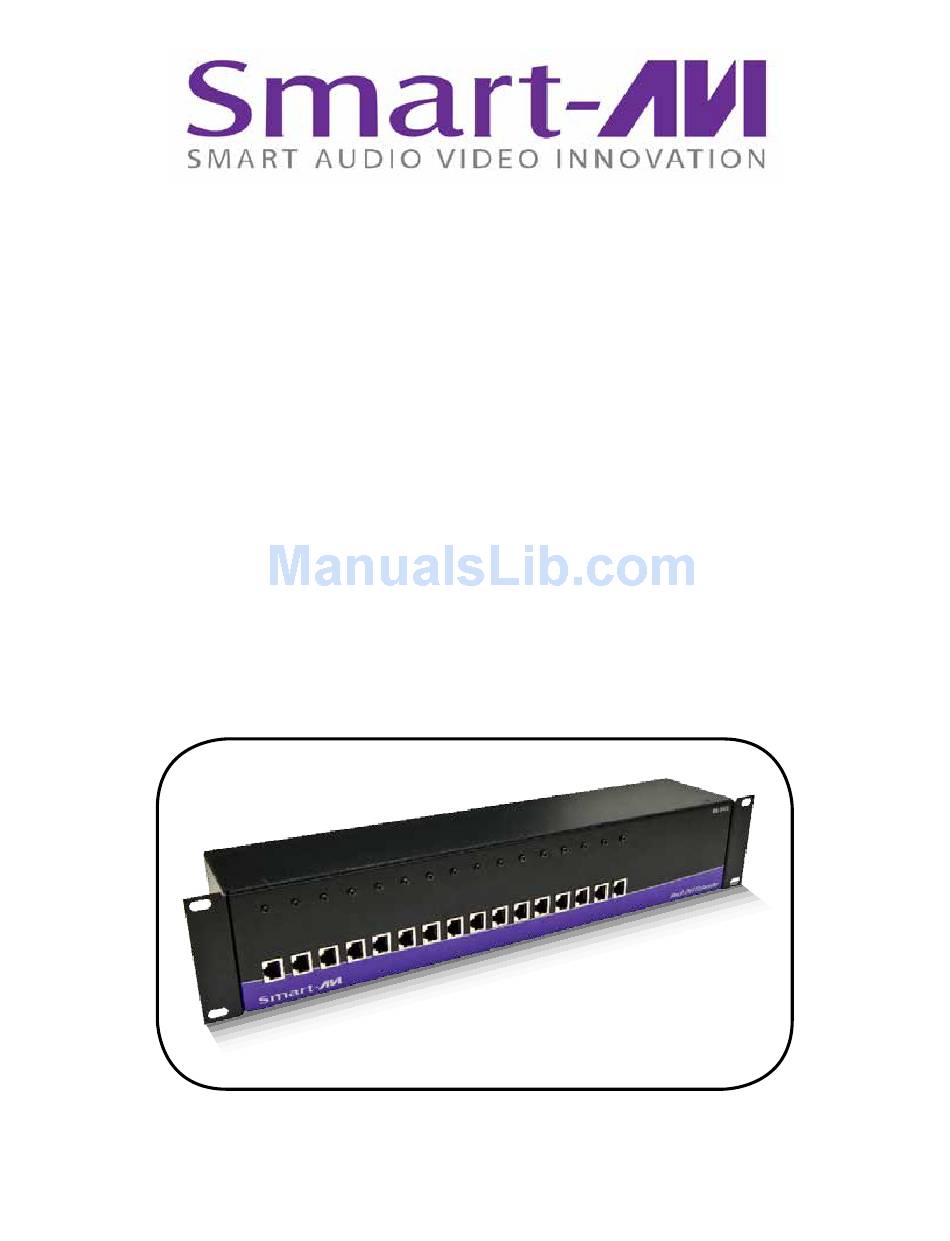

  • Page 1 Installation Manual RK-D VX200 16-Port DVI-D Extender up to 225 feet over STP Cable www.smartavi.com...
  • Page 2 Introduction The RK-DVX200 is the ideal solution for extending DVI-D signals to remote locations up to 225 feet away. It is the ideal way to extend up to 16 workstation computers from one location to another location or various locations. It is fully compatible with Mac, PC and Linux standards. Up to 16 displays can be extended easily from a rack without the complication or expense of multiple extenders.
  • Page 3: Technical Specifications

    What’s in the Box? PART NO. DESCRIPTION RK-DVX-TX4S DVI RACK 4-port Transmitter over STP CAT6 RK-DVX-TX8S DVI RACK 8-port Transmitter over STP CAT6 RK-DVX-TX16S DVI RACK 16-port Transmitter over STP CAT6 RK-DVX-RX4S DVI RACK 4-port Receiver over STP CAT6 RK-DVX-RX8S DVI RACK 8-port Receiver over STP CAT6 RK-DVX-RX16S DVI RACK 16-port Receiver over STP CAT6...
  • Page 4 Connect up to 16 DVI displays to the DVI-D ports on the front of the DVX200 receivers. DVX-200 Receiver Connect the power to the RK-DVX200 transmitter and the DVX-200 receivers. Power on the computers and displays. www.smartavi.com...
  • Page 5 Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVX200 receiver. DVX-200 Transmitter Connect the power to the RK-DVX200 receiver and the DVX-200 transmitters. Power on the computers and displays. www.smartavi.com...
  • Page 6 Up to 225 ft over STP RK-DVX200 Power off all devices. Connect DVI-D sources (computers) to the DVI-D ports of the RK-DVX200 transmitter. Connect the RK-DVX200 transmitter to the RK-DVX200 receiver with one STP (Sheilded Twisted Pair) cable per channel (up to 16).
  • Page 7: Supported Resolutions

    PIN 17 PIN 24 RK-DVX200-TX Front . t r C 1 6 esolutions RK-DVX200-TX Rear Suppo te the inte nal I configu atio n Supported Resolutions Resolution Refresh Rate Technical Specifications Input/Output Signal Technical Specifications PIN 1 PIN 8 Input/Output Signal...
  • Page 8 © Copyright 2010 Smart-AVI, All Rights Reserved NOTICE The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.
