Okina OK-PTZ-KB250X User Manual

OKINA
OKINA
OK-PTZ-KB250X
3-Axis Compact
Keyboard Controller
User's Manual
Warning
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS
THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
This symbol indicates that
dangerous voltage constituting a
risk of electric shock is present
within this unit.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, This symbol indicates that there
DO NOT REMOVE COVER (
are important operating and
OR BACK). NO USER
SERVICEABLE PARTS
maintenance instructions in the
INSIDE. REFER SERVICING
TO QUALIFIED SERVICE literature accompanying this unit.
PERSONNEL
FCC COMPLIANCE STATEMENT
FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE
LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE
LIMITS ARE DESIGHEND TO PROVIDE REASONABLE PROTECTION AGAINST HAMRFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENGERGY AND IF NOT
INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A
RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER
WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS'S AUTHORITY TO OPERATE THE
EQUIPMENT.
CE COMPLIANCE STATEMENT
WARNING: THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS PRODUCT MAY
CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE
MEASURES.
This Symbol indicates that this product should not be treated as household
waste. When discarding this product, it must be sent to appropriate facilities for
recycling or recovery. By separating this product from other household waste,
you are helping to reduce the volume of waste incinerators and the natural
resource will be conserved.
Before Starting
- Refer all work related to the installaion of this product to quali ed
service personnel or system installers.
- Do not attemp to disassemble the keyboard To prevent electric shock,
do not remove screws or cover. There are no user-serviceable parts
inside. Contact qualified service personnel for maintenance
- Handle the keyboard with care. Do not strike or shake, as this may
damage the keyboard. It should be protected against extreme pressure,
vibration and humidity during transportation, storage and operation.
Damages caused by improper transportation avoid the warranty.
- Do not operate the apliance beyond its speci ed temperature,
humidity or power source ratings. Do not use the keyboard in an
extreme environment where high temperature or high humidity exists.
Use it within -5°C to +40°C(23°F to 140°F) and a humidity below 90%.
The input power source is 12V DC, and requires at least 500mA.
Make sure that
- Read this user's manual carefully before operation.
local electric safty standards are followed when using or installing the
keyboard.
- Do not install this Product in a ammable and explosive
environment.
-
Before installation and mentainence, make sure that the keyboard is
disconnected from the power source.
- Do not install or operate the keyboard near any high-voltage devices
or high-voltage cable. The safety distance should remain at least 50 m.
- This product should be operated indoor only.
Technical speci cations are subjects to change without prior notice. This
Manual may contain printing or clerical errors. All trademarks mentioned
belong to their respective owners.

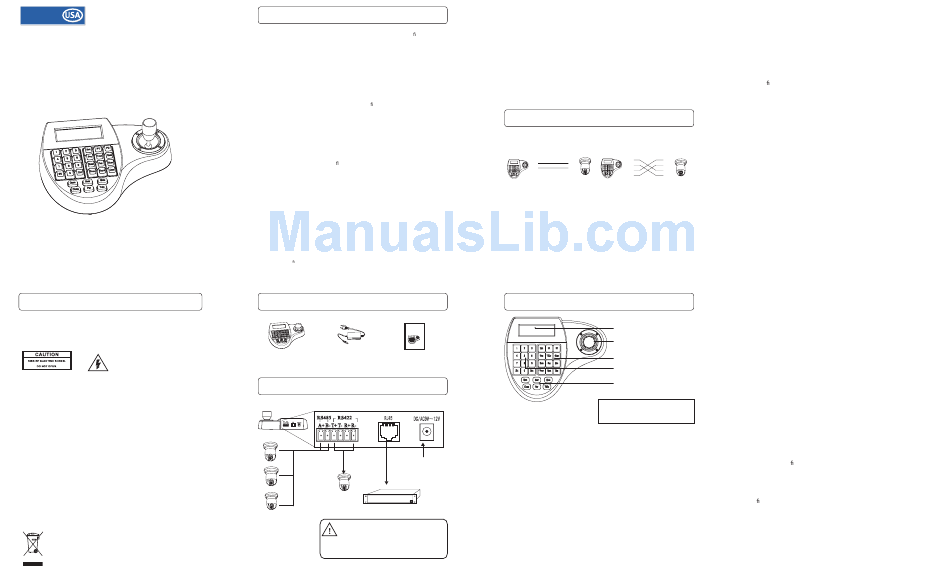

Unpacking
Programmable
Keyboard Controller
USER'S MANUAL
AC-DC Power
1x User Manual
Supply (optional)
1 X Controller
Connection
RS-422 Power
Interface Input
Matrix
Interface
Matrix
DO NOT CONNECT THE RJ-45 PORT
RS-485
TO ANY COMPUTER NETWORK
up to 32 Devices
INTERFACE, as this may cause serious
damage to the keyboard.
RS-485 (A+/ B-)
For connection to PTZ, Speed-Domes or other device which support
telemetric controling with RS-485 interface. The max. Distance can be up to
1000 meter ( depends on cable and environmental condition).
RS-422 (T+/T-/R+/R-)
Rs422 Inteface for telemetric control, up to 1200 meters.
RJ-45
Control interface forr matrix device(e.g. Pelco Cm6700,CM6800).
DC Power Input
Power supply for the keyboard, Voltage range is 9V to 12V in DC or AC
without polarity( auto-sensing). When connecedt to the Matrix, the keyboard
can be powered thourgh the RJ-45 Interface.
Check list
Please make sure that the following chapters are set correctly:
Cable Connection: Make sure that the RS485/422 cable are connected
correctly to the camera devices.
TX(+) TX(+)
A(+) A(+)
TX(-) TX(-)
B(+) B(+)
RX(+) RX(+)
RX(-) RX(-)
R S 4 - 8 5 R S 4 - 2 2
The keyboard and the camera devices must have the same
Baud-Rate:
baud-rate setting, in order to establish the data exchange. Available settings
are 2400, 4800 and 9600 Bps. For settings on the camera device, please
refer to camera's manual for further details.
Protocol: Make sure that the keyboard and camera devices are set with the
same protocol. Currently Pelco and B01/B02 are supported by the
keyboard.please refer to camera's manual for details.
Camera ID : Make sure that every connected PTZ device is assigned with
an unique ID.
For settings of your keyboard. Please refer to later chapters for details
Operation
LCD
Display
3 Axis Joystick
Function Keys
Digit Keys
Camera
Function keys
C a m I D : 0 0 1 M o n I D : 0 0 1
B01
P r o t o c o l :
I nitial Screen B a u d r a t e : 9 6 0 0 b p s
Cam ID: Current camera ID
Mon ID: Current monitor ID, indicates the ouput setting on matrix.
Protocol: Telemetric protocol setting.
Baud-Rate setting
Baudrate:
The LCD back-light will be turned off automatically after 15 seconds of
idle time.
PT Operation with Joystick
Move the joystick up, down, left and right to perform pan or tilt
operation. Depends on the angle of stick, the keyboard changes the
speed of PT movement. On performing the PT action, the LCD will
show the current movement with arrow signs
Zoom operation
The keyboard provides camera function keys with following function:
Wide / Tele: Zoom-out and zoom-in
Far / Near: Manual focus control
Open / Close: Manual Iris control
PTZ related functions
With the keyboard, you can activate or setup the integrated function of
connected camera device. For the supported functions, please refer to
camera's manual for further details.
Change currently selected camera
Press [n] + [CAM] : n.. ID of the camera
Set / de ne a Preset position
Move the PTZ to the desired position and press
[SET]+ [n] + [PRESET]
To store the current position as a preset n
Recall / activate Preset position
To recall the memorized preset position, press
[n] + [PRESET]
N.... The number of preset to be recalled.
Set Tour function (B01)
You need to enter the keyboard's menu to setup the tour. Pleare
refer to the later chapter for setup.
Recall / activate Tour
To start the tour, press
[n] + [TOUR]
N.. Number of the stored tour
Setup 2-Points scan
Scan between 2 pre-defined points. To define the points, move to
the left end and press [SET]+[1] + [SCAN], and move to the right
end and press [SET] +[2]+ [SCAN] to store the position.
For changing the scan speed, you need to enter the PTZ's OSD
menu. Please refer to the users manual for details.
Start 2-Points Scan
Press [1]+[SCAN] to start the scan procedure.
Start / Stop Pattern recording
The pattern function records user's PTZ movement, and can be
recalled when need. Depends on the camera device, the
recording time and supported number of pattern tracks might
differ. To start the recording procedure, press
[SET] + [n] + [PATTERN]. n....the number of pattern track.
To stop the pattern recording, press
[SET] + [0] + [PATTERN]
Activate recorded Pattern
To activate the recorded pattern, press
[N] + [PATTERN]
Matrix related functions
Switching the input channel.
Press [PREV] : switch to previous channel
Press [NEXT] : switch to next channel
Auto switching sequence
Press [PREV] for 2 sec.: Sequence in rev. order
Press [NEXT] for 2 sec.: Sequence to next channel.
Press [STOP] to stop the sequencel.
Open matrix con guration menu
Press [SHIFT] + [SET] to enter the menu and show on main
monitor. For the menu details, please refer to the users manual of
the matrix.
Con rm changes
Press [ENTER] after every changes in the menu.
Change target monitor
Press [n] + [MON] to change the selected device in the matrix.
