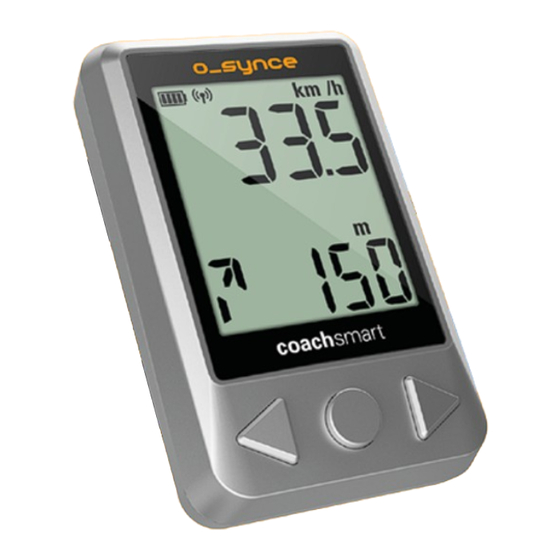

O_synce coachsmart bike computer

Advertisement

O-SYNCE MOBILE MANUAL
WITH COACHSMART
V.1.3
RIDE TIME
1:25:12
81.2 km
1820 kCal
POWER [W]
HEART RATE [BPM]
213
78
185
320
146
186
Cadence [RPM]
SPEED [km/h]
69
33.5
81
96
32,2
56.7
o-synce mobile | manual
1 | 35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the coachsmart and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for o_synce coachsmart

  • Page 1 O-SYNCE MOBILE MANUAL WITH COACHSMART V.1.3 RIDE TIME 1:25:12 81.2 km 1820 kCal POWER [W] HEART RATE [BPM] Cadence [RPM] SPEED [km/h] 33.5 32,2 56.7 o-synce mobile | manual 1 | 35...
  • Page 2: Table Of Contents

    CONTENT COACHSMART O-SYNCE MOBILE OTHER USER CASES Introduction Install the app Use CoachSmart with other devices Display overview Sign up and log in Use CoachSmart with Music app Buttons and functions Use the app CoachSmart stand-alone setup Recording MULTIREMOTE Use with smartphone...
  • Page 3: Coachsmart

    COACHSMART o-snyce mobile | manual 3 | 35...
  • Page 4: Introduction

    1.1 INTRODUCTION You can use your CoachSmart in many ways: BRIDGE MODE send ANT+ sensor data to other Bluetooth Smart devices What is ANT+? What is Bluetooth Smart? Heart Rate Sensor Cadence Sensor MIRROR MODE sync and mirror all data...
  • Page 5: Display Overview

    1.2 DISPLAY OVERVIEW Battery Level Bluetooth (searching / active) Speed (km/h or mi/h) Average Speed Current speed is: Heart Rate Zone above average (can be individualized with Virtualtraining.eu) on average below average Sensor and App data field Riding Time Heart Rate Cadence Power Distance...
  • Page 6: Buttons And Functions

    1.3 BUTTONS AND FUNCTIONS Reset Button (back) Battery case (back) Press to stop a LAP Lap time is shown for 3 sec. Typ: PAUSE record: Press and hold 2 sec. CR 2032 display shows ‚PAUSE‘ Resume by pressing again for 2 sec. Previous data field Next data field Reset all values: hold 3 sec...
  • Page 7: Coachsmart Stand-Alone Setup

    1.4 COACHSMART STAND-ALONE SETUP The CoachSmart can be connected with ANT+ sensors without the use of a smartphone. CR 2032 30 sec. Battery 1. Activate your ANT+ sensors. Please 2. Insert the battery or 3. The CoachSmart will search and pair all available (activated)
  • Page 8: Use With Smartphone

    1.5 USE WITH SMARTPHONE sync your smart phone with CoachSmart (smart screen) Data can also be viewed on a paired CoachSmart After starting a tour the screen of the phone can be switched off for energy saving and stored safely in a pocket or back pack.
  • Page 9: Turn Off Coachsmart

    1.6 TURN OFF COACHSMART The CoachSmart switches off automatically after 3 minutes by showing SLEEP for 2 seconds. In smartphone mode: If the App is off or connection to the smartphone has been lost and the paired ANT+ sensors are...
  • Page 10 O-SYNCE MOBILE APP o-snyce mobile | manual 10 | 35...
  • Page 11: Install The App

    81.2 km 1820 kCal POWER [W] HEART RATE [BPM] Cadence [RPM] SPEED [km/h] 33.5 32,2 56.7 2 Get your CoachSmart at www.o-synce.com or ask your dealer 3 Get your ANT+/Bluetooth Smart Sensors ready! o-synce mobile | manual 11 | 35...
  • Page 12: Sign Up And Log In

    2.2 SIGN UP AND LOG IN get started SIGN UP for free if you want to LOG IN if you already have - share your performance with friends a virtual-training-account - analyse your training on virtualtraining.eu You can sign up with your Facebook, Twitter or MapMyRide account, or create an own account with your personal email.
  • Page 13: Use The App

    2.3 USE THE APP Select your profile Profile Avatar Select your activity (You can choose the activity you are starting with in any of your profiles and it will automatically be used on the STRAVA site) Total Height (all recorded data) Total Distance (all recorded data) START the record Open record...
  • Page 14: Recording

    2.4 RECORDING The screen displays all information from paired and ac- tive sensors and/or GPS data from the smartphone. GPS signal on/off Icons show the status of sensors Signal Strenght Heartbeat Speed Cadence Power inactive active Press to start press to STOP or a new LAP PAUSE the record o-synce mobile | manual...
  • Page 15: Settings

    2.5 SETTINGS go to: settings LOG IN/LOG OUT Set your personal data (Only available when logged in) Set up your sensors and bike profile Social sharing settings (Only available when logged in) More information and help Enable to only use WiFi to con- nect to cloud services.
  • Page 16: User Settings

    2.6 USER SETTINGS go to: settings - user settings Personalize your user details so the online analysis is more accurate (if logged into virtualtraining.com) Press ‚Apply‘ to save your changes. o-synce mobile | manual 16 | 35...
  • Page 17 2.7 PROFILES | CREATE YOUR BIKE PROFILE go to: settings - profiles - select your profile/create new profile select a profile or 1 Enter your bikes‘ name, weight press and wheel circumference (for speed sensors) 2 Press the avatar placeholder and chose an image 3 Connect Bluetooth Smart sensors not paired...
  • Page 18: Pair The Coachsmart

    2.8 PAIR THE COACHSMART go to: settings - profiles - select your profile - smartscreen 1 Enable the smart screen function Once connected and paired the status is shown CoachSmart battery level If CoachSmart is connected ‚APP‘ will be displayed for 5 seconds, then the phone‘s...
  • Page 19 2.9 PAIR ANT+ SENSORS The connected CoachSmart must be active to pair ANT+ sensors! 1 Make sure the CoachSmart is connected! 2 Press to pair ANT+ Sensors. ANT+ Sensor ID No sensor paired 1234 Sensor paired, inactive 1234 Sensor paired, active...
  • Page 20: Pair Bluetooth Smart Sensors

    2.10 PAIR BLUETOOTH SMART SENSORS go to: settings - profiles - your profile 1 Activate the sensor and put it in pairing mode (check the sensor’s manual if you need help) 2 Enable the sensor in the app. The phone is now searching for the sensor.
  • Page 21: Cloud Services

    2.11 CLOUD SERVICES go to: settings - cloud services You can use the cloud service by saving your re- cording in your VirtualTraining account. You can share your training and recorded data with most of the common sport and social network ser- vices automatically after finishing your exercise.
  • Page 22: Activities Screen

    2.12 ACTIVITIES SCREEN go to: activities List of all your activities. If you are logged into your virtual training account new select an activity and display activities are automatically all details of your workout. uploaded and shared with your selected social/sport networks.
  • Page 23: Use Coachsmart With Other Apps

    2.13 USE COACHSMART WITH OTHER APPS You can use your CoachSmart with any sport or navigation App that has the capability of connecting with a bluetooth smart sport profile. Example: Wahoo App The CoachSmart will be seen in the App setting as a multi-service bluetooth smart sensor .
  • Page 24: Other User Cases

    OTHER USE CASES o-snyce mobile | manual 24 | 35...
  • Page 25: Use Coachsmart With Other Devices

    3.1 USE COACHSMART WITH OTHER DEVICES The CoachSmart can bridge the data of its paired ANT+ sensor to any external devices like a sport watch. The other device must have the capability of connecting with bluetooth smart sport sensors. E.g. Polar V800...
  • Page 26: Use Coachsmart With Music App

    CoachSmart. If additionally a Multiremote is connected with CoachSmart via ANT+, it’s buttons act in the same way. Volume down: press and hold 3 sec Volume up: press and hold 3 sec...
  • Page 27 MULTIREMOTE o-snyce mobile | manual 27 | 35...
  • Page 28: Use The Multiremote

    4.1 USE THE O-SYNCE MULTIREMOTE The Multiremote is able to control the CoachSmart or the app OPTION 1 You can use the Multiremote via Bluetooth Smart with your Smartphone. If used with the Smartphone, the remote functions are: - Center:...
  • Page 29: Pair Multiremote With A Smartphone

    4.2 PAIR THE MULTIREMOTE WITH A SMARTPHONE go to: settings - profiles - bike profile Activate the pairing. NOTE: The MultiRemote has to be in pairing mode - please press and hold the upper and lower key together for more than 3 seconds until the LED is blinking red.
  • Page 30: Pair Multiremote With The Coachsmart

    4.3 PAIR THE MULTIREMOTE WITH THE COACHSMART go to: settings - profiles - bike profile - Smart screen Select ANT+ PAIR Activate the Multiremote’s pairing mode: hold down both arrow but- tons simultaneously for 2 seconds. When the remote is paired success- fully the LED will flash green.
  • Page 31 o-snyce mobile | manual 31 | 35...
  • Page 32: Bluetooth | Smartphone Settings

    5.1 BLUETOOTH | SMARTPHONE SETTINGS go to: settings - bluetooth You have to enable Bluetooth, so o-synce Mobile can connect to your smart sensors and your smart screen. Activate Bluetooth! o-synce mobile | manual 32 | 35...
  • Page 33: Gps | Smartphone Settings

    5.2 GPS | SMARTPHONE SETTINGS You must allow the app to use your cur- rent location, so speed and distances can be calculated. You can verify the setting in your iPhone under ‚settings‘ - ‚privacy‘ - ‚location services‘. iPhone settings o-synce mobile | manual 33 | 35...
  • Page 34 5.3 BLUETOOTH Bluetooth Smart (4.0) is a wireless personal area technology that is mainly being used in healthcare, fitness and home entertainment industries. It consumes fewer energy than classic bluetooth while ensuring a similar communication range. With Bluetooth Smart you can easily connect your Smartphone to other devices and monitor/control these live.
  • Page 35 5.4 ANT+ ANT+ is the wireless technology that allows your monitoring devices to talk to each other. Leading brands design ANT+ into top products to ensure that you get the data you want - when and where you want it. Fundamentally, ANT+ gives you the simplest, most expandable and most reliable user expe- rience possible.
