Summary of Contents for Acces ATB422

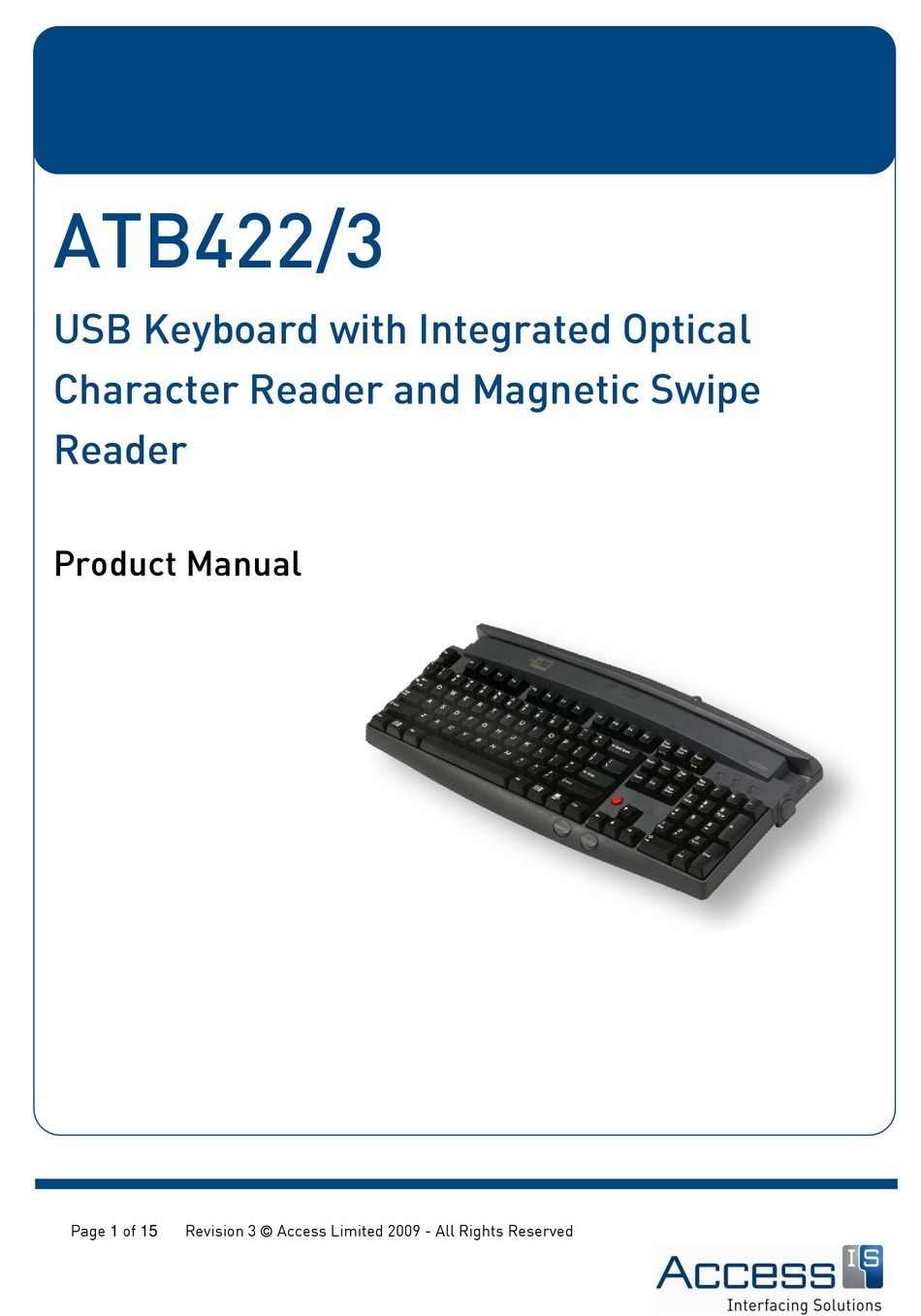

- Page 1 ATB422/3 USB Keyboard with Integrated Optical Character Reader and Magnetic Swipe Reader Product Manual Revision 2 Revision 3 Access Limited 2009 - All Rights Reserved Page 1 of 15...
-
Page 2: About This Manual
Warnings This manual contains important information regarding the installation and operation of the ATB422/423 keyboard. For safe and reliable operation of the keyboard all users must ensure that they are familiar with and fully understand all instructions contained herein. Warranty Access Ltd warrants that this product shall be free from defects in workmanship and materials for a period of one year from the date of original purchase. - Page 3 Radio Frequency Energy European EMC directive 89/336/EEC FCC Compliance Statement (United States) This equipment has been tested and found to This equipment generates, uses and can radiate comply with the limits for a class A computing radio frequency energy and if not installed and device in accordance with the specifications in the used properly, that is, in strict accordance with the manufacturer‟s instructions, may cause...
-
Page 4: Table Of Contents
Contents Overview ..........................5 Integrated Device Specifications ..................7 Keyboard ............................7 Integrated Magnetic Swipe Reader (MSR) ..................7 Auxiliary RS232 Interface Port ....................... 8 Integrated „Dual Illumination‟ OCR Reader ..................8 Bi-colour LED ..........................9 Internal Sounder ........................... 10 Integrated Mouse Pointer (Option) .................... -
Page 5: Overview
RS-232 Port Optional Trackpoint Mouse The Access ATB422/423 keyboard is a compact standard Windows layout keyboard with integrated electronics to capture data from a variety of sources. A durable steel document guide for the optional OCR Reader and 4-track MSR provides exceptional wear characteristics and long life. - Page 6 Access LSR120 2D barcode imager for Airline e-Tickets). Connections The ATB422/423 is connected to its host computer via a cable fitted with a USB connector. The keyboard is powered from a powered USB port and does not require an external power supply.
-
Page 7: Integrated Device Specifications
Integrated Device Specifications Keyboard Data Source Manual keyboard entry Construction Matrix assembly supported by a robust steel chassis plate which provides protection from dust and staples. Individual key switches Cherry MX Gold cross-point key switch Rated life 50 million operations Connection USB 2.0 5 Volts <250mA (Excludes power for bar code scanner and... -
Page 8: Auxiliary Rs232 Interface Port
Read response time 0.3 seconds Read direction Bi-directional Construction Integrated into keyboard housing MTBF 100,000 operating hours Read head life 500,000 passes Diagnostics Internal self test upon power up Red and Green LED for data read and audible sounder. Pin NO Signal Auxiliary RS232 Interface Port Free RXD input... -
Page 9: Bi-Colour Led
2 lines of 36 (size II) & 3 lines of 30 (size I) characters Stock control number and document number of ATB 2‟s IATA 2 of 5 barcode of TAT‟s Data Standards Conforming to ICAO Document 9303 IATA Recommended Practice 1720a Data Output Standard ASCII Media thickness... -
Page 10: Internal Sounder
There are also three LED keyboard status indicators; Num Lock, Caps Lock and Scroll Lock which are located above the Numeric Pad and are designated by International symbols. Internal Sounder The sounder emits a single Beep when valid MSR, OCR or Bar Code data is transmitted. The sounder emits three short beeps when OCR data includes one or more “*”... -
Page 11: Installation
3. Installation Connecting the keyboard The ATB422/423 keyboard has a single cable, terminated with a “Y” adapter comprising a USB plug and an inline coaxial power connector. The USB plug may be connected to any available powered USB port on the host PC. - Page 12 You will then receive the following warning. Click RUN: A welcome screen will now appear. Click NEXT: You will be prompted to agree to the licence terms and conditions. Check AGREE and click NEXT: The installation progress will be shown with a bargraph. You may receive the following warning.
- Page 13 Click START followed by CONTROL PANEL. The Access Serial Ports driver will now be visible. It will probably be at the top left hand side of the page, as the icons are usually displayed in alphabetical order. Double click the Access Serial Port driver. You should now see this screen: The COM Port pull down shows the virtual serial port that has been assigned to the OCR, MSR and Barcode data.
-
Page 14: Operation
ATB422/423 will result in a bad read message of 30 “*” characters, a Red light indication from the Bi-Colour LED and 3 beeps from the sounder. - Page 15 Ensure swipe action continues to the end of the slot before lifting the document. Revision 3 Access Limited 2009 - All Rights Reserved Page 15 of 15...
