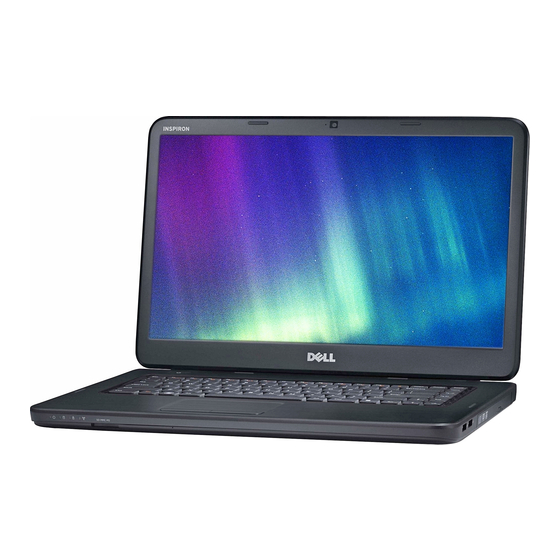

Dell inspiron n5050 notebook
Hide thumbs Also See for Inspiron N5050:
1
2
3
4

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Keyboard Removal Guide
Dell Inspiron N5050
Removal may vary slightly from model to model
laptopking.com
file:///C|/Websites/ServiceManualTemplete.htm[7/23/2012 3:49:47 PM]

Advertisement

loading

Related Manuals for Dell Inspiron N5050

Summary of Contents for Dell Inspiron N5050

  • Page 1 Keyboard Removal Guide Dell Inspiron N5050 Removal may vary slightly from model to model laptopking.com file:///C|/Websites/ServiceManualTemplete.htm[7/23/2012 3:49:47 PM]...
  • Page 2 First, remove the battery. file:///C|/Websites/ServiceManualTemplete.htm[7/23/2012 3:49:47 PM]...
  • Page 3 Now, open up the laptop and using a small screwdriver, push back the 4 sliding tabs as shown while lifting up on the keyboard. These tabs are above the 'ESC', 'F5', 'F11', and 'Del' keys. file:///C|/Websites/ServiceManualTemplete.htm[7/23/2012 3:49:47 PM]...
  • Page 4 Set the keyboard on its face to access the keyboard cable lockdown connector. This final step is unlocking the keyboard cable from the motherboard. To do this, simply pull upward on the lockdown clip. It is a swivel clip that opens up approx. 90 degrees. Once opened the keyboard cable will slide out. Your done! Reverse procedure to install your new keyboard.
