Model #: VIZIO VX37L HDTV10A
V, Inc
320A Kalmus Drive Costa Mesa, CA 92626
TEL : +714-668-0588 FAX :+714-668-9099
Top Confidential

Advertisement

Table of Contents
loading

Related Manuals for Vizio VX37L HDTV10A

Summary of Contents for Vizio VX37L HDTV10A

  • Page 1: Service Manual

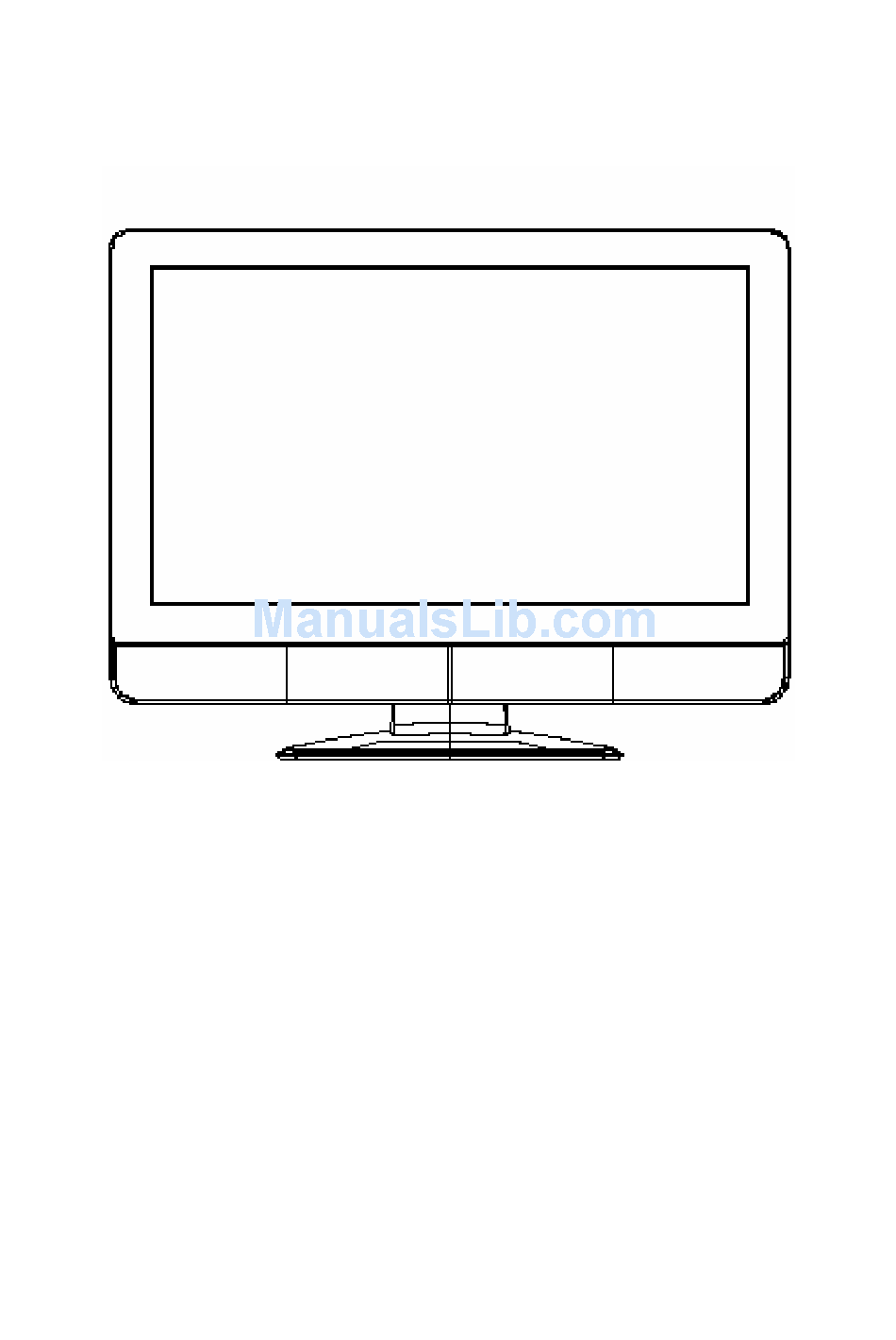

    Service Manual Model #: VIZIO VX37L HDTV10A V, Inc 320A Kalmus Drive Costa Mesa, CA 92626 TEL : +714-668-0588 FAX :+714-668-9099 Top Confidential...

  • Page 2: Table Of Contents

    8. Waveforms 9. Trouble Shooting 10. Block Diagram 10-1 11. Spare parts list 11-1 12. Complete Parts List 12-1 Appendix 1. Main Board Circuit Diagram 2. Main Board PCB Layout 3. Assembly Explosion Drawing Block Diagram VIZIO VX37L HDTV10A Service Manual...
  • Page 3 Use a power cable that is properly grounded. Always use the AC cords as follows – USA (UL); Canada (CSA); Germany (VDE); Switzerland (SEV); Britain (BASEC/BS); Japan (Electric Appliance Control Act); or an AC cord that meets the local safety standards. VIZIO VX37L HDTV10A Service Manual...

  • Page 4: Features

    Chapter 1 Features 1. Built in TV channel selector for TV viewing. 2. Simulatnueous display of PC and TV images. 3. Connectable to PC’s analog RGB port. 4. Built in S-video, HDTV, composite video, HDMI and TV out. 5. Built in auto adjust function for automatic adjument of screen display. 6.

  • Page 5: Specifications

    Chapter 2 Specification 1. TFT-LCD CHARACTERISTICS Model Name: LPL LC370WX1-SLA1 (Vendor: LG. Philips LCD Co., Ltd) Size: 3702inch Display Size: 37.02 inches (940.3mm) diagonal Outline Dimension: 877.0 mm (H) x 516.8 mm (V) x 55.5 mm (D) (Typ.) Pixel Pitch: 0.200mm x 0.600mm x RGB Pixel Format: 1366 horiz.
  • Page 6 6. ENVIRONMENT Operating Temperature: 5c~35c (Ambient) Operating Humidity: Ta= 35 °C, 90%RH (Non-condensing) Operating Altitude: 0 - 14,000 feet (4267.2m)(Non-Operating) 7. DIMENSIONS (Physical dimension) Width: 800 mm. +/- 20 mm Depth: 1060 mm +/- 20 mm Height: 360 mm +/- 20 mm 8.
  • Page 7 2. HANDLING PRECAUTIONS FOR PROTECTION (1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

  • Page 8: On Screen Display

    Chapter 3 On Screen Display On Screen Display (OSD) is a friendly interface providing the function adjusting in our system. Customers could operate it only by few buttons. There is the introduction of the OSD. Main unit button MENU CH ▲ ↑...
  • Page 9 CONFIDENTIAL DO NOT COPY Page 3-2 – File No. SG-0209...
  • Page 10 B. Audio：(Bold: Default) a. Volume (0~100, 25) b. Bass (0~100, 50) c. Treble (0~100, 50) d. Balance (-50~50, 0) e. Surround (ON/OFF) f. Speakers (ON/OFF) CONFIDENTIAL DO NOT COPY Page 3-3 – File No. SG-0209...
  • Page 11 C. TV：(Bold: Default) a. Tuner Mode (Cable/Air) b. Auto Search c. Skip Channel d. Digital Audio Out (PCM/Dolby Digital/OFF) e. Time Zone (Eastern/Indiana/Central/Mountain/Arizona/Pacific/Alaska/Hawaii) CONFIDENTIAL DO NOT COPY Page 3-4 – File No. SG-0209...
  • Page 12 D. Setup：(Bold: Default) a. Language (English/ Français / Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. Analog CC (OFF/CC1~4/TT1~4) d. Digital CC (OFF/CC1~4/Service1~6) e. Digital CC Style 1. Caption Style (As Broadcaster/Custom) 2. Size (Large/Small/Medium) 3. Font Color (White/Green/Blue/Red/Cyan/Yellow/Magenta/Black) 4. Font Opacity (Solid/Translucent/Transparent) 5.
  • Page 13 E. Parental：(Bold: Default) Password (Default => 0000) a. Cannel Block b. TV Rating c. Move Rating d. Block Unrated TV (NO/Yes) e. Access Code Edit CONFIDENTIAL DO NOT COPY Page 3-6 – File No. SG-0209...
  • Page 14 RGB Mode A. Picture Adjust：(Bold: Default) a. Auto Adjust b. Backlight (0~100, 90) c. Contrast (0~100, 50) d. Brightness (0~100, 50) e. Color Temperature (6500/9300/Custom) f. H-Size (0~255, 127) g. H-Position (0~100, 65) h. V-Position (0~100, 49) i. Fine Tune (0~31, 17) CONFIDENTIAL DO NOT COPY Page 3-7...
  • Page 15 B. Audio：(Bold: Default) a. Volume (0~100, 25) b. Bass (0~100, 50) c. Treble (0~100, 50) d. Balance (-50~50, 0) e. Surround (ON/OFF) f. Speakers (ON/OFF) CONFIDENTIAL DO NOT COPY Page 3-8 – File No. SG-0209...
  • Page 16 C. Setup：(Bold: Default) a. Language (English/ Français / Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. Analog CC (OFF/CC1~4/TT1~4) d. Digital CC (OFF/CC1~4/Service1~6) e. Digital CC Style 1. Caption Style (As Broadcaster/Custom) 2. Size (Large/Small/Medium) 3. Font Color (White/Green/Blue/Red/Cyan/Yellow/Magenta/Black) 4. Font Opacity (Solid/Translucent/Transparent) 5.
  • Page 17 AV / COMPONENT MODE A. Picture：(Bold: Default) a. Picture Mode (Standard/Movie /Game / Custom) b. Backlight (0~100, 90) c. Contrast (0~100, 50) d. Brightness (0~100, 50) e. Color (saturation)(0~100, 50) f. Tint (hue) (-32~32, 0) g. Sharpness (0~7, 4) h. Color Temperature (Cool/Normal/Warm/Custom) i.
  • Page 18 B. Audio：(Bold: Default) a. Volume (0~100, 25) b. Bass (0~100, 50) c. Treble (0~100, 50) d. Balance (-50~50, 0) e. Surround (ON/OFF) f. Speakers (ON/OFF) CONFIDENTIAL DO NOT COPY Page 3-11 – File No. SG-0209...
  • Page 19 C. Setup：(Bold: Default) a. Language (English/ Français / Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. Analog CC (OFF/CC1~4/TT1~4) d. Digital CC (OFF/CC1~4/Service1~6) e. Digital CC Style 1. Caption Style (As Broadcaster/Custom) 2. Size (Large/Small/Medium) 3. Font Color (White/Green/Blue/Red/Cyan/Yellow/Magenta/Black) 4. Font Opacity (Solid/Translucent/Transparent) 5.
  • Page 20 D. Parental：(Bold: Default) Password (Default => 0000) a. Cannel Block b. TV Rating c. Move Rating d. Block Unrated TV (NO/Yes) e. Access Code Edit CONFIDENTIAL DO NOT COPY Page 3-13 – File No. SG-0209...

  • Page 21: Hdmi Mode

    HDMI MODE A. Picture：(Bold: Default) a. Picture Mode (Standard/Movie /Game / Custom) b. Backlight (0~100, 90) c. Contrast (0~100, 50) d. Brightness (0~100, 50) e. Color (saturation)(0~100, 50) f. Tint (hue) (-32~32, 0) g. Sharpness (0~7, 4) h. Color Temperature (Cool/Normal/Warm/Custom) i.
  • Page 22 B. Audio：(Bold: Default) a. Volume (0~100, 25) b. Bass (0~100, 50) c. Treble (0~100, 50) d. Balance (-50~50, 0) e. Surround (ON/OFF) f. Speakers (ON/OFF) CONFIDENTIAL DO NOT COPY Page 3-15 – File No. SG-0209...
  • Page 23 C. Setup：(Bold: Default) a. Language (English/ Français / Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. Analog CC (OFF/CC1~4/TT1~4) d. Digital CC (OFF/CC1~4/Service1~6) e. Digital CC Style g. Rest All Setting (OK/Cancel) CONFIDENTIAL DO NOT COPY Page 3-16 – File No. SG-0209...
  • Page 24 [INPUT] “INPUT” could supply an interface providing a list. The list shows input sources and provides the choices of different sources. The list includes items as below: A. TV: Analog TV or digital TV B. AV1, AV2: Composite (AV) signal C.

  • Page 25: Factory Preset Timings

    Chapter4 Factory preset timings This timing chart is already preset for the TFT LCD analog & digital display monitors. Refresh Horizontal Vertical Horizontal Vertical Pixel Resolution rate Frequency Frequency Polarity Polarity Rate 640x480 60Hz 31.5kHz 59.94Hz 25.175 640x480 75Hz 37.5kHz 75.00Hz 31.500 800X600...
  • Page 26 Chapter5 Connectors Pin Assignment & Signal Specification Video Graphics Array (VGA) connector pin assignment The TFT LCD analog display monitors use a 15 Pin Mini D-Sub connector as video input source. Description Green Blue Ground Ground R-Ground G-Ground B-Ground +5V for DDC Ground No Connection (SDA)
  • Page 27 High Definition Multimedia Interface (HDMI) connector pin assignment SIGNAL ASSIGNMENT TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C on device) DDC/CEC Ground +5V Power Hot Plug Detect...
  • Page 28 Four-Pin mini DIN S-Video Connector pin assignment 1, 2 = GND 3 = Luminance (Y) 4 = Chrominance(C) Signal Specification F-Type TV RF connector a. Signal Level 60dBµV typical b. System: NTSC c. Frequency: 55~801MHz (NTSC) PC connector 15 pin male D-sub connector a.

  • Page 29: Pin Assignment

    Four-Pin mini DIN S-Video a. Pin Assignment refer to S-Video connector pin assignment b. Signal Level Video (Y): Analog 0.1Vp-p/75Ω Video (C): Analog 0.286p-p/75 Sync (H+V): 0.3V below Video (Y) c. Frequency H: 15.734KHz V: 60Hz (NTSC) Signal Level Video (Y) : Analog 0.1Vp-p/75Ω Video (C) : Analog 0.286p-p/75Ω...

  • Page 30: Main Board I/O Connections

    Chapter6 Main Board I/o Connections J1 CONNECTION [MAIN BD TO POWER BD] Description “POWRSW” “+12V” “+12V” “+12V” “+12V” “GND” “GND” “GND” “+5V” “+5V” “+5V” “PWM” “BL ON/OFF” J2 CONNECTION [MAIN BD TO DISPLAY BD ] Description “BL-RED” “BL-WHITE” “+5V” “+5V” “IR”...
  • Page 31 J4 CONNECTOR [MAIN BD TO SIDE JACK] Description “AV1-IN” “GND” “AV1L-IN” “GND” “AV1R-IN” “GND” “SY1-IN” “GND” “SC1-IN” “GND” “SVDET1” “NC” J6 CONNECTOR [MAIN BD TO SPEAKER] Description “R+” “R-” “L-” “L+” CONFIDENTIAL DO NOT COPY Page 6-2 – File No. SG-0209...

  • Page 32: Theory Of Circuit Operation

    Chapter 7 Theory of Circuit Operation The route of D-SUB 15pin input An RGB (analog) signal is inputted the D-SUB 15pin to the MT5372 which transfers it to a digital signal by the A/D converter. Then MT5372 generates a Low Voltage Differential Signal (LVDS) for display device.
  • Page 33 There are 7 keys to control and to select the function of VX37. Also, there is a LED back light under the logo “VIZIO” to indicate the status of operation (Orange => STANDBY, White => ON). They are “Power, ▼▲, + -, Input, MENU”.
  • Page 34 Reliable Analog Technology The MT5372 integrates high speed VGA ADC, high resolution Video/Audio ADC, 90db Audio DACs. The MT5372 provides very fine quality for the iDTV markets. System Block Diagram Functional Block Diagram CONFIDENTIAL DO NOT COPY Page 7-3 – File No.
  • Page 35 Ⅱ. Features of MT5372 1. Key Features: 1. A transport de-multiplexer 2. An MPEG-2 video decoder 3. An AC3 audio decoder 4. A 3D comb TV decoder 5. PIP/POP mode 6. An HDMI receiver 7. A set of three VGA ADCs 2.
  • Page 36 5. 2D Graphics: 1. Supports multiple color modes 2. Point, horizontal/vertical line primitive drawings 3. Rectangle fill and gradient fill functions 4. Bitblt with transparent, alpha blending, alpha composition and stretch 5. Font rendering by color expansion 6. YCbCr to RGB color space transfer 7.
  • Page 37 21. Dithering processing for flat panel display 22. Frame rate conversion, 50Hz to 75Hz 23. Supports mirror and upside down video outputs 24. Supports 480i/ 576i/ 480p /576p/ 720p/ 1080i/ 1080p output forma 8. LVDS: 1. One 10-bit channel or dual 6/8-bit channel 2.
  • Page 38 14. Audio line In Interface: 1-bit data (two channel) 15. HDMI Receiver: 1. HDMI1.1 2. DVI 1.0 3. EIA/CEA-861B 4. HDCP 1.1 5. Supports up to 1080P 60Hz source 16. TV audio demodulator: 1. Supports BTSC/EIA-J/A2/NICAM/PAL, FM/SECAM world wild formats 2.
  • Page 39 19. Audio DSP: 1. Supports Dolby Digital AC-3 decoding (ATSC) 2. MPEG-1 layer I/II decoding (DVB) 3. MPEG-2 AAC decoding (Japan) 4. DV audio decoding 5. MP3 decoding 6. Dolby Pro-logic II 7. Audio output: 7.1ch + 2ch (down mix) 8.
  • Page 40 Ⅲ. Electrical Characteristics 1. Absolute Maximum Rating 2. DC Characteristics 3. DDR1 ELECTRICAL Characteristics and DC Operating Condition CONFIDENTIAL DO NOT COPY Page 7-9 – File No. SG-0209...
  • Page 41 4. DDR1 AC Operating Condition 5. DDR2 ELECTRICAL Characteristics and DC Operating Condition 6. DDR2 AC Operating Condition CONFIDENTIAL DO NOT COPY Page 7-10 – File No. SG-0209...
  • Page 42 MT5112 1. GENERAL DESCRIPTION The MT5112BD is a highly integrated single-chip for digital terrestrial HDTV and digital cable TV de-modulation. The chip is designed specifically for the digital terrestrial HDTV and CATV receivers, and is fully compliant with ATSC A/53, SCTE DVS-031, and ITU J.83 Annex B standards.
  • Page 43 PIN ASSIGNMENT CONFIDENTIAL DO NOT COPY Page 7-12 – File No. SG-0209...
  • Page 44 PIN DESCRIPTION CONFIDENTIAL DO NOT COPY Page 7-13 – File No. SG-0209...
  • Page 45 2. 8-VSB and Clear-QAM Reception MT5112BD contains a 10-bit A/D converter, an 8-VSB/QAM demodulator, followed by a trellis-code de-modulation (TCM) decoder and a Reed-Solomon forward error correction (FEC) decoder. Moreover, an embedded 8-bit microprocessor intelligently handles the acquisition and tracking to ensure the best receiving performance under various channel conditions.
  • Page 46 For cable signal reception, the MT5112BD adopts the fully digital modules for timing and carrier synchronization, with no external VCXO required. Specially designed carrier synchronization module enables the MT5112BD passing the OpenCable ATP burst and phase noise tests, while maintaining excellent reception performance under normal reception conditions.
  • Page 47 3. FEATURES 1. Compliant with ATSC digital television standard 2. Supports SCTE DVS-031 and ITU J.83 Annex B digital CATV standard 3. Accepts direct IF (44 MHz or 43.75MHz) and low IF (5.38MHz) 4. Differential IF input with programmable input signal level: 0.5Vpp to 2Vpp 5.
  • Page 48 1. BLOCK DIAGRAM Audio sample rate The master clock forWM8776 supports DAC and ADC audio sampling rates 256fs to 768fs, where fs is the audio sample frequency (DACLRC or ADCLRC) typically 32KHZ, 44.1KHZ, 48KHZ or 96KHZ (the DAC also supports operation at 128fs and 192fs and 192KHZ sample rate).
  • Page 49 2. DIGITAL AUDIO INTERFACE 1. Slave mode The audio interfaces operations in either slave mode selectable using the MS control bit. In slave mode DIN is always an input to the WM8776 and DOUT is always an output. The default is Slave mode. In slave mode (ms=0) ADCLRC, DACLRC, ADCBCLK, DACBCLK are input to the WM8776.
  • Page 50 2. 2 Wire serial control mode The wm8776 supports software control via a 2-wire serial bus. Many devices can be controlled by the same bus, and each device has a unique 7-bit address (this is not the same as the 7-bit address of each register in the wm8776). The wm8776 operates as a slave device only.
  • Page 51 TDA8946 In L32 TV the TDA8946AJ is a dual-channel audio power amplifier with DC gain control. It has an output power of 2  1 0 W at an 8  l oad and a 12 V supply. 　 　 Block diagram 1.
  • Page 52 2. Output power measurement The output power as a function of the supply voltage is measured on the output pins at THD = 10%,in the L32 LCD TV Vcc=12V so we can see as shown in the following figure output about 7W. CONFIDENTIAL DO NOT COPY Page 7-21...
  • Page 53 3. Mode selection In the L32 LCD TV TDA8946AJ has two functional modes, which can be selected by applying the proper DC voltage to pin MODE. 1. Mute — In this mode the amplifier is DC-biased but not operational (no audio output). This allows the input coupling capacitors to be charged to avoid pop-noise.
  • Page 54 The MXIC cell is designed to optimize the erase and program mechanisms. In addition, the combination of advanced tunnel oxide processing and low internal electric fields for erase and programming operations produces reliable cycling. The MX29LV320AT/B uses a 2.7V to 3.6V VCC supply to perform the High Reliability Erase and auto Program/Erase algorithms.
  • Page 55 BLOCK DIAGRAM CONFIDENTIAL DO NOT COPY Page 7-24 – File No. SG-0209...
  • Page 56 BUS OPERATION-1 Legend: L=Logic LOW=VIL, H=Logic High=VIH, VID=12.0 0.5V, VHH=11.5 -12.5V, X=Don't Care, 　 AIN=Address IN, DIN=Data IN,DOUT=Data OUT Notes: 1. When the WP/ACC pin is at VHH, the device enters the accelerated program mode. See "Accelerated Program Operations" for more information. 2.
  • Page 57 BUS OPERATION-2 Notes: 1.Code=00h means unprotected, or code=01h protected. 2.Code=99 means factory locked, or code=19h not factory locked. WRITE COMMANDS/COMMAND SEQUENCES To program data to the device or erase sectors of memory , the system must drive WE and CE to VIL, and OE to VIH.An erase operation can erase one sector, multiple sectors , or the entire device.
  • Page 58 TABLE A. MX29LV320AT/B COMMAND DEFINITIONS Legend: X=Don't care RA=Address of the memory location to be read. RD=Data read from location RA during read operation. PA=Address of the memory location to be programmed. Addresses are latched on the falling edge of the WE or CE pulse. PD=Data to be programmed at location PA.
  • Page 59 7.Command is valid when device is ready to read array data or when device is in Automatic Select mode. 8.The system may read and program functions in non-erasing sectors, or enter the Automatic Select mode, when in the erase Suspend mode. The Erase Suspend command is valid only during a sector erase operation.
  • Page 60 Current is reduced for the duration of the RESET pulse. When RESET is held at VSS 0.3V, the device draws CMOS standby current (ICC4). If RESET is held at VIL but 　 not within VSS 0.3V, the standby current will be grea ter.The RESET pin may be tied to 　...
  • Page 61 SOFTWARE COMMAND DEFINITIONS : Device operations are selected by writing specific address and data sequences into the command register. Writing incorrect address and data values or writing them in the improper sequence will reset the device to the read mode. Table 3 defines the valid register command sequences.
  • Page 62 Fig C. COMMAND WRITE OPERATION Fig D. READ TIMING WAVEFORMS CONFIDENTIAL DO NOT COPY Page 7-31 – File No. SG-0209...
  • Page 63 Fig E. RESET TIMING WAVEFORM CONFIDENTIAL DO NOT COPY Page 7-32 – File No. SG-0209...
  • Page 64 DRAM: (NT5DS16M16CS) The 256Mb DDR SDRAM is a high-speed CMOS, dynamic random-access memory containing 268, 435, 456 bits. The 256Mb DDR SDRAM is internally configured as a quad-bank DRAM. The 256Mb DDR SDRAM uses a double-data-rate architecture to achieve high-speed operation.

  • Page 65: Pin Configuration

    1. Pin Configuration CONFIDENTIAL DO NOT COPY Page 7-34 – File No. SG-0209...
  • Page 66 2. Input/Output Functional Description CONFIDENTIAL DO NOT COPY Page 7-35 – File No. SG-0209...
  • Page 67 3. Block Diagram 4. Initialization Only one of the following two conditions must be met. • No power sequencing is specified during power up or power down given the following criteria: VDD and VDDQ are driven from a single power converter output VTT meets the specification A minimum resistance of 42 ohms limits the input current from the VTT supply into any pin and VREF tracks VDDQ /2 or The following relationships must be followed:...
  • Page 68 The DQ and DQS outputs are in the High-Z state, where they remain until driven in normal operation (by a read access). After all power supply and reference voltages are stable, and the clock is stable, the DDR SDRAM requires a 200µs delay prior to applying an executable command.
  • Page 69 5. Register Definition 6. Burst Definition CONFIDENTIAL DO NOT COPY Page 7-38 – File No. SG-0209...
  • Page 70 Notes: 1. For a burst length of two, A1-A i selects the two-data-element block; A0 selects the first access within the block. 2. For a burst length of four, A2-A i selects the four-data-element block; A0-A1 selects the first access within the block. 3.
  • Page 71 DLL Enable/Disable The DLL must be enabled for normal operation. DLL enable is required during power up initialization, and upon returning to normal operation after having disabled the DLL for the purpose of debug or evaluation. The DLL is automatically disabled when entering self refresh operation and is automatically re-enabled upon exit of self refresh operation.
  • Page 72 7. Simplified State Diagram CONFIDENTIAL DO NOT COPY Page 7-41 – File No. SG-0209...
  • Page 73 8. Absolute Maximum Ratings 9. Capacitance CONFIDENTIAL DO NOT COPY Page 7-42 – File No. SG-0209...
  • Page 74 10. DC Electrical Characteristics and Operating Conditions (0°C £ TA £ 70×C; VDDQ = 2.5V ± 0.2V, VDD = + 2.5V ± 0.2V, see AC Characteristics) CONFIDENTIAL DO NOT COPY Page 7-43 – File No. SG-0209...
  • Page 75 11. AC Characteristics 1. All voltages referenced to VSS. 2. Tests for AC timing, IDD, and electrical, AC and DC characteristics, may be conducted at nominal reference/supply voltage levels, but the related specifications and device operation are guaranteed for the full voltage range specified. 3.
  • Page 76 AC Input Operating Conditions (0 °C ≤ TA ≤ 70 °C; VDDQ = VDD = 2.5V ± 0.2V (DDR333); VDDQ = VDD = 2.6V ± 0.1V (DDR400); See AC Characteristics) PI3HDMI412FT Pericom Semiconductor’s PI3HDMI series of switch circuits are targeted for high-resolution video networks that are based on DVI/HDMI standards, and TMDS signal processing.
  • Page 77 Block Diagram CONFIDENTIAL DO NOT COPY Page 7-46 – File No. SG-0209...
  • Page 78 Pin Description Pin Description Maximum Ratings CONFIDENTIAL DO NOT COPY Page 7-47 – File No. SG-0209...
  • Page 79 DC Power Supply Characteristics Power Supply Characteristics Notes: 1. For Max. or Min. conditions,use appropriate value specified under Electrical Characteristics for the applicable device type. 2. Typical values are at TA = 25°C ambient and maximum loading. you are really be lost weigth. Switching Waveforms CONFIDENTIAL DO NOT COPY...

  • Page 80: Waveforms

    Chapter8 Waveforms PC MODE(1366X768 60HZ) CH1 H-sync (R209); CH2 V-sync (R213) CH1 GREEN (R195) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 81 CH1 GP (C89) CH1 GREEN # (R195); CH2 VGAVSYNC (R213) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 82 CH1 VGAL_IN (R208); CH2 VGAR_IN (R207) [Audio] CH1 VGAL_IN (CE56+) ; VGAL_IN (CE56-) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 83 AV&TV MODE (AV1/AV2/TV) VIDEO CH1 CVBS2 (R146); CH2 AV2CVBS (C52) CH1 AV2L (CE46-); CH2 AV2L (U27 PIN15) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 84 CH1 AUSPL (R335);CH2 OUT2+5(J6 PIN4) CH1 DACBCLK (U28 PIN4); CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 85 CH1 DACMCLK (U28 PIN5); CH1 DACLRCK (U28 PIN7) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 86 COMPONENT MODE (COMPONENT 1/2) CH1 Y1_IN (R180); CH2 Y1P (C77) CH1CR1_IN (R190) CH2 PR1P (U27 PIN11) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 87 HDMI 1&2 CH1 RX0_2 (P6 PIN 1); CH2 DATA2+ (U31 PIN3) CH1 HDMIDDCSCL_0(R235) ; CH2 HDMICAB0 (Q8 PIN3) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 88 DTV HD CH1 VOB0 (RP35) CH1 AO1MCLK (DU9 PIN J1 ) CH2 AO1BCK (DU9 PIN J2) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 89 CH1 VOHSYNC (DU9 PIN V4) CH1 VOVSYNC (DU9 PIN W1) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 90 CH1 VODE (DU9 PIN W2) CH1 VOPCLK (DU9 PIN V3) CONFIDENTIAL DO NOT COPY Page 8-1 – File No. SG-0209...
  • Page 91 Chapter 9 Trouble solvents MONITOR DISPLAY NOTHING (PC MODE) Start Is Power board output +5V(F2)? LED is lighted Is J1 connector good? (Orange) Is DC-DC OK? Is U8 pin2 (3.3V) working ok? It is in power saving 1. Check video cable 2.
  • Page 92 (TV, COMPOSITE VIDEO1, 2, S-VIDEO) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal 2. Check DVD player 1. Check P11&J4 signal 2. Check signal between P2 and U4 (IF AV1/AV2 mode) U4 input correct? 3. Check Tuner &U4 (IF TV mode) 4.
  • Page 93 (COMPONENT1, 2) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal 2. Check host’s setting 1. Check signal from P1 2. Check system power 12V& 5v P4 input correct? 1. Check signal between U4&P1 2. Check X1 Clock (27MHZ) U11 input correct? 1.
  • Page 94 HDMI ) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal 2. Check host’s setting 1. Check p6&p7 connect U11 no data 2. Check the pin18 & 19 of P6 & P7 3. Check the pin 6 of U23 & U25 U31 input 1.
  • Page 95 TROUBLE OF DC-DC CONVERTER Start The voltage is about + 5V 1. Check power board J1 PIN10,11,12 2. Check power cable, F2 & connection J1 3. Check U8 pin1 (+5V) & pin2 (+3.3V) The voltage is about + 12V while power switch on 1.
  • Page 96 TROUBLE OF EDID READING Start Support DDC1/2B 1. Analog cable ok? Is Analog DDC OK? 2 .Check signal (U21 to P3) 3. Check U21 Voltage 4. Is protocol compliant? Support DDC1/2B 1. Analog cable ok? Is HDMI DDC 2. Check signal (U23 to P6) 3.

  • Page 97: Block Diagram

    Chapter 10 System Block Diagram System Block Diagram LCD display device Digital Video bus AC IN Power Board Speakers Main Board P10 P9 □□□□□ Keypad/IR Board Our LCD TV system works at the AC power supplying 100V~240V AC +/- 10% @ 50/60 HZ.
  • Page 98 The analog video signals (composite / S-Video, Analog RGB, and YPbPr) are transmitted to MT5372 directly. Their stereo audio signals are transmitted to WM8776, some of these audio signals might pass a switch (U27). The RF signals include analog and digital TV signals. Two kinds of signals are processed by two kinds of ways.
  • Page 99 Main Board Block Diagram CONFIDENTIAL – DO NOT COPY Page 10-3 File No. SG-0209...

  • Page 100: Spare Parts List

    Chapter 11 Spare Parts List PART NO DESCRIPTION REMARK 0185-1302-0073 FUSE 125V/3A SMD (R451003) LF F1, F2 0320-4000-0142 POWER CORD 110V UL/CSA 1800mm BLK N.M. (VINC) 0320-4000-0142 POWER CORD 110V UL/CSA 1800mm BLK N.M. (VINC) 0321-0000-0411 AV CABLE RCA(Y/W/R) 1800mm BLK (VINC) 0321-0000-0411 AV CABLE RCA(Y/W/R) 1800mm BLK (VINC) 0360-1000-0420...
