Summary of Contents for EZiCaddy EZi-3

  • Page 1 EZiCaddy EZi-3 Digital User Manual...

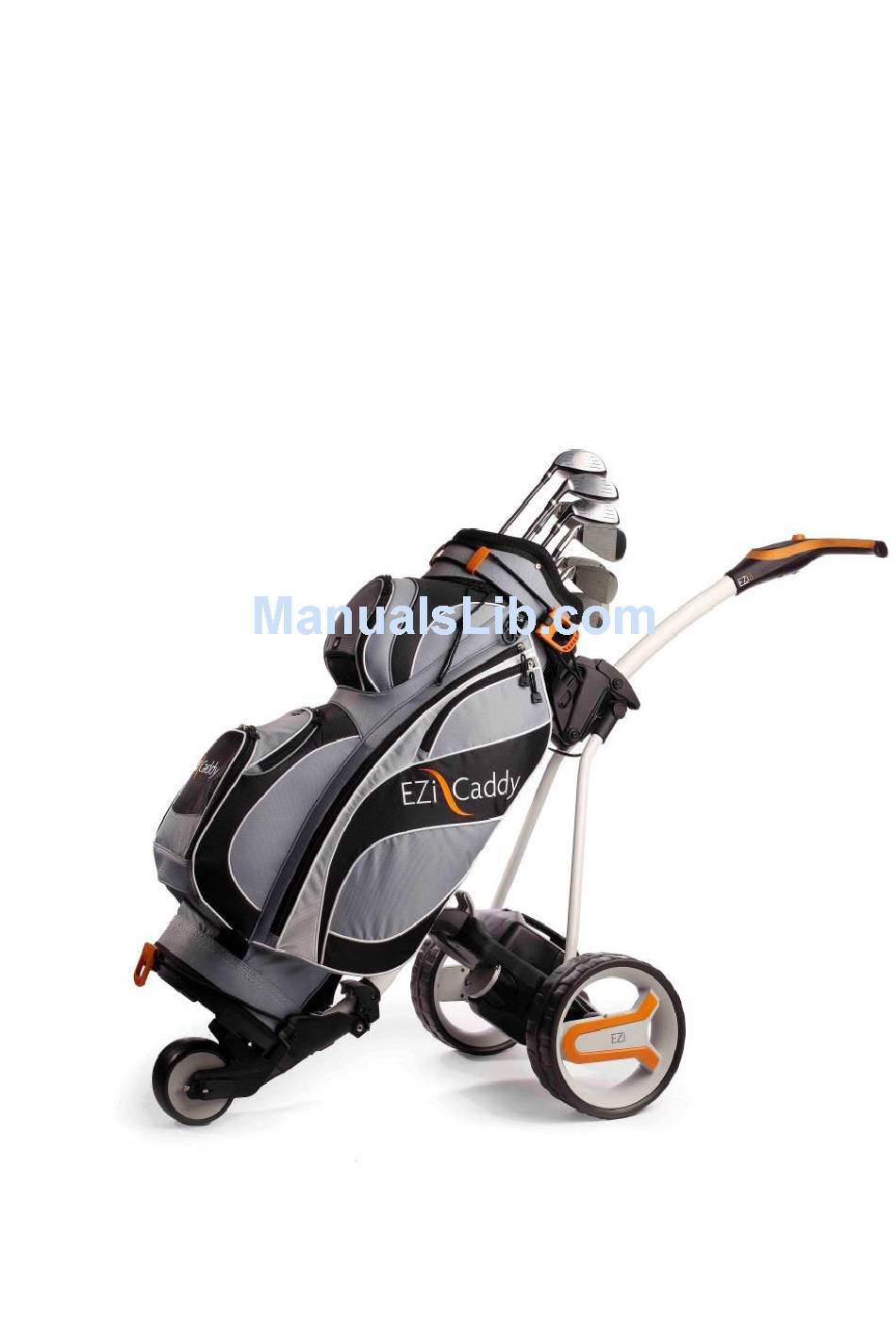

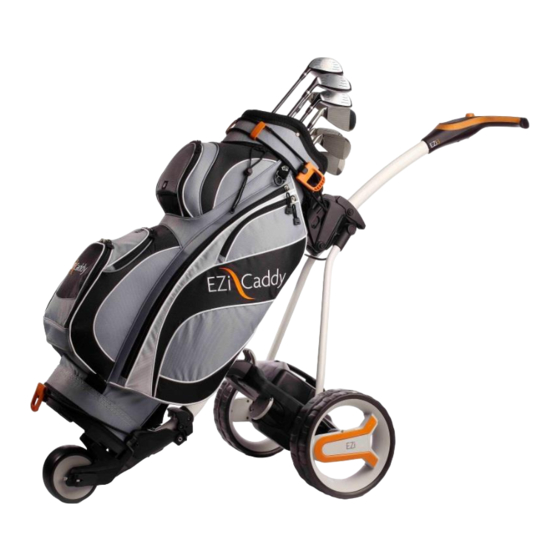

  • Page 2 YOUR EZICADDY EZI-3 DIGITAL TROLLEY Page 2...
  • Page 3 1. Front Wheel Adjuster Nut 2. Camlock Lever 3. Lower Bungee Strap 4. Bottom Bag Stay 5. Front Wheel Release Lever (on Right-Hand side of trolley) 6. Quick Release Lever for wheel 7. Rear Wheel 8. Motor 9. Battery (normally, one Standard or Lithium battery is supplied with each cart) 10.
  • Page 4 FINDING YOUR TROLLEY SERIAL NUMBER The serial number for your EZi-3 Digital trolley can be found on the underside of the main spar. The same number is on the box you received with your trolley. Please keep this box for shipping purposes.
  • Page 5 FOLDING AND UNFOLDING YOUR TROLLEY To unfold the upper section of your trolley, depress the release lever 10 and pull the handle away from the main spar. Continue unfolding until the upper spar clicks into place. To unfold the bottom bag-stay section, depress the release lever 5 and pull the wheel away from the main spar.
  • Page 6: Adjusting The Handle Height

    ADJUSTING THE HANDLE HEIGHT Your EZiCaddy has 5 height adjustment settings. To adjust the handle height, first fold the trolley. Then unscrew the locking screw 14 by about 8 mm until the handle adjuster plate can be lifted off the teeth below.
  • Page 7: Adjusting The Front Wheel

    FITTING THE PLUG-N-PLAY BATTERY To fit the battery, hold it vertically and, from the rear of the trolley, present it base downwards to the main chassis. The notch in the base of the battery will locate in the recess of the chassis. The top of the battery can then be pushed firmly forwards to engage with the battery catch at the top of the battery.
  • Page 8 REMOVING THE MAIN WHEELS. You might occasionally want to take off the main wheels either for cleaning purposes or to squeeze your trolley into a tighter space. Press button 6 to allow you to release and pull off the wheel. Replace the wheel by sliding the wheel into the clutch, align the wheel so that it starts to engage properly and then push until you hear the engagement click...
  • Page 9 Page 9...
  • Page 10 Lithium battery. It recognises which EZiCaddy battery you are using and adjusts accordingly. Do not use a non-EZiCaddy charger with your EZiCaddy battery or vice versa; a mismatch of battery and charger could cause damage. Your charger should be placed on a hard surface, in a dry, well- ventilated place.
  • Page 11 EZICADDY BATTERY Your EZiCaddy battery is designed to play 18 holes. Avoid exceeding 18 holes on one charge to maximise battery life. If you regularly want to play more than 18 holes, please buy another battery.
  • Page 12 USING YOUR EZICADDY EZI-3 DIGITAL When you have fitted your battery and secured your bag, you are ready to go.  Depress and release the control knob on the handle to turn on the power. The On/Off Indicator will turn from...
  • Page 13 ADF ( AUTOMATIC DISTANCE FUNCTION ) MODE Your EZi-3 Digital features a convenient Automatic Distance Function. This is particularly useful when you want to, say, send off your trolley by itself towards the next tee whilst you go on to the green. But please be very mindful of people and obstacles that might end up in your path Hold down the control button for at least 3 seconds and then release it.
  • Page 14: Battery Condition Indicator

    If your battery regularly shows red well before the end of a round, you may need to buy a new battery. USB PORT EZi-3 Digital Your features a standard port which can top up your SmartPhone or Golf GPS device.
  • Page 15 Page 15...
  • Page 16 EZiCaddy Ltd Contact us via: Unit N1 Castle Road Freephone 0800 849 1345 Sittingbourne, Kent ME10 3RN International +44 1795 412444 United Kingdom eMail: ezi@ezicaddy.com Co.No. 06207278 www.ezicaddy.com EZi-3 Digital Manual v 1.11 A5 booklet Page 16...
