Summary of Contents for Shenzhen JingFeng HDM-05

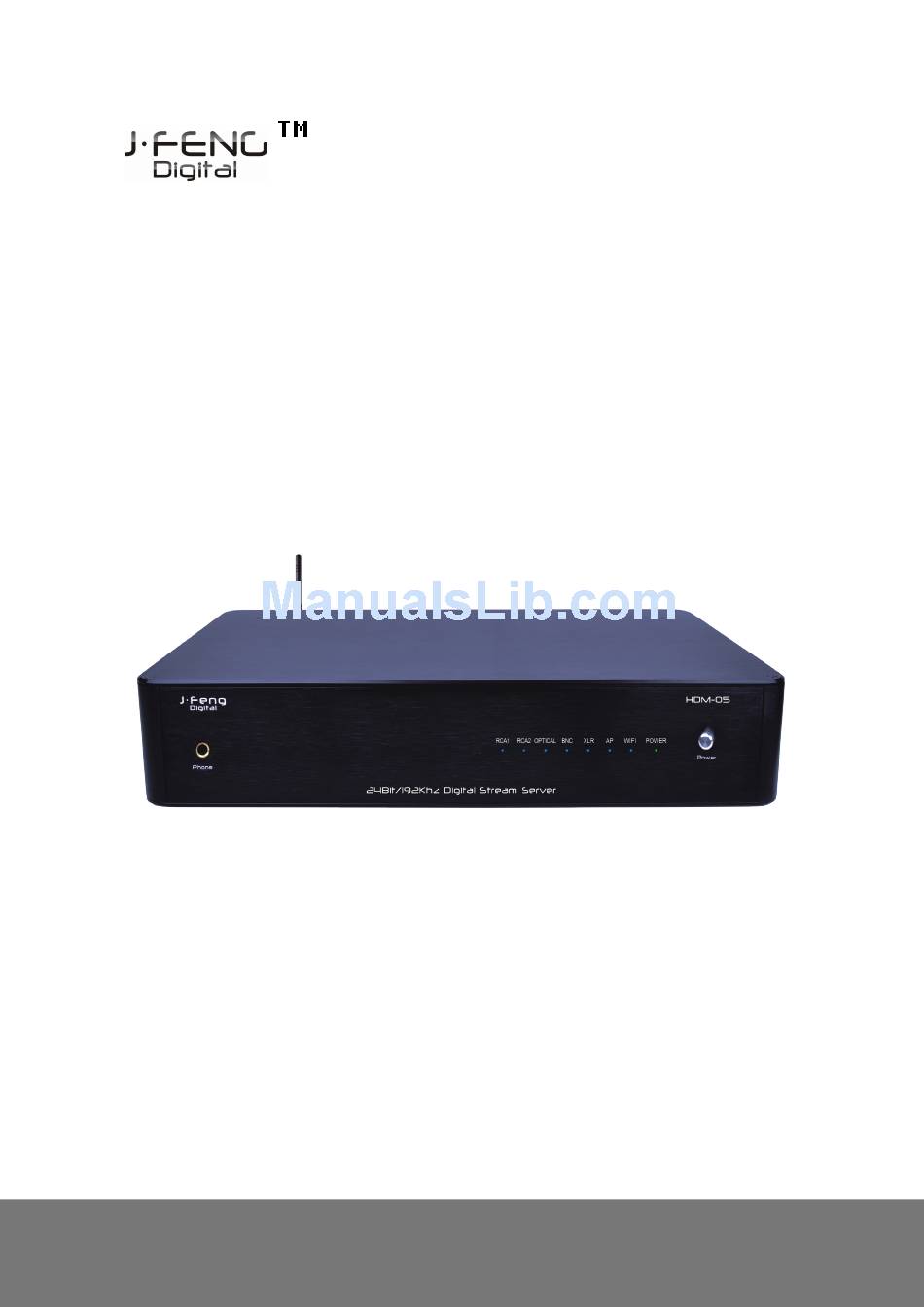

- Page 1 Digital Stream Server HDM-05 Shenzhen JingFeng Digital Technology Co., Ltd. HDM Series User’s Manual...
-
Page 2: Ⅰ、Features
Ⅰ、Features 1.1 Main Features 【Key Features】 Digital music player(24Bit/192KHz WAVE/FLAC) High-performance independent D/A converter(24Bit/192KHz) Wi-Fi/LAN remote control Wi-Fi Direct play 【Audio Technical Features】 Support decoding of all kinds of main stream digital audio formats,including WAV,WMA,APE and FLAC etc; High-performance linear power supply system with independent power ... -
Page 3: Product Layout
1.2 Product Layout (There are some differences of the panels between your object and this manual ) 1.2.1 Front Panel Name Describe Phone 6.3mm earphone export,connect to the earphone of high impedance above 50 ohmic. RC1 LED The LED will be light when RCA1 digital input is chosen. RC2 LED The LED will be light when RCA2 digital input is chosen. - Page 4 1.2.2 Back Panel Name Describe AC POWER AC power input port. INPUE Power Fuse Power Fuse block(250V/1A) L OUT L-Channel analog output RCA jack R OUT R-Channel analog output RCA jack SPDIF OUT Digital output RCA jack RCA 1 Digital input RCA1 jack RCA 2 Digital input RCA2 jack Digital input BNC jack...
- Page 5 1.3 Remote Control Guide...
- Page 6 Button Button Functions name icon After powered on,the remote control will get into standby Standby status until powered off.It will take 3 seconds to power off by pressing this key（Not support use） Mute Mute sounds or open audio. Function Switch for Wi-Fi and wire LAN. switch The more the Vol+ key is pressed the higher the volume Vol+/Up...
-
Page 7: Power On/Off
“Setting”->”WLAN”,set “on”,and it will show the list of router names.Find the virtual router which is named of the last six character of MAX code of your HDM-05 player.Find this virtual router and connect your phone or Pad to it.The connected code is “12345678”.After connected can open the Media Controller to find the files... - Page 8 “assigned PI automatically”,then the HDM-05 player will be assigned a PI. Now the HDM-05 player have been connected to the network.You can use the Media Controller on your Android device or iPhone or iPad to play shared file on the net.
-
Page 9: Upgrade Firmware
If you want to exit the Wireless Wi-Fi LAN,Press the “SWITCH”key again. 6.Upgrade Firmware Insure the HDM-05 player have connected to the internet, with wire or Wi-Fi,press the “ADD FAV”key of the remote control,now the power LED on the front panel will twinkle.The HDM-05 will upgrade firmware automatically through the internet. - Page 10 Guarantee&Disclaimers： Ⅰ.The user can get warranty service within one year from the date of signing this Warranty card,however,in the case that the user does not return the Warranty card;Thirty days shall be added to the release date for the warranty date to start. Ⅱ.Please ensure the filled information in the Warranty card completed and it shall not come into effect until it is signed by the person who hand over this product with the chop of the distributor and taken back by the distributor or its staff.
-
Page 11: Warranty Card
Email Model Date purchased purchased Serial number Customer code(filled by manufacturer)： Servicing time Fault descriptions: Servicing time Fault descriptions: Shenzhen Jingfeng digital technology Co.,Ltd. Address: 3rd floor,Building B9, Shahe industrial area,Baishizhou,Nanshan district, Shenzhen China Tel:+86-755-83225760 Fax:+86-755-86093355 Code:518031 http://www.jfdigital.com...
