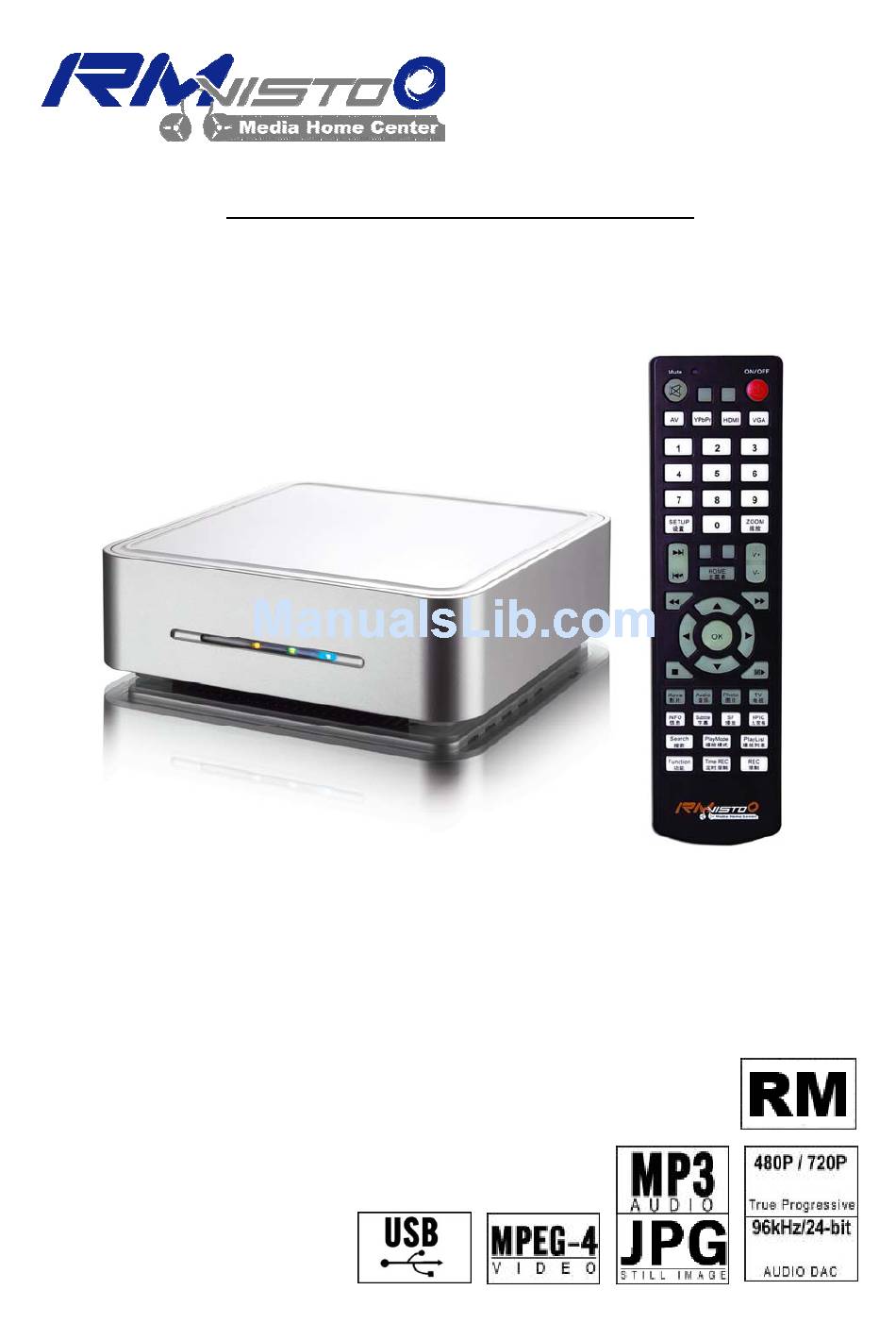

- Page 1 RMvisto3500 User Manual Version 1.0...
-
Page 2: Table Of Contents
NDEX ......11 UNCTIONALITY RMVISTO ............ 2 ..........11 ......... 2 NTRODUCTION ............11 OVIE ..........2 EATURES ............12 USIC ......3 ............12 EATURES ESCRIPTION HOTO ............13 .......... 3 IDEO EATURES ........... 13 .......... 3 UDIO FEATURES 9 PIC............ -
Page 3: Rmvisto
RMVisto Introduction The RMvisto is a digital media player that can be connected to the TV and playback media files from USB drives, its internal hard drive, media cards and network folders, as well as record videos directly to its internal SATA hard drive. It supports high definition video playback (up to 720P), offers digital HDMI output and features both scheduled recording and time shifting. -
Page 4: Features Description
Audio formats supported: MP3, AC3 Audio Output Formats: Dual Stereo analog Digital Photo features Photo formats supported：JPG. BMP, PNG, GIF Package Contents 01. RMVisto 02. Power adapter 03. Remote control 04. User manual 05. HDMI cable 06. AV composite cable 07. -
Page 5: Detailed View
Detailed View Front LED Indication： • Power LED：“RED” • Network LED：“Orange”，and lights up during data access through network.。 • HDD LED：“Blue” lights up during data access • Record LED：“Green” Rear： 1. Power On/Off switch 2. Power receptacle 3. A/Voutput YPbPr, VGA, A/V composite and analog audio output. 4. -
Page 6: Hard Drive Assembly
Hard Drive Assembly 1. Lift the top cover off the body. If it’s 3. Lift the frame out of the plastic casing. already locked in place, push it upwards with a thin and small item through the opening at the bottom. 4. - Page 7 5. Place the metal sheet cover over the 7. Place the assembled drive back in the drive and align it with the holes of the plastic framing, connect the cables and framing. mount it on the heat sink by fastening the screws.
-
Page 8: Computer Connection
Computer Connection System setup RMVistor automatically operates as an external USB 2.0 hard disk when connected to a PC or Macintosh. Use the included USB 2.0 cable to connect your device to the computer system. Your system will automatically recognize RMVistor as an external hard disk in which you can copy any file(s) you want (music, movie, picture, and/or data). -
Page 9: Formatting The Formatting On Apc
Formatting the HDD Formatting on a PC (Win2000/XP/Vista) Use the Disk Management Utility • Right click on “My Computer” and choose “Manage” • Select “Disk Management” • Choose the drive you want to format and right click on the Disk or drive field for further commands •... -
Page 10: Tv Connection
The TV connection is straightforward. Just connect RMVisto to your TV set (NTSC or PAL) using the included AV cable, plug the Power Supply adaptor to the DC jack on the RMVisto, and then into the electrical outlet. Under TV mode, RMVisto support USB HUB function, you can connect USB device to play media files. -
Page 11: The Remote Control
The Remote Control The RMVisto remote has all the functional capabilities to fully control your device and enjoy your multimedia files. The next figure describes each button’s function. Mute ON/OFF switch Select YPbPr video output Select HDMI video output Select VGA video output... -
Page 12: File
Menu Functionality Main Menu This is the menu (as shown in the adjacent figure) that appears when you power on your RMVisto device. You have four (6) main selections that you can access with the navigation buttons and by pressing PLAY/ENTER: •... -
Page 13: Usic
Background music RMVisto support background music playing function. Please select “FILE” mode and select one song as background music, then select to view photo. And when photo play, press “Play Mode” button in the remote control, to change different play mode. -
Page 14: Lay List
File 选 By selecting the File menu will bring the adjacent image onto your TV screen. On the left side you will see the directory list of the files organized in your device’s hard disk.. By using the navigation buttons and the PLAY/ENTER on your remote, you can select the File you want to display. -
Page 15: Setup Menu
AV button on your remote control until you see the correct output. 3. Video Resolution Set the Video reslution, depending on your display and video output mode. RMVisto support resolution up to 720P. - 14 -... -
Page 16: Ecording Setup
Set SPDIF output: None, PCM, RAW Recording setup 1. Video input Select video input: CVBS, S- VIDEO 2. Recording Quality RMVisto support recording quality: 720 x 480 352 x 480 352 x 240 The higher the recording quality, the larger the resulting video file... -
Page 17: Etwork
DHCP server or set the IP address Manually User can look through, copy or play streams on network neighborhoods through RMVisto platform, and also can visit RMVisto platform from Windows. Pressing the right key can popup the network operation menu in... -
Page 18: Recording
First, Select the TV from the main screen When TV program displays, Press the REC button on the remote control. The RMvisto start to recordIn the TV program You can press the Function button to setup more recording function. Such as: record target, hdd capacity and recording quality etc. -
Page 19: Chedule Recording
Schedule Recording RMVisto support video schedule recording function. First, Select the TV from the main screen Press the TIME REC button on the remote control. In the Edit category, select Add a new schedule and press the Enter button. Select Modify or New will show the... -
Page 20: Appendix
Wait a few seconds and your RMVisto will appear. • Done! ___________________________________ Firmware is the software stored in RMVisto Flash memory that contains the programs running in your device. These programs remain stored even when the system is switched off. - 19 -... -
Page 21: Pecifications
Specifications Supported music files MP3, WMA, AAC，OGG Available audio outputs Stereo analogue audio, digital audio RM, RMVB MPEG-1 (AVI, MPG, DAT，ASF), MPEG-2 (AVI, VOB) Supported video files MPEG-4 (AVI, DivX, XviD，ASF，MKV). H.264(720*576)，FLV(Vp6) HD720P:DivX&XviD，MPEG2-TS， WMV9 NTSC/PAL composite YPbPr Available Video outputs HDMI(up to 720P) Available video outputs JPG/BMP/ PNG/GIF... - Page 22 FAQs Q: Can I connect the AV out from my TV directly to the AV in on the RMVisto and record? A: Yes, this is possible, however the media player does not have a built in TV tuner, so it can only record whatever signal is currently being transmitted.
-
Page 23: Bout This Manual
About this manual This manual covers all versions and combinations for the RMVisto media adapter. Images, descriptions and firmware functions may slightly vary between this manual and the actual product you have. Visit our website at www.datastorage.com.cn for the latest firmware upgrades and download this manual in PDF format.
