Crestron Isys MTX-3 Do Manual

DO GUIDE
MTX-3
Isys 2.8" Handheld Wireless Touch Screen with infiNET EX
®

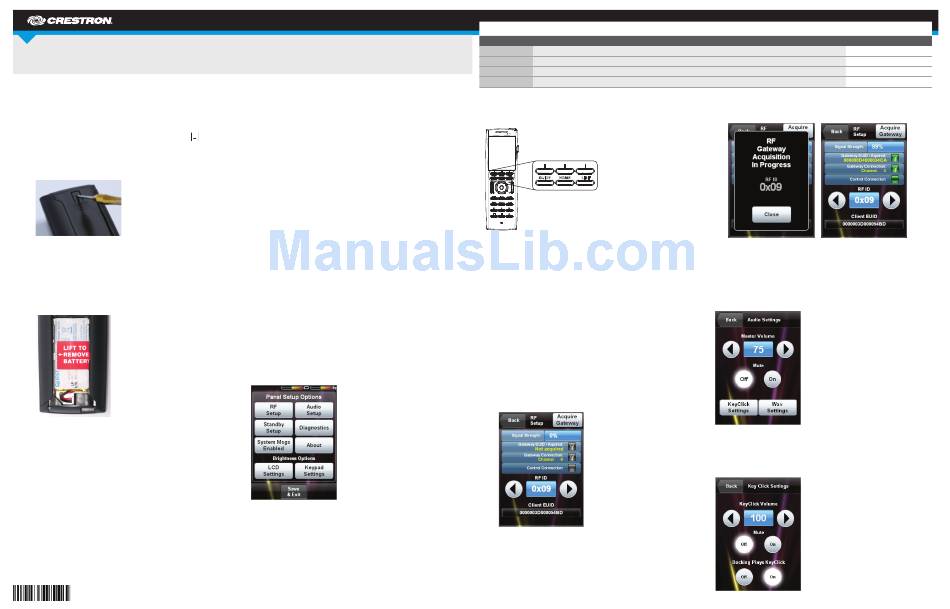

DO Install the Battery
Perform the following procedure to install the battery pack in a Crestron
Isys MTX-3 touch screen:
®
1. Place the MTX-3 screen side down on a clean, soft surface.
2. Remove the battery compartment cover on the rear of the touch
screen. If the battery compartment cover has a cutout
bottom, insert a small screwdriver into the hole in the center of the
cutout and pry the tab upward slightly. Then slide the cover off. (If
there is no cutout, simply slide the cover off to open the battery
compartment.)
3. Carefully connect the multipin connector of the battery with the
corresponding connector inside the battery compartment. The pin
side of the connector should face toward the rear of the touch screen.
The red wires should be closer to the top of the touch screen than the
black wires. Ensure the connector is fully seated.
4. Place the battery in the compartment. The battery should be oriented
so that the wires for the multipin connector are on the bottom.
5. Reattach the battery compartment cover.
DO Charge the Battery
To charge the battery pack, the MTX-3 must be placed on the included
MTX-3-DS docking station. Connect the included power pack to the
MTX-3-DS.
NOTE: Before using the MTX-3 for the first time, charge its battery for at
least two hours by placing it on the MTX-3-DS docking station. The green
LED on the front of the MTX-3 blinks while the battery is charging.
NOTE: When not in use, the MTX-3 should be stored on its docking
station.
®
DO Optimize Battery Performance
For optimum performance after shipping or any time the unit's power has
®
been off for an extended period of time, Crestron recommends performing
the following procedure on the Isys MTX-3:
1. Place the unit on its docking station and connect ac power.
near the 2. Allow the unit to charge completely. (The green LED should be
steadily on for 15 minutes.)
3. Remove the touch screen from the docking station.
4. From the Panel Setup Options menu, touch Diagnostics, and then
touch Battery Diags to go to the Battery Diagnostics screen. Touch
Recondition Battery, and then touch YES, Recondition Battery to
confirm (refer to "Battery Diagnostics").
5. Wait for the unit to shut off. This takes approximately five hours. Leave
the unit off the docking station the entire time. During this operation,
the Battery Reconditioning screen is displayed until the unit shuts
off.
6. Place the unit back on the docking station and allow it to charge
completely. After charging, the unit is ready for normal operation.
In order to maximize battery life, use the following settings:
• From the main setup screen, touch Standby Setup to enter the
Standby Timeouts screen (refer to "Set Up Standby Timeouts"). Use
an Undocked Standby setting of 30 and an Undocked Power Off
setting of 45.
• From the main setup screen, touch LCD Settings to enter the
Display Settings screen (refer to "LCD Settings"). Use an Undocked
Brightness setting of 50.
DO Access the Panel Setup Options Menu
The Panel Setup Options menu is the starting point for configuring the
MTX-3. When power is applied to the device for the first time, touch the
screen to display the Panel Setup Options menu.
NOTE: The USB port for loading projects and upgrading firmware is
located behind the battery compartment cover on the rear of the unit.
DO Check the Box
QUANTITY PRODUCT
1 MTX-3-DS Docking Station
1 PW-0510WU Power Pack
1 MTX-3-BTP Battery
1 USB 2.0 A to Mini B Cable
NOTE: During regular operation of the touch screen, activate the setup
functions by pressing hard keys 1, 2, 3, and 4 in sequence twice (i.e., press
1, 2, 3, 4, 1, 2, 3, 4) within a 5 second period.
1 2 3
4
DO Acquire the Touch Screen
Before the MTX-3 can be used, it must be acquired by a CEN-RFGW-EX
gateway (sold separately) that is connected to an infiNET EX ® system.
NOTE: An infiNET EX device can be acquired by only one gateway.
NOTE: Once the acquire process has started, the MTX-3 is no longer
associated with any gateway. If the CEN-RFGW-EX gateway fails to
acquire the MTX-3 for any reason, the MTX-3 does not reassociate with the
previous gateway. The acquire process should be restarted.
To acquire the MTX-3, perform the following procedure:
1. Put the CEN-RFGW-EX in Acquire mode by pressing the ACQUIRE
button (on the unit itself or from Crestron Toolbox™, as described
in the CEN-RFGW-EX infiNET EX Gateway Operations & Installation
Guide, Doc 6706, at www.crestron.com/manuals). The gateway's
ACQUIRE LED lights.
2. From the Panel Setup Options menu, touch RF Setup, and then put
the MTX-3 in Acquire mode by touching Acquire Gateway.
3. When the Confirm Acquire screen is displayed, touch YES, Acquire
New Gateway to begin the process.
PART NUMBER
4512524
2028121
4508331
2025146
The RF Gateway Acquisition In Progress screen is displayed. When
the acquire process is complete, the RF Setup screen shows the
gateway's EUID, the channel number, and RF ID.
4. Take the CEN-RFGW-EX out of Acquire mode by pressing its
ACQUIRE button.
DO Set Up the Audio
From the Panel Setup Options menu, touch Audio Setup to control the
volume, key click settings, and .wav settings.
Key Click Settings
Touch Key Click Settings to control key click volume and to turn the key
click sound that plays when docking on and off.
