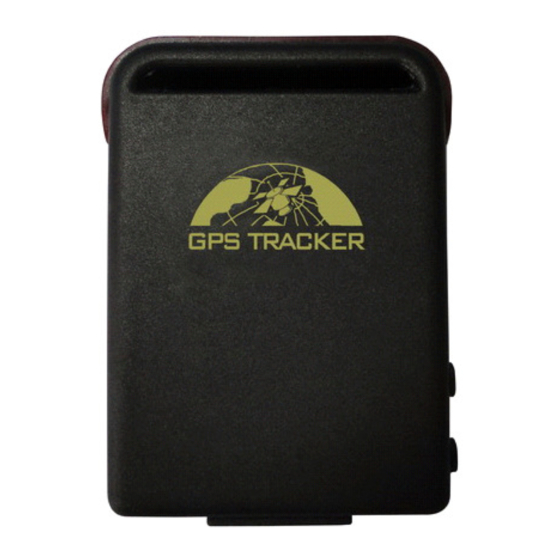

GSM/GPRS/GPS TRACKER
OPERATIONAL MANUAL
SBGPS-TK102
About this Document:
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and
correctly. Make sure to read this manual carefully before using this product. Please note that
specification and information are subject to changes without prior notice. Any change will be
integrated in the latest release. Either manufacturer or the supplier assumes no responsibility for any
errors or omissions in this document.
Advertisement
Table of Contents
Summary of Contents for SNOWBEAN SBGPS-TK102

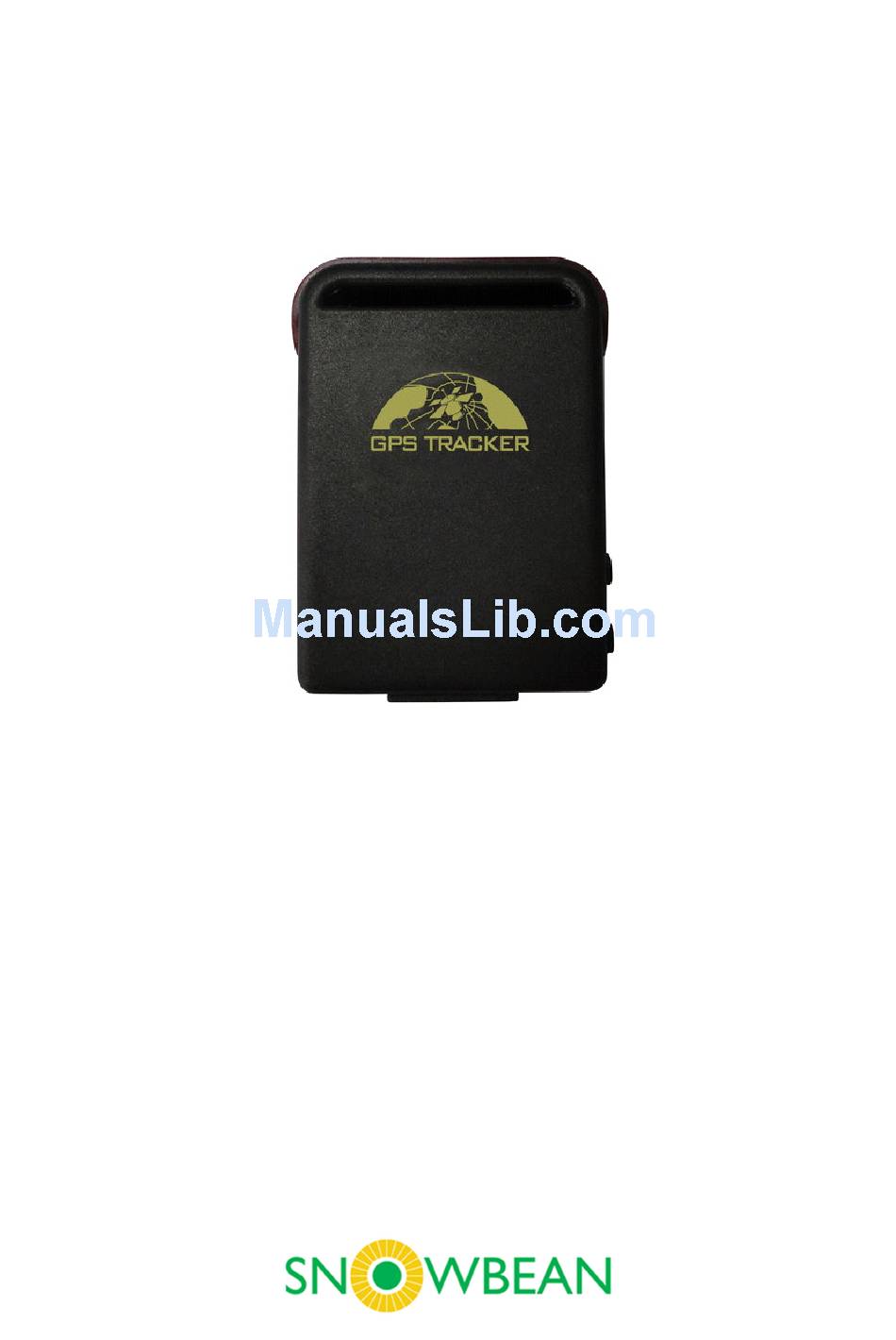

- Page 1 GSM/GPRS/GPS TRACKER OPERATIONAL MANUAL SBGPS-TK102 About this Document: Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice. Any change will be integrated in the latest release.
- Page 2 SNOWBEAN SOLUTIONS A registered business in Australia, ABN: 90 802 577 006 Mail: PO Box 770, Ryde, NSW 1680, Australia Phone: +61 2 8006 1002 Facsimile: +61 2 8006 1004 Contact Snowbean: General Enquiry: info@snowbean.com.au Sales Enquiry: sales@snowbean.com.au Technical Support: support@snowbean.com.au...
-
Page 3: Table Of Contents
Table of Contents LIST OF ACRONYM ........................4 SUMMARY ............................5 APPLICATIONS ..........................5 HARDWARE DESCRIPTIONS ....................... 5 TECHNICAL SPECIFICATIONS ..................... 5 GETTING STARTED ........................6 6.1. SIM CARD INSTALLATION ......................6 6.2. BATTERY AND CHARGER: ....................... 6 6.3. START-UP ........................... 7 6.4. -
Page 4: List Of Acronym
6.27. GPRS AND SERVER SETTING .................... 13 6.28. LESS GPRS TRAFFIC: ......................14 6.29. MODES SWITCH BETWEEN “SMS” AND “GPRS”: ............14 6.30. SETUP MONITOR CENTRE NUMBER: ................14 WEB/SERVER AND PC BASED TRACKING SOFTWARE/PLATFORM: ........14 CAUTIONS ............................ 15 BASIC TROUBLESHOOTING ...................... -
Page 5: Summary
1. Summary Working based on existing GSM/GPRS network and GPS satellites, SBGPS-TK102B can locate and monitor any remote targets by SMS or internet. This is the upgraded version of TK102, which has larger built-in memory and support SD card memory up to 2GB,When the tracker devices lost GSM signals or fall offline from GPRS, tracker will store the tracking position and alerts automatically in the flash upon the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorised numbers or monitoring platform (server), but the stored tracking data should be loaded... -
Page 6: Getting Started
GPS chip SiRF3 chip GPS Sensitivity -159 dBm GPS Accuracy Time To First Fix Cold Status: 45s, Warm Status: 35s, Hot Status: 1s Car Charger Input: 12—24V, Output: 5V Wall Charger Input: 110 2 20V, Output: 5V － Battery Chargeable changeable 3.7V 800mAh Li-ion battery Standby 80 hours Storage Temperature... -
Page 7: Start-Up
5.3. Start-up Put the SIM card and battery in place. Turn on the unit outdoors by pressing the “on/off” button until the indicator is on. For first use, please initialize the unit and restore it to default setting. (Please refer to 5.4 for instruction.) In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. -
Page 8: Single Location Track
De-authorise a phone number: Send SMS “ NOADMIN+PASSWORD+SPACE+AUTHORISED ： NUMBER” to delete the authorised number. Note: This better to add country code ahead of the cell phone number, for example, please send ： “ADMIN123456 +61444333222” to tracker to set 0444 333 222 as an authorised number. 5.7. -
Page 9: Location Based Service (Lbs)
SD card (maximum 2GB). The logged data can be copied to computer via the USB cable. The route of the stored data can be seen by importing data in the menu “Data Import” of web platform http://gts.snowbean.com.au/ 5.14. Data Load Current date Load: Send SMS: “load+ password”... -
Page 10: Shock Sensor Alarm
For Example: send SMS: “load123456 20110425” to the tracker device, means to load the tracking data of 25th April 2011 to monitoring platform. 5.15. Shock Sensor Alarm Setup: Shock sensor alarm is deactivated in default settings. If needed, please send an SMS “SHOCK+PASSWORD”... -
Page 11: Movement Alert
Cancel: Send SMS: “NOSTOCKADE+PASSWORD” to deactivate this function. 5.17. Movement alert Set up: when the unit stays immobile in a place for 3-10 minutes with GPS signal reception, the user can send SMS“move+password+space+0200” to the tracker (Suppose area of a radius of 200 meters, it supports 4 digits at most. -
Page 12: Sleep Mode
5.21. Sleep Mode Sleep by time: Send "sleep+password+space+time", tracker will reply "sleep time ok" if none of the alarms listed under chapter IV has been set and no operations, tracker will fall asleep in 5 minutes, LED will be off, calling or SMS can awake the tracker. If these alarms have been set, tracker will enter sleep by detecting shock sensor. -
Page 13: Configure Parameters By Usb
5.26. Configure parameters by USB: Find the USB cable in the package to connect tracker with computer, open the memory of the tracker, find and open the initial configuration file with notepad “user_config.ini”, operate according to the instructions. Note: Correct password is required every time you configure the tracker. For detailed instructions, please refer to the “102 USB configuration user manual”... -
Page 14: Less Gprs Traffic
Note: If monitor centre number doesn’t setup, auto track messages will be sent to the cell phone which send this command. 6. Web/Server and PC based tracking software/platform: Web based platform http://gts.snowbean.com.au/ Configuration IP: 202.104.150.75 Port: 9000. Please check “software platform user manual” included in the CD for detailed operation information. Figure: Server based tracking platform. -
Page 15: Cautions
GPS module retail box to get the login credentials. Note: We set the tracker to send the location info in every 30 sec and tested the data received at the server end. So it took around 100 byte per info. So, for continuous tracking mode (30 sec interval @... -
Page 16: Basic Troubleshooting
Please make sure SIM Card is GSM Net and installed correctly; also call No GSM Signal display should be on; but no call transfer and PIN code off. 9. More Information Thank you for your attention! SNOWBEAN SOLUTIONS Mail: PO BOX 770, NSW 1680 Phone: (02) 8006 1002 Email: support@snowbean.com.au...
