LEHR LP9.9 S Operator's Manual

LEHR LP9.9 S Operator's Manual

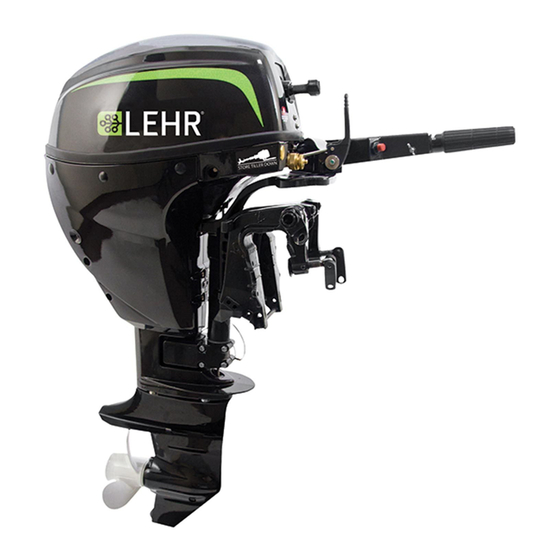

Propane powered outboard marine engine 9.9 hp

Advertisement

9.9 HP
MODELS:
LP9.9 S
LP9.9 L
LP9.9 ES
LP9.9 EL
LP9.9 ERS
LP9.9 ERL
CAUTION: BEFORE OPERATING THIS PRODUCT,
READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.

TABLE OF CONTENTS

Important Manual Information....................................................1
General Information.........................................................................2
Installation............................................................................................7
Operation..............................................................................................8
Maintenance......................................................................................13
Troubleshooting...............................................................................21
Warranty..............................................................................................25
OPERATOR'S MANUAL
PROPANE POWERED
OUTBOARD MARINE ENGINE
THIS PRO
PRODUCT,
Y RULES AN
AND
FOR SERVICE
Call 1-866-941-LEHR (5347)
WARNING:
THIS PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM.
LEHR
LEHR
|
|
ALL RIGHTS RESERVED 2010-2011
ALL RIGHTS RESERVED 2013-2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the LP9.9 S and is the answer not in the manual?

Questions and answers

Summary of Contents for LEHR LP9.9 S

  • Page 1: Table Of Contents

    OPERATOR’S MANUAL PROPANE POWERED OUTBOARD MARINE ENGINE 9.9 HP MODELS: LP9.9 S LP9.9 L LP9.9 ES LP9.9 EL LP9.9 ERS LP9.9 ERL CAUTION: BEFORE OPERATING THIS PRODUCT, THIS PRO PRODUCT, READ AND FOLLOW ALL SAFETY RULES AND Y RULES AN OPERATING INSTRUCTIONS.
  • Page 2 UNDERSTANDING PROPANE SAFETY WARNINGS FOR PROPANE UNITS NOTE: FIRE/EXPLOSION HAZARD NOTE: Use propane only in tanks specifically designed Propane tanks contain enough gas to cause serious fire, and approved for this unit. Propane is a combustible explosion, and burns. To reduce chance of leak, fire, or gas, it is colorless and thus invisible to the naked eye.
  • Page 3: Important Manual Information

    LEHR propane outboard engine. Understanding and following these instructions will help you get the most trouble free use from your LEHR propane outboard. If you have any questions about operation or maintenance of your outboard motor please contact LEHR at1-866-941-LEHR (5347).
  • Page 4: General Information

    Never pour oil without using a funnel or similar device. If necessary, verify the necessary replacement procedure with the dealer. Never illegally discard (dump) propane tanks. Consult your local city recycling center on discarding empty propane tanks. LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 5 The outboard motor serial number is stamped on the label attached to the clamp bracket. Record your outboard motor serial number, you will need it when ordering spare parts from your LEHR dealer or for reference if your outboard motor is stolen.
  • Page 6 GENERAL INFORMATION PROPANE TANK Use of a LEHR Liquid Draw propane tank is recommended. A DOT approved propane tank may be used, however extended use at high RPM may result slowed engine performance. Connect the tank to the remote propane connector with the provided high pressure propane hose.
  • Page 7 To increase resistance, turn the adjuster bolt clockwise. To decrease resistance, turn the adjuster bolt counterclockwise. WARNING: Do not overtighten the friction adjuster. If there is too much resistance, it could be difficult to steer, which could result in an accident. LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 8 LEVER CARRYING HANDLES Carrying handles are provided on the front and rear of the outboard motor. The handles enable you to carry the outboard motor easily with two hands. FRONT REAR CARRYING CARRYING HANDLE HANDLE LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 9: Installation

    Otherwise the engine could be completely lost if it accidentally falls off the transom. ATTACH ONE END OF THE RESTRAINT CABLE THROUGH THIS CLAMP MOUNT AND ONE END SECURELY ON THE BOAT LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 10: Operation

    ADD OIL BEFORE STARTING ENGINE. FUEL Use a LEHR Liquid Draw propane tank or any DOT approved propane tank. Check to be sure you have plenty of fuel for your trip. Make sure there are no fuel leaks or propane fumes.
  • Page 11 PROPANE HOSE LEFT HAND TURN THREADS LEHR LIQUID DRAW PROPANE TANK NOTE: When a new hose from a propane tank is being used, it may take a few seconds for the propane to flow to reach the engine. The engine may start and then die, or not start immediately. A few extra pulls of the starter are usually sufficient for the flow to reach the engine.
  • Page 12 Place the gear shift lever in neutral. The engine is equipped with a neutral safety switch, which will prevent the starter to engage if the engine is in gear. Place the throttle in the start position. Press the start button and release after the engine is running. START BUTTON LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 13 Test the boat with the trim set to different angles to find the position that works best for your boat and operating conditions. TRIM ROD NOTE: The outboard motor trim angle can be changed approximately 4 degrees by shifting the trim rod one hole. LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 14 WARNING: Be sure all people are clear of the outboard motor when tilting up and down, also be careful not to pinch any body parts between the drive unit and engine bracket. Follow the procedures in “Tilt Lock Mechanism” on pg 6 for tilting the engine up and down instructions. LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 15: Maintenance

    Do not place the outboard motor on its side before the cooling water has drained from it completely, otherwise water may enter the cylinder through the exhaust port and cause engine trouble. Store the outboard motor in a dry, well ventilated place, not in direct sunlight. LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 16 6. Remove the out board motor from the test tank. 7. Wipe the water off the powerhead. Install the top cowling. 8. Drain the cooling water completely out of the motor. Clean the body thoroughly. WATER SURFACE LOWEST WATER LEVEL ANTI-CAVITATION PLATE LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 17 REPLACEMENT PARTS If replacement parts are necessary, use only genuine LEHR parts or parts of the same type and of equivalent strength and materials. Any part of inferior quality may malfunction, and the resulting loss of control could endanger the operator and passengers.
  • Page 18 Oily or dark color ceramic could indicate a malfunction. Do not attempt to diagnose any problems yourself. Instead, take the outboard motor to a LEHR dealer. You should periodically remove and inspect the spark plug because the electric arcing will cause the spark plug to slowly erode and the gap will increase.
  • Page 19 If you have difficulty verifying the idle speed, or the idle speed requires adjustment, consult a LEHR dealer or other qualified mechanic. 2. Verify whether the idle speed is set to specification (1050 + 150 RPM). Adjust the speed by turning the idle speed screw with a phillips head screw driver.
  • Page 20 1. Straighten the cotter pin and pull it out using a pair of pl iers. 2. Remove the propeller nut and washer. 3. Remove the propeller and thrust washer. 1. COTTER PIN 2. PROPELLER NUT 3. WASHER 4. PROPELLER 5. THRUST WASHER 6. PROPELLER SHAFT AND SPLINES LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 21 PROPELLER SELECTION Your LEHR outboard engine is supplied with a propeller that matches the needs of a boat most suited to an engine of its size. If you feel you are not getting optimal performance from the engine on your boat, a different pitch propeller could help.
  • Page 22 7. Insert and tighten the gear oil drain screw. INSPECTING AND REPLACING ANODES LEHR outboard motors are protected from corrosion by sacrificial anodes. Inspect the anodes periodically. Remove scales from the surfaces of the external anode. Do not paint the external anode, as this would render it ineffective.
  • Page 23: Troubleshooting

    A: Inspect spark plug. Clean gap, adjust to correct gap or replace with recommended type. Q: Is the Idle speed set correctly? A: Adjust Idle screw or have serviced by LEHR dealer. Q: Are fuel joints connected correctly? A: Check for any leaks or smell of propane. Tighten any loose fittings. Replace any faulty fuel lines or connectors.
  • Page 24 Q: Is ignition wire damaged or poorly connected? A: Check wires for wears and breaks. Q: Have electrical wires failed? A: Have serviced by a LEHR dealer. Q: Is propeller damaged? A: Have propeller repaired or replaced. Q: Is propeller shaft damaged? A: Have serviced by a LEHR dealer.
  • Page 25 6. Give a strong pull out to crank and start the engine. Repeat if necessary. PROCEDURE FOR SUBMERGED MOTOR If the outboard motor has been submerged, immediately take it to a LEHR dealer. Some corrosion may begin almost immediately. If you cannot immediately take the outboard to a dealer, follow the procedures below in order to minimize engine damage.
  • Page 26: Specifications

    17.7 ft lb (24.0 N m) OIL DRAIN PLUG TORQUE SPEC *ALL SPECIFICATIONS ARE BASED ON THE LATEST PRODUCT INFORMATION AT THE TIME OF PRINTING. WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE. LEHR ALL RIGHTS RESERVED 2013-2014...
  • Page 27: Warranty

    MANUFACTURER’S LIMITED WARRANTY The limited warranty set forth below is given by LEHR with respect to new merchandise purchased and used in the United States and Canada, its possessions and territories. LEHR warrants to the original purchaser that each new LEHR brand outboard is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective product or attachment as follows from the original date of purchase.
  • Page 28 (d) Emission Warranty Parts List. The following components are included in the emission related warranty of the engine: Carburetor, Fuel Lines & Fittings, Ignition Coil, Spark Plug, Valves, and Cam. LEHR will furnish with each new engine written instructions for the maintenance and use of the engine by the owner.
  • Page 29 NOTES LEHR ALL RIGHTS RESERVED 2012-2013...
  • Page 30 Inboard marine engine 2009 exhaust emission standards. Personal Watercraft and Outboard marine engines may also comply with these standards. Engines meeting these standards have 90% lower emissions than One Star – Low Emission engines. LEHR INC. 8922 ELLIS AVE LOS ANGELES, CA 90034 1-866-941-LEHR Cleaner Watercraft –...
