DISCONNECT POWER BEFORE SERVICING
WARNING:
DESUNA LA ELECTRICIDAD ANTES DE HACER REPARACIONES

INSTALLATION INSTRUCTIONS

1. Remove cover by removing (2) tamper proof-screws using security wrench
supplied. Pull cover directly toward you. IMPORTANT: Save security wrench.
2. Dryers should be placed at least 2 feet (61cm) apart and at least 12" (30cm) from wash-
basin. Do not install dryer over washbasin. Automatic dryers should be at least 18" (46cm)
above any projection which may interfere with the operation of the automatic sensor.
Hold the backplate to the wall at the suggested MAXIMUM mounting height. Measure
from bottom edge of backplate to the floor (Ref. Dimension "A", Fig. 1):
MEN
WOMEN
44" (112cm)
42" (107cm)
3. Mark the locations of the four mounting holes and the conduit entrance location on the
wall. (The conduit entrance is the proper hole diameter for 1/2 inch (13mm) conduit.)
4. Fasten the backplate to the wall where previously marked.
RECOMMENDATION:
Wood wall – No. 14 (M6) wood screws, 2 3/4" (70mm) long
Cement or brick – 1/4" (M6) stud expansion bolts, 3" (76mm) long
Hollow wall – 1/4" (M6) toggle bolts, length depends on wall thickness
5. Run service wire to the dryer location and connect to lead wires.
IMPORTANT: All units must be supplied with 3 wire service. Use No. 12 or 14 wire as
required by local electrical code. The ground wire must be connected to the dryer ground
screw. Unit must be installed by a qualified licensed electrician.
CONNECT TO A DEDICATED CIRCUIT NOT TO EXCEED 20 AMPS.
Dryers located in shower rooms or other wet locations should be equipped with ground
fault interrupter(s).
6. Carefully replace the cover using (2) tamper-proof screws supplied. Apply a bead of caulk
around edges of cover to wall.
7/16
8 15/16
(11mm)
(227MM)
6 3/16
(208mm)
8 7/16
7/16
(214mm)

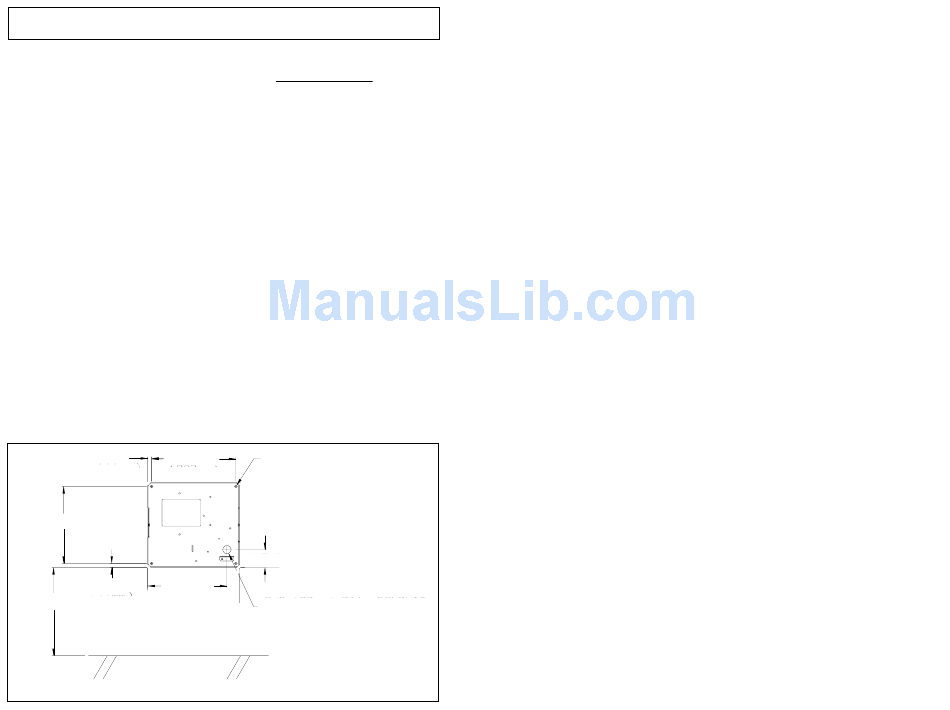

"A"
(11mm)
FLOOR
F
1 - D
M
igure
ryer
ounting
CHILDREN
(depends on age)
DISABLED
32 to 42" (81-107cm)
36" (91cm)
MOUNTING HOLES FOR
1/4" (M6) DIA. SCREWS
1 7/8
(48mm)
7/8 (22mm) DIA. IN-WALL
& SURFACE CONDUIT
ENTRANCES
O
'
M
X
wner
s
anual e
treme
Revised September 2008
