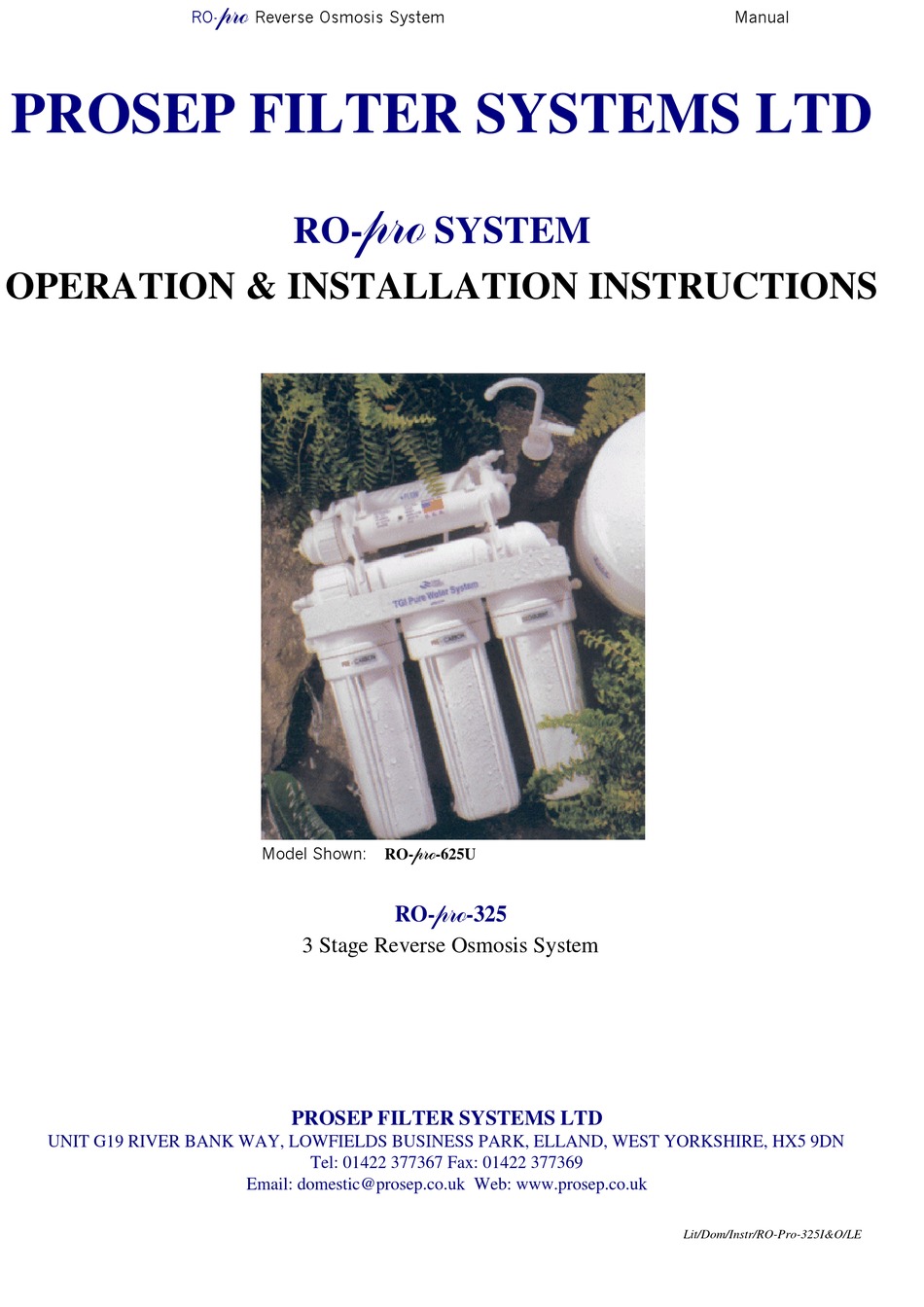

pro
RO-
Reverse Osmosis System
Manual
PROSEP FILTER SYSTEMS LTD
pro
RO-
SYSTEM
OPERATION & INSTALLATION INSTRUCTIONS
pro
Model Shown:
RO-
-625U
pro
RO-
-325
3 Stage Reverse Osmosis System
PROSEP FILTER SYSTEMS LTD
UNIT G19 RIVER BANK WAY, LOWFIELDS BUSINESS PARK, ELLAND, WEST YORKSHIRE, HX5 9DN
Tel: 01422 377367 Fax: 01422 377369
Email: domestic@prosep.co.uk Web: www.prosep.co.uk
Lit/Dom/Instr/RO-Pro-325I&O/LE
Advertisement
Table of Contents
Related Manuals for PROSEP FILTER SYSTEMS RO-pro-325
Summary of Contents for PROSEP FILTER SYSTEMS RO-pro-325
- Page 1 Reverse Osmosis System Manual PROSEP FILTER SYSTEMS LTD SYSTEM OPERATION & INSTALLATION INSTRUCTIONS Model Shown: -625U -325 3 Stage Reverse Osmosis System PROSEP FILTER SYSTEMS LTD UNIT G19 RIVER BANK WAY, LOWFIELDS BUSINESS PARK, ELLAND, WEST YORKSHIRE, HX5 9DN Tel: 01422 377367 Fax: 01422 377369 Email: domestic@prosep.co.uk Web: www.prosep.co.uk...
-
Page 2: Table Of Contents
Fitting the Saddle Tapping Valve Fitting the Tank Ball Valve Mounting the Drain Clamp System Start Up Filter Maintenance and Cartridge Change Instructions Trouble Shooting PLEASE NOTE: PROSEP Filter Systems Ltd reserve the right to alter the specifications of this product without prior notice... -
Page 3: Checklist
Reverse Osmosis System Manual CHECK LIST: TGI Reverse Osmosis System. Water Storage tank, (2.8 gallon @ 40psi). Four coloured tubing (black, blue, red, yellow) 1/4” OD (some supplied 3/8” OD), 4’ each colour. Installation kit: tank ball valve, drain saddle tap valve, feed water valve, tap assembly. Manual. -
Page 4: Replacement Parts
Reverse Osmosis System Manual -325 FILTRATION PROCESS SPECIFICATIONS: 1st Stage: Carbon Block Pre-Filter Cartridge 2nd Stage: TFC Membrane 25 GPD 3rd Stage: Granular Activated Carbon Post-Filter Cartridge Auto shut off valve Operating Pressure: 40-120 PSI Operating Temperature: 40 - 110 deg. F Recovery Rate: 20-25% REPLACEMENT PARTS:... -
Page 5: Fitting The Tap
Reverse Osmosis System Manual FITTING INSTRUCTIONS: Fitting The Pre-Plumbed RO System Use the bracket as a template to mark the position of the unit on a suitable wall or cupboard panel. Allow a minimum of 40mm clearance below the filter bowls to allow for filter change out. Drill and plug two holes and screw in 2 screws (not supplied) allowing the screw heads to protrude from the wall by approx. -
Page 6: System Start Up
Reverse Osmosis System Manual SYSTEM START UP: Turn on the cold water supply at the stopcock and turn the cross piece on the saddle tap valve anti-clockwise to open. Close the tank ball valve. Open the tap for continuous flow (Lever Up). Check the system for leaks, tighten as necessary. - Page 7 Reverse Osmosis System Manual FILTER MAINTENANCE AND CHANGE INSTRUCTIONS: This recommendation is intended for maximum efficiency of RO water production by your system. Filter Maintenance It is OK to put pre & post filters of the shelf for several years. Keep the sealed, non-opened filter in an air tight container to prevent it from absorbing contaminants from the air.
-
Page 8: Trouble Shooting
Reverse Osmosis System Manual TROUBLE SHOOTING Note: Turn off the system before servicing PROBLEM CAUSE SOLUTIONS Air in the system is a normal occurrence with initial startup of the RO System. This milky Milky coloured water Air in system look will disappear during normal use within 1 to 2 weeks.
