INSTRUCTION MANUAL

All-In-One GSM Home Alarm System

SB-SP7200-GSM

Revised: August 28, 2014

Table of Contents

Need help?

Do you have a question about the SB-SP7200-GSM and is the answer not in the manual?

Questions and answers

Summary of Contents for SB SB-SP7200-GSM

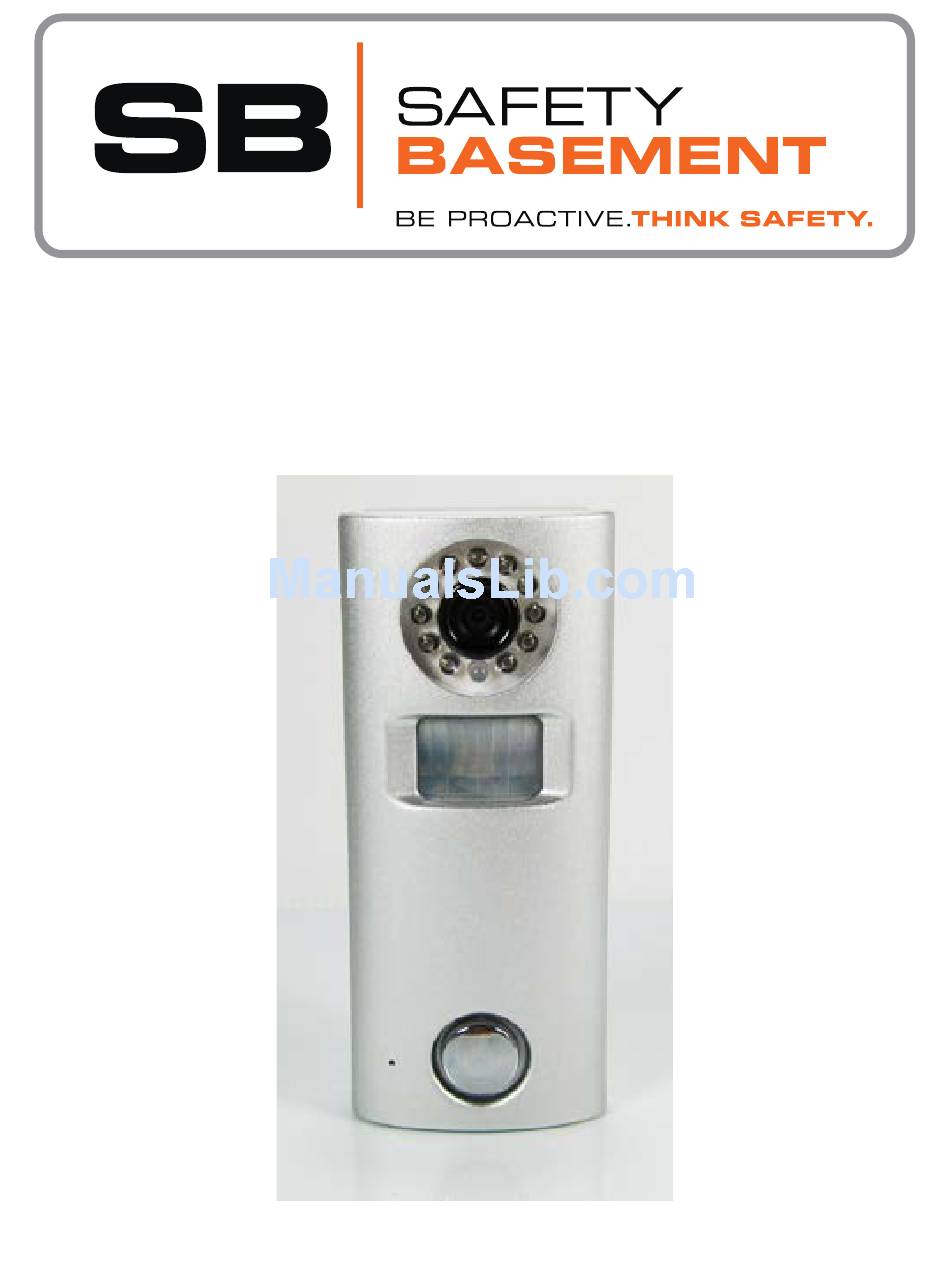

Page 1 INSTRUCTION MANUAL All-In-One GSM Home Alarm System SB-SP7200-GSM Revised: August 28, 2014...
Page 2: Product Reference
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM PRODUCT REFERENCE MOUNTING PIR / MOTION MAIN UNIT POWER ACCESSORIES DETECTION ADAPTER UNIT MOUNTING (2) DOOR / REMOTE USB CABLE ACCESSORIES WINDOW CONROL UNITS Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
Page 3 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM PRODUCT REFERENCE IR LIGHTS SOLAR PANEL CAMERA LENS STATUS LIGHT MOTION SENSOR LIVE LISTENING SIREN SPEAKER MICROPHONE STATUS LIGHT SLOW BLINK Device is searching for cellular signal FLASHES 3 TIMES EVERY Connected to cellular signal 2.5 SECONDS...
Page 4: Adapter Connection
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM PRODUCT REFERENCE BACK OF MAIN UNIT (BACK COVER REMOVED) MICRO SD CARD SLOT SIM CARD SLOT LEARN BUTTON BOTTOM OF MAIN UNIT (BACK COVER REMOVED) ADAPTER ON/OFF CONNECTION SWITCH...
Page 5 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM INTRODUCTION Your GSM Alarm System uses text messages to communicate with you. This requires sending the unit particular codes. We have put together a list of codes at the end of this manual, but for now, please follow the instructions in order so that you may best understand how the system works.
Page 6: Install The Sd Card
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM INSTALL THE SD CARD 1. Use your Phillips head screwdriver to remove the screw from the bottom of the main unit. 2. Remove the back of the main unit.
Page 7: Install The Sim Card
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM INSTALL THE SIM CARD 1. Use your fingernail to slide the lock gate UP. It will click into place when UNLOCKED. 2. Raise the lock gate. Slide UP to UNLOCK 3.
Page 8: Status Light
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM POWER & CELLULAR SIGNAL Insert the power adapter plug into the Main Unit. The Charging Light should be RED. It will remain red for some time until the backup battery is fully charged.
Page 9: Check The Time
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM CHECK THE TIME Your SIM Card has a phone number. You will need this phone number to text or call your GSM Alarm System. Please write this number down. When using the phone number, you will enter an 11 digit number, such as 12345551234.
Page 10: Set The Time
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM SET THE TIME We may need to set the time of day. Remember, the alarm uses a 24 hour clock, military time. 258000#03*1700# Send this text to the phone number of your SIM card.
Page 11: Change The Password
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM WHO GETS THE ALERTS? The system can send alert texts to 1-5 numbers. Let’s set up your first number now. You can go back later to set up additional numbers. Remember to enter your full 11 digit phone number.
Page 12: Learn Button
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM CONNECT A WINDOW SENSOR MAGNET SENSOR LEARN BUTTON PULL BATTERY TAB We’re going to connect a sensor, then name it. You will follow this guide for each sensor device you want to add.
Page 13 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM NAME A SENSOR Each sensor can have a name. We are going to name this Window Sensor “Side Door. ” It’s Sensor #1 out of 8 possible sensors. Device # 01-08. In this example, we are setting the name for Device #01.
Page 14: On/Off Switch
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM CONNECT THE PIR SENSOR LEARN BUTTON ON / OFF SWITCH 1. Be sure the On/ Off Switch is in the OFF position. 2. Remove the battery cover from the back of the PIR Sensor.
Page 15 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM NAME THE PIR SENSOR In the setup we’ve been following, the PIR Sensor was added as the 2nd device, #2. We are going to name Device #2. We’re going to place this sensor in the garage, so let’s name the device “Garage.
Page 16 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM MAIN UNIT MESSAGE The main unit will send you a default message “N2 Emergency Alarm!” You can change this message. Make sure the total number of characters in your text is under 48. Note that the Main Unit is #80.
Page 17: Silent Alarm
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM THE SIREN The siren on the Main Unit can run for 1 to 30 minutes. It can also be set to Silent Alarm. You will want to test your Siren at least once, so let’s set it for 1 minute.
Page 18 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM RESET - IF YOU NEED IT If you need to start over, are moving the system to a new location, or any other reason you need to reset all the settings in your system, use this command. It does NOT require the password.
Page 19 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM ARM BY REMOTE The Remote Control activates your Alarm System (ARM) and turns it off (CLR). We are going to turn the system on, and set off the alarm as a test.
Page 20 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM ARM VIA TEXT MESSAGE A reminder, if you’re satisfied with the siren, you might want to turn on SILENT ALARM for the remainder of testing and during your installation of your devices. Then, set the siren length for your desired time once the system is in place.
Page 21 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM ARM VIA TOUCH TONE PHONE You can Arm and Disarm your system using a standard touchtone phone, rather than a text. 1. Using a touchtone telephone, CALL the SIM number. Use the full 11 digit number.
Page 22: Set The Schedule
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM USE AN ALARM SCHEDULE You may wish to have the alarm automatically turn on at a certain time of day, and turn itself off. You can do this by setting a schedule. Keep in mind, the system uses a 24 hour / military clock.
Page 23 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM MAIN UNIT MOTION DETECTION There may be times when you want to TURN OFF the motion detection on the Main Unit. DEACTIVATE THE MOTION DETECTION DISARM Code PASS#08*0# >>OK, setting successfully...
Page 24: Check Status
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM CHECK STATUS You can check the system time, status of your alarm, the schedule, and the numbers to be texted during an alarm. SYSTEM TIME PASS#200# >>System time: 15:21...
Page 25 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM CHECK STATUS IS SYSTEM ARMED? PASS#203# >>System status: disarm LISTEN IN - LIVE MICROPHONE You can have the alarm system call you back, and you can listen live via the microphone on the Main Unit.
Page 26 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM READY! You are now ready to mount your system and use it. Your system included some basic mounting pieces. TIP! Remember, you will need to remove the Main Unit from the wall and plug it into your PC when viewing videos.
Page 27: Viewing The Video
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM VIEWING THE VIDEO The Alarm System records 640x480 video when the alarm is activated. The videos are saved as files on the SD Card you installed earlier. You can play these files back on your Windows or Mac...
Page 28: Specifications
All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM SPECIFICATIONS MAIN UNIT POWER 9V, 1A OUTPUT ADAPTER WORKING TEMP -10 - 50 C GSM FREQUENCY 850/900/1800/1900 MHZ Your GSM SIM Card may be provided by SafetyBasement. RF WIRELESS FREQUENCY...
Page 29 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM TEXT CODES Remember, each code you send to your GSM Home Alarm System must start with your PASSWORD, which is 6 digits. Then POUND, the CODE, and end with POUND. Please wait for the device to respond before sending your next code.
Page 30 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM TEXT CODES SET TEXT MESSAGE PASS#30*1*PHONE# Set the phone number of your RECEPIENT #1 phone to get text messages from the alarm. The PHONE number must be 11 digits,...
Page 31 All-In-One GSM Home Alarm & Video System Product Manual : SB-SP7200-GSM TEXT CODES POWER STATUS PASS#06*1# Turn on your power status REMINDERS - ON reminders. Recommended. POWER STATUS PASS#06*0# Turn off reminders. REMINDERS - OFF RESET EVERYTHING NO PASSCODE REQUIRED...
