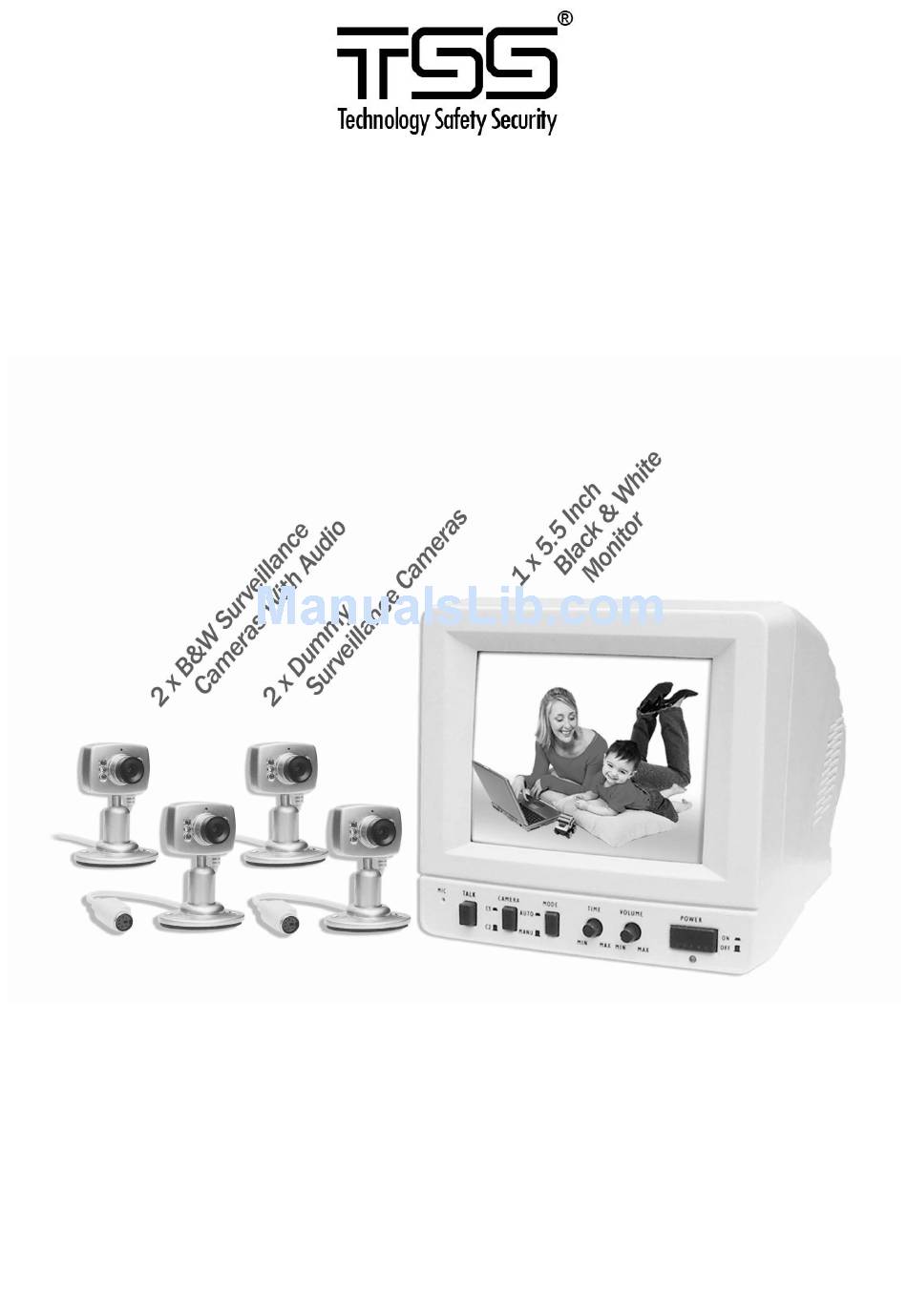

INSTALLATION MANUAL
Monitor
5.5" High Resolution CRT
Contrast Adjustment
Two Channel Camera Signal Input
Automatic Camera Switching (2~20 seconds)
350 TV Line Resolution
12-15VDC Operational Voltage
MODEL: DIYCAM2B
V1.0
Camera
Compact Mini Camera
Sturdy Design with Metal Housing
CMOS Black and White Sensor
0.5 LUX Sensitivity
Swivel Bracket
Advertisement
Table of Contents
Summary of Contents for TSS DIYCAM2B
- Page 1 INSTALLATION MANUAL V1.0 MODEL: DIYCAM2B Monitor Camera 5.5” High Resolution CRT Compact Mini Camera Contrast Adjustment Sturdy Design with Metal Housing Two Channel Camera Signal Input CMOS Black and White Sensor Automatic Camera Switching (2~20 seconds) 0.5 LUX Sensitivity 350 TV Line Resolution...
-
Page 2: Package Contents
Package Contents Before commencing installation, please ensure you have all the parts listed above. Installation 1. Connect cameras to the supplied camera leads and then connect to the camera inputs on the back of the monitor. 2. Connect power supply to a power point and connect the lead to the DC 12V IN connector on the back of the monitor. 3. -
Page 3: Safety Information
Operation Microphone Not Used Talk button Not Used Camera Selection Switch This switch controls what camera is displayed when the Mode Selection Switch is set to manual: Depressed – Display Camera 1 Raised – Display Camera 2 Mode Selection Switch When set to Auto (button depressed) the cameras will automatically switch between each other. - Page 4 Limited Warranty TSS (Seller) warrants its products to be in conformance with its own plans and specifications and to be free from defects in materials and workmanship under normal use and service for twelve months from the date of original purchase. Sellers obligation shall be limited to repairing or replacing, at its option, free of charge for materials or labor, any part which is proved not in compliance with Sellers specifications or proves defective in materials or workmanship under normal use and service.
